Toyota COROLLA 侧梁 — Figure 6101

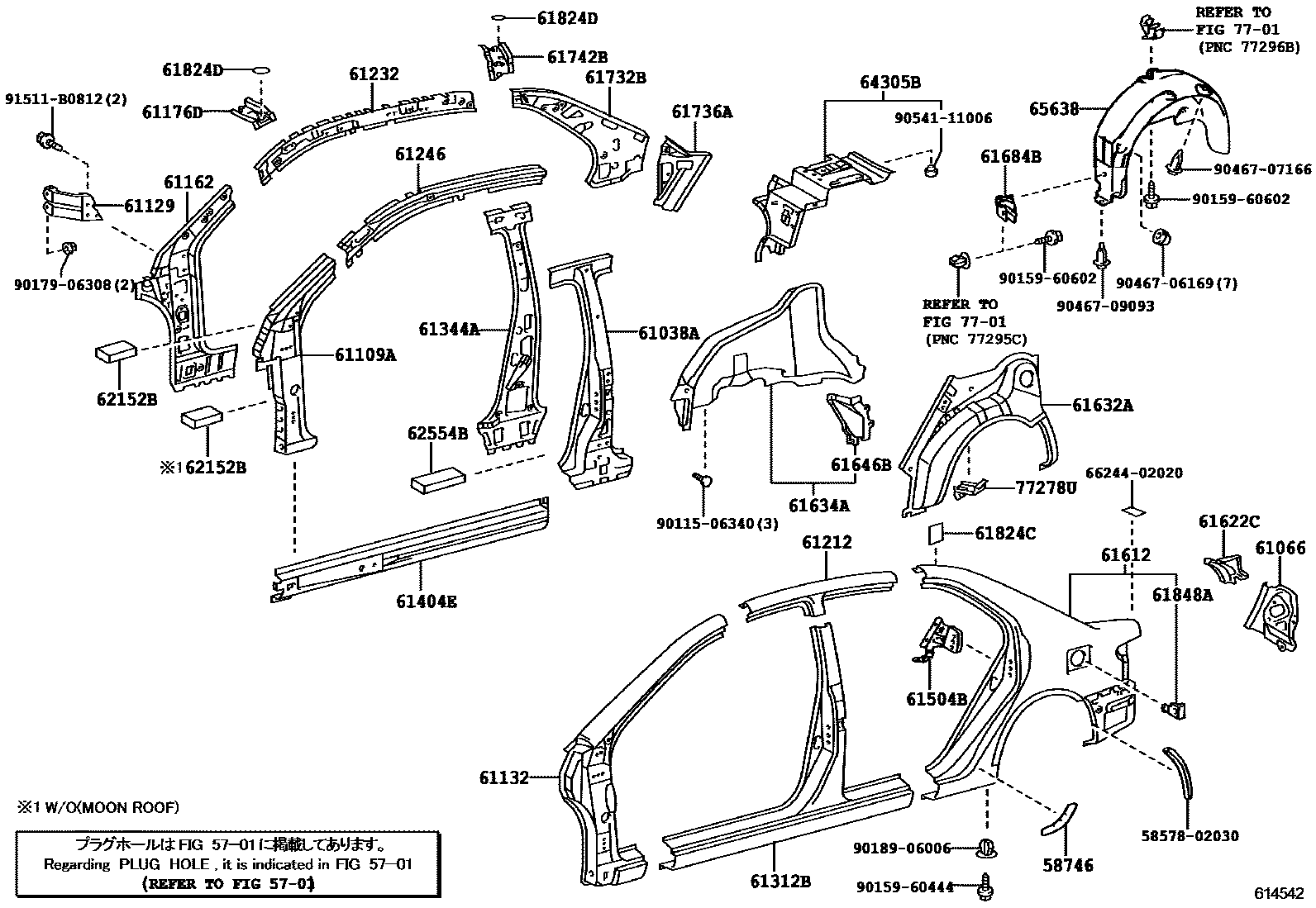

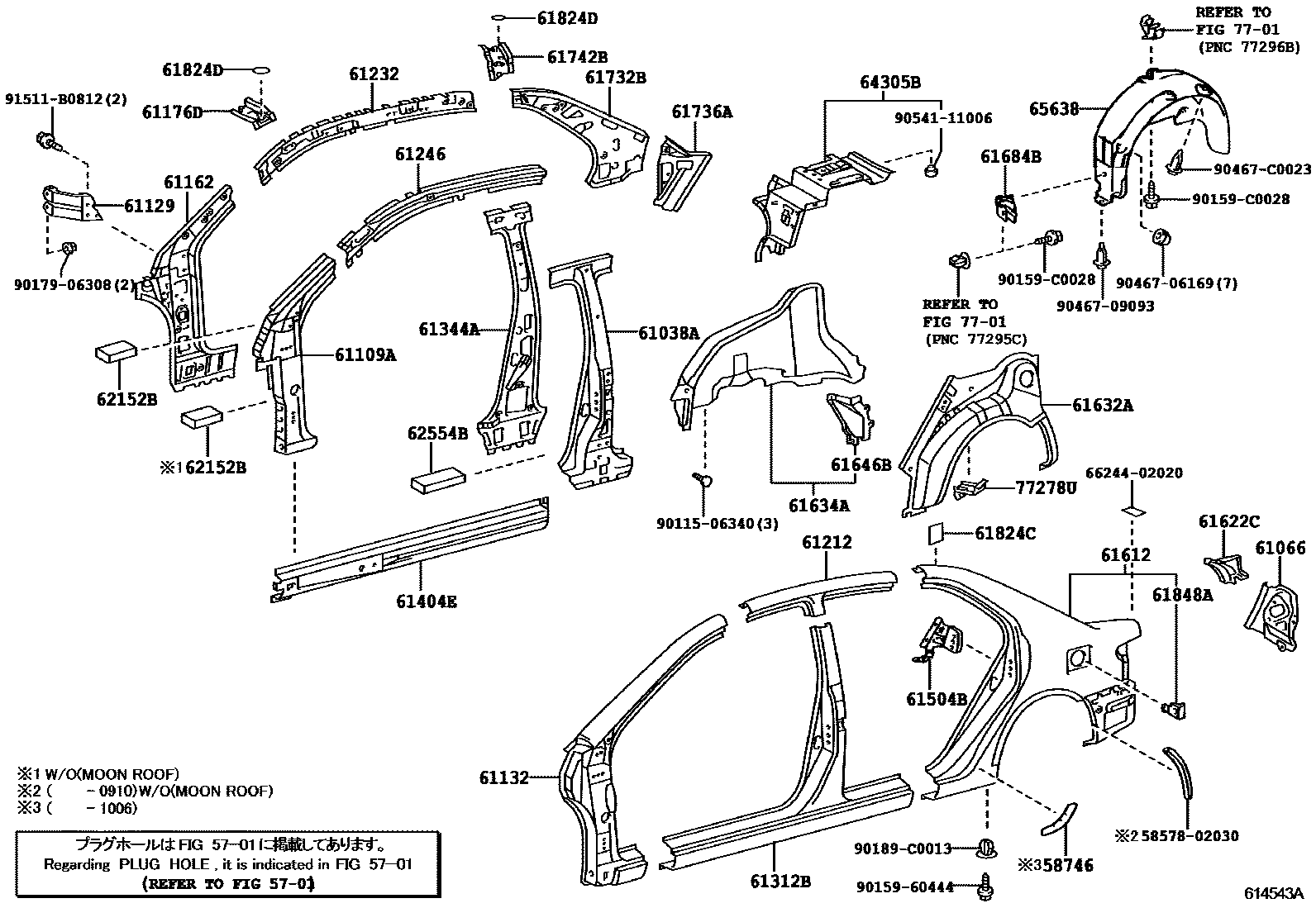

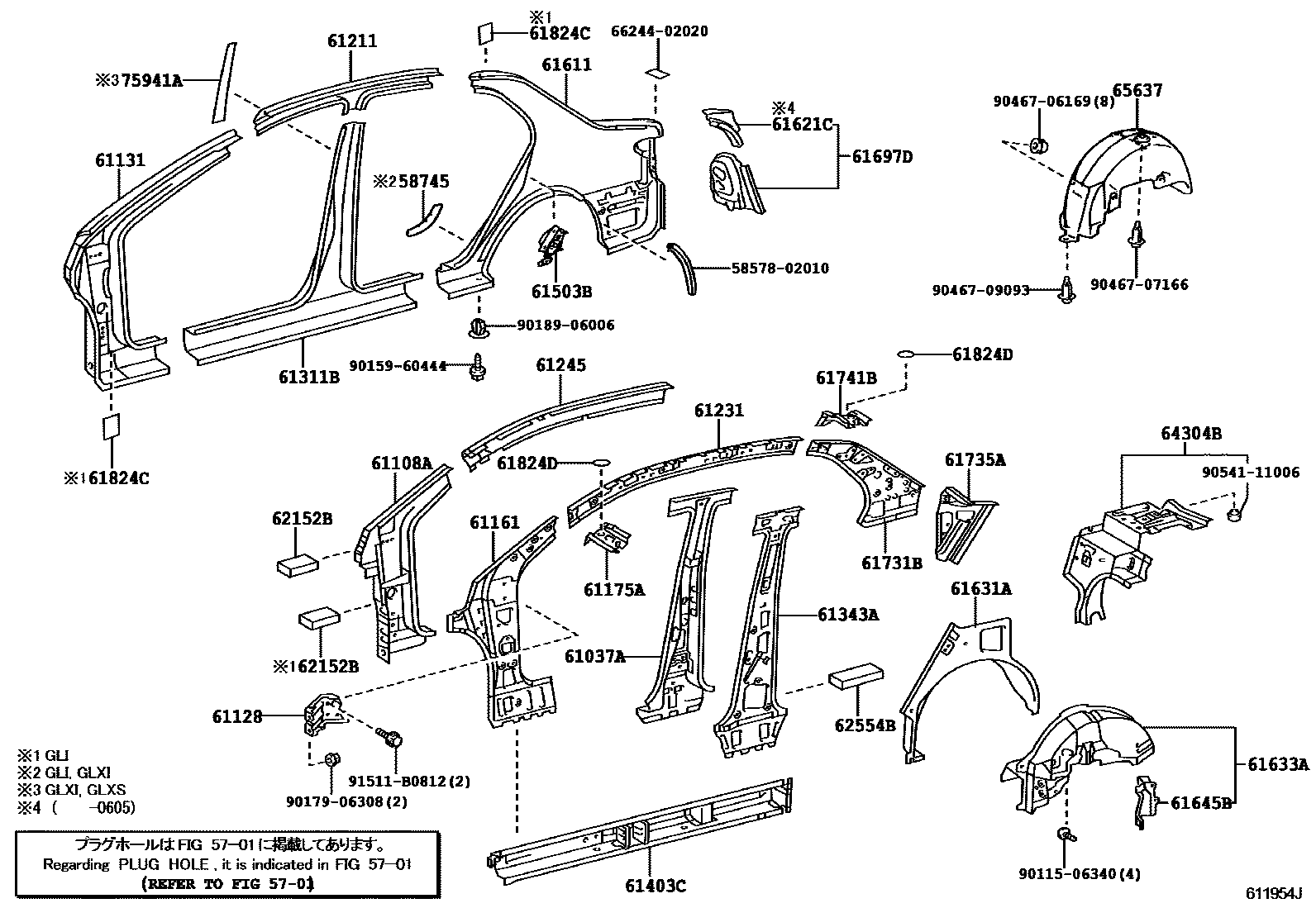

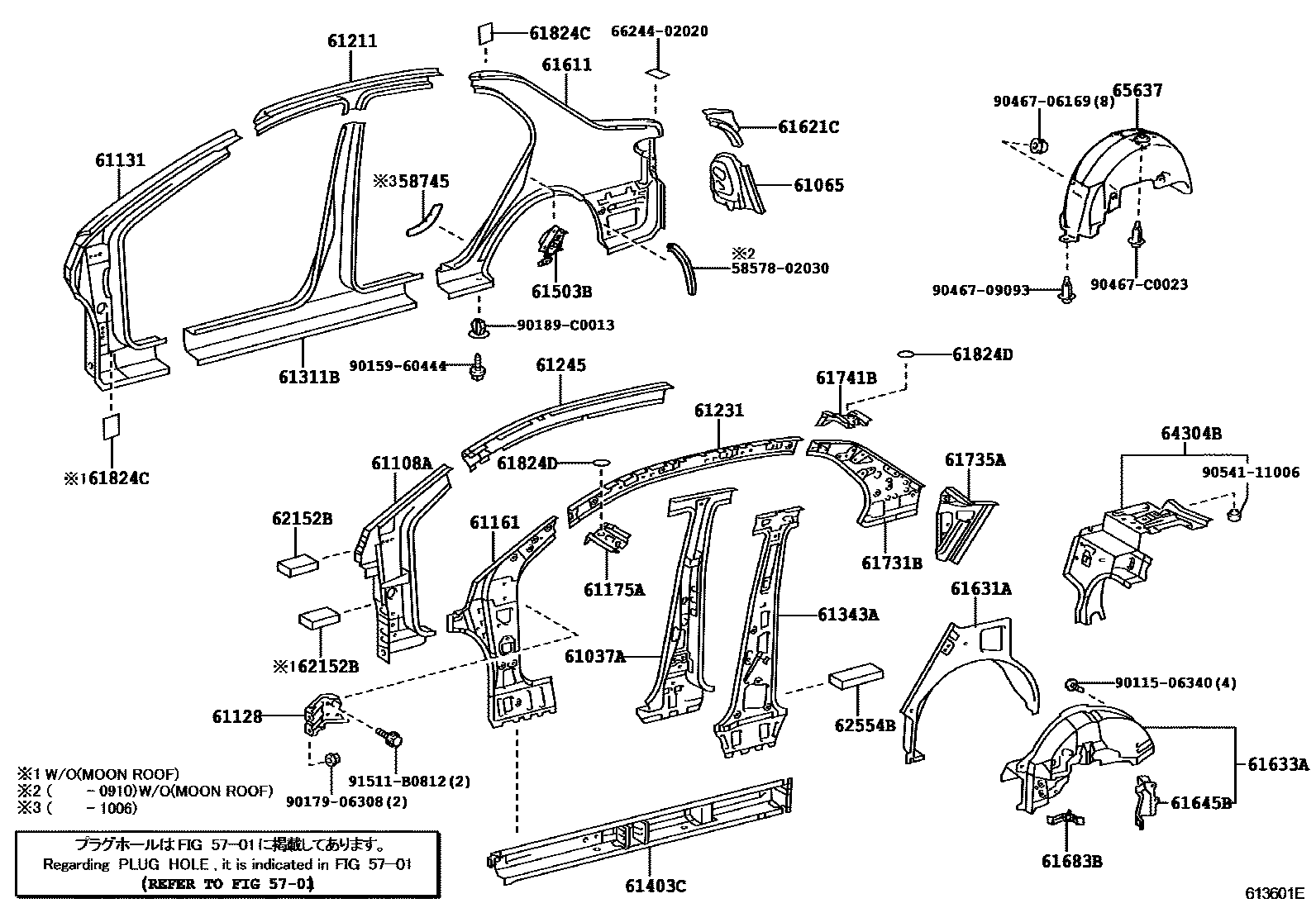

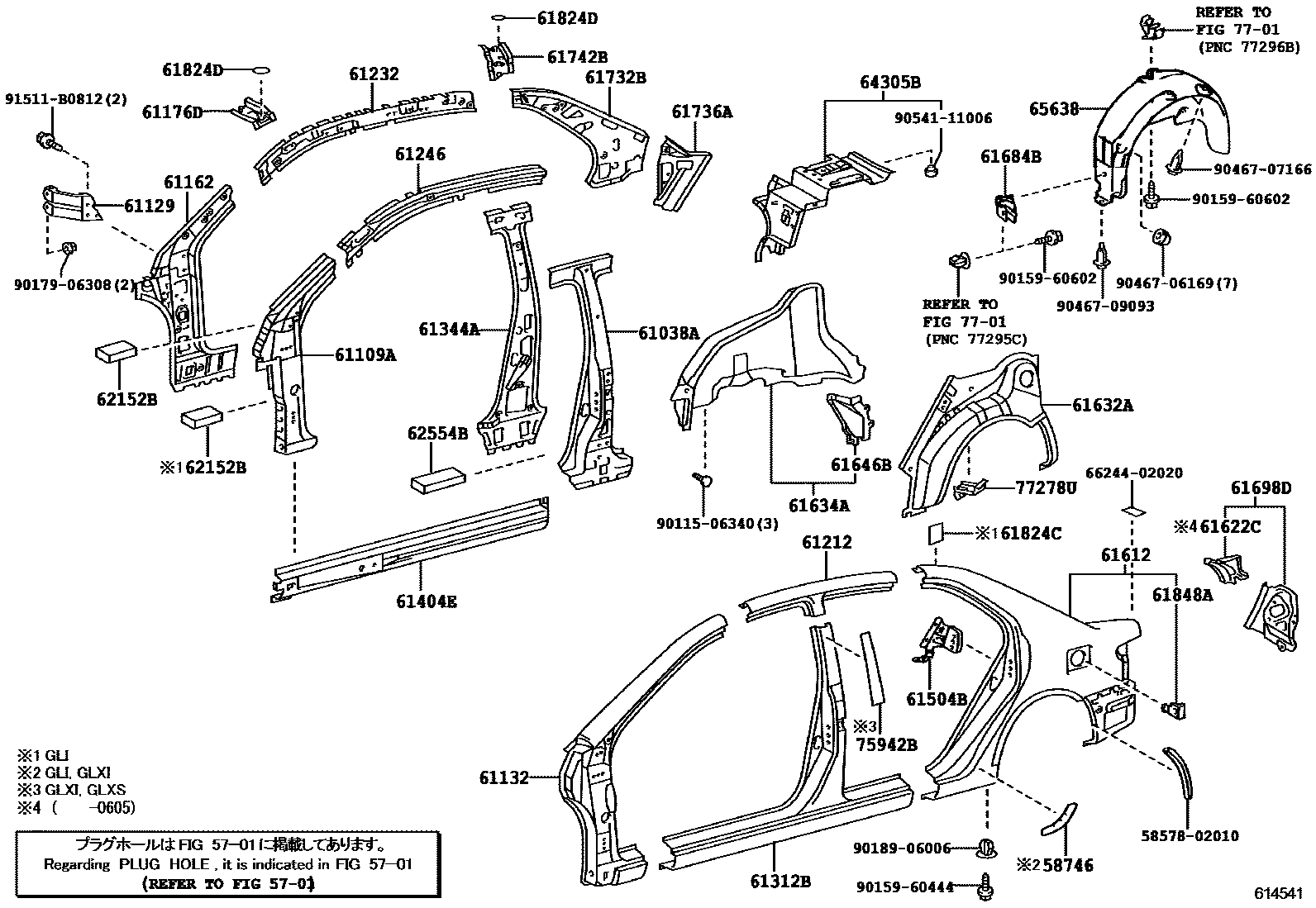

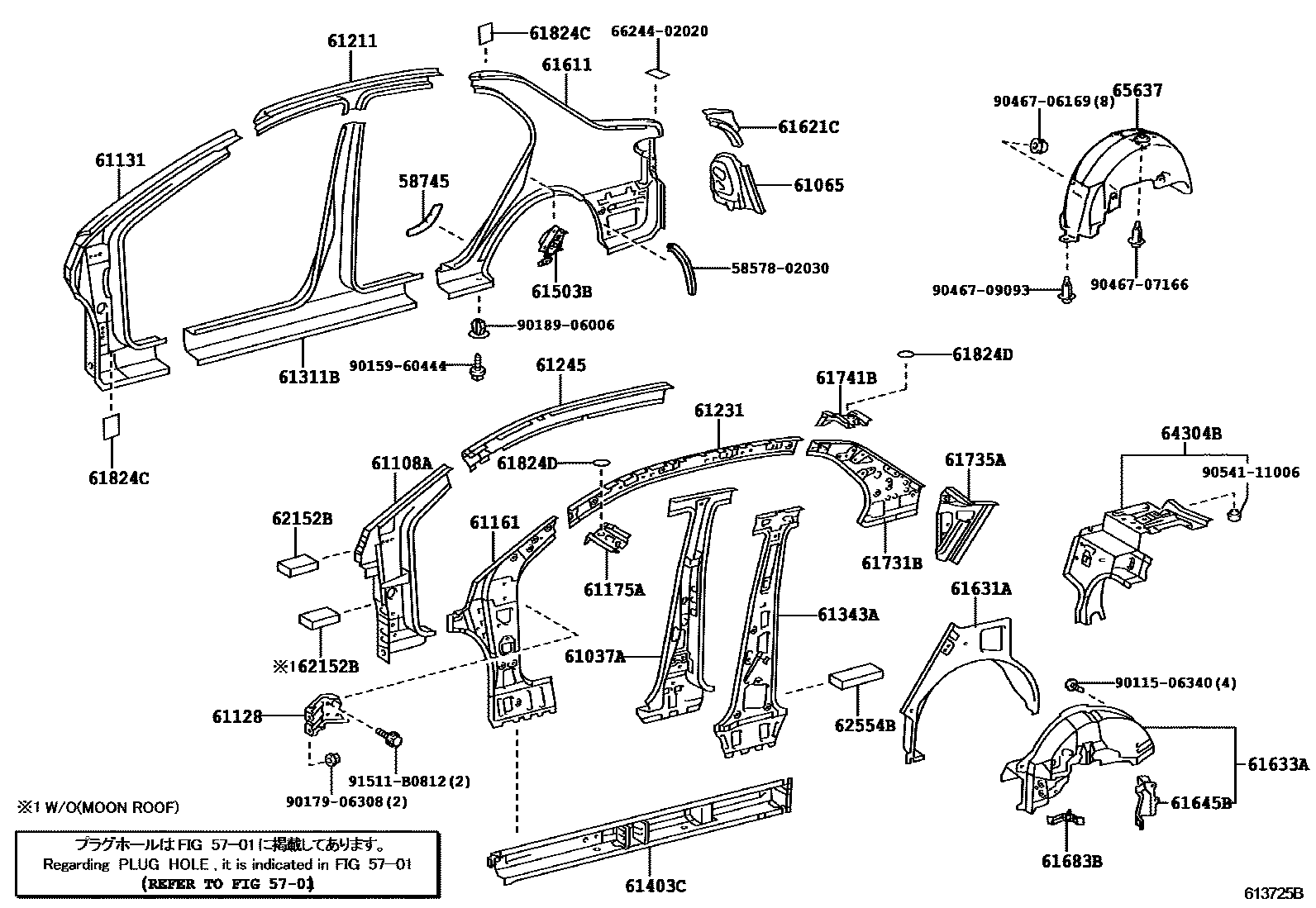

Toyota COROLLA EPC diagram 6101, 侧梁, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58745 | Right front side panel protector | 58741-02070 |
| 58746 | Left front side panel protector | 58742-02070 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02150 · 61037-12240 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02150 · 61038-12240 |
| 61065 | Right side enclosure end cover sub-assembly | 61065-02030 · 61065-YK010 |
| 61066 | Left side enclosure end cover sub-assembly | 61066-02030 · 61066-YK010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-02130 · 61108-12230 · 61108-YK010 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-02130 · 61109-12220 · 61109-YK010 |
| 61128 | Right front wall side panel reinforcement | 61103-02160 · 61103-12190 |
| 61129 | Left front wall side panel reinforcement | 61104-02150 · 61104-12220 |
| 61131 | Right body outer front upper pillar | 61131-02140 · 61131-02150 |
| 61132 | Left body outer front upper pillar | 61132-02170 · 61132-02180 |
| 61161 | Right upper body inner front pillar | 61023-02180 · 61023-12350 |
| 61162 | Left side inner front upper pillar | 61024-02170 · 61024-12350 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-02200 · 61175-12140 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-02200 · 61176-12150 |
| 61211 | Roof right outer longitudinal beam | 61211-02100 |
| 61212 | Roof left outer longitudinal beam | 61212-02100 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-02200 · 61231-1A110 · 61231-YK010 |
| 61232 | Roof left inner longitudinal beam | 61232-02190 · 61232-12880 · 61232-YK010 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02130 · 61245-12040 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02130 · 61246-12040 |
| 61311B | Right body outer center pillar | 61311-02100 · 61311-02110 |
| 61312B | Left body outer center pillar | 61312-02100 · 61312-02110 |
| 61343A | Right body inner center pillar | 61343-02110 · 61343-12250 · 61343-YK010 |
| 61344A | Left body inner center pillar | 61344-02110 · 61344-12250 · 61344-YK010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02100 · 61403-12030 · 61403-YK010 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02100 · 61404-12030 · 61404-YK010 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-02050 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-02040 |
| 61611 | Right side hoarding | 61601-02170 · 61601-02200 |
| 61612 | left side panel | 61602-02190 · 61602-02200 |
| 61621C | Luggage right opening slot | 61621-02130 · 61621-12470 |
| 61622C | Luggage trunk left opening slot | 61064-02010 · 61622-12470 |
| 61631A | Right wheel cover outer panel | 61631-02120 · 61631-12410 |
| 61632A | Left side wheel cover outer panel | 61632-02120 · 61632-12430 |
| 61633A | Right wheel housing lining panel | 61607-02915 · 61607-02944 |
| 61634A | Left side wheel housing lining panel | 61608-02913 · 61608-02934 |
| 61645B | Right rear side wheel housing corner panel | 61645-02060 · 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-02060 · 61646-12140 |
| 61683B | No. 1 right rear fender external panel bracket | 61683-02090 · 61683-13010 |
| 61684B | No. 1 left rear fender external panel bracket | 61684-02010 |
| 61697D | Right side enclosure end cover | 61697-02904 |
| 61698D | Left side enclosure end cover | 61698-02904 |
| 61731B | Roof right inner panel | 61731-02190 · 61731-12760 |
| 61732B | Roof left inner panel | 61732-02190 · 61732-12710 |
| 61735A | Right rear roof inner panel | 61735-02100 · 61735-12380 |
| 61736A | Left rear roof inner panel | 61736-02100 · 61736-12380 |
| 61741B | Rear window opening right reinforcement | 61741-02050 · 61741-12121 |
| 61742B | Rear window opening left reinforcement | 61742-02020 · 61742-12091 |
| 61824C | No. 1 silencer panel gasket | 61824-02100 |
| 61824D | Noise Control Panel No. 1 | 61824-02110 |
| 61848A | Left side panel fixing | 61848-52010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-02160 · 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02040 · 64304-02080 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02040 · 64305-02080 |
| 65637 | Right rear wheel house lining | 65637-02070 · 65637-02071 · 65637-13010 |
| 65638 | Left rear wheel house lining | 65638-02070 · 65638-02071 · 65638-13010 |
| 75941A | Right center pillar trim | 75941-02030 |
| 75942B | Left center pillar trim | 75942-02030 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-02060 · 77278-32050 |
