Toyota COROLLA 地板垫和地毯 — Figure 5804

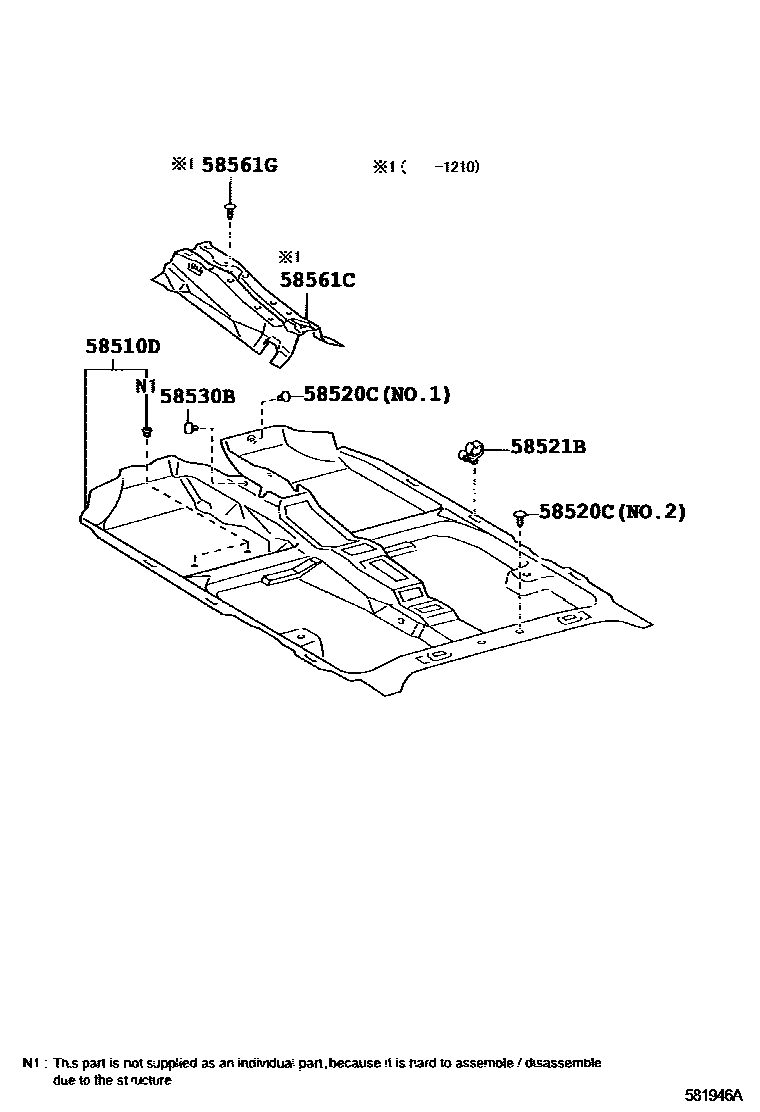

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58521B | carpet hook | 58521-12130 |
| 58530B | Clip (for front carpet) | 90467-09118 |
| 58561C | Front floor silencer No. 1 | 58561-02110 · 58561-02111 |
| 58561G | Clip (for front floor silencer) | 90467-06077 |
