Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

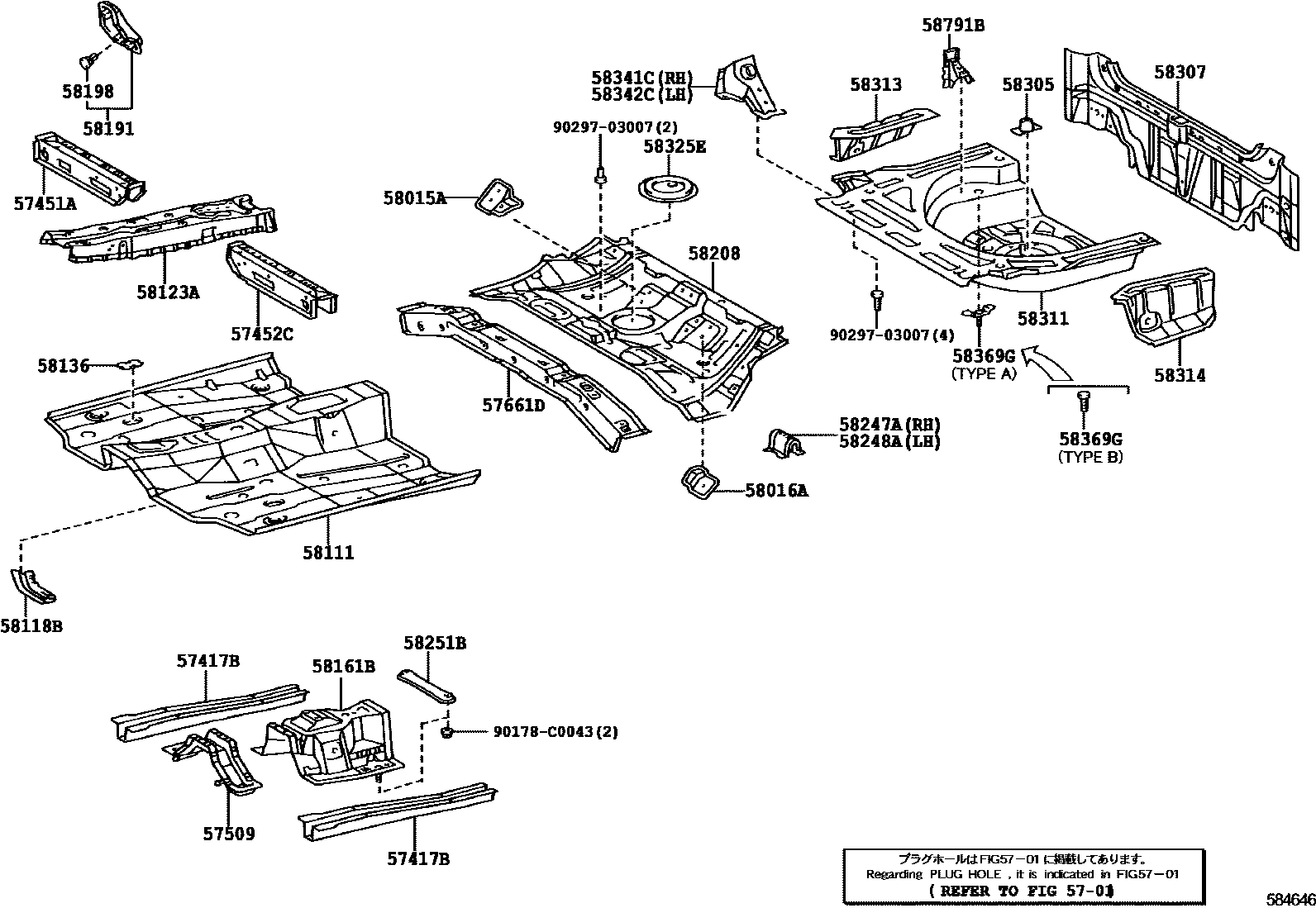

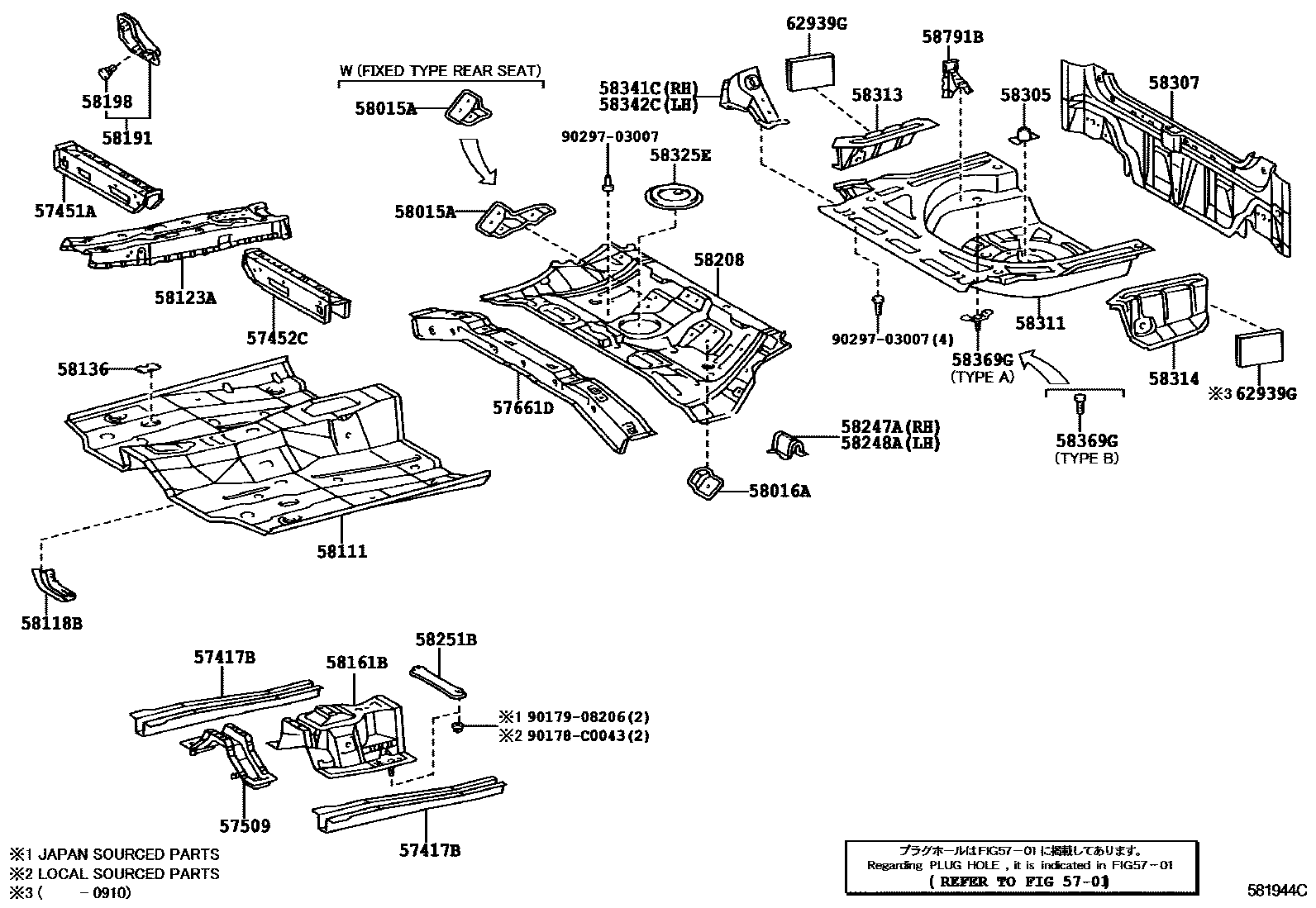

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57417B | Front underfloor reinforcement | 57505-02020 · 57505-12070 |
| 57451A | Front floor right cross member | 57451-02130 · 57451-12250 |
| 57452C | Front floor left cross member | 57452-02070 · 57452-12071 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-12040 · 57509-YK010 |
| 57661D | rear floor front cross member | 57661-02100 · 57661-12010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12060 · 58015-12070 · 58015-YK010 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-32050 · 58016-YK010 |
| 58111 | front floor pan | 58111-02100 · 58111-12350 |
| 58118B | Front floor reinforcement No. 2 | 58118-20011 · 58118-YK020 |
| 58123A | shift lever bracket | 58013-02100 · 58013-12040 · 58013-YK010 |
| 58136 | Front floor hole cover | 58136-33010 · 58136-YK010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-12080 · 57805-YK010 |
| 58191 | Front floor footrest | 58192-02070 · 58192-02090 |
| 58198 | Footrest clip | 58198-20210 · 90467-09220 |
| 58208 | central floor base | 58211-02230 · 58211-02240 · 58211-12590 · 58211-12600 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02140 · 58247-12070 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-02140 · 58247-12070 |
| 58251B | front floor bracket | 58251-02050 · 58251-12030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-02030 · 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-02160 · 58307-02170 · 58307-1A560 · 58307-1A570 |
| 58311 | rear floor pan | 58311-02170 · 58311-12270 |
| 58313 | Rear floor right panel | 58313-02080 · 58313-12300 |
| 58314 | rear floor left panel | 58314-02080 · 58314-12300 |
| 58325E | Rear floor access hole cover | 58325-12110 · 58325-YK010 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-02080 · 58341-12020 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02010 · 58342-02090 · 58342-12020 |
| 58369G | No. 3 fuel pipe bracket | 58369-02010 · 58369-12020 · 90115-06166 · 90115-C0014 |
| 58791B | jack bracket | 58791-02080 · 58791-12200 |
| 62939G | Side ventilation silencers | 62939-02030 |
