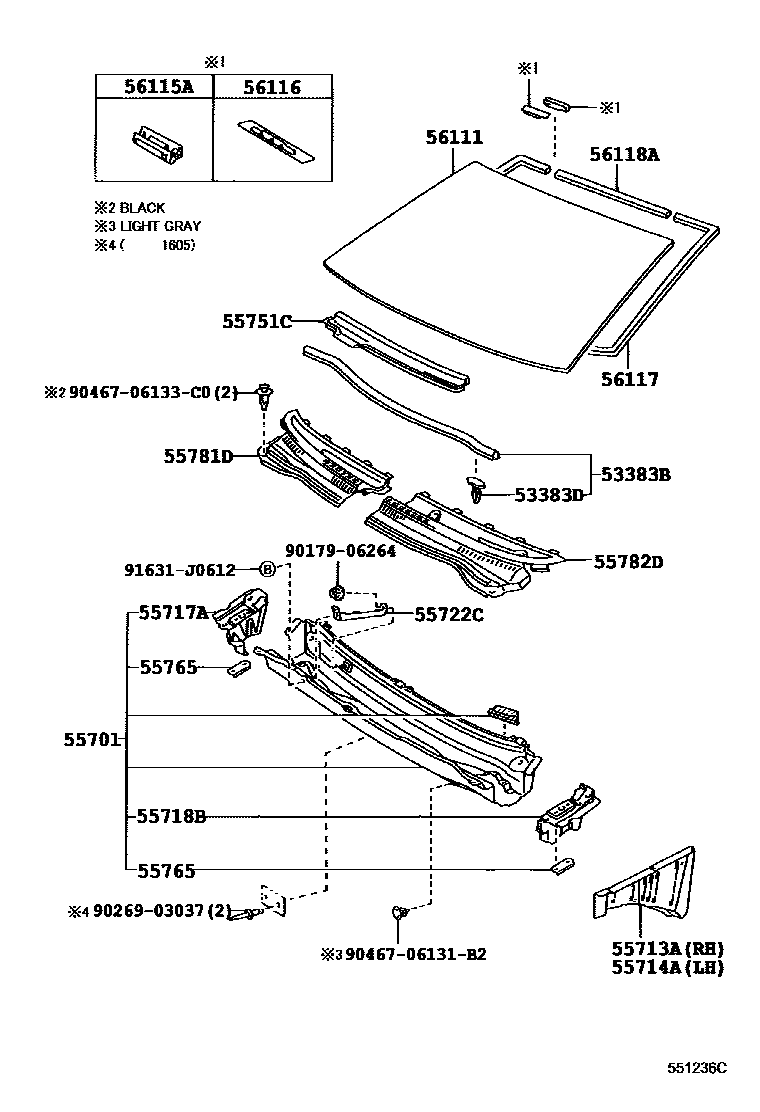

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02090 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55701 | Front apron sub-assembly | 55701-02160 · 55701-02250 · 55701-YK010 · 55701-YK011 |
| 55713A | Right front wall upper side panel | 55713-12110 · 55713-YK010 |
| 55714A | Left front wall upper side panel | 55714-12110 · 55714-YK010 |
| 55717A | Upper right inner panel of cowl | 55717-02080 · 55717-12170 |
| 55718B | Upper left inner panel of front wall | 55718-02080 · 55718-12120 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-12040 · 55722-YK010 |
| 55751C | Front ventilator splash guard | 55751-02220 · 55751-12071 |
| 55765 | Engine cover bumper mounting bracket | 55765-44010 · 55765-YK010 |
| 55781D | Ventilation grille on right front apron | 55708-02430 · 55708-12260 |
| 55782D | Ventilation grille on left front apron | 55709-02310 · 55709-12050 |
| 56111 | windshield | 56101-02790 · 56101-YK010 · 56111-02360 · 56111-02361 · 56111-02370 · 56111-02371 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116 | windshield spacer | 56116-22050 |
| 56117 | Front pillar outer sealing strip | 56117-02060 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-02020 |
