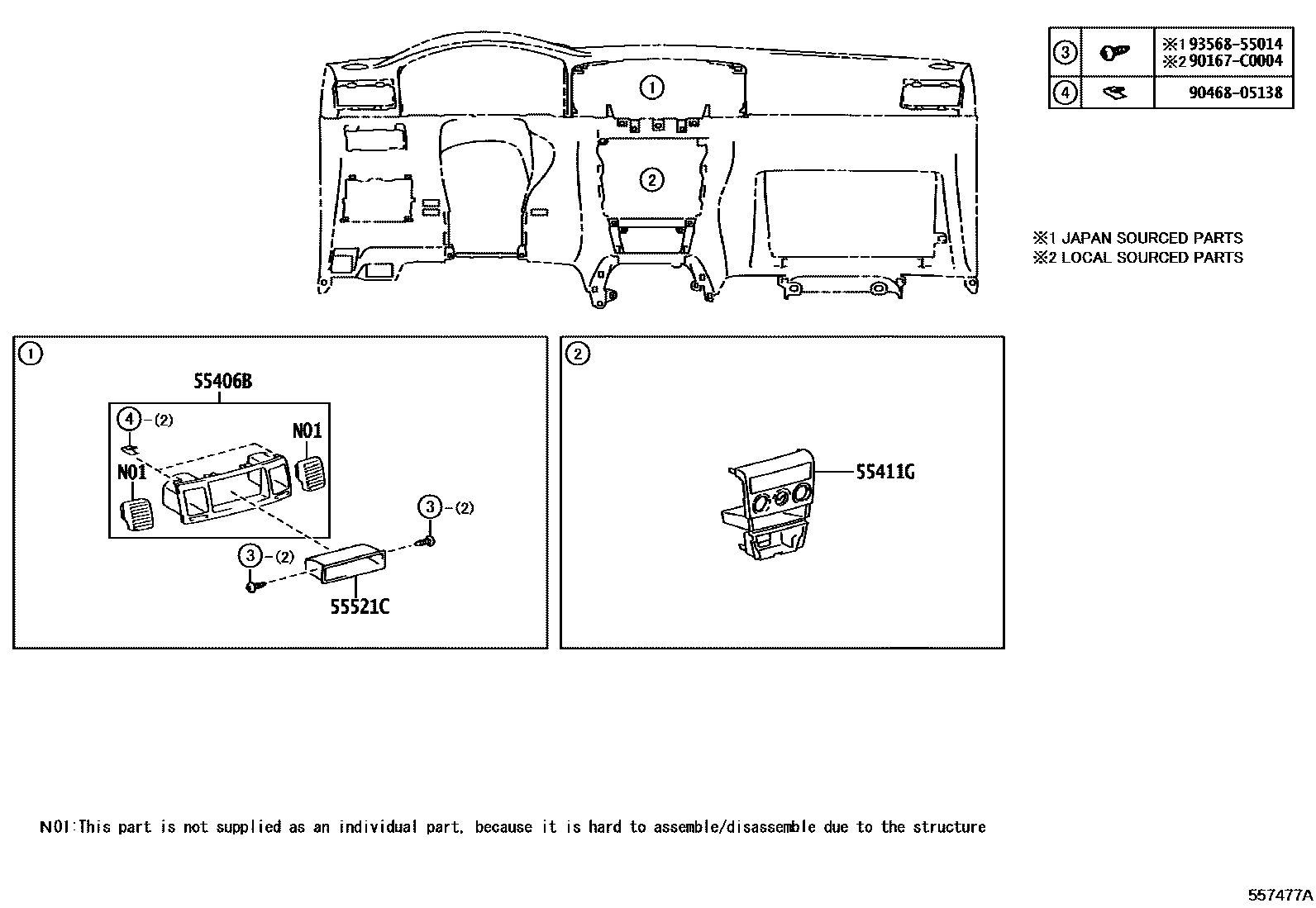

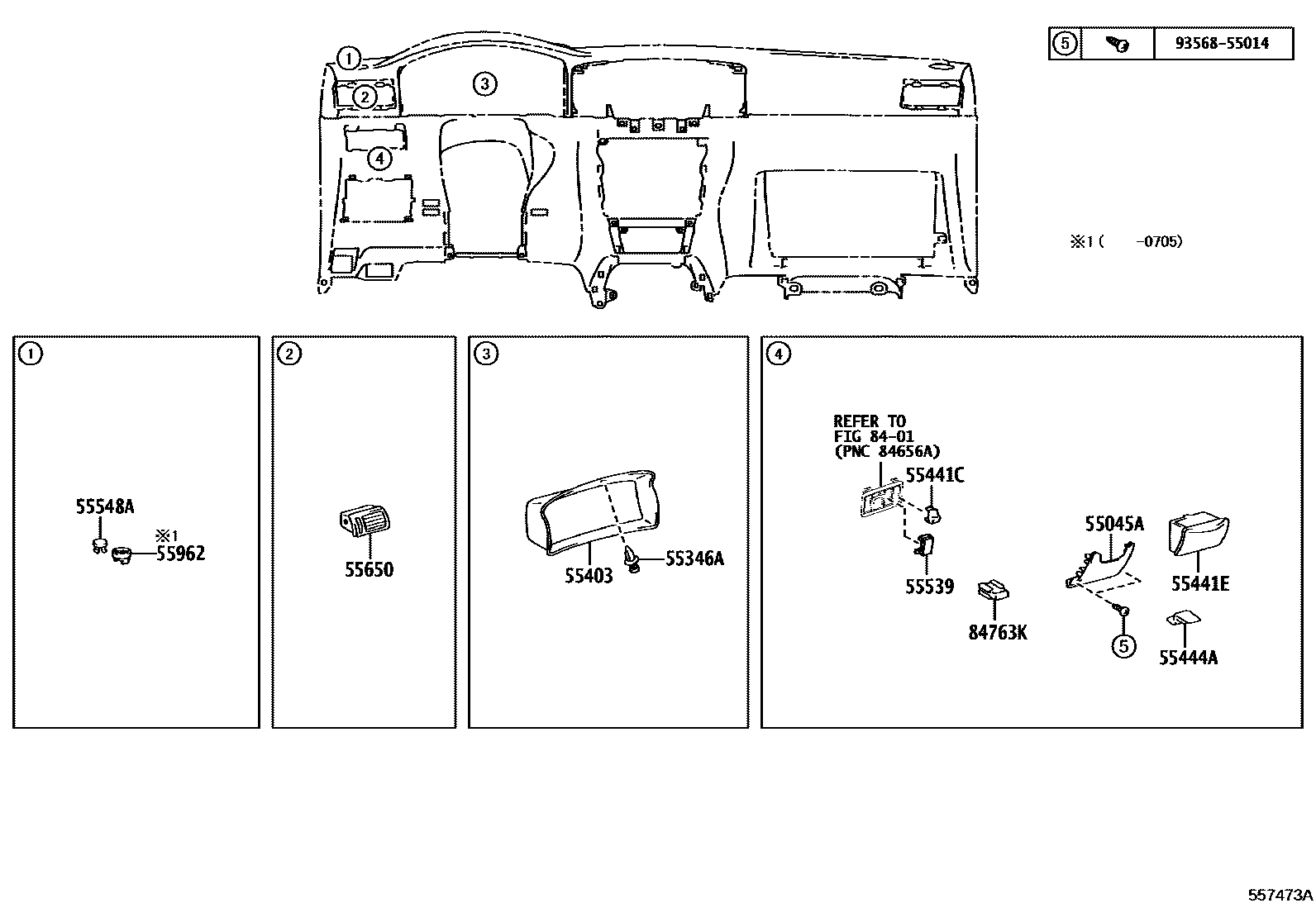

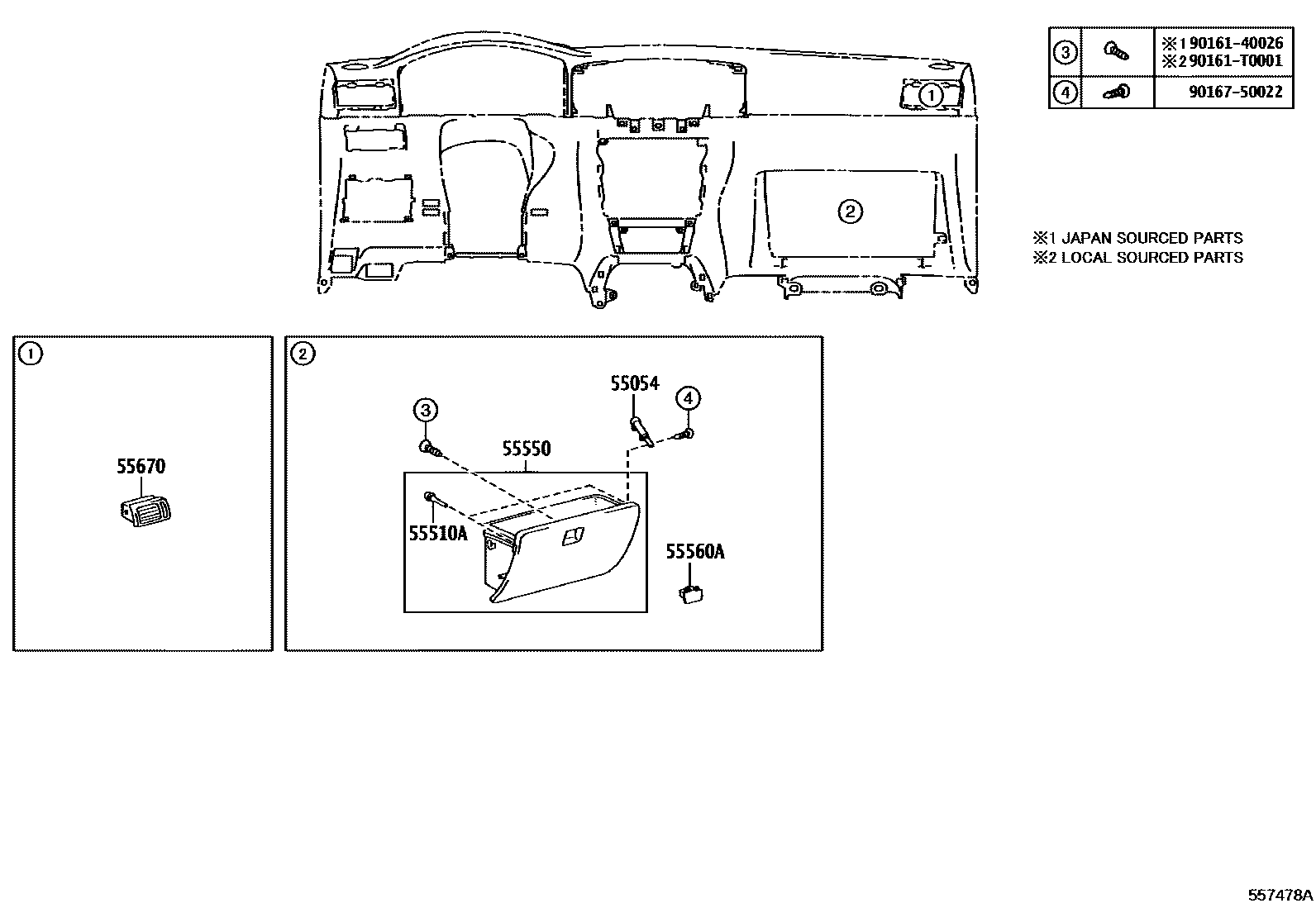

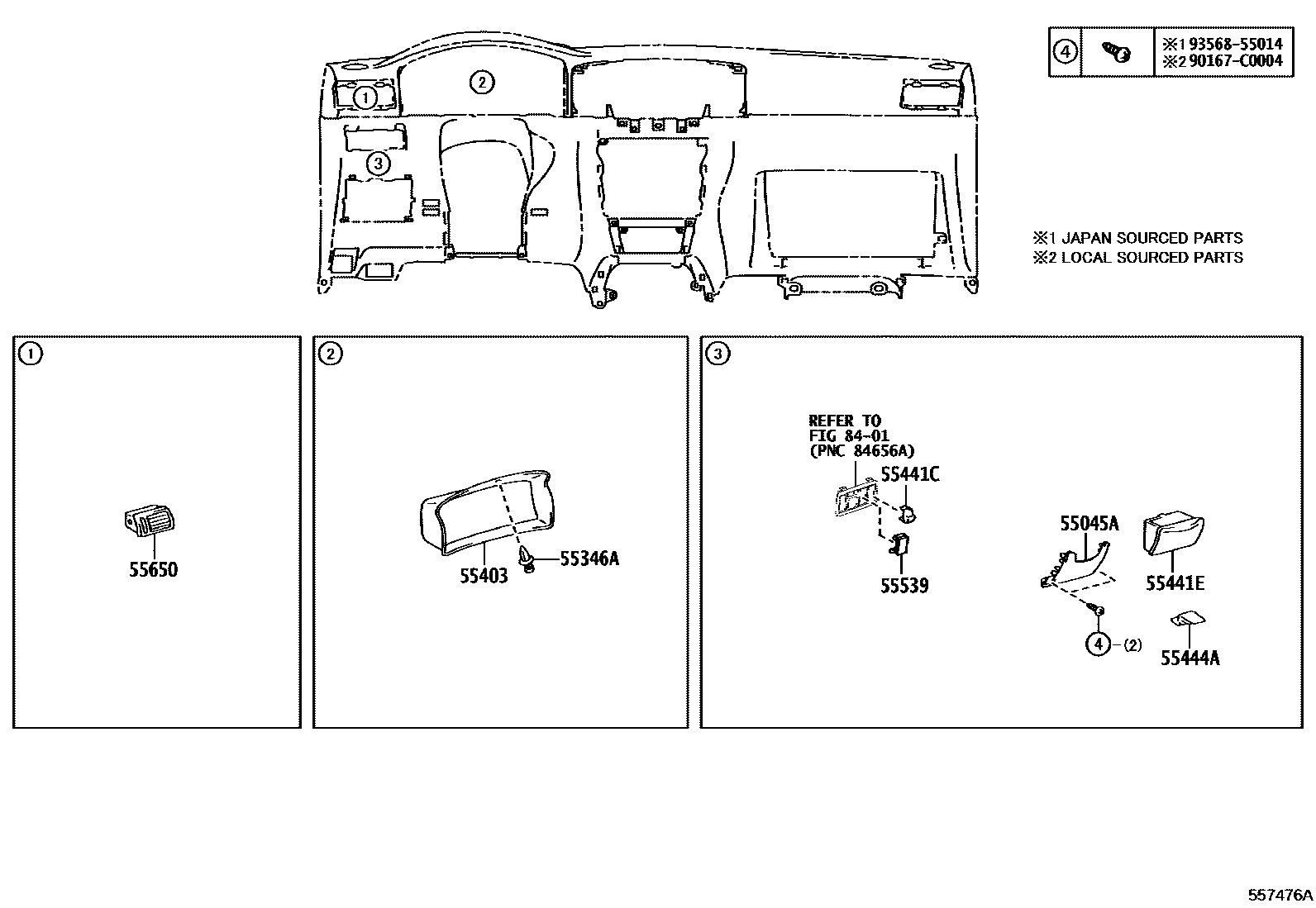

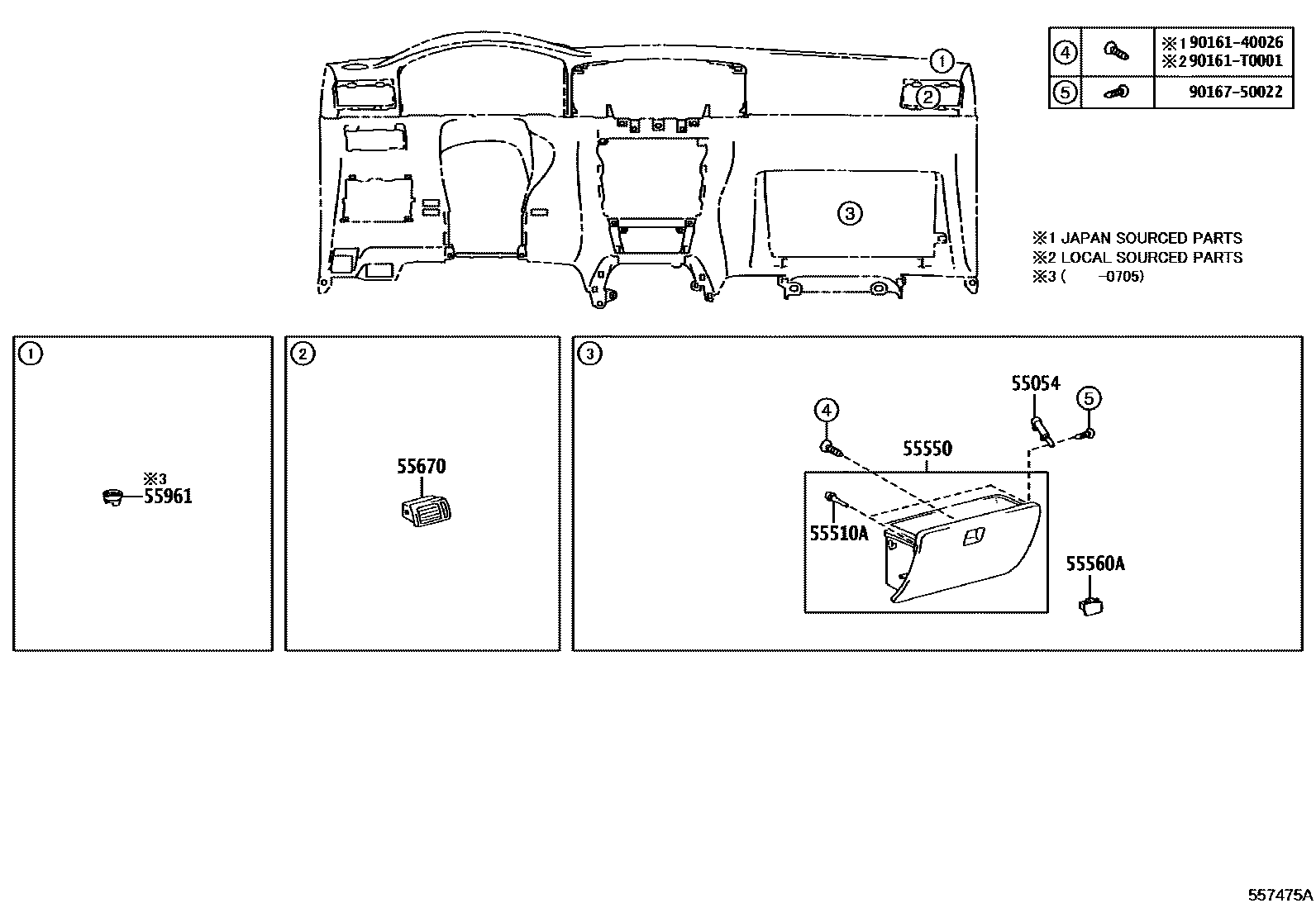

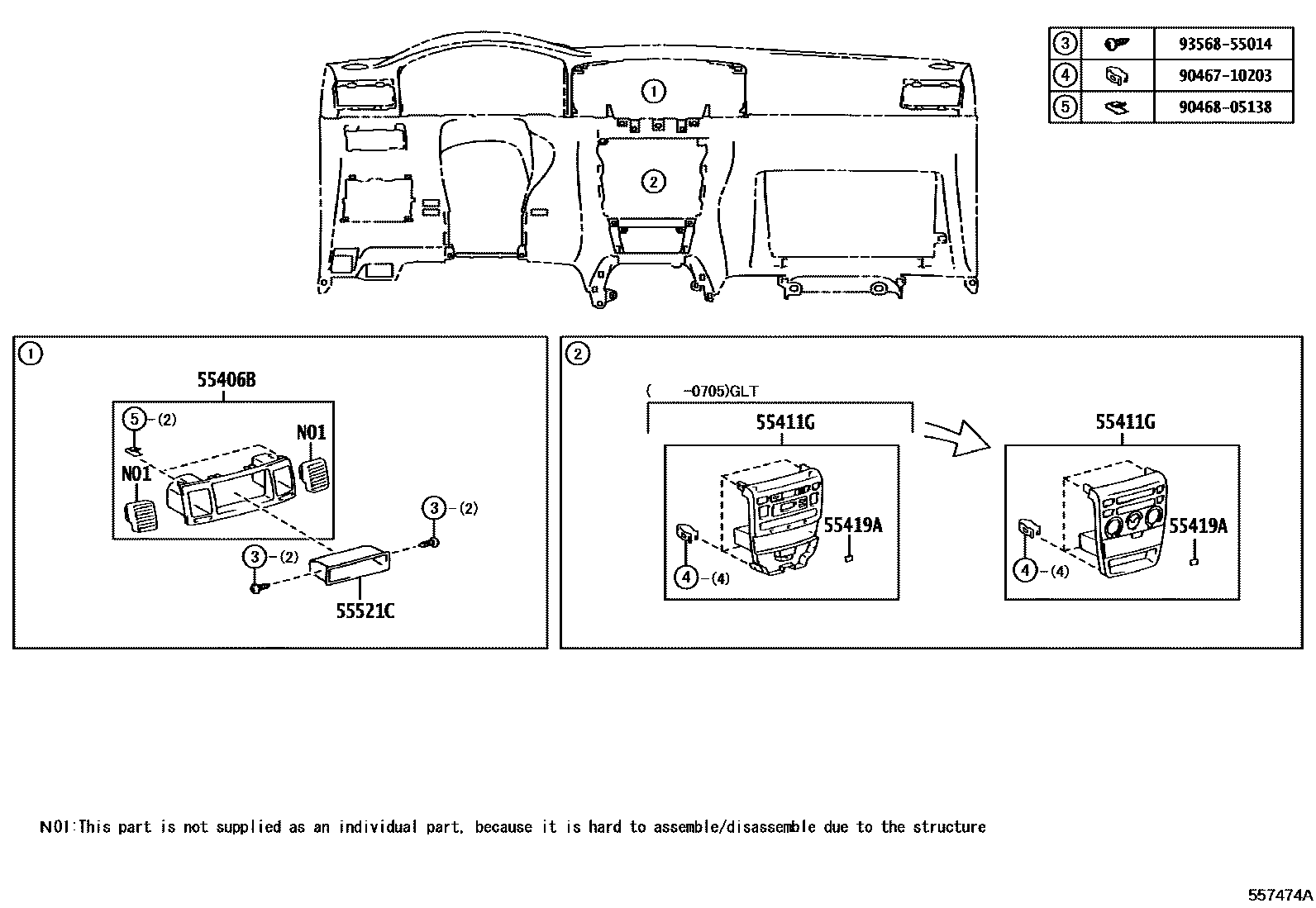

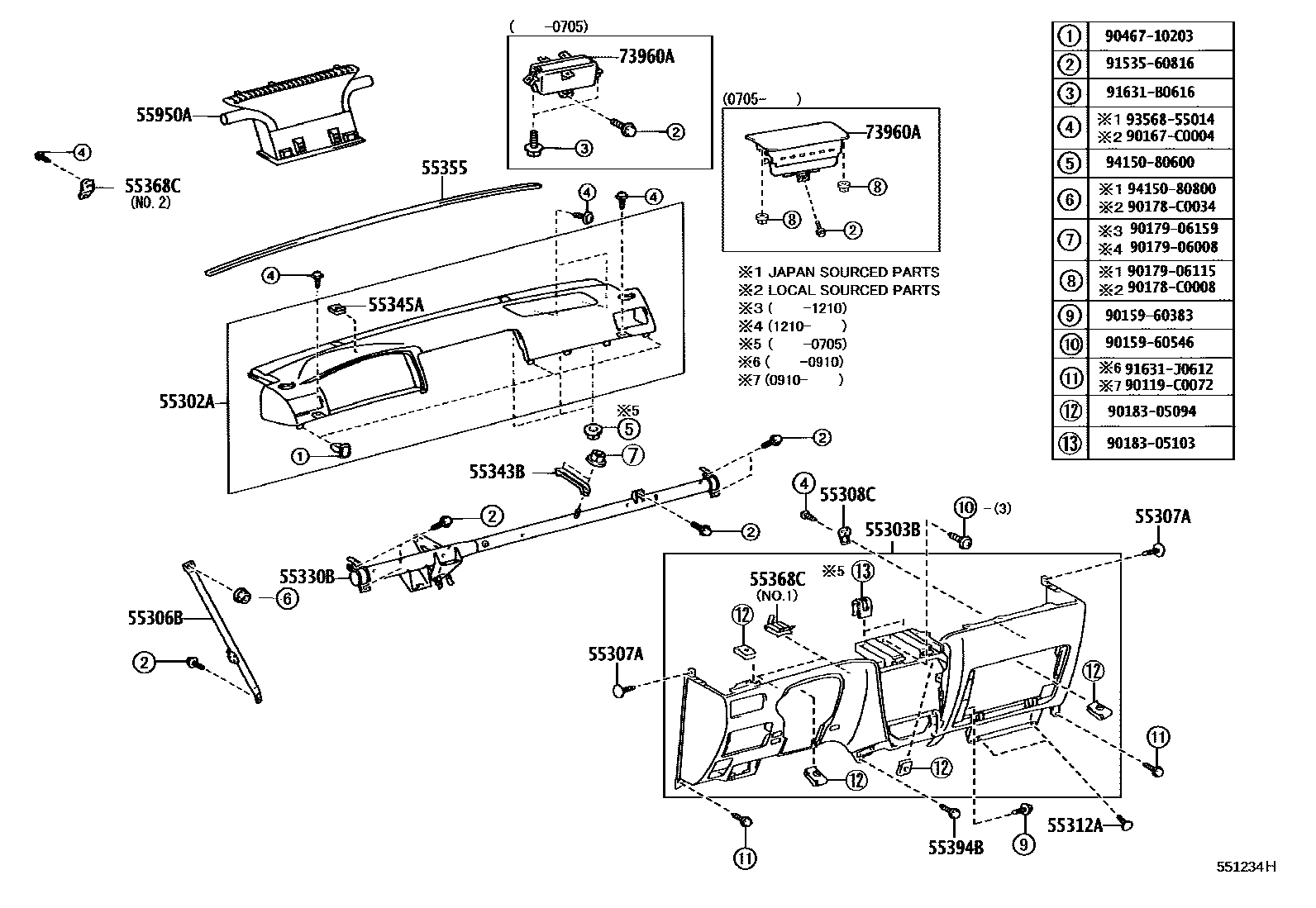

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-02370 · 55306-12310 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-02060 · 55308-12280 · 55308-YK010 |
| 55330B | Instrument panel reinforcement assembly | 55330-02140 · 55330-02470 · 55330-02471 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02100 · 55343-12060 |
| 55345A | Dashboard Clip No. 1 | 55345-02030 · 55345-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02050 · 55355-YK010 |
| 55368C | Instrument mounting bracket | 55362-02020 · 55362-02030 · 55362-12050 · 55368-12090 |
| 55394B | Dashboard bolts | 55394-12010 · 55394-12020 |
| 55403 | Instrument cover sub-assembly | 55403-02100 · 55403-02150 |
| 55419A | Instrument cluster decorative panel cushion | 55419-32020 |
| 55444A | Dashboard storage box spring | 55444-12080 |
| 55510A | Cushion (for glovebox lid) | 90541-04002 |
| 55521C | stereo system hole cover | 55521-0A010 |
| 55950A | Defroster nozzle assembly | 55950-02100 · 55950-YK010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02110 · 73960-12060 |
| 84763K | switch board | 84763-12130 |
