Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

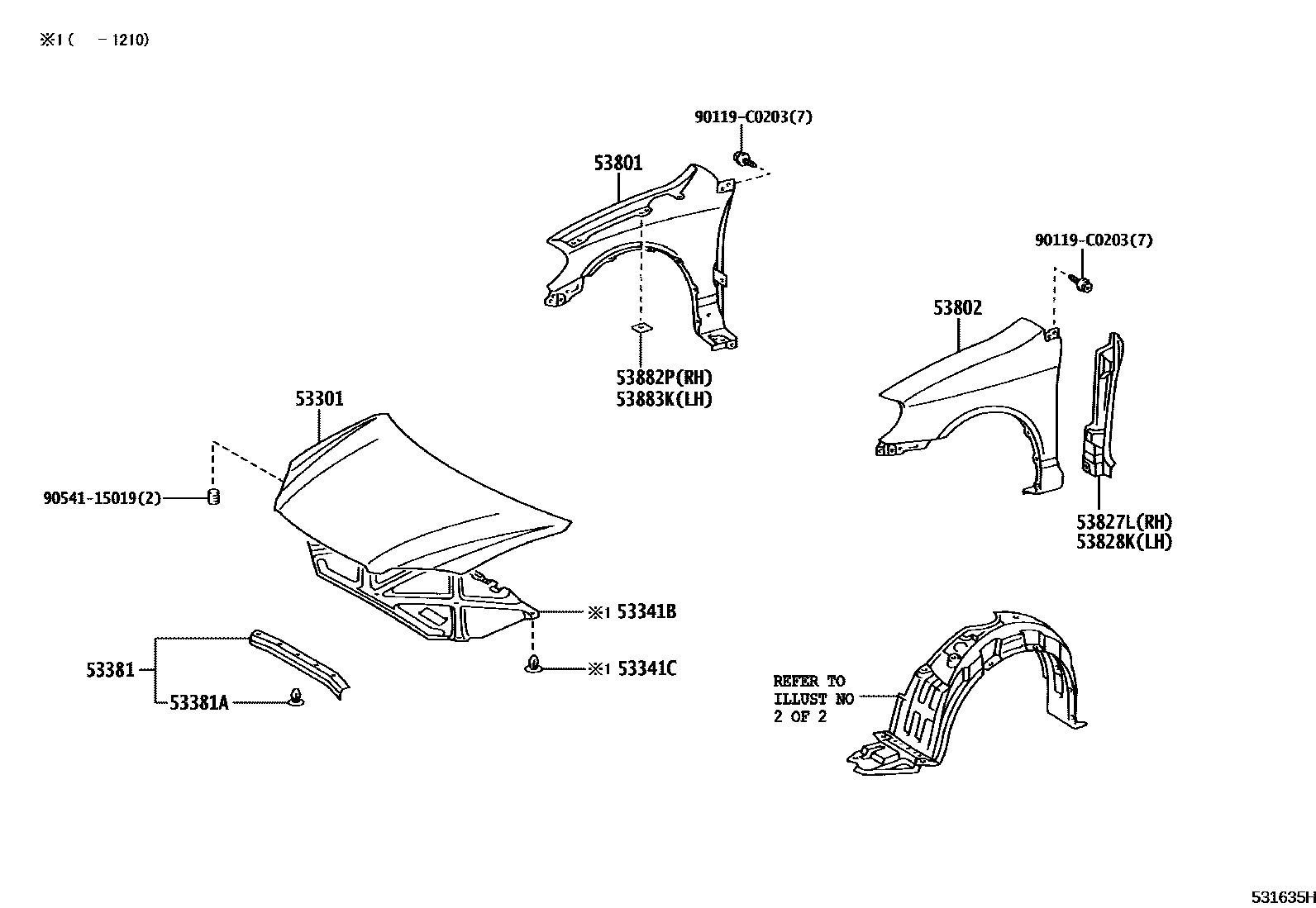

| 53301 | Engine cover sub-assembly | 53301-02140 · 53301-YK010 |
| 53341B | engine cover gasket | 53341-02150 · 53341-12220 |
| 53341C | Clip (for engine cover gasket) | 90467-08124 |
| 53381 | Engine cover to radiator bracket seal | 53381-02100 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-02150 · 53811-02160 · 53811-YK010 |
| 53802 | Left front fender sub-assembly | 53812-02150 · 53812-02160 · 53812-YK010 |
| 53827L | Right front fender side panel protector | 53827-12050 |
| 53828K | Left front fender side panel protector | 53828-12050 |
| 53851C | No. 1 front fender outer panel pad | 53851-13010 · 53851-YK010 |

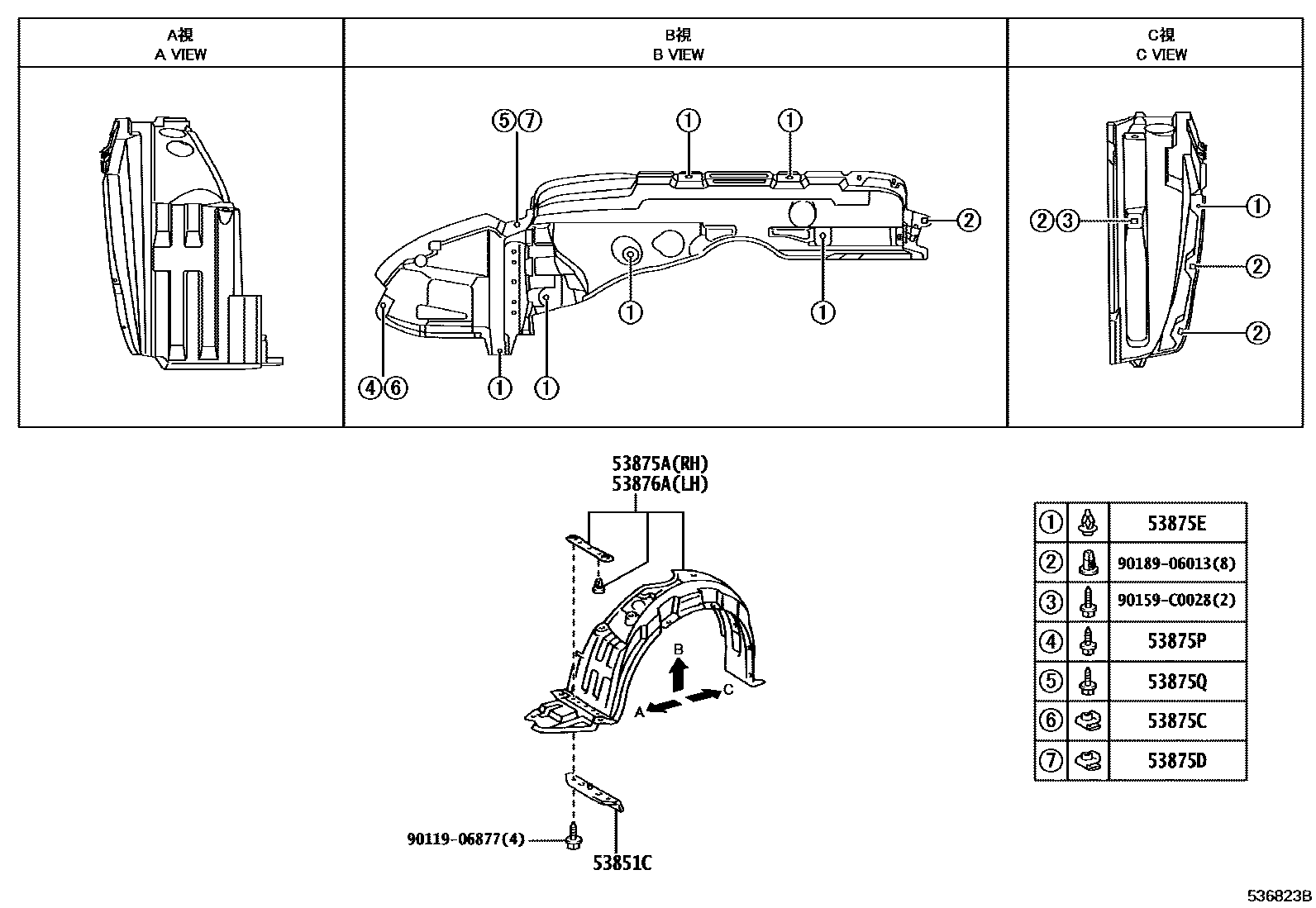

| 53875A | Right front fender lining | 53875-12340 · 53875-YK010 |
| 53875C | Front fender lining clip | 90467-05138 |
| 53875D | No. 2 front fender lining clip | 90467-05138 |
| 53875E | No. 3 front fender lining clip | 90467-10183 |
| 53875P | Screw No. 1 | 90159-60488 · 90159-C0012 |
| 53875Q | No. 2 screw | 90159-60488 · 90159-C0012 |
| 53876A | Left front fender lining | 53876-12330 · 53876-YK010 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
