Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 4 images and 2 PNC and OE references.

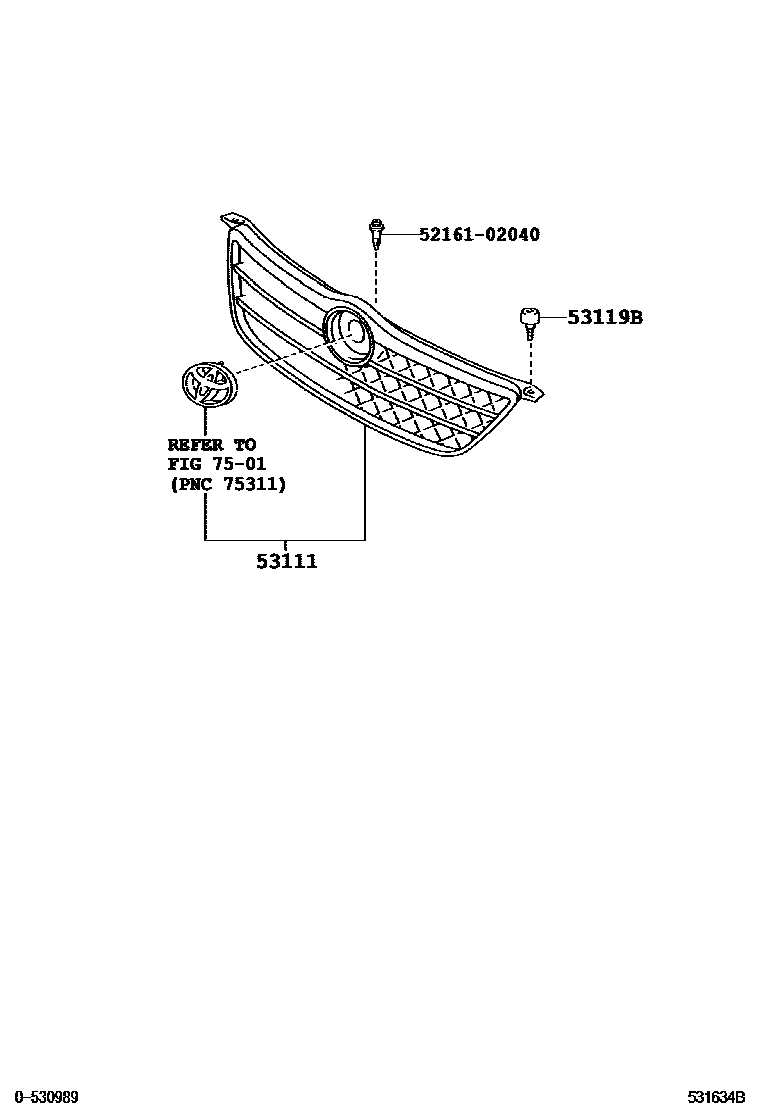

Toyota COROLLA radiator grille EPC diagram — 531634B
radiator grille — 531634B (200402 – 200705)

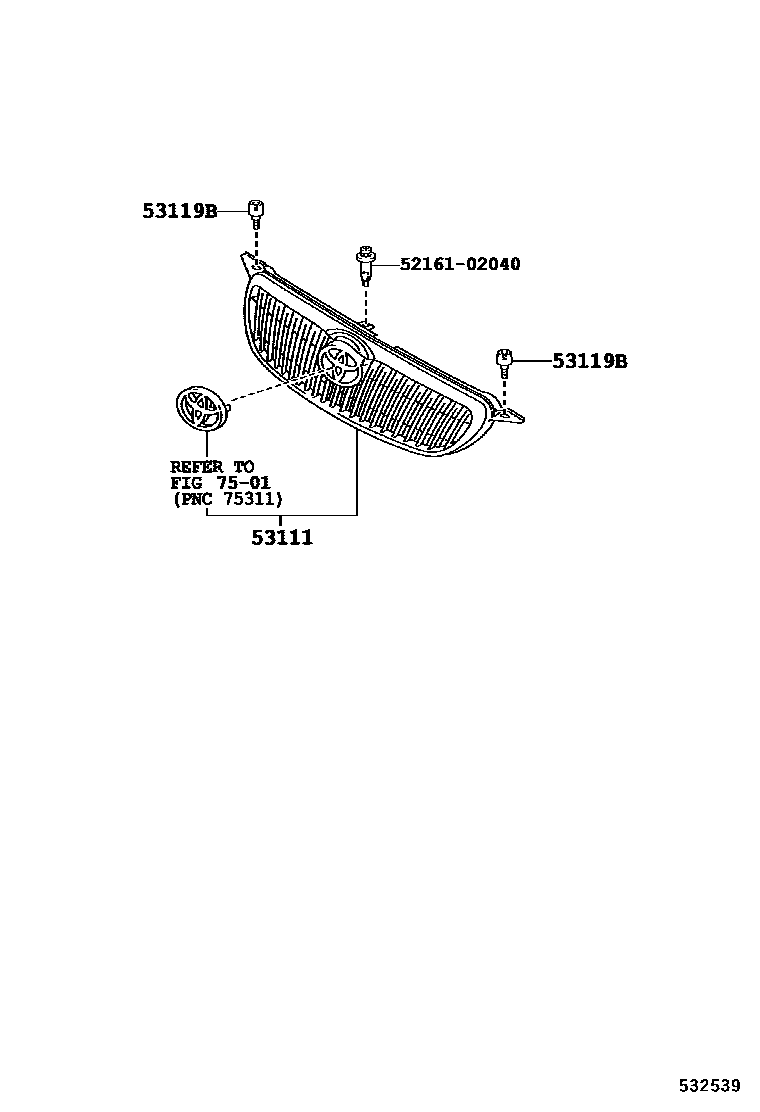

Toyota COROLLA radiator grille EPC diagram — 532539
radiator grille — 532539 (200705 – 201005)

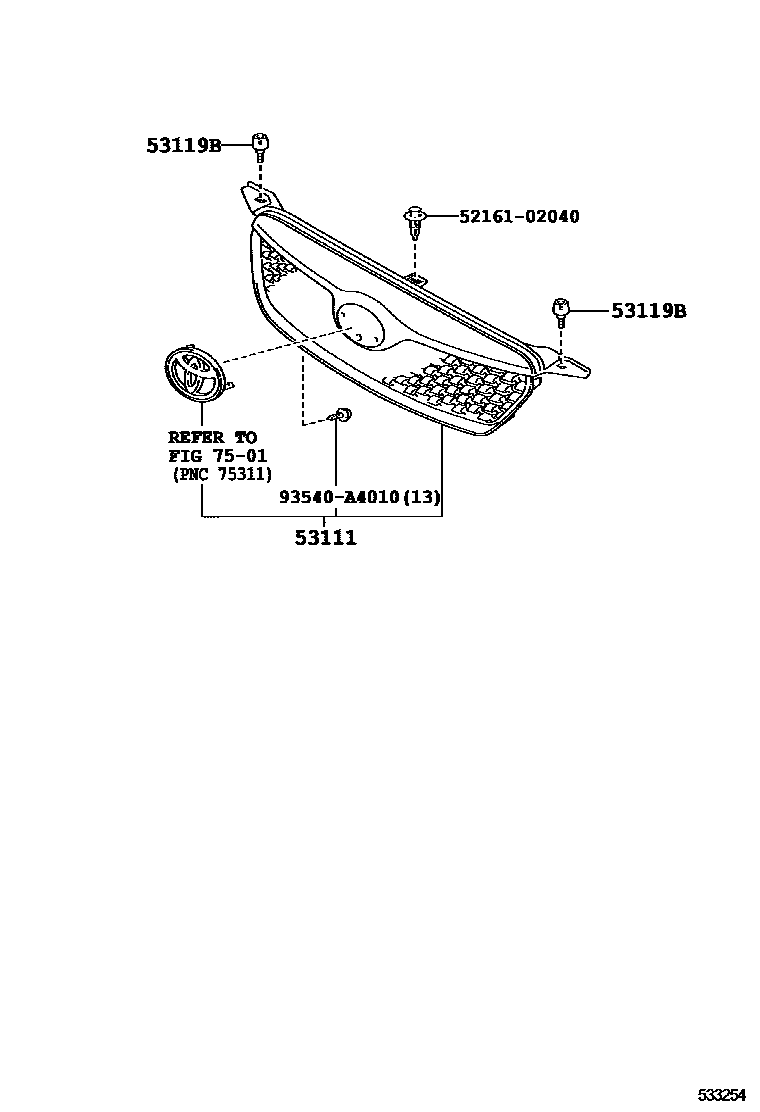

Toyota COROLLA radiator grille EPC diagram — 533254
radiator grille — 533254 (201005 – 201210)

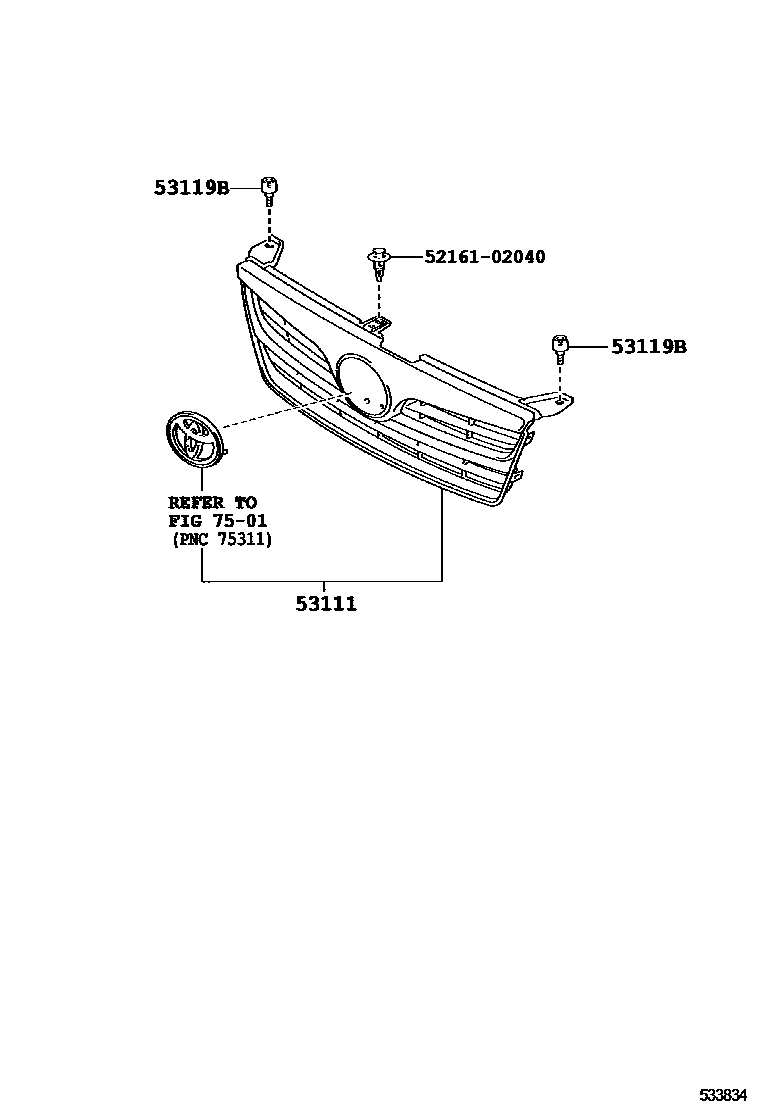

Toyota COROLLA radiator grille EPC diagram — 533834
radiator grille — 533834 (201210 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53100-02180 · 53100-02230 · 53100-02270 · 53100-02280 · 53101-YK010 · 53101-YK020 · 53101-YK030 · 53101-YK040
53119BRadiator grille protector53119-12150
