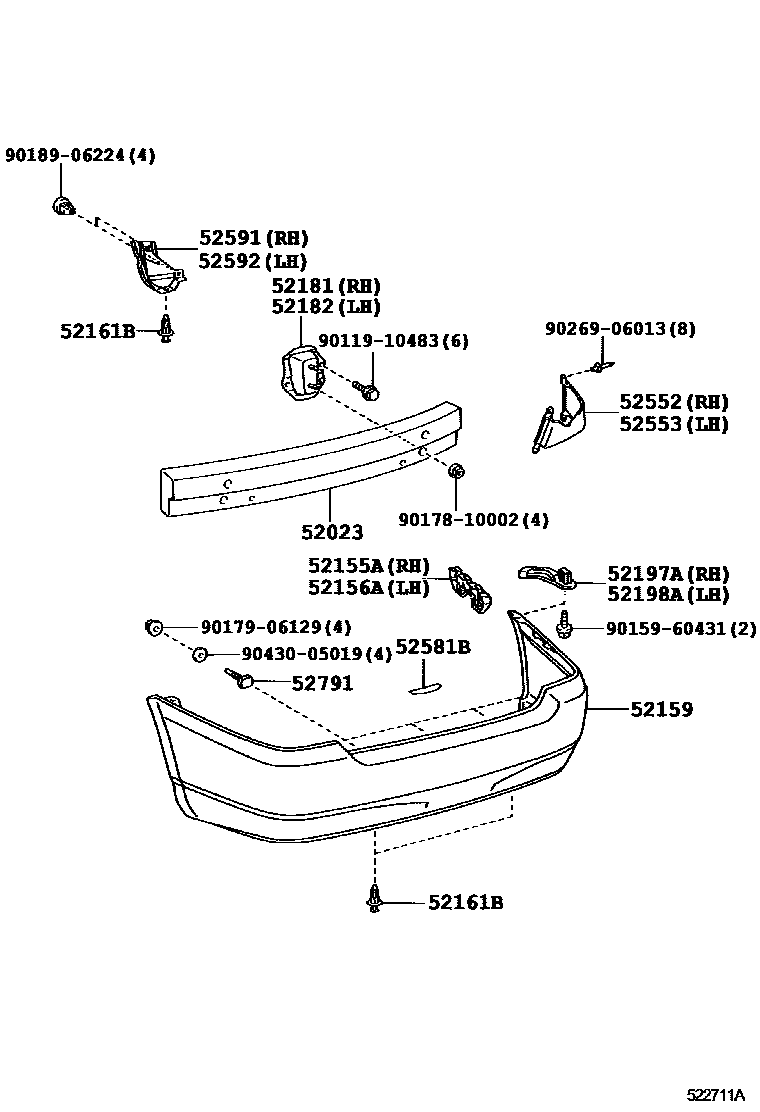

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02050 · 52171-YK010 |
| 52155A | Rear bumper right side bracket | 52155-02040 · 52155-YK010 |
| 52156A | Rear bumper left bracket | 52156-02030 · 52156-YK010 |
| 52159 | rear bumper cover | 52159-02921 · 52159-02922 · 52159-02927 |
| 52161B | Rear bumper insert | 52161-02040 |
| 52181 | Rear bumper right arm | 52181-02040 · 52181-YK010 |
| 52182 | Rear bumper left arm | 52182-02030 · 52182-YK010 |
| 52197A | Rear bumper right seal support | 52197-12080 |
| 52198A | Rear bumper left seal support | 52198-12080 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-02030 · 52552-YK010 |
| 52553 | Rear bumper left curved filler | 52553-02030 · 52553-YK010 |
| 52581B | rear bumper protector | 52581-02010 · 52581-YK010 |
| 52591 | Rear bumper right seal | 52591-02130 |
| 52592 | Rear bumper left seal | 52592-02120 |
| 52615 | Rear bumper energy absorber | 52615-02050 · 52615-02100 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-50010 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-50010 |
