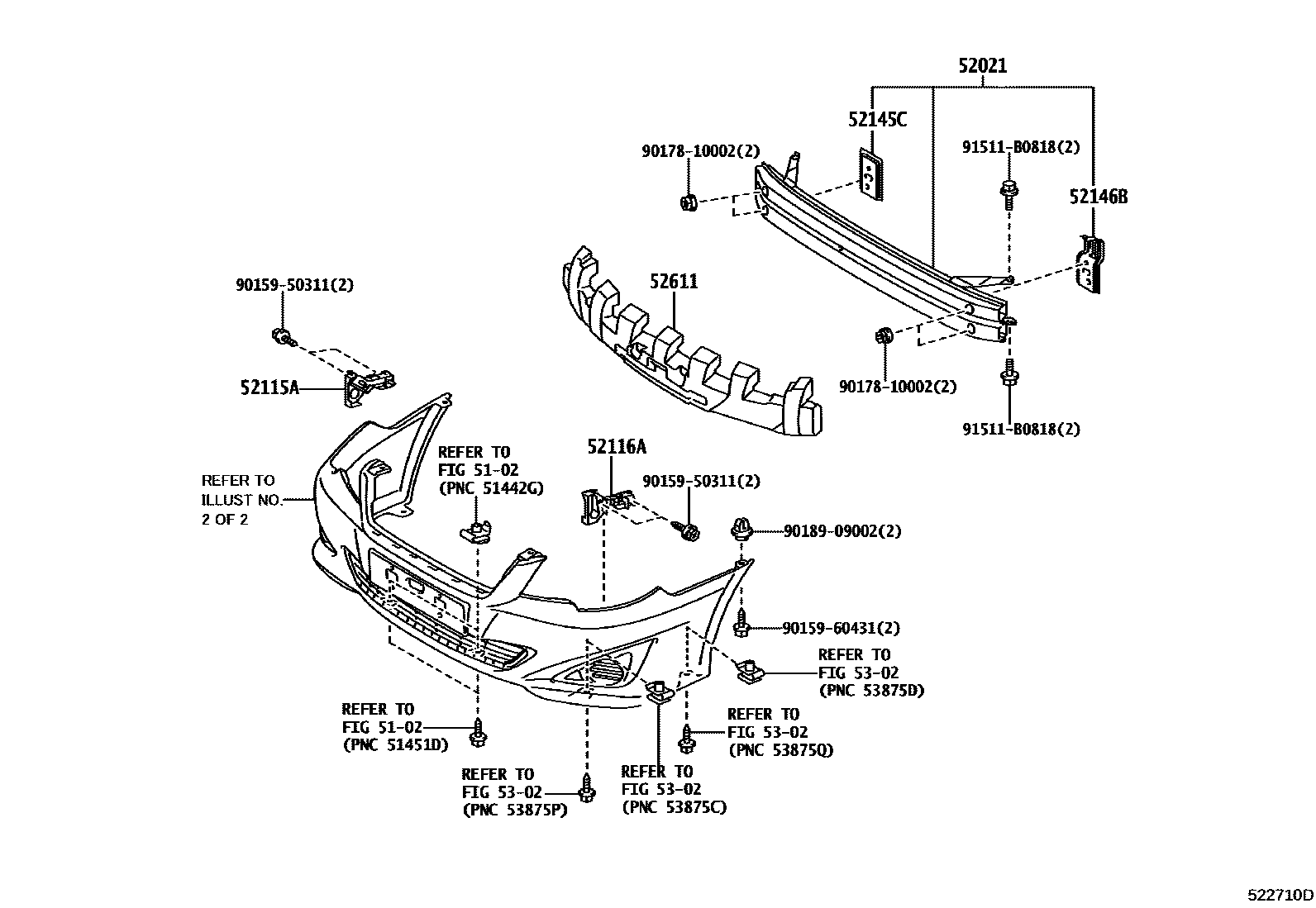

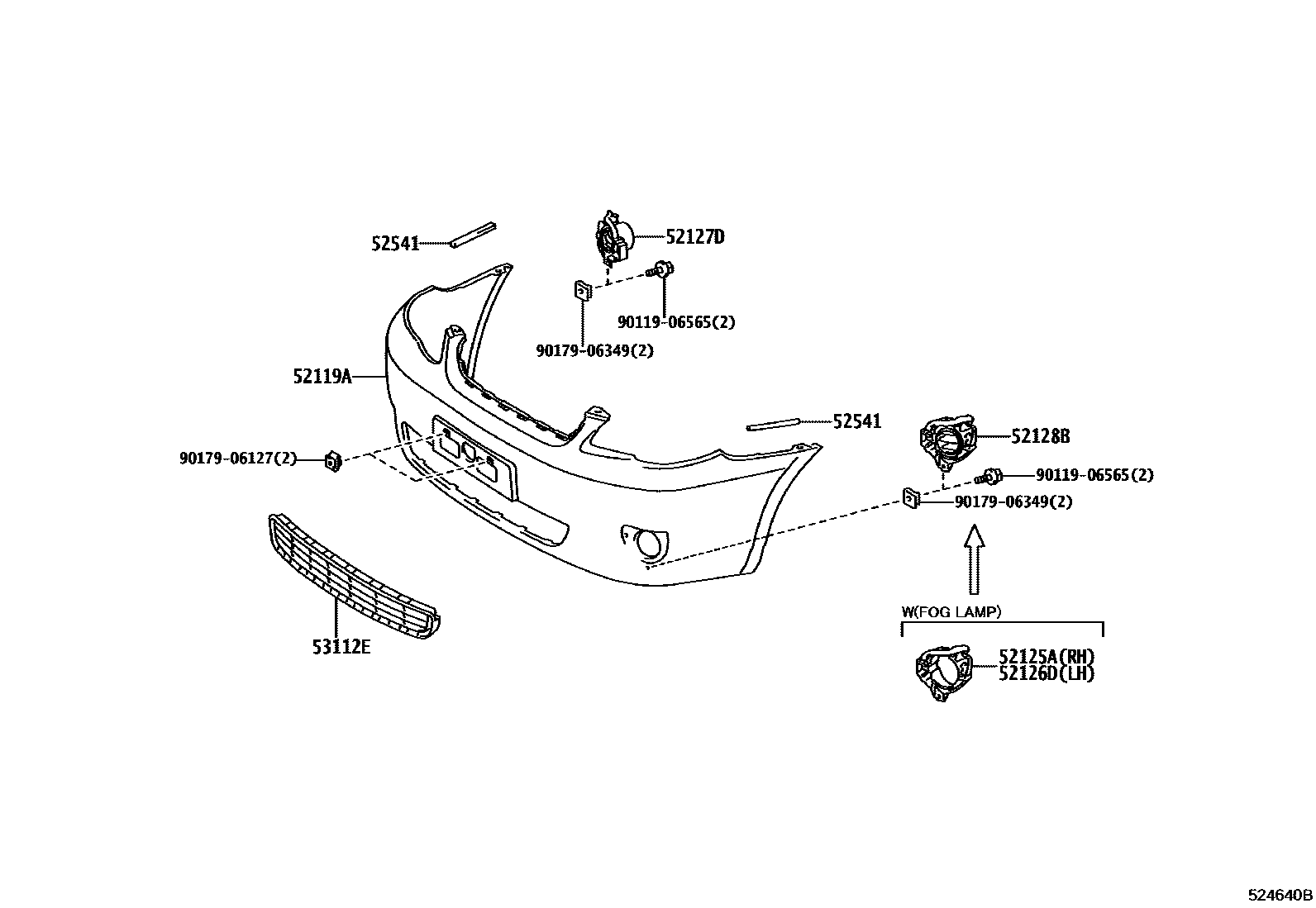

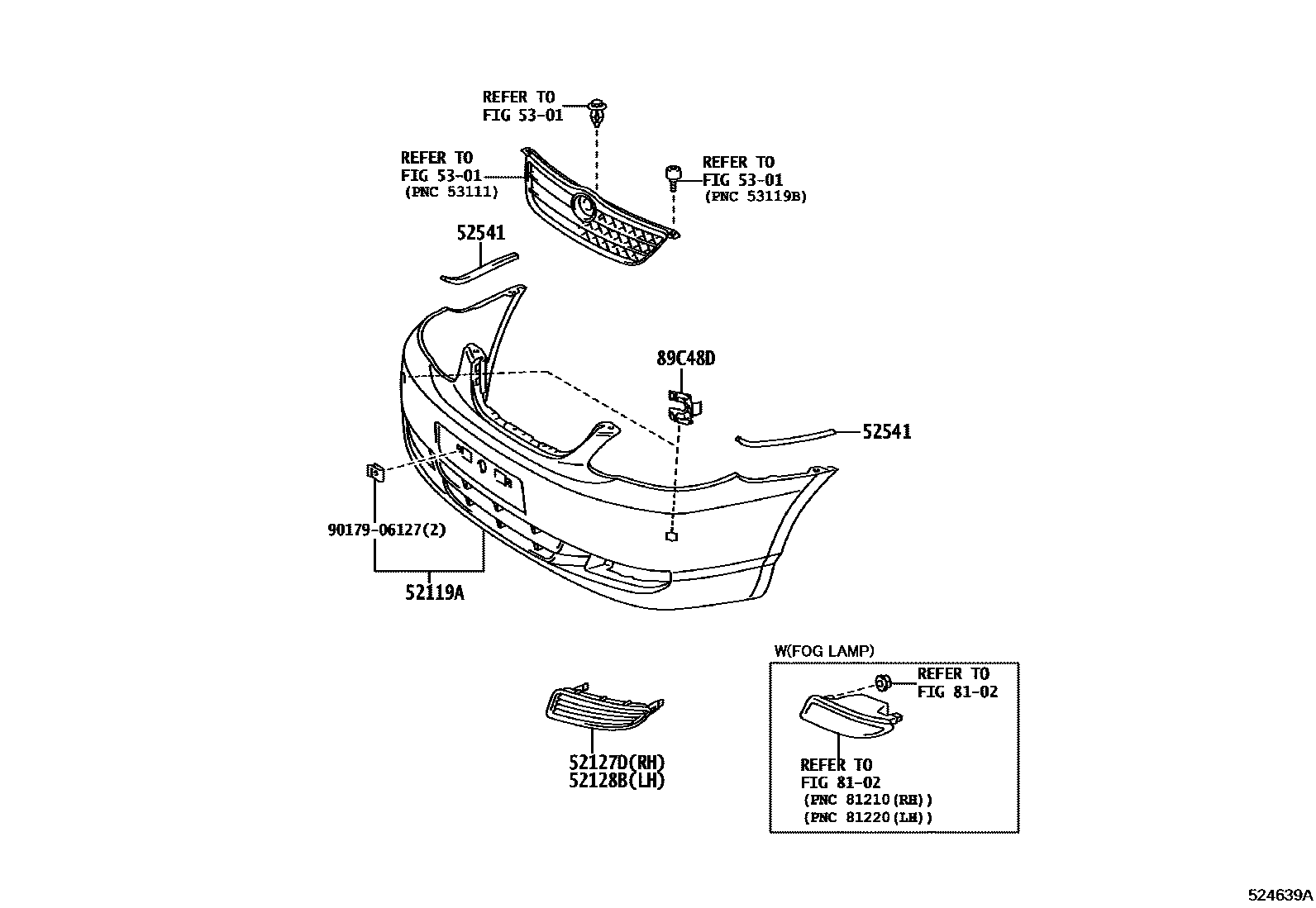

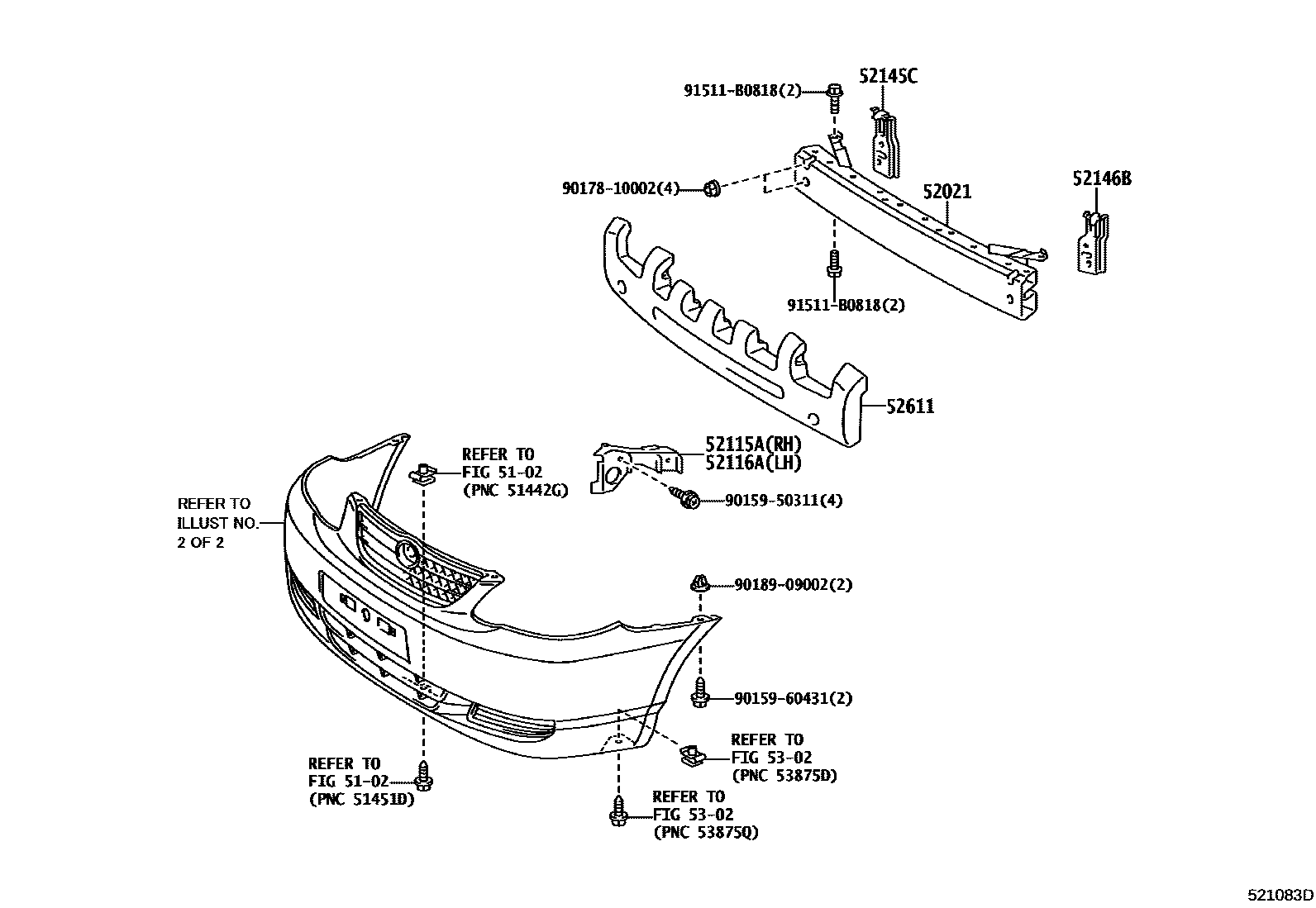

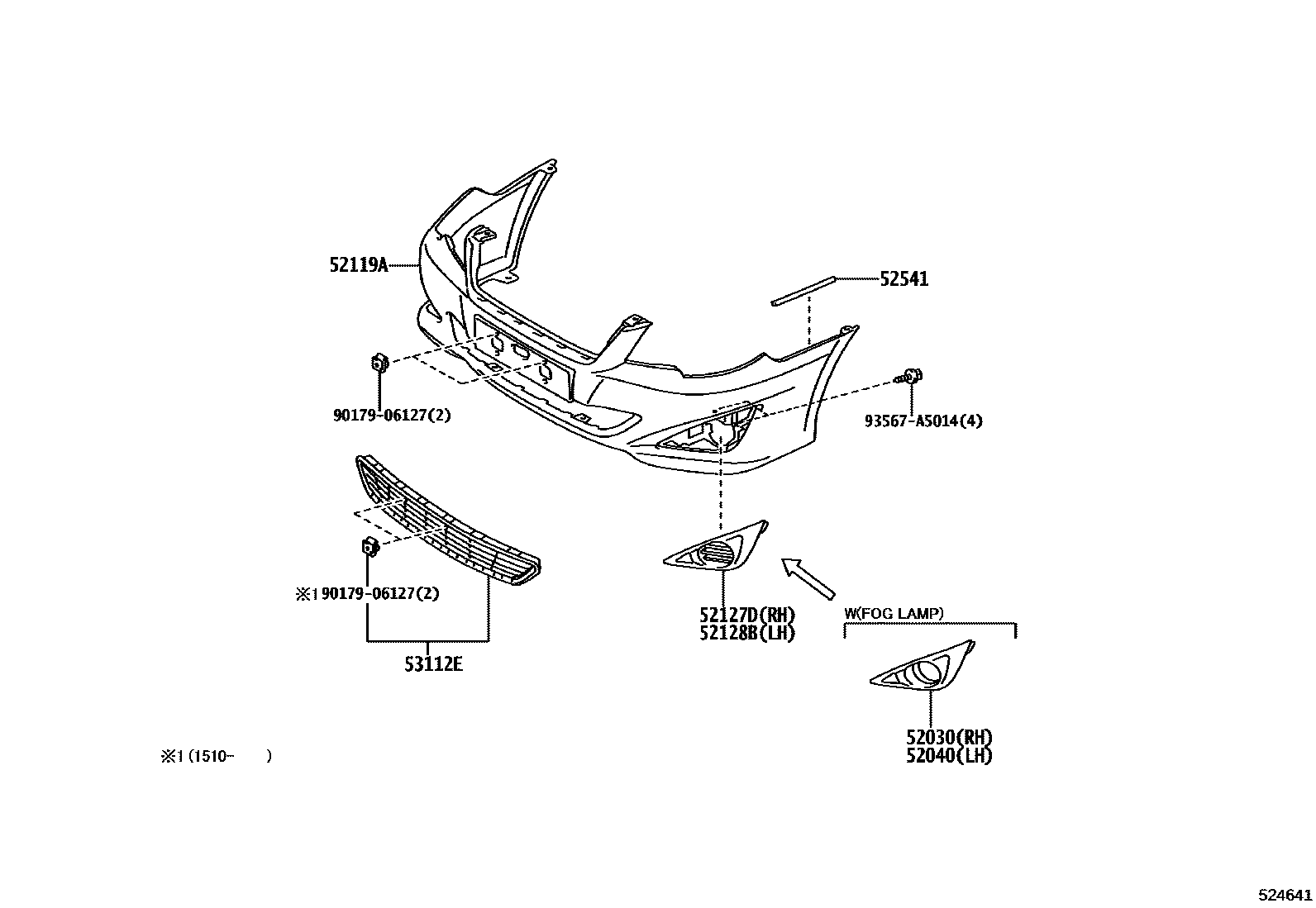

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02110 · 52021-YK010 |
| 52030 | Front bumper right hole cover assembly | 52030-YK010 |
| 52040 | Front bumper left hole cover assembly | 52040-YK010 |
| 52115A | Front bumper right side bracket | 52115-02090 · 52115-12400 · 52115-YK010 |
| 52116A | Front bumper left bracket | 52116-02090 · 52116-12360 · 52116-YK010 |
| 52119A | front bumper cover | 52119-02930 · 52119-02931 · 52119-02944 · 52119-YK900 · 52119-YK901 |
| 52125A | Right fog light mounting bracket | 52125-YK010 |
| 52126D | Left fog light mounting bracket | 52126-YK010 |
| 52127D | Front bumper right hole cover | 52127-02110 · 52127-02250 · 52127-YK010 · 52127-YK020 |
| 52128B | Front bumper left hole cover | 52128-02100 · 52128-02280 · 52128-YK010 · 52128-YK020 |
| 52145C | Front bumper right side mounting bracket | 52145-02060 · 52145-YK010 |
| 52146B | Front bumper left mounting bracket | 52146-02050 |
| 52541 | front bumper protector | 52541-02010 |
| 52611 | front bumper energy absorber | 52611-02080 · 52611-02180 · 52611-YK010 · 52611-YK020 |
| 53112E | No. 1 radiator lower grille | 53112-YK010 · 53112-YK020 · 53112-YK021 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-50010 |
