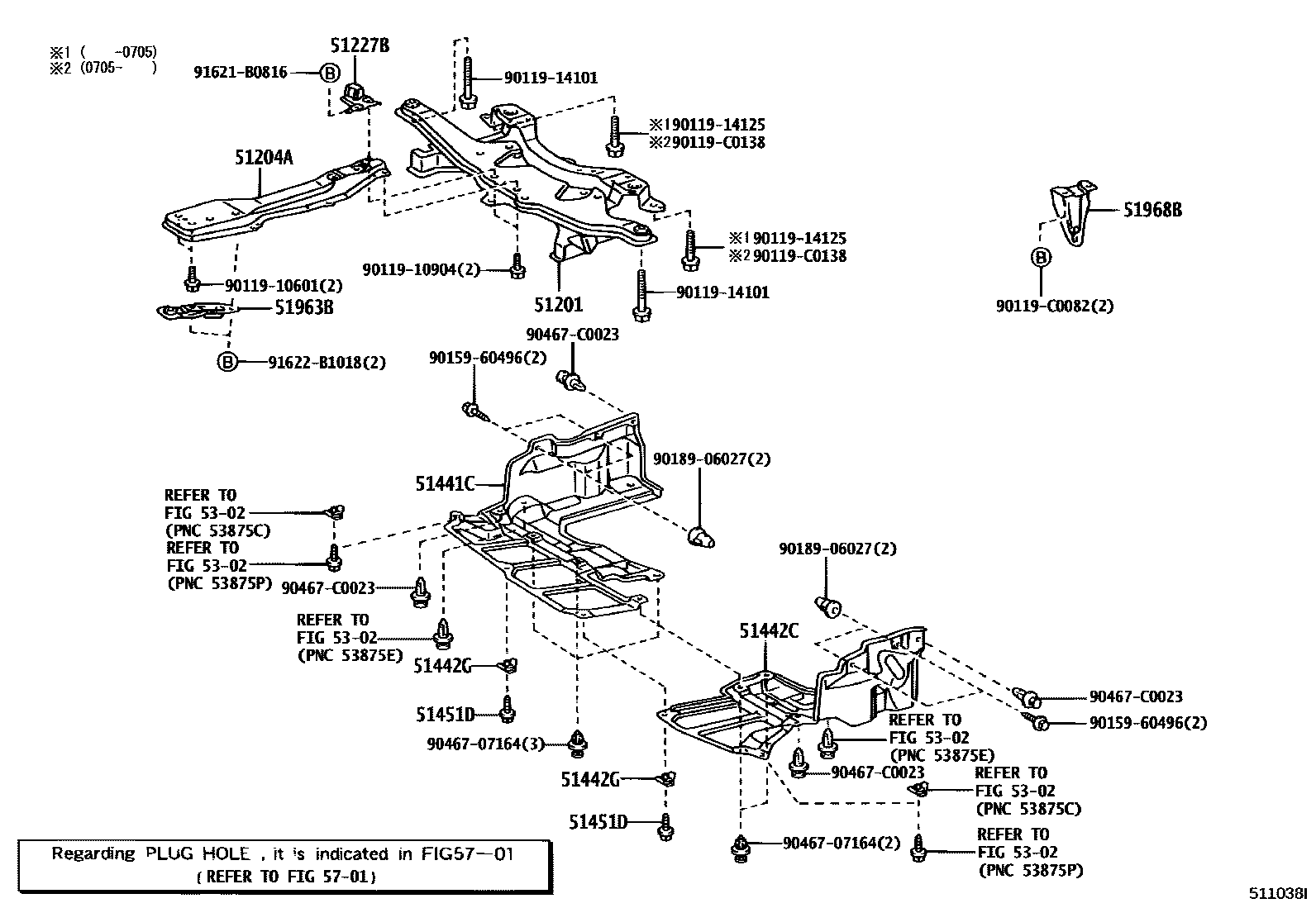

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02110 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-02060 · 51204-02061 · 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-02070 · 51227-12070 |
| 51441C | Engine right bottom cover | 51441-02160 · 51441-02270 |
| 51442C | Engine left bottom cover | 51442-02091 · 51442-02250 · 51442-02340 · 51442-02350 |
| 51442G | No. 1 engine bottom cover clip | 90467-05138 |
| 51451D | Screw No. 1 | 90159-60488 · 90159-C0012 |
| 51963B | Right front transport hook | 51963-02200 · 51963-12240 |
| 51968B | Left rear transport hook | 51968-02070 |
