Toyota COROLLA 制动配管和卡箍 — Figure 4708

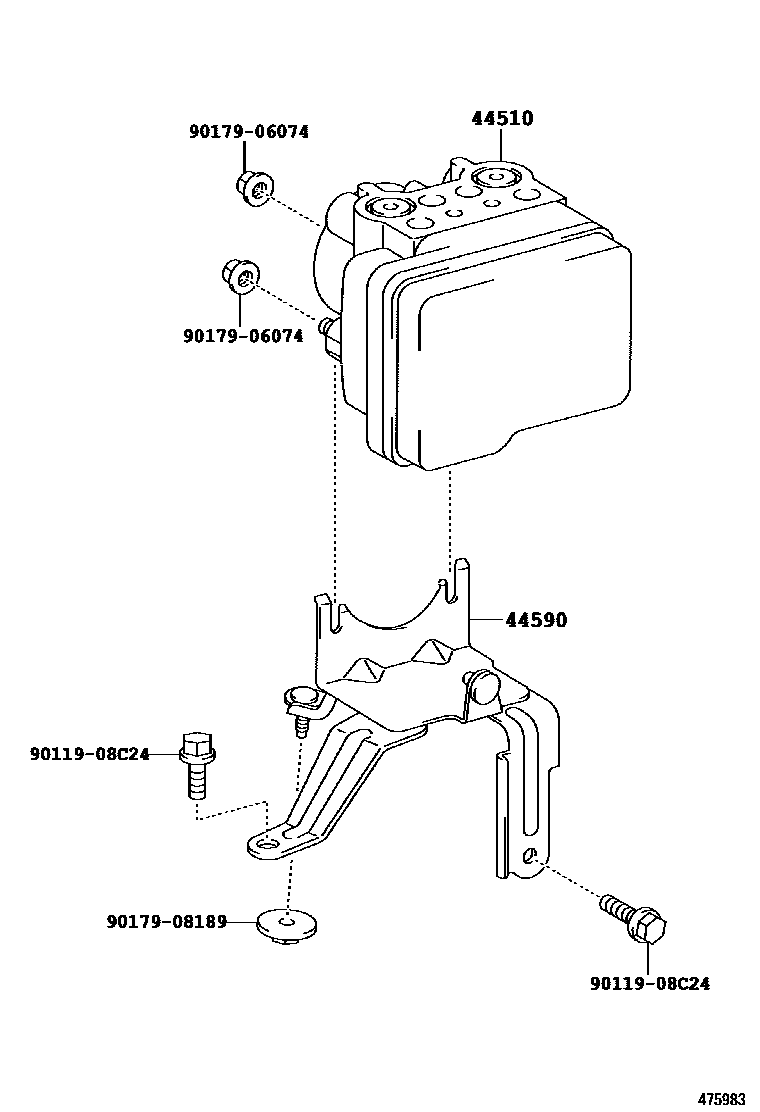

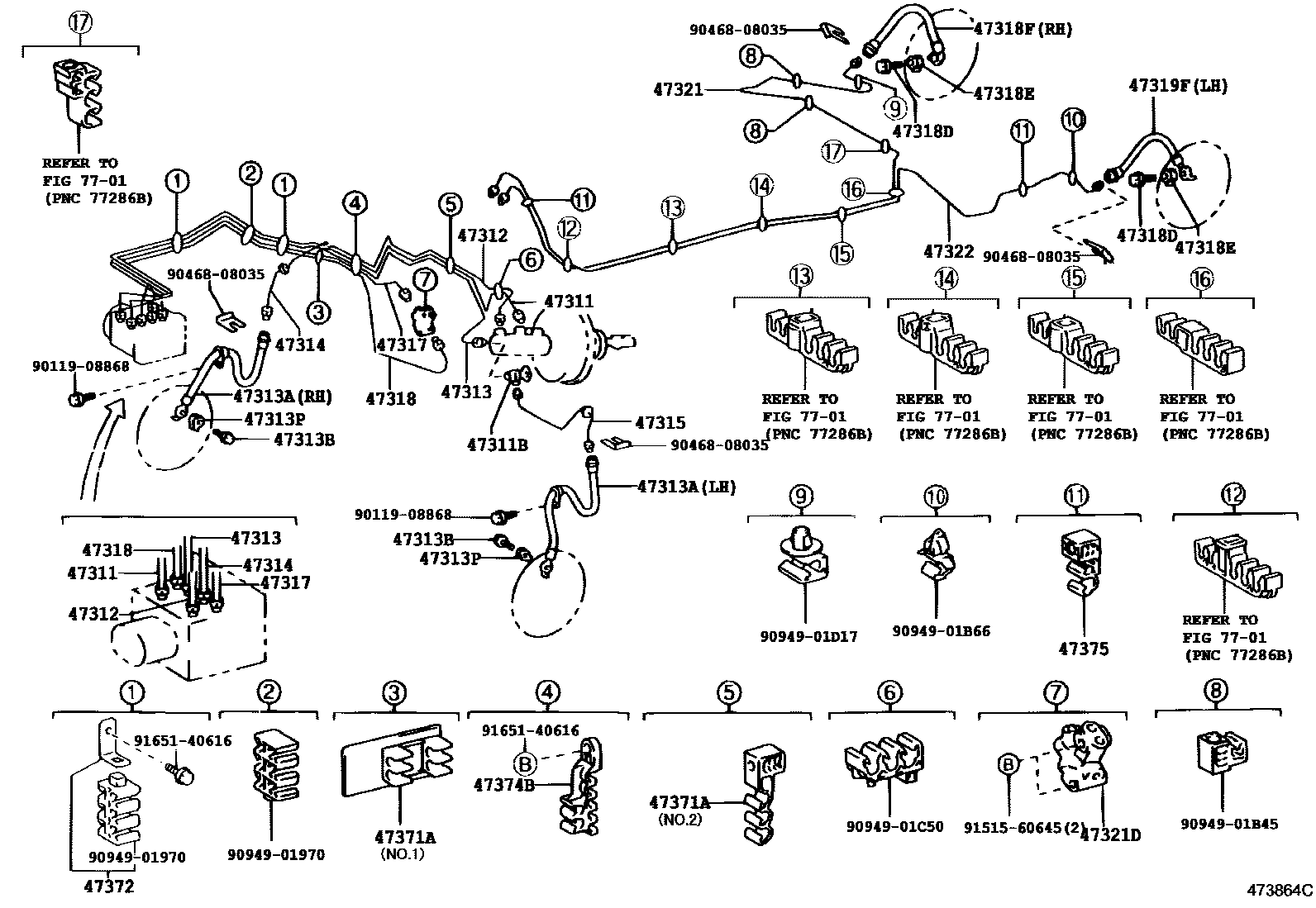

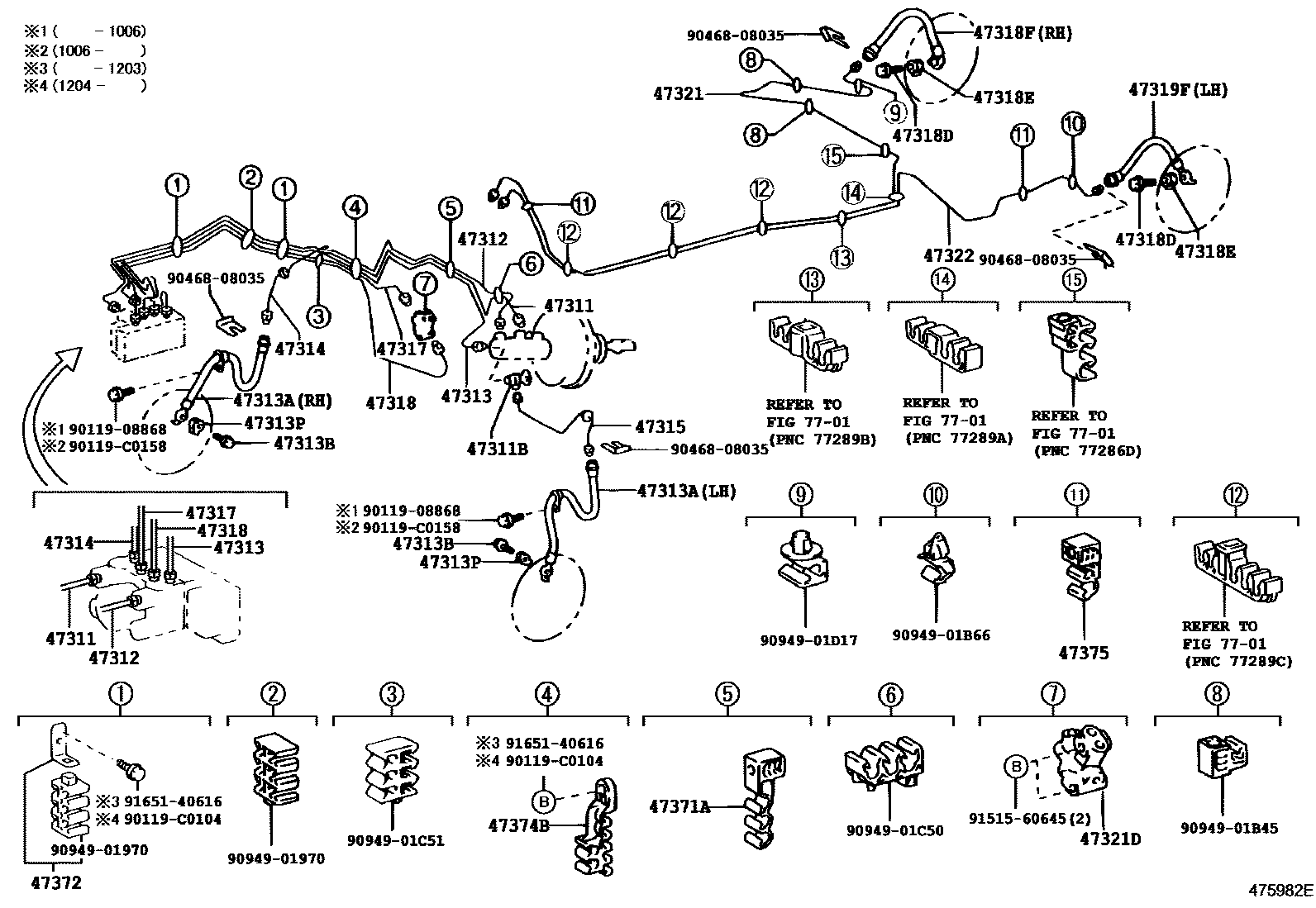

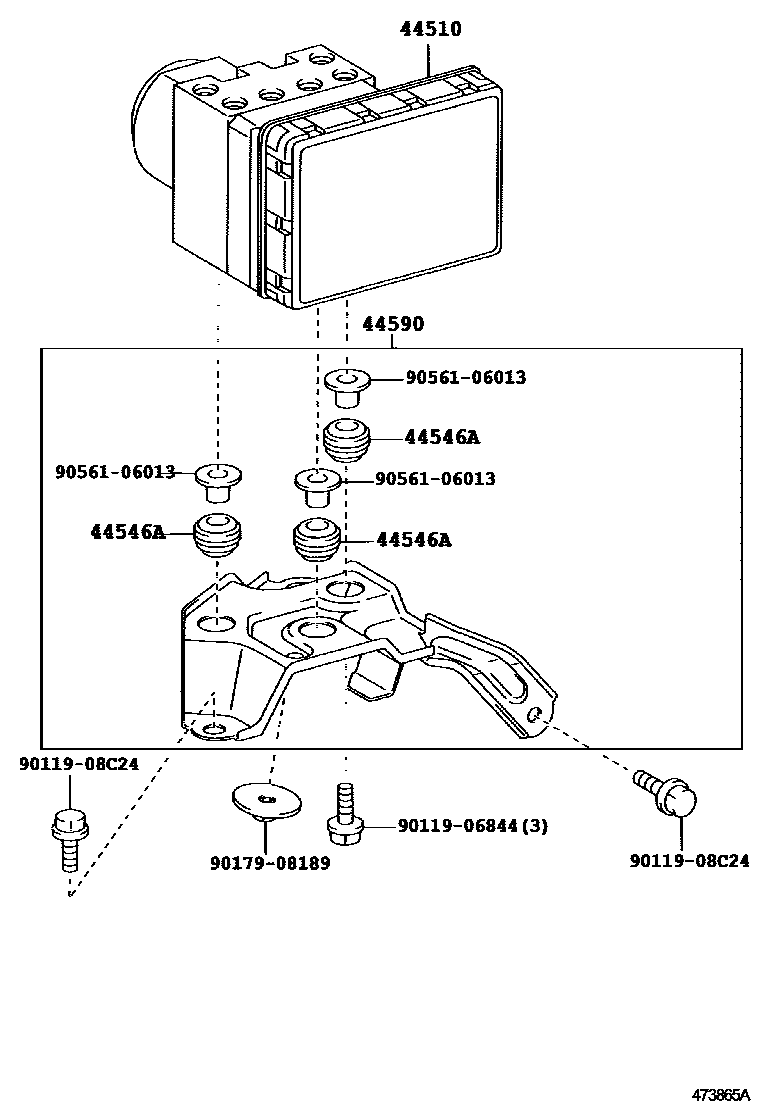

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02220 · 44050-13070 |
| 44546A | Brake actuator bolt cushion | 44546-12100 |
| 44590 | Brake actuator bracket assembly | 44590-02220 · 44590-12060 |
| 47311 | No. 1 front brake pipe | 47311-02470 · 47311-02550 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90904-12051 |
| 47312 | No. 2 front brake pipe | 47312-02350 · 47312-02450 |
| 47313 | No. 3 front brake pipe | 47313-02420 · 47313-02500 |
| 47313A | No. 1 front flexible hose | 90947-C2021 · 90947-C2022 · 90947-T2021 · 90947-T2022 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02400 · 47314-02500 |
| 47315 | No. 5 front brake pipe | 47315-02350 |
| 47317 | No. 7 front brake pipe | 47317-02330 · 47317-02420 |
| 47318 | No. 8 front brake pipe | 47318-02350 · 47318-02440 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-C2020 · 90947-T2020 |
| 47319F | Left rear flexible hose | 90947-C2020 · 90947-T2020 |
| 47321 | No. 1 rear brake pipe | 47321-02180 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90904-12088 |
| 47322 | No. 2 rear brake pipe | 47322-02180 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 · 47371-52010 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47374B | No. 4 brake pipe clamp | 47372-52010 |
| 47375 | No. 5 brake pipe clamp | 77299-32030 |
