Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

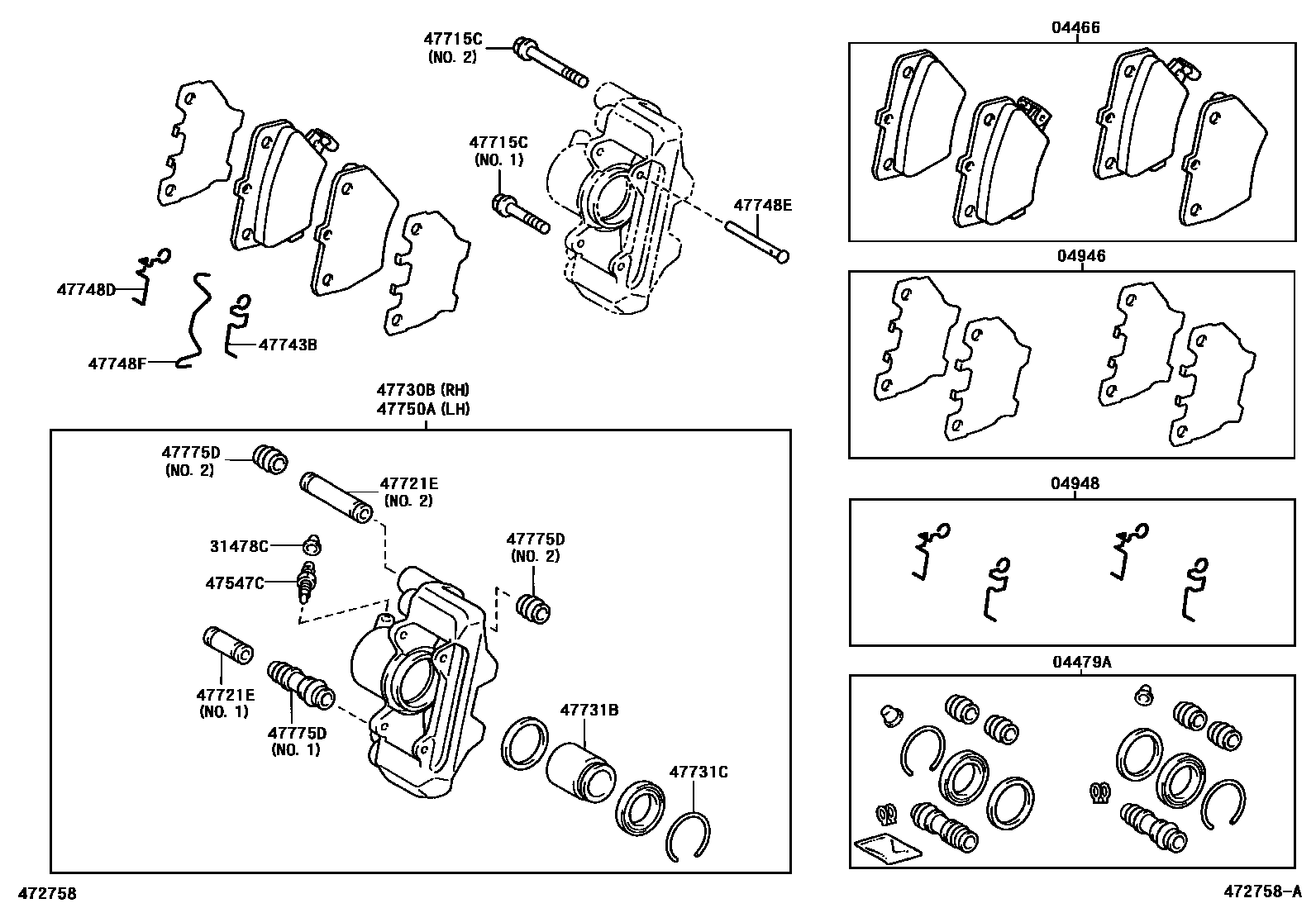

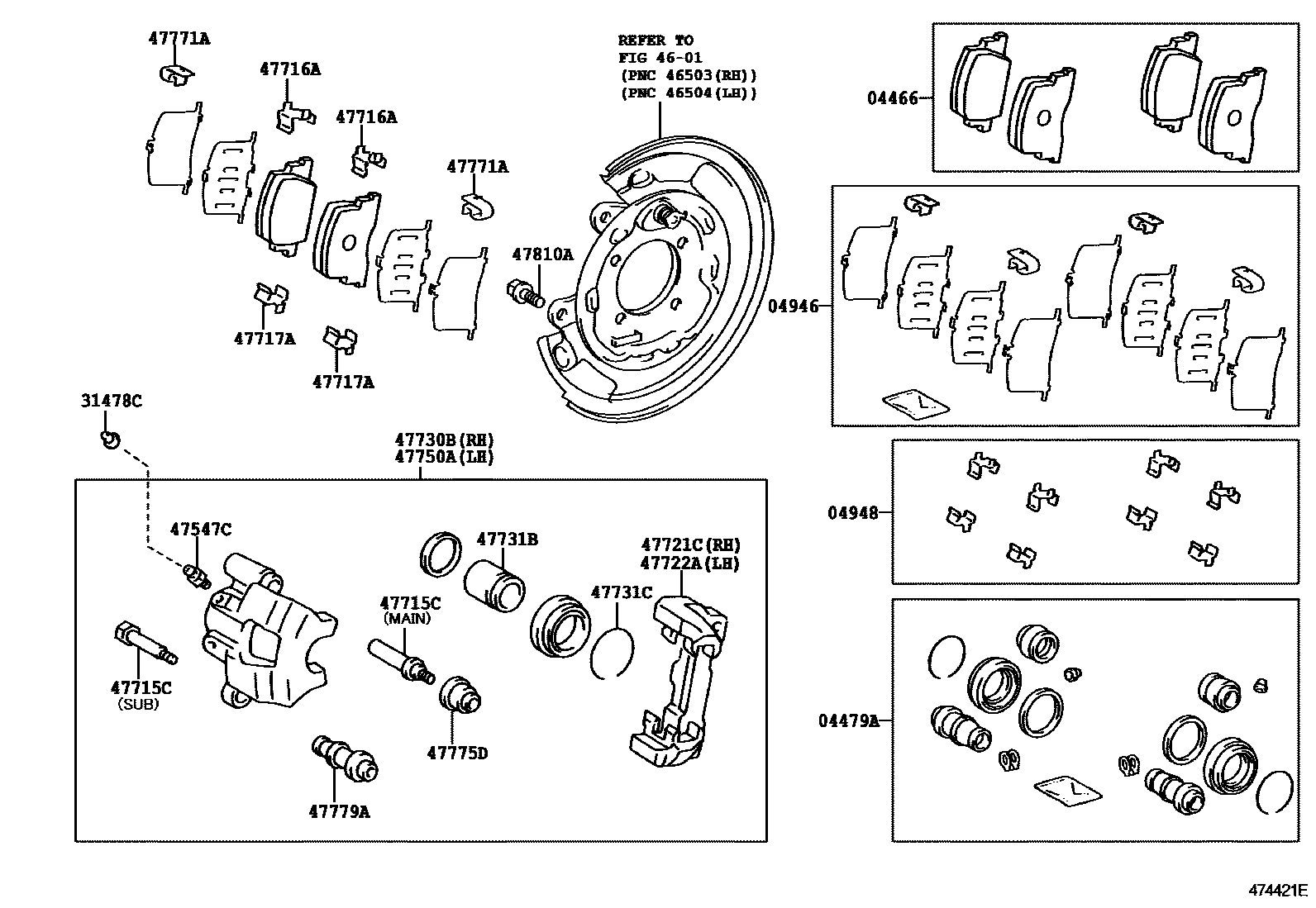

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-47010 · 04466-52030 |
| 04479A | Rear disc brake cylinder assembly | 04479-13010 · 04479-21040 · 04479-21041 · 04479-33110 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-47010 · 04946-47060 · 04946-52010 |
| 04948 | Rear disc brake mounting assembly | 04948-20010 · 04948-32040 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0N010 · 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 · 47547-35020 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-20030 · 47715-20040 · 47715-32020 · 47715-32030 · 47715-32040 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-32060 |
| 47717A | Pad support plate No. 2 (for rear disc brake) | 47717-32060 |
| 47721C | Right rear disc brake cylinder retainer | 47721-32150 · 47721-32151 |
| 47721E | Collar (for rear disc brake cylinder retainer) | 90389-10053 · 90389-10054 |
| 47722A | Left rear disc brake cylinder retainer | 47722-32150 · 47722-32151 |
| 47730B | Right rear disc brake cylinder assembly | 47730-13020 · 47730-21030 |
| 47731B | rear disc brake piston | 47731-13010 · 47731-33040 |
| 47731C | retaining ring (for rear disc brake piston) | 90522-42001 · 90522-43003 |
| 47743B | Anti-vibration spring No. 2 (for rear disc brake) | 47743-20030 |
| 47748D | Anti-vibration spring No. 1 (for rear disc brake) | 47748-20040 |
| 47748E | Holed pin (for rear disc brake) | 90240-06021 |
| 47748F | Clip (for rear disc brake) | 90468-12025 |
| 47750A | Left rear disc brake cylinder assembly | 47750-13020 · 47750-21030 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47771-32030 · 47771-32050 |
| 47775D | Bushing boot (for rear disc brake) | 47775-22020 · 47775-32050 · 47775-42010 · 47875-30340 · 47875-30341 |
| 47779A | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47779-32030 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10379 |
