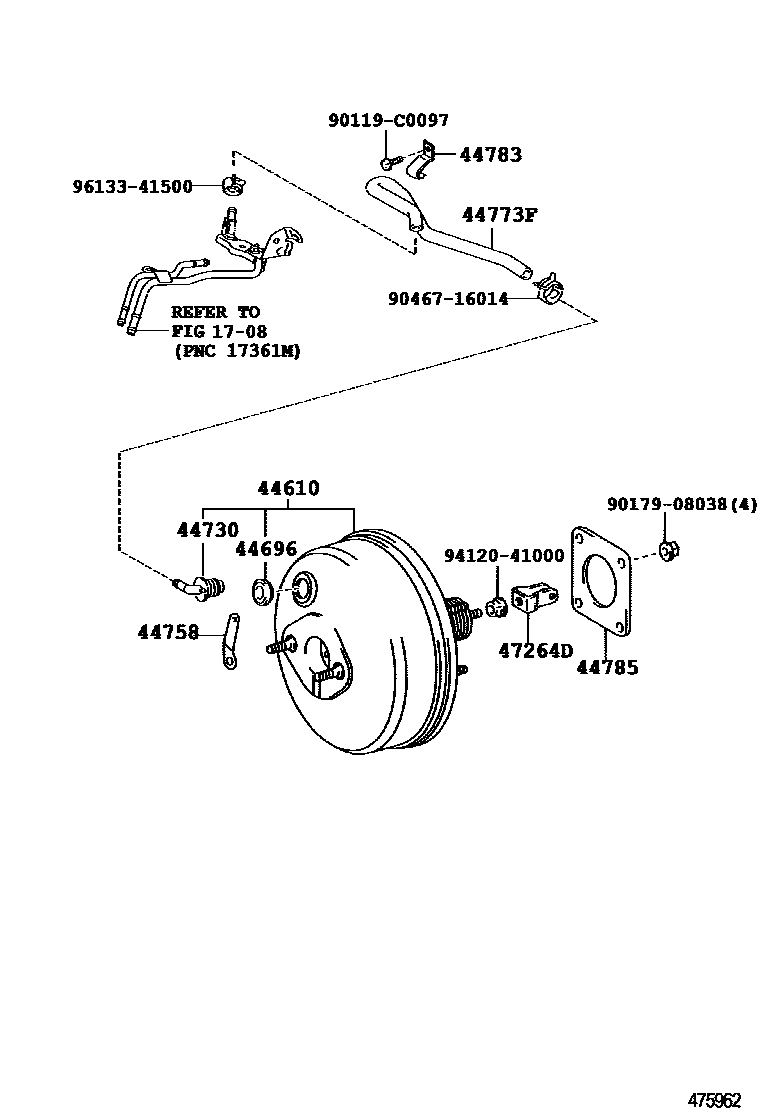

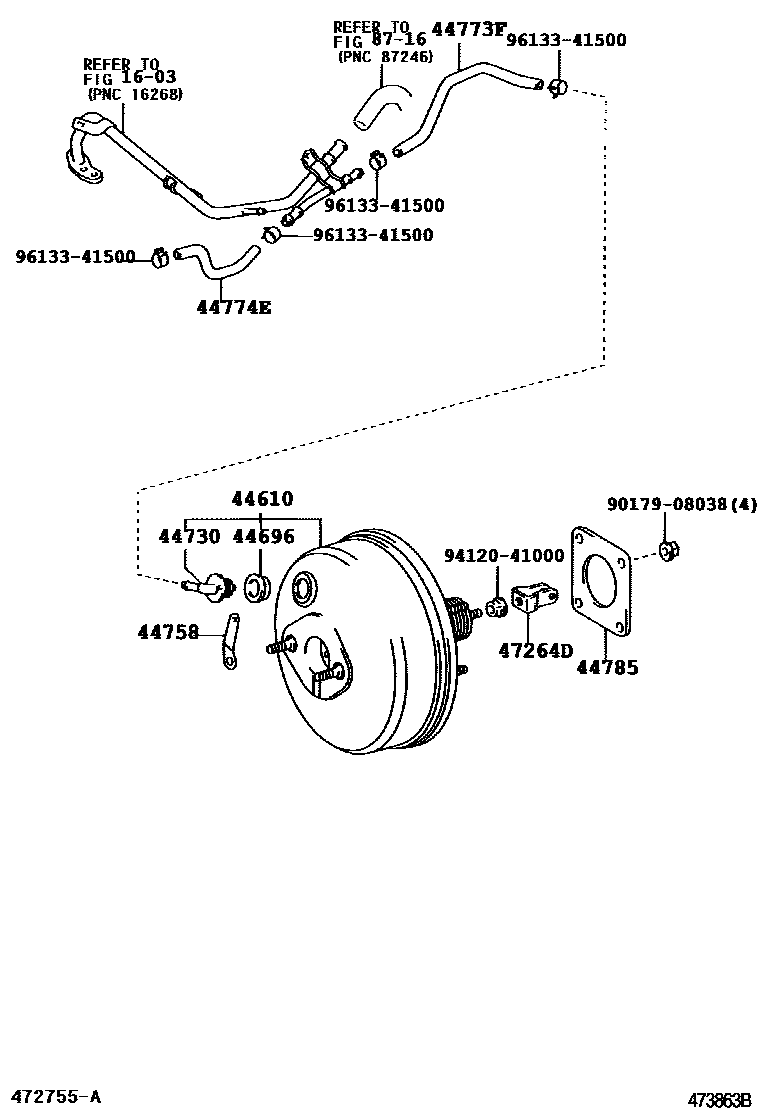

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02310 · 44610-1E600 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 |
| 44758 | Vacuum check valve bracket | 44758-02020 |
| 44773F | Hoses (connector to check valve) | 44773-02100 · 44773-02190 · 44773-12870 |
| 44774E | Hoses (joints to connector tubes) | 44774-12730 |
| 44783 | Vacuum hose clamp | 44783-12020 |
| 44785 | brake booster pad | 44785-02030 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 |
