Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

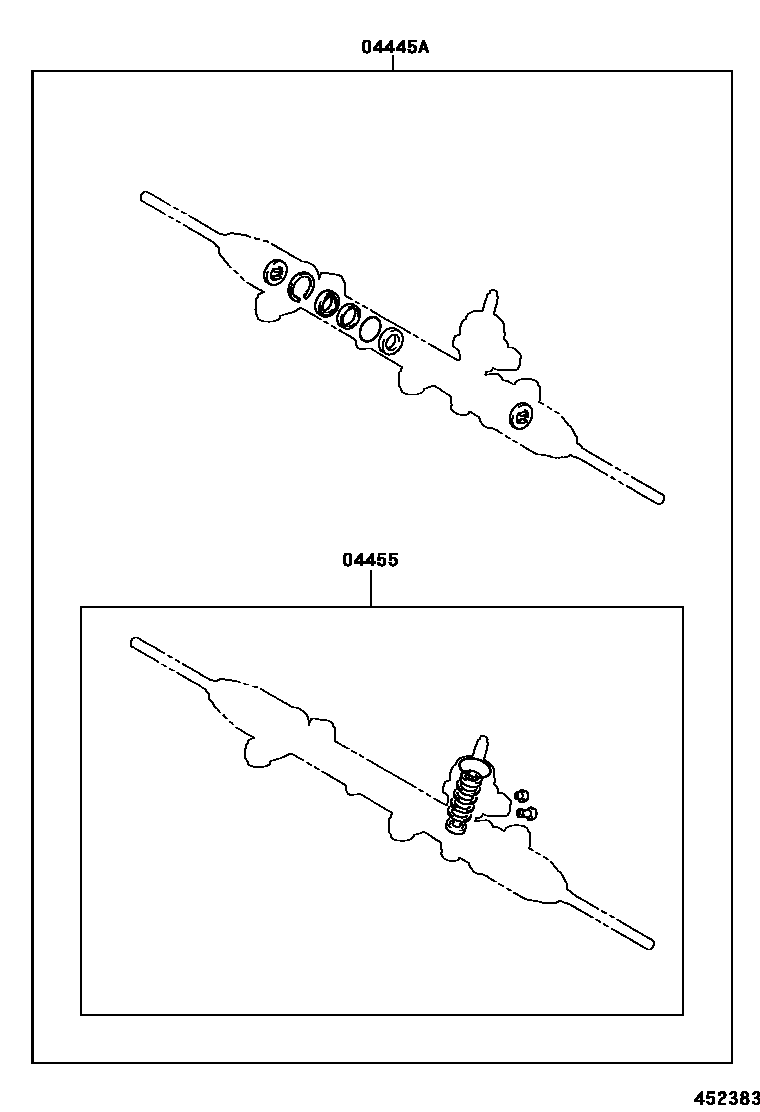

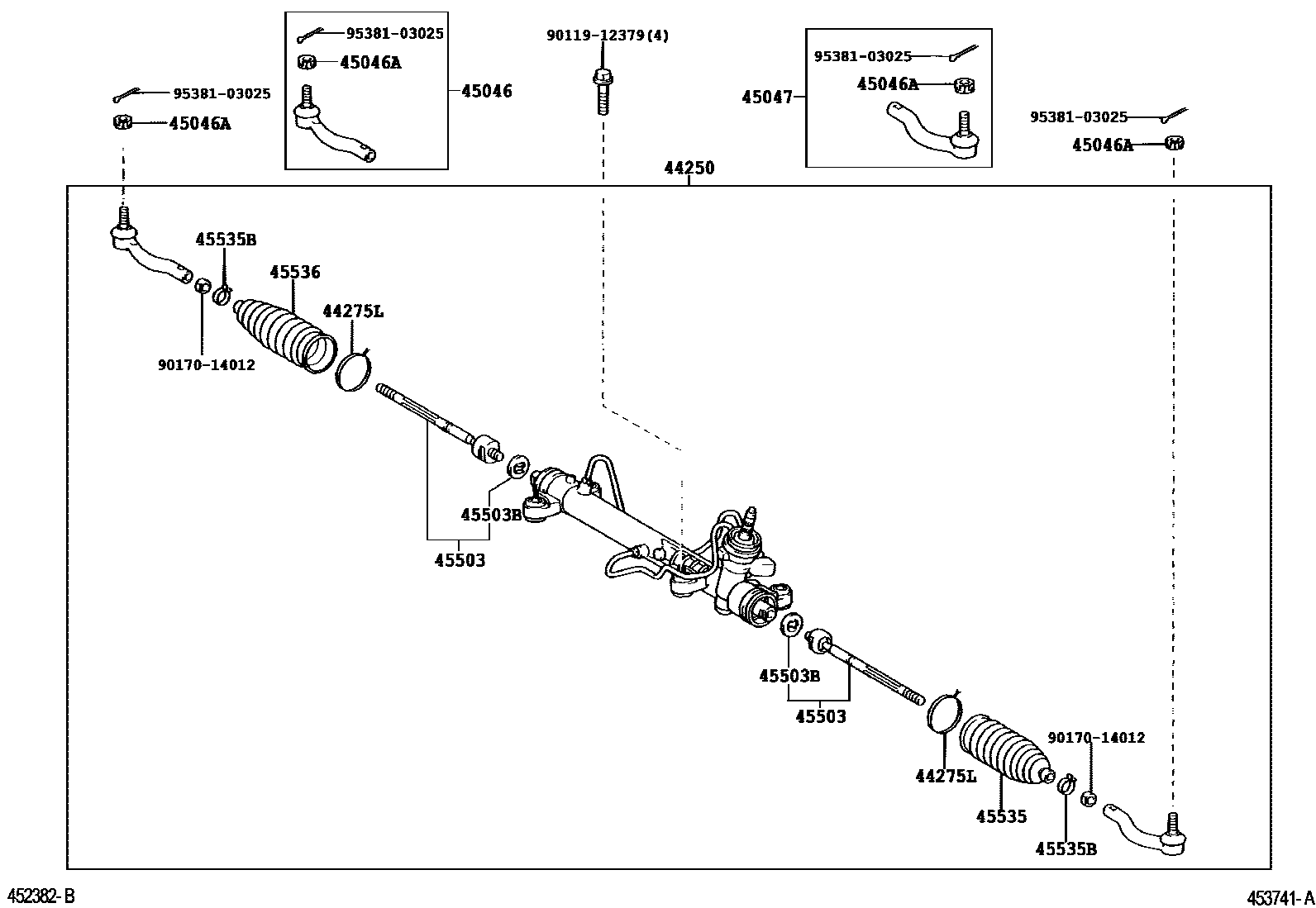

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-12170 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-20171 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44200-12760 · 44200-12860 |
| 44275L | Dust jacket coil | 90580-14073 |
| 45046 | Right tie rod end sub-assembly | 45046-19265 · 45046-49115 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 · 90171-C0001 |
| 45047 | Left tie rod end sub-assembly | 45047-19115 · 45047-49045 |
| 45503 | Steering rack end sub-assembly | 45503-02160 · 45503-12130 · 45503-12131 · 45503-19255 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45510 | Steering gear assembly | 45510-02180 |
| 45535 | No. 1 steering rack dust cover | 45535-09160 · 45535-32070 |
| 45535A | Clamp (for steering rack dust boot) | 45538-02010 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D030 · 90467-19019 |
| 45536 | No. 2 steering rack dust cover | 45535-09160 · 45535-32070 |
