Toyota COROLLA Front Drive Shaft — Figure 4302

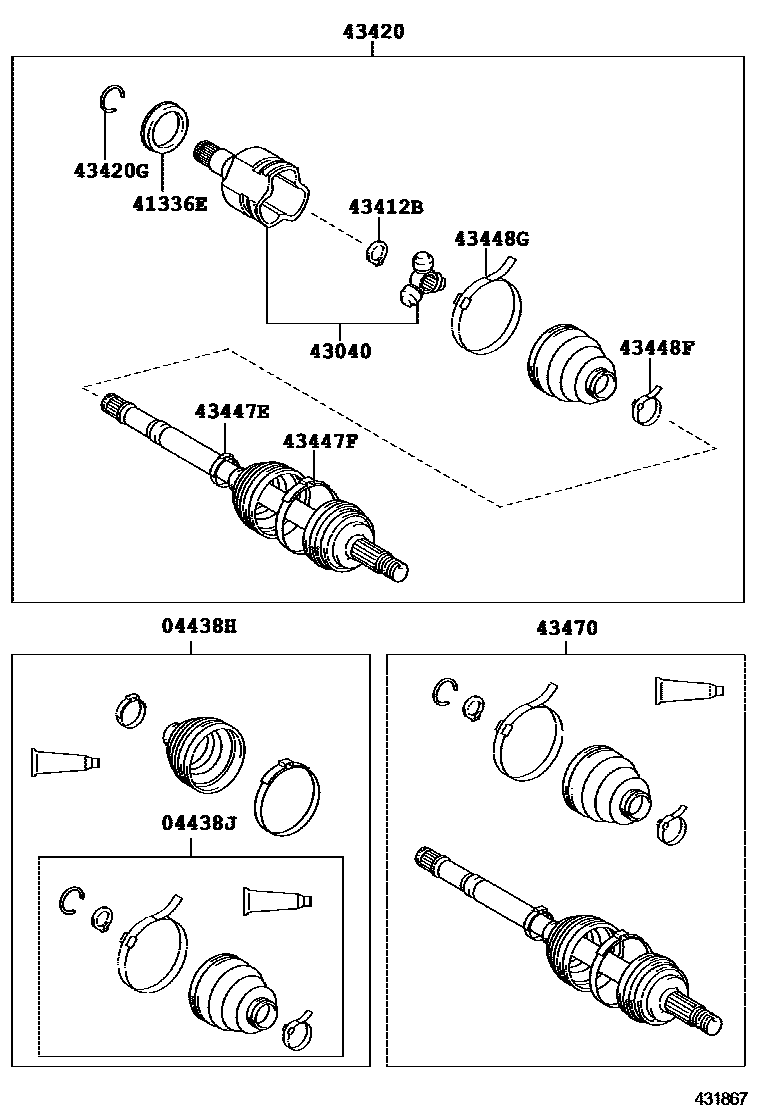

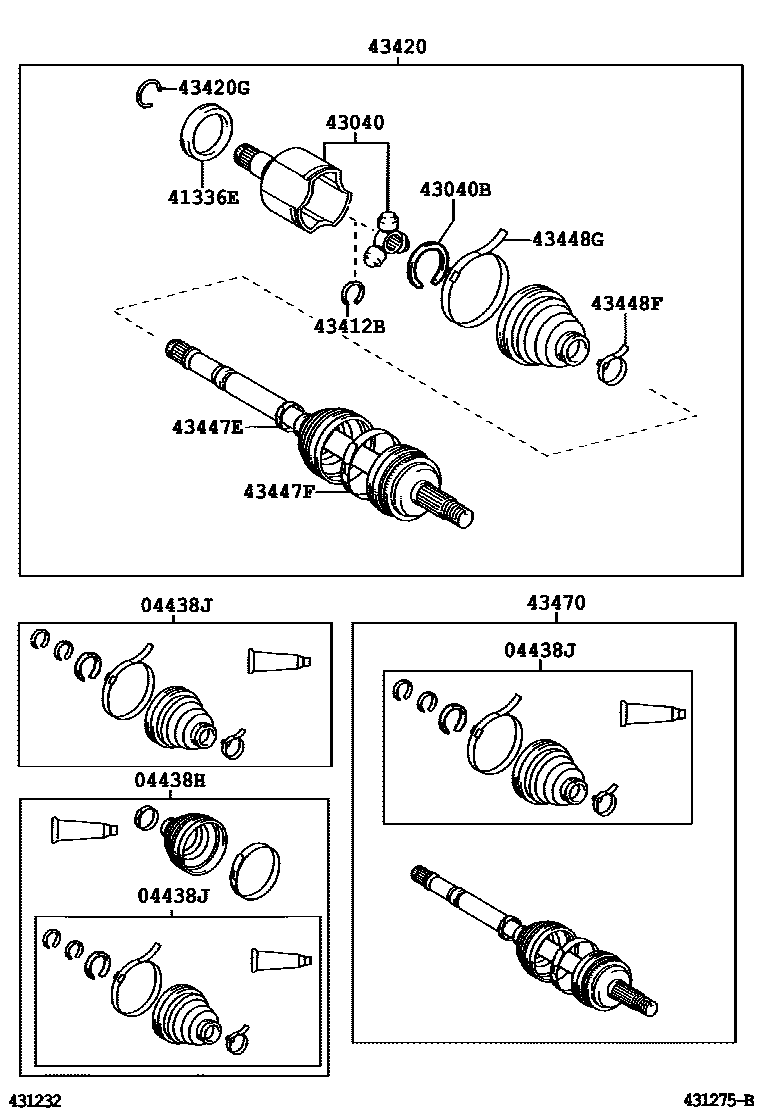

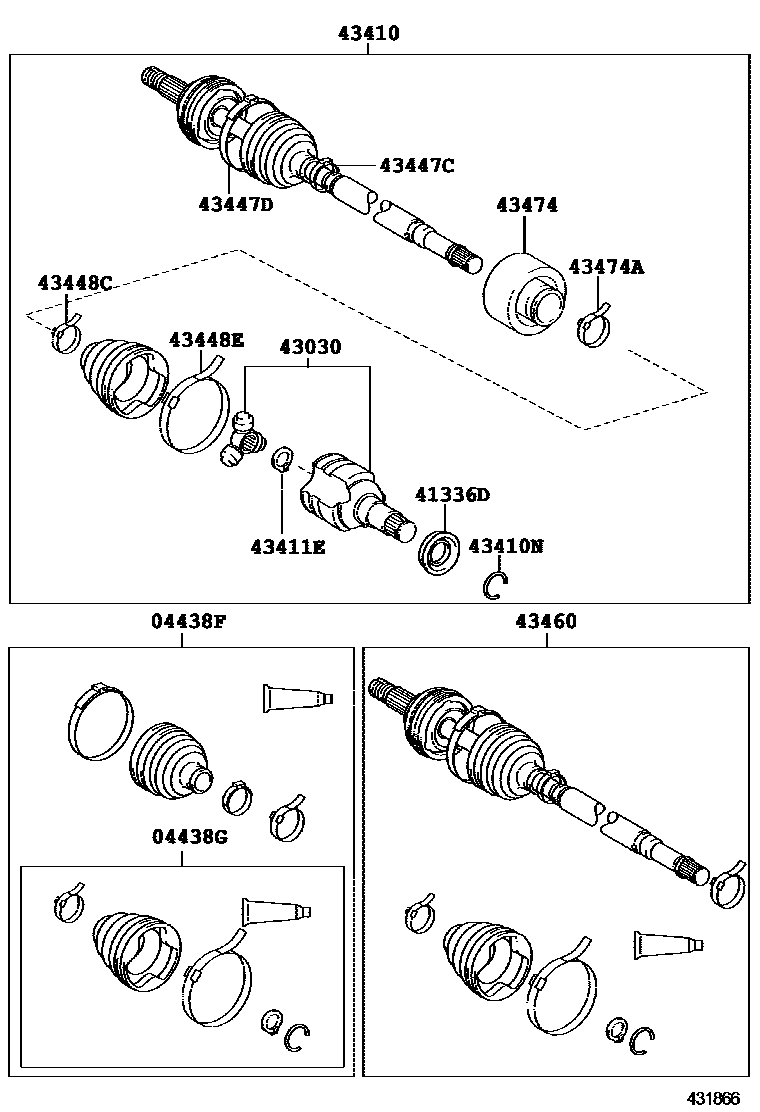

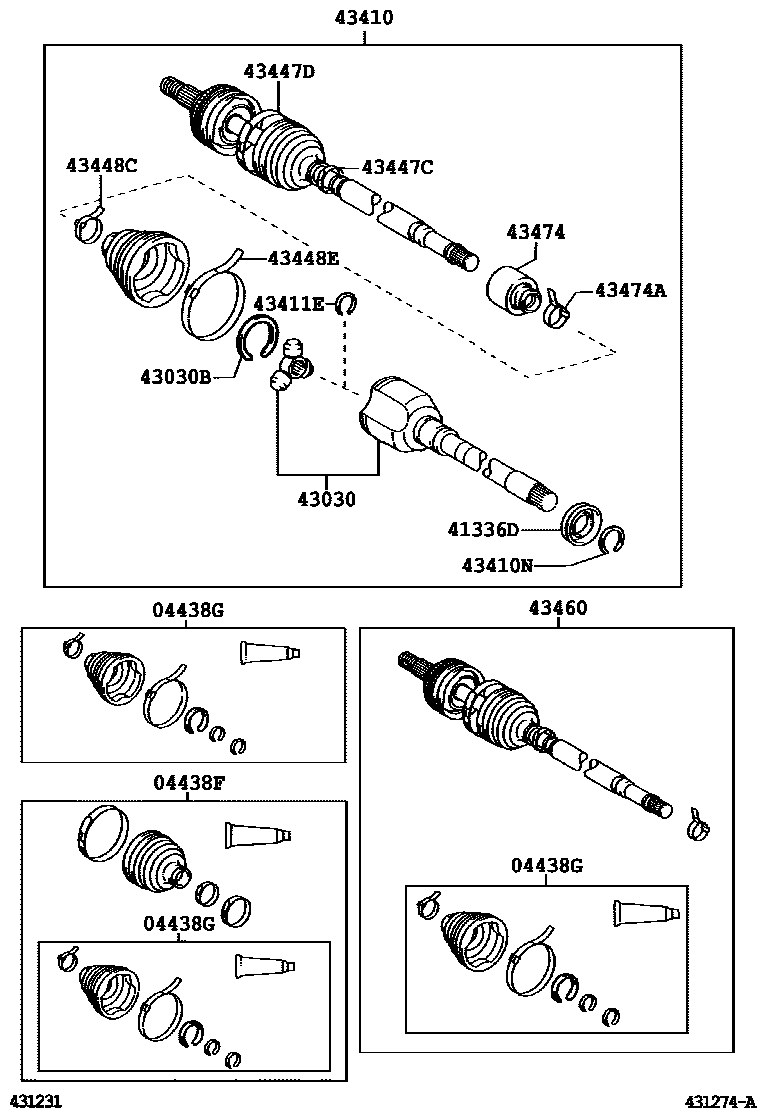

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02450 · 04427-12060 · 04427-12570 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02300 · 04438-12680 · 04438-12940 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02450 · 04427-12060 · 04428-12580 · 04438-12690 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02300 · 04438-12680 · 04438-12940 |
| 41336D | Right front driveshaft dust cover | 41336-02120 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-02120 · 41336-12060 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-02140 · 43040-12090 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90520-71002 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02140 · 43040-12090 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90520-71002 |
| 43410 | Right front driveshaft assembly | 43410-02640 · 43410-12720 · 43410-12721 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02180 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02170 · 90520-23056 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02170 · 90520-23056 |
| 43420 | Left front drive shaft assembly | 43420-02690 · 43420-12650 · 43420-12651 · 43420-12660 · 43420-12661 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02180 · 90521-27005 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02400 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02390 · 42345-12080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02400 · 90949-01A65 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02390 · 42345-12080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02370 · 42345-12270 · 90949-01108 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02360 · 42346-22010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02370 · 42345-12270 · 90949-01108 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02360 · 42346-22010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09S00 · 43460-80013 · 43460-80038 · 43460-80107 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09U20 · 43470-80032 · 43470-80056 · 43470-80184 · 43470-80185 |
| 43474 | drive shaft damper | 43474-02230 · 43474-52030 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02380 · 42345-14010 |
