Toyota COROLLA 前桥壳和差速器 — Figure 4301

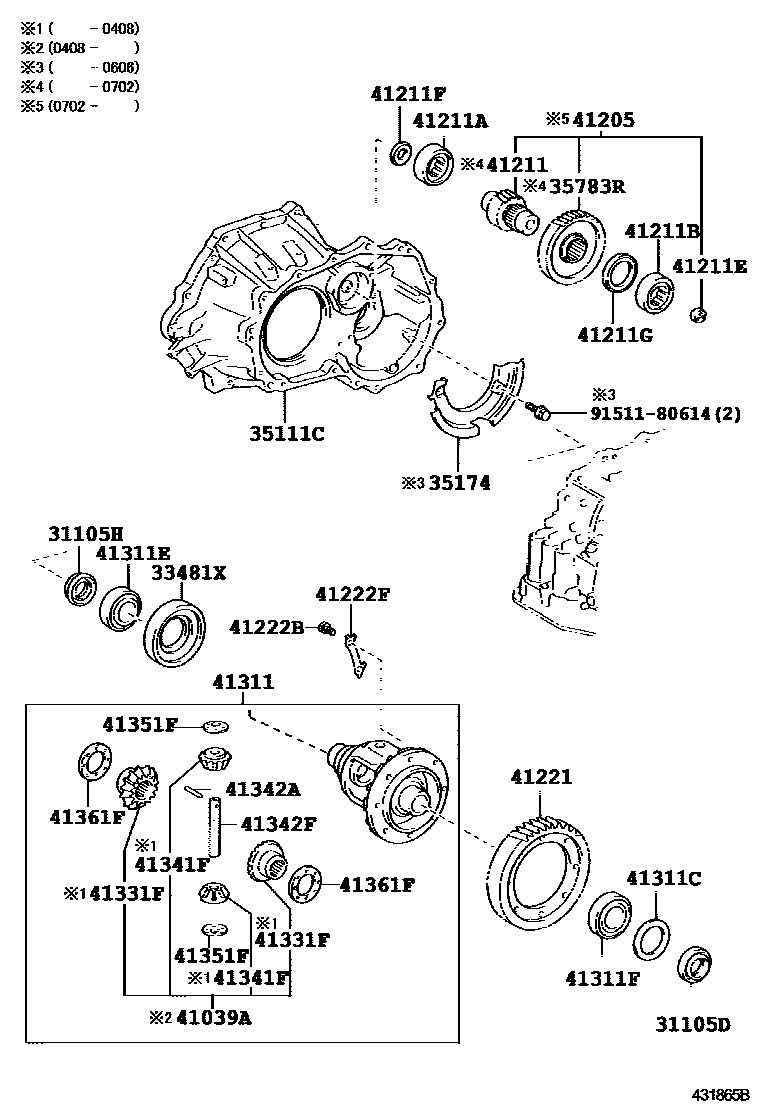

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-02070 · 31105-02080 · 31105-02081 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25028 · 90311-34030 · 90311-34044 · 90311-35046 · 90311-35054 · 90311-C0009 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-34031 · 90311-34033 · 90311-34045 · 90311-35045 · 90311-35051 · 90311-35055 · 90311-35057 · 90311-C0005 · 90311-C0010 |
| 31115C | Front transmission axle housing (MTM) | 31115-12111 |
| 33449 | derailleur magnet | 33449-0D020 · 33449-0D030 · 33449-12020 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 · 33481-20160 |
| 33481X | speedometer drive gear | 33481-32010 |
| 35111C | Transmission axle housing | 35105-20160 · 35105-20161 · 35105-52071 |
| 35174 | Transmission axle housing oil separator | 35174-20010 |
| 35783R | countershaft driven gear | 35783-52020 |
| 41039A | Differential gear assembly | 41039-12010 · 41039-32010 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211 | Differential drive pinion | 41211-52040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-02090 · 41221-0D090 · 41221-0D160 · 41221-20350 · 41221-52060 · 41221-52061 · 41221-52090 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-C0221 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41311 | front differential case | 41301-0D010 · 41301-0D030 · 41301-12041 · 41301-12210 · 41301-32061 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-38004 · 90366-40016 · 90366-40097 · 90366-C0007 · 90366-C0013 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-44001 · 90366-C0010 · 90366-C0016 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90560-C0008 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41331F | Front differential side gear | 41331-0D040 · 41331-12011 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-0D040 · 41341-12030 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D020 · 41342-12140 · 41342-20060 · 41342-20090 · 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
