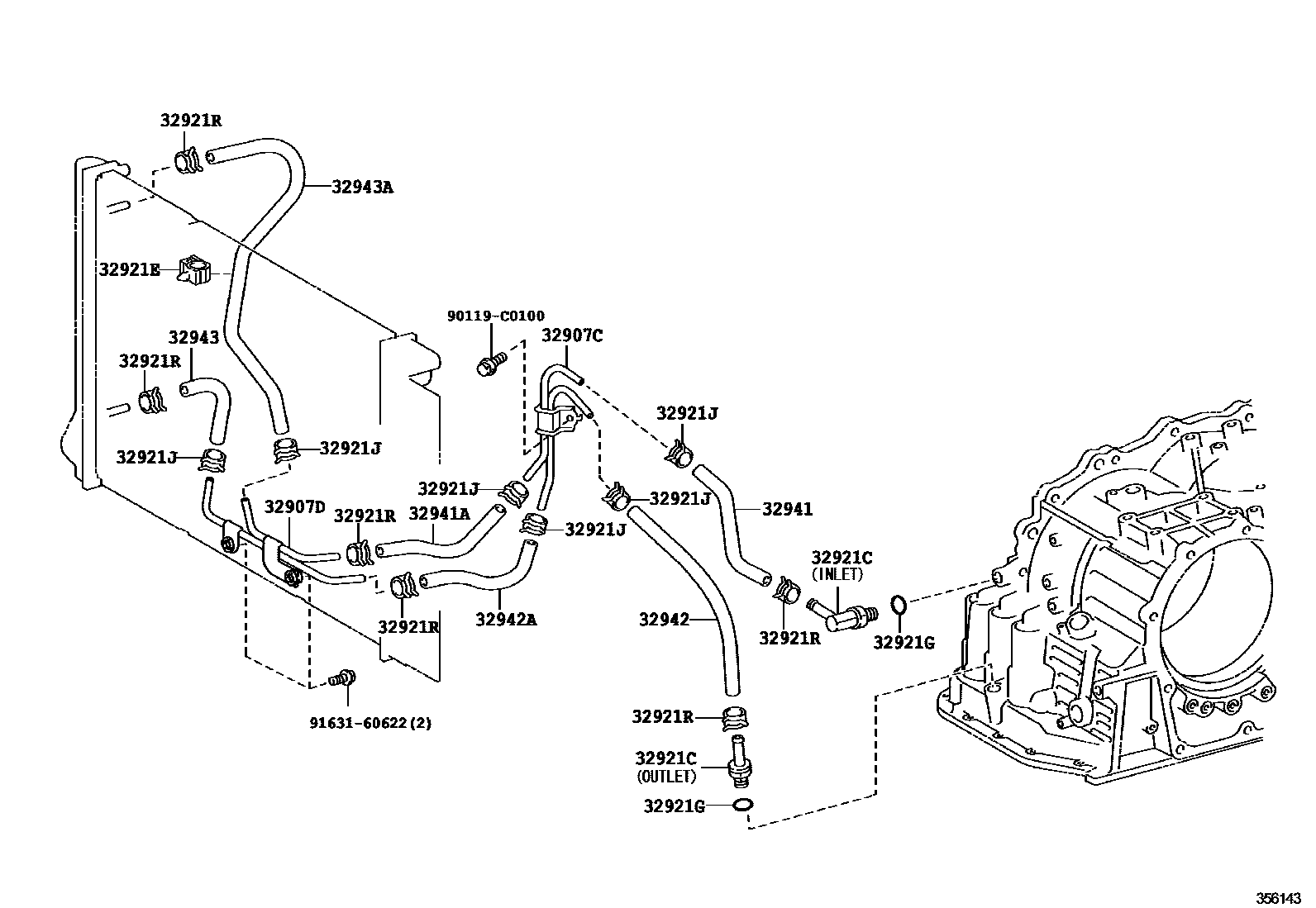

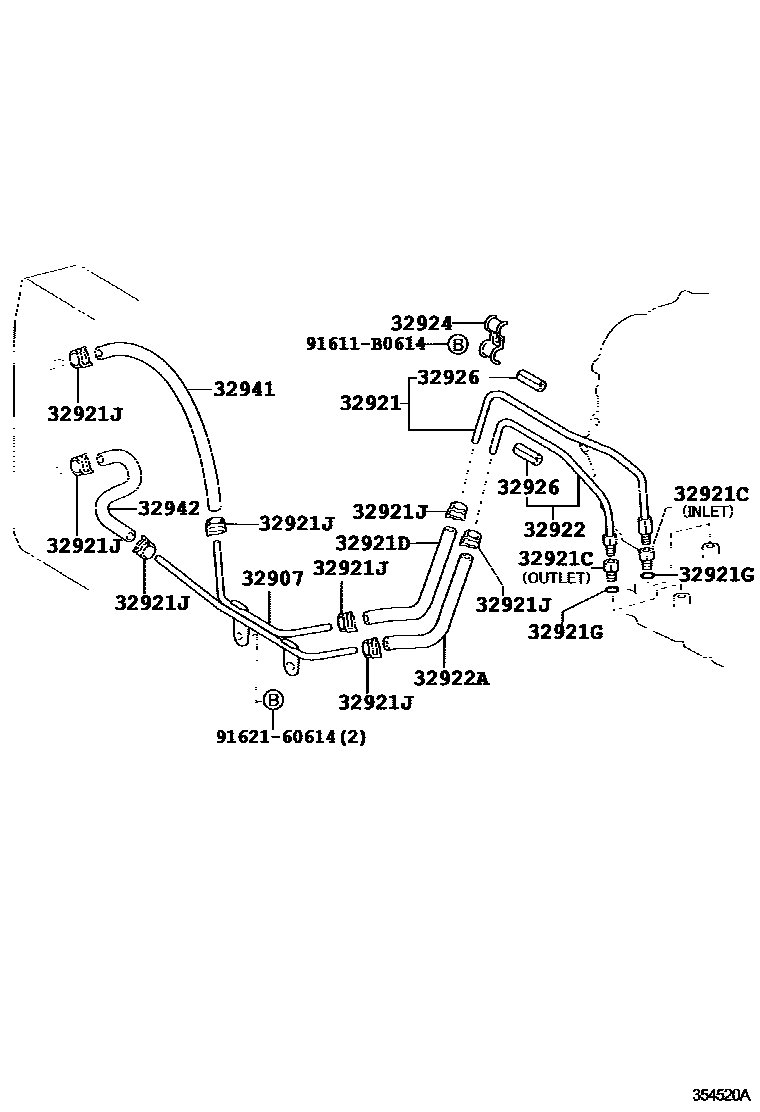

Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514
Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907 | No. 2 transmission oil cooler oil outlet pipe sub-assembly | 32907-12020 |
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-02110 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-02120 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-02210 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13005 · 90404-13007 · 90404-14007 · 90407-14003 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32943-12010 |
| 32921E | Hose clamp (for transmission oil cooler) | 90469-C0001 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10018 · 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-C0026 · 96135-51300 · 96137-41501 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-C0026 · 96137-41501 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-02170 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15020 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 90462-10127 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-10010 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-02150 · 90445-15039 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 90445-C0003 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 90445-15050 · 90445-C0005 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90445-C0002 |
| 32943 | No. 1 transmission oil cooler hose | 32943-02160 |
| 32943A | No. 2 transmission oil cooler hose | 32943-02170 |
