Toyota COROLLA Shift Lever & Retainer — Figure 3312

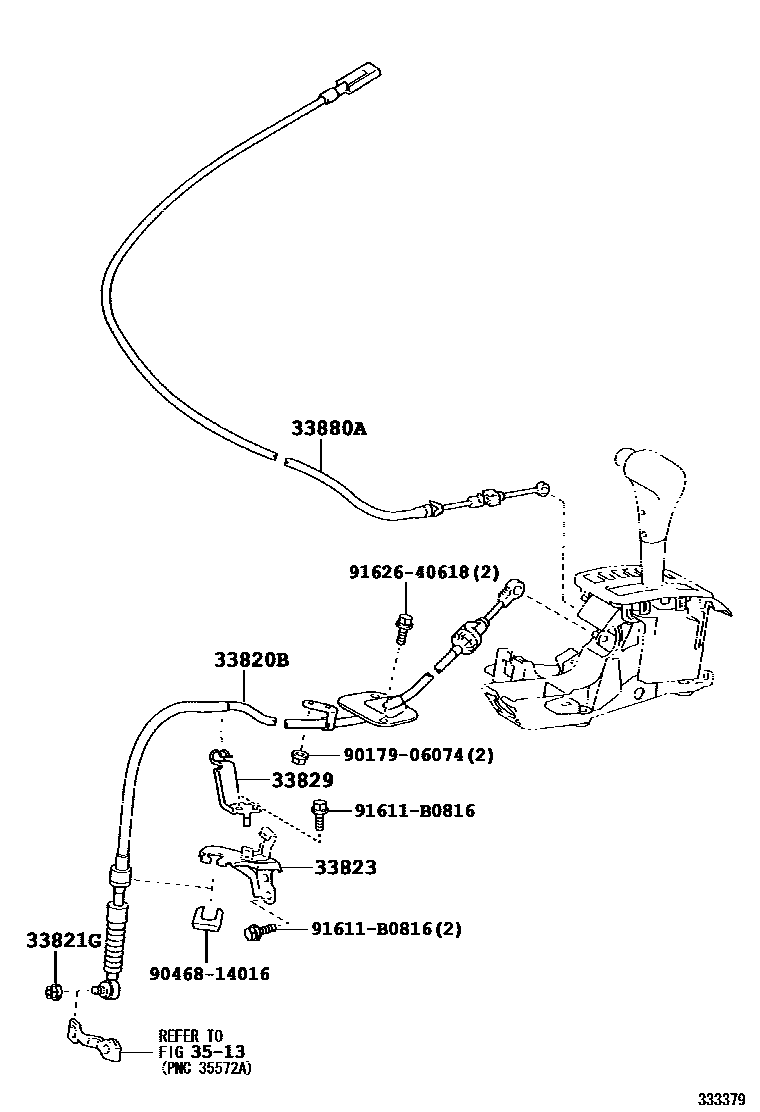

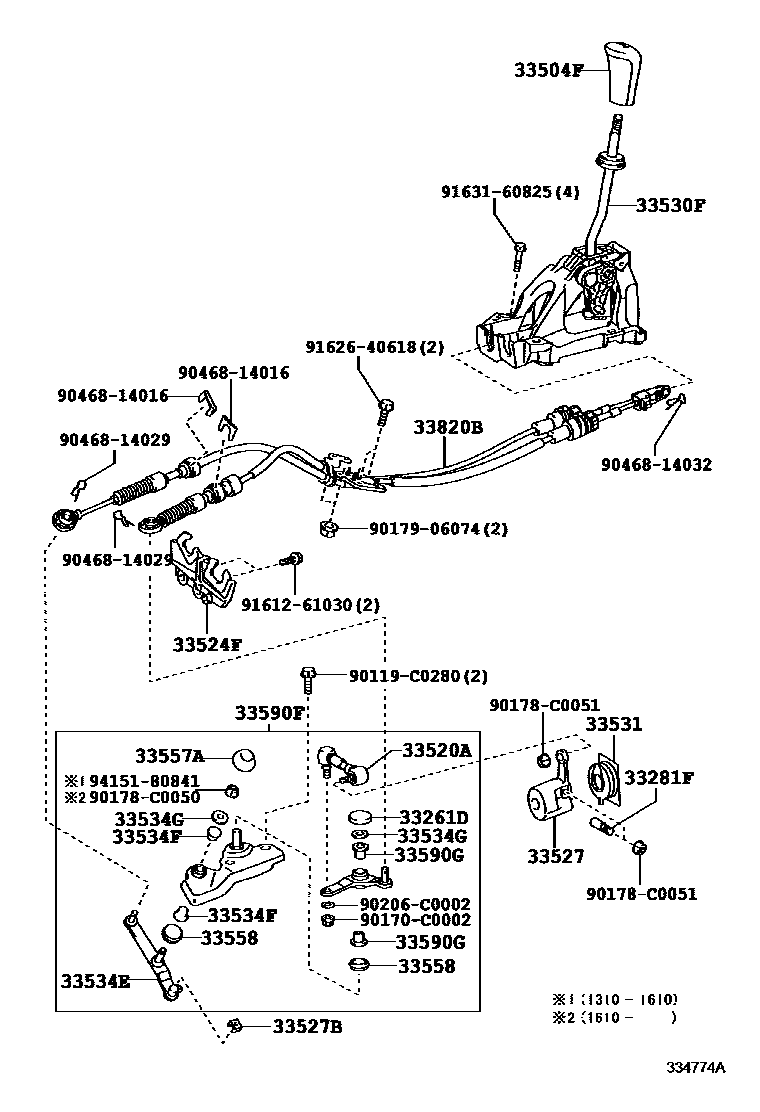

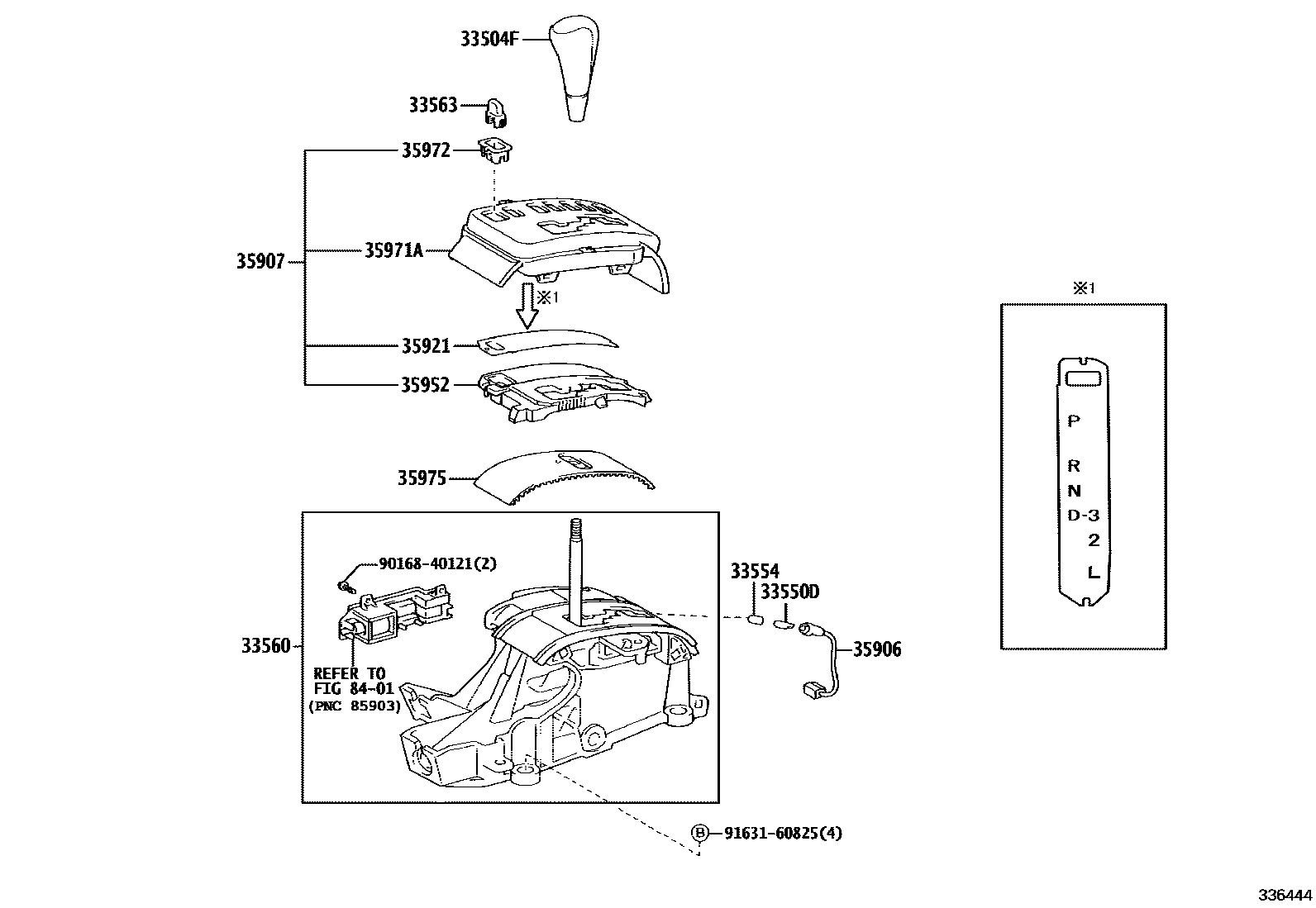

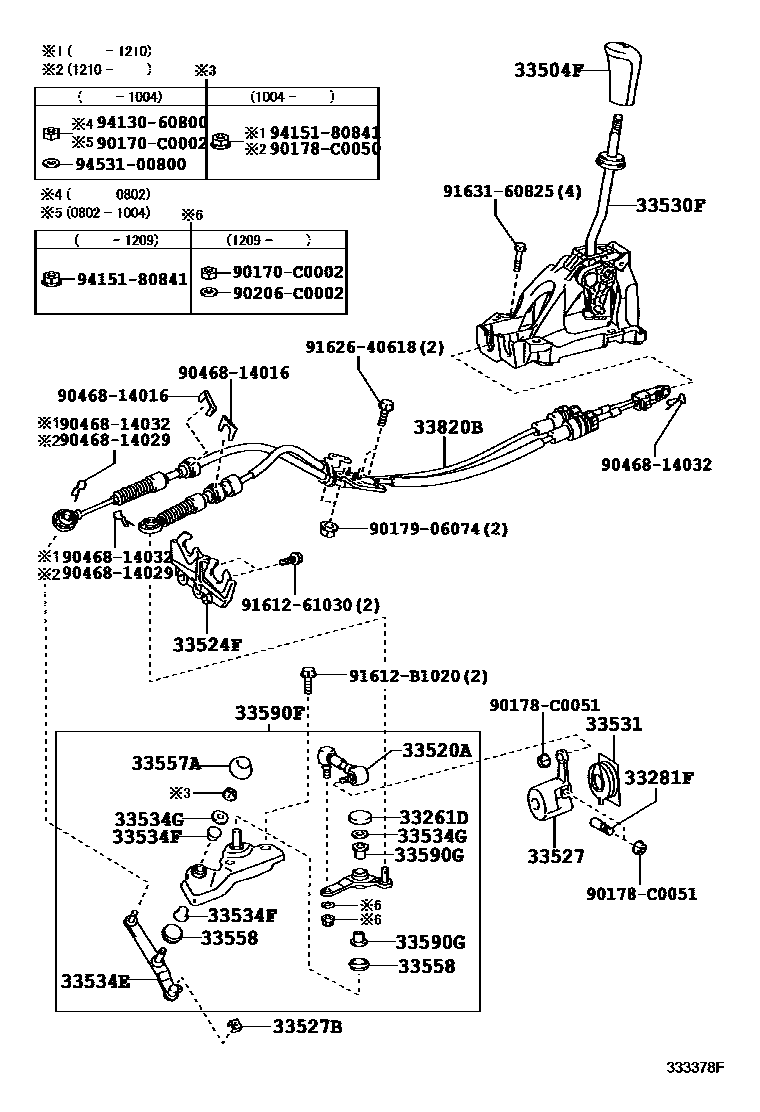

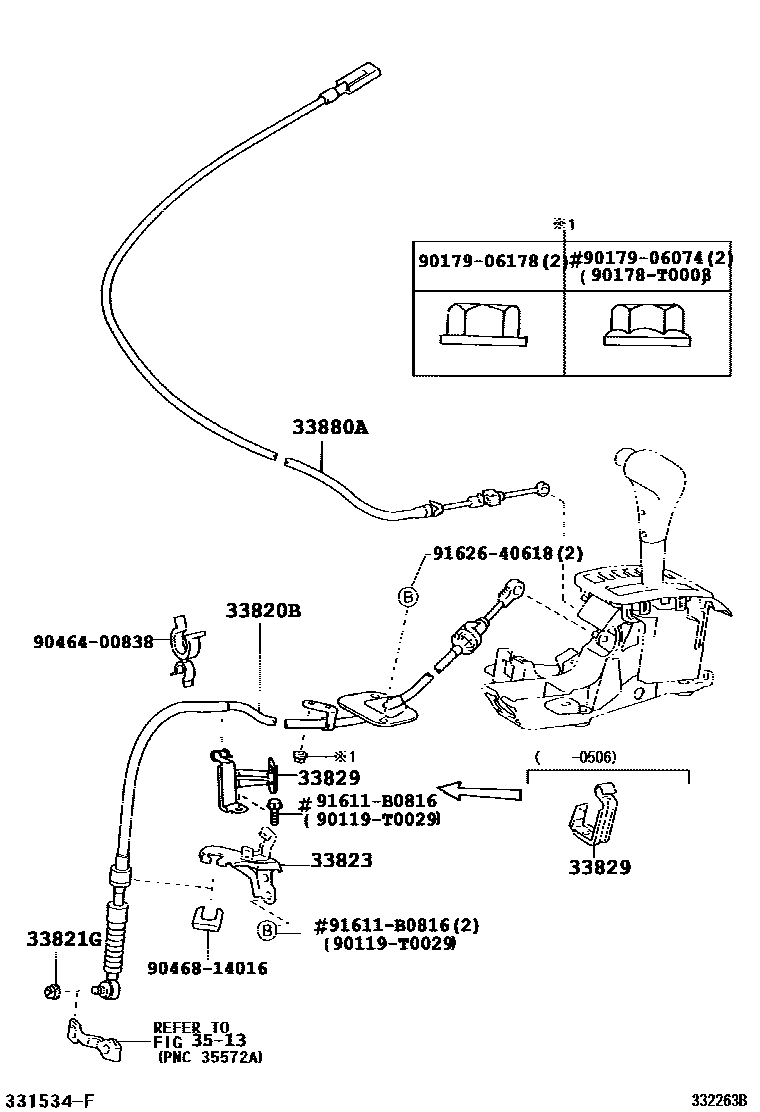

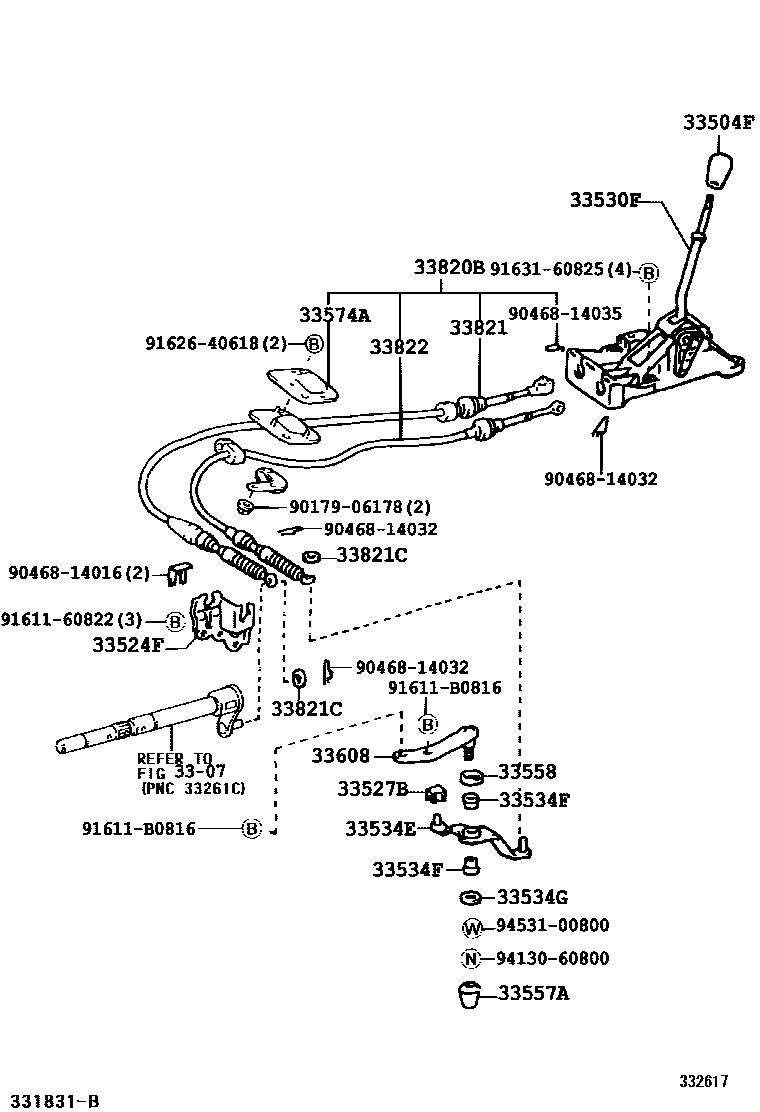

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 6 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-0D020 · 33557-20010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-02030 · 33524-42020 |
| 33527 | Gear shift lever (for floor shift) | 33527-0D010 · 33527-52011 |
| 33527B | Bushing (for shift control lever) | 33557-0D010 · 33557-0D040 · 33557-0D041 · 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12770 · 33530-12B30 |
| 33531 | Dust boot (for shift lever) | 33531-0D030 · 33531-17010 |
| 33534E | No. 2 gear selection right-angle lever | 33534-02010 · 33534-12120 · 33534-42010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 · 90386-C0001 · 90386-C0002 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11014 |
| 33554 | shift lever cover | 33554-12100 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-0D030 · 33557-0D031 · 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-0D010 · 33558-0D011 · 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-12090 |
| 33563 | Shift lock release button | 33563-12110 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12100 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-02030 · 33590-02040 · 33590-02041 · 33590-12070 |
| 33590G | Bushing (for gear selector right-angle lever) | 33546-20020 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-42010 |
| 33820B | Transmission control cable assembly | 33820-02250 · 33820-02260 · 33820-02620 · 33820-02630 · 33820-12A70 · 33820-12B70 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-02330 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-02130 |
| 33823 | No. 1 transmission control cable bracket | 33823-02070 |
| 33829 | Transmission control cable bracket | 33829-02020 · 33829-02140 · 33829-12110 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-12060 · 33880-12120 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12190 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12020 |
| 35921 | control position indicator board | 35921-12580 |
| 35952 | Position indicator lampshade | 35952-12030 |
| 35971A | Position indicator light upper shell | 35971-12510 |
| 35972 | Position indicator light housing cover | 35972-12020 |
| 35975 | Slide cover (for position indicator light) | 35975-30270 |
