Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

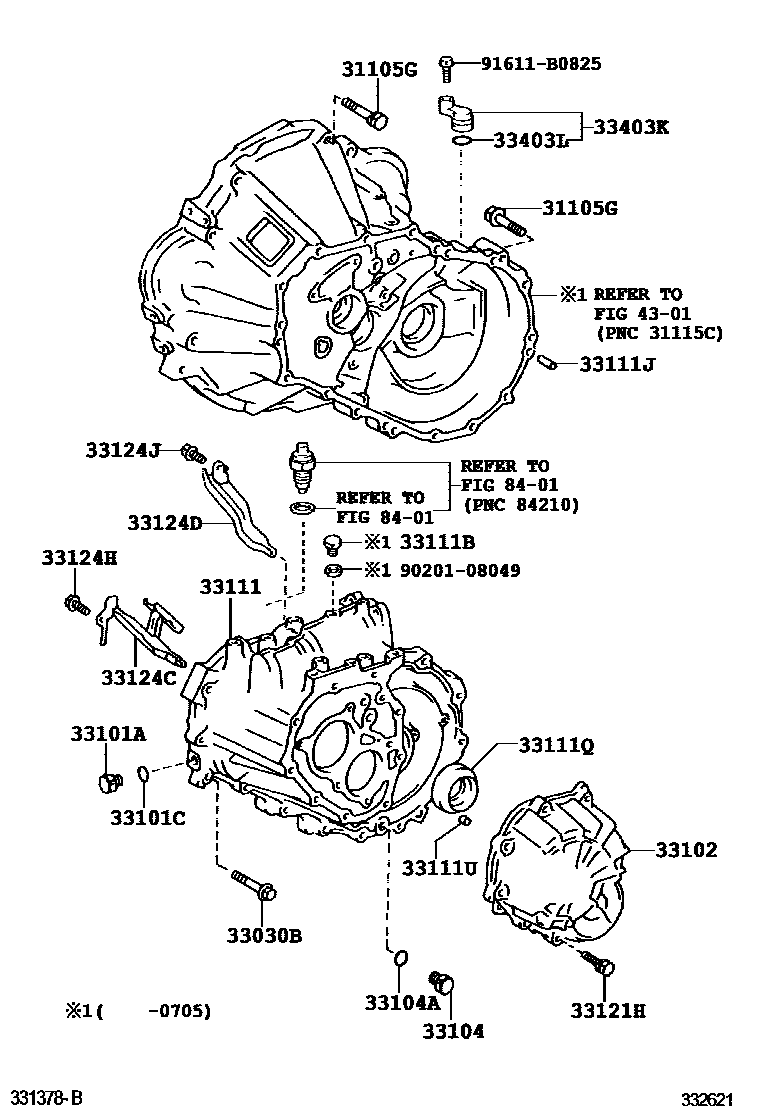

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90119-12168 · 90119-C0139 · 91612-61045 · 91642-81055 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08353 · 90105-08430 · 90105-C0185 · 90105-C0192 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 · 90341-18033 · 90341-18071 · 90341-C0003 · 90341-C0016 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 · 90430-C0011 |
| 33102 | Manual transmission cover sub-assembly | 33102-02020 · 33102-0D020 · 33102-12021 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18033 · 90341-18071 · 90341-C0003 · 90341-C0016 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 · 90430-C0011 |
| 33111 | Manual transmission housing | 33111-02030 · 33111-02070 · 33111-02071 · 33111-17102 |
| 33111B | Studs or bolts (for gearbox) | 90101-08166 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 · 90250-C0005 |
| 33111Q | Oil seal (for gearbox) | 90311-34034 · 90311-35044 · 90311-35058 · 90311-C0006 · 90311-C0011 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08782 · 90119-C0277 · 91611-60835 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-0D020 · 33124-20050 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-0D030 · 33124-12021 |
| 33124H | Bolt (for oil collection pipe) | 90119-C0275 · 91611-G0820 |
| 33124J | Bolts with washers | 90119-C0275 · 91611-G0820 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-02020 · 33403-35230 |
| 33403L | O-ring | 96711-24030 |
