Toyota COROLLA 燃油喷射系统 — Figure 2211

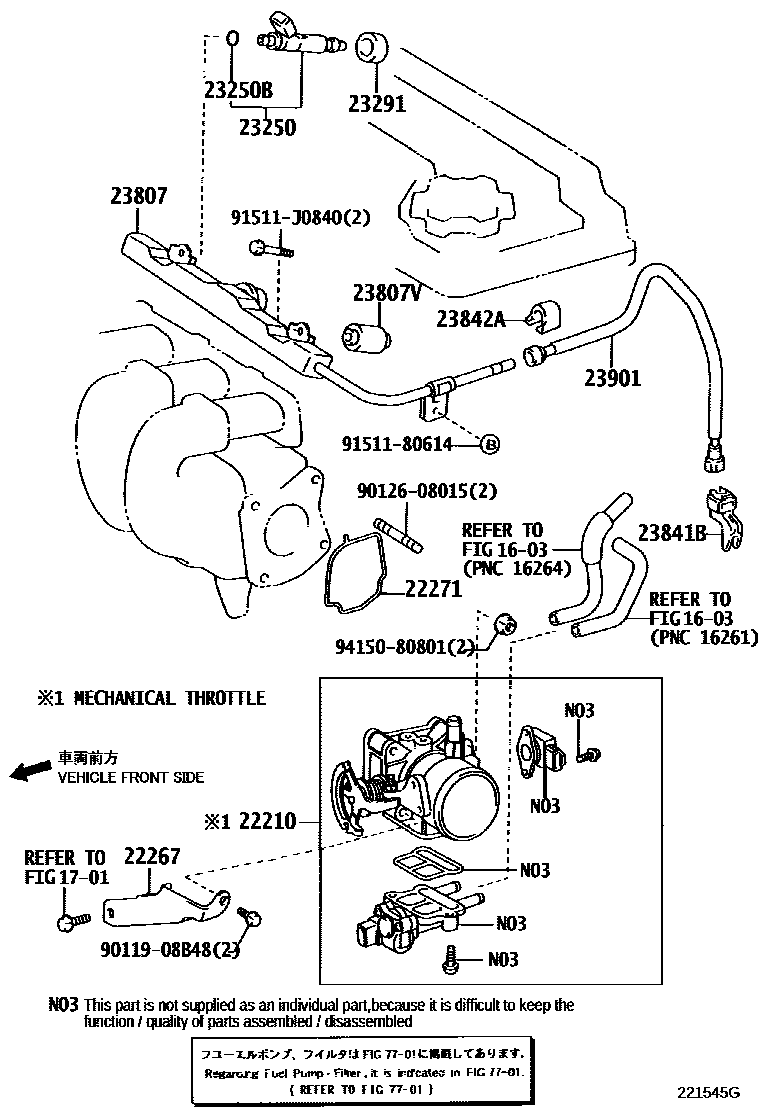

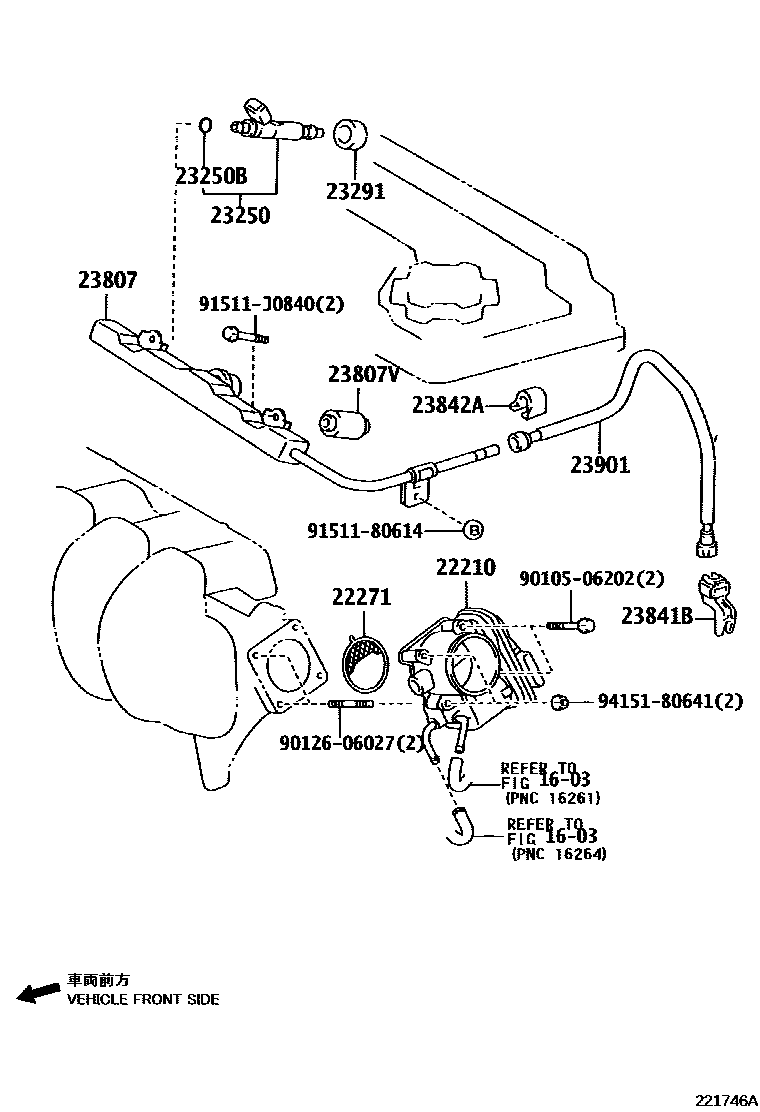

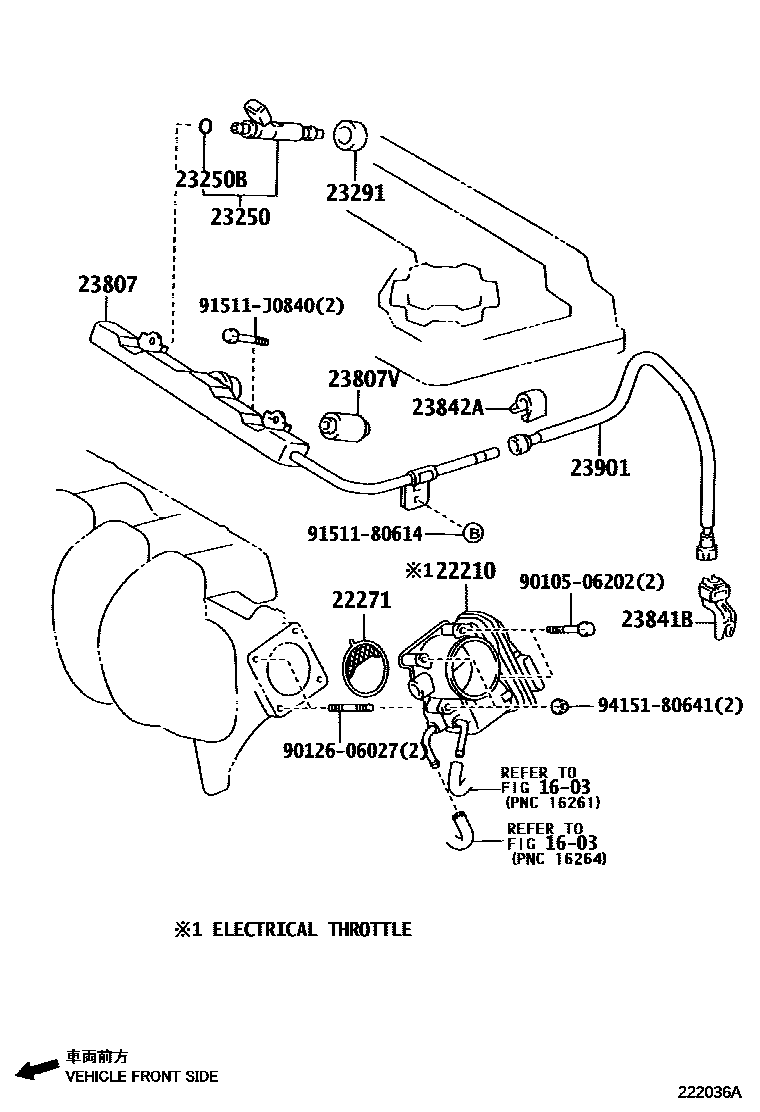

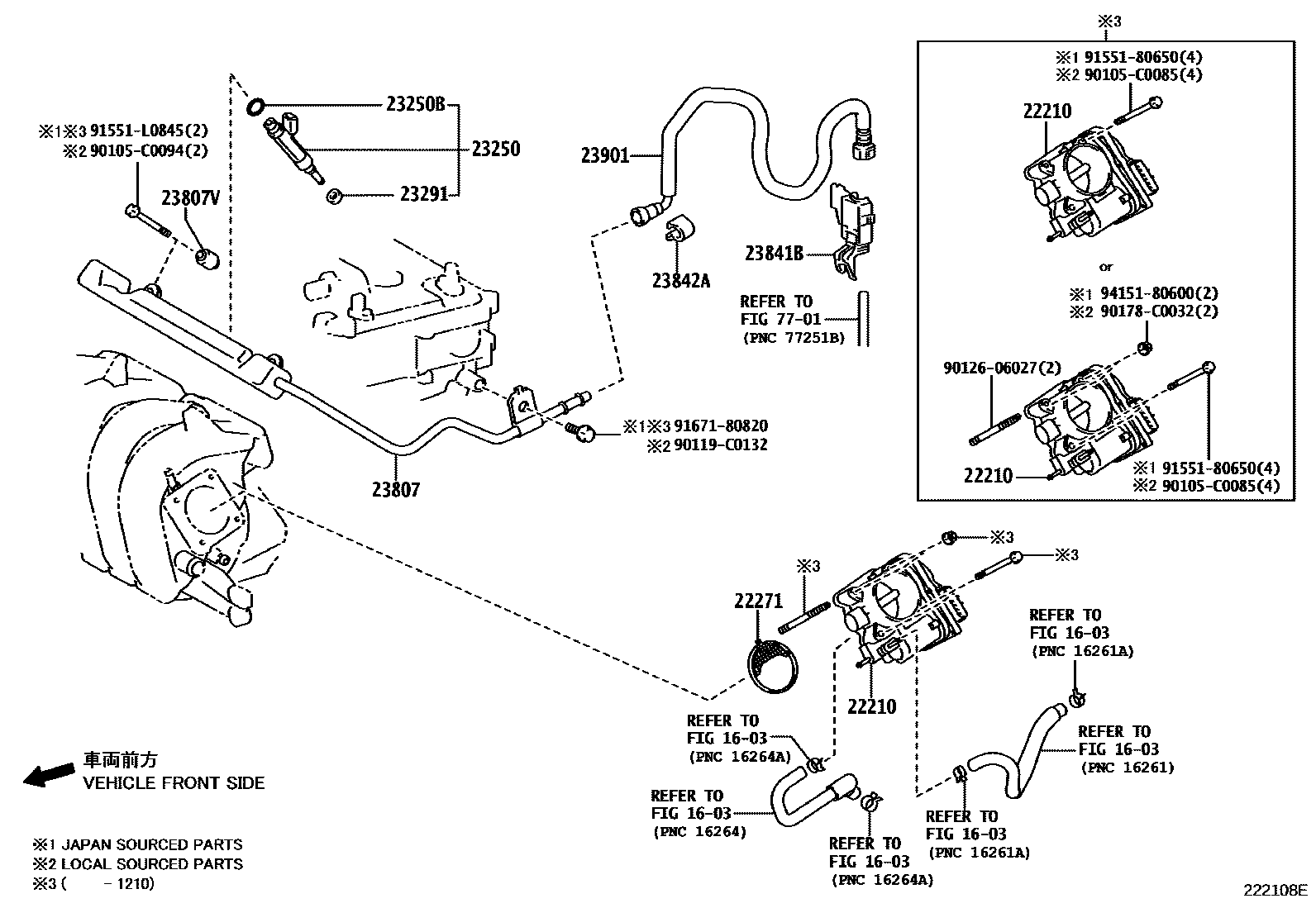

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22030-0T010 · 22030-0T100 · 22030-22041 · 22030-37050 · 22210-0D100 |
| 22267 | Throttle body bracket | 22267-0D010 · 22267-22030 |
| 22271 | Throttle body gasket | 22271-0T010 · 22271-22040 · 22271-75031 |
| 23250 | Fuel injector assembly | 23209-09120 · 23209-22040 · 23209-39145 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07037 · 90301-C0072 |
| 23291 | Injector vibration isolation pad | 23291-0P020 · 23291-22020 · 23291-23010 · 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23807-22030 · 23814-37050 · 23814-37051 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 · 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0D020 · 23841-0H030 · 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0D020 · 23842-28010 |
| 23901 | Fuel pipe sub-assembly | 23901-0T020 · 23901-0T050 · 23901-22140 |
