Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 2 PNC and OE references.

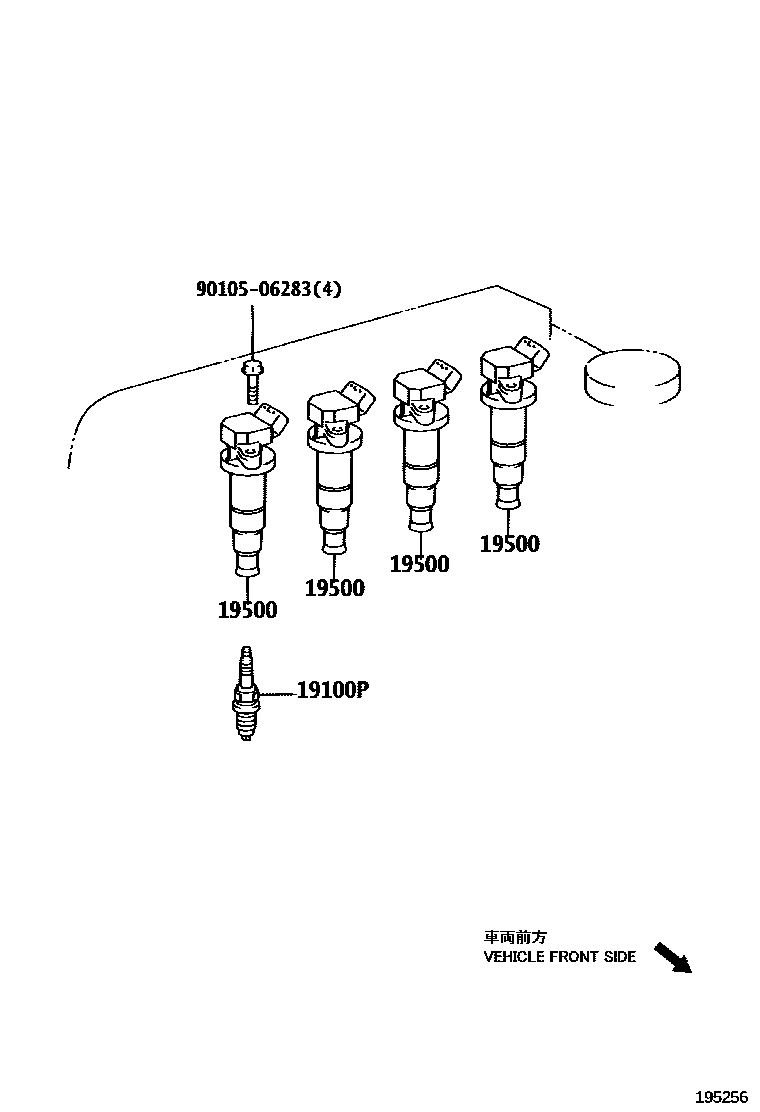

Toyota COROLLA 点火线圈和火花塞 /电热塞 EPC diagram — 195256
点火线圈和火花塞 /电热塞 — 195256 (200402 – 999999)
Toyota COROLLA 点火线圈和火花塞 /电热塞 EPC diagram — 195257
点火线圈和火花塞 /电热塞 — 195257 (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01164 · 90919-01253 · 90919-C1010 · 90919-T1009 · 90919-T1014
19500Ignition coil assembly90919-02239 · 90919-02252 · 90919-02258 · 90919-C2003 · 90919-C2005
