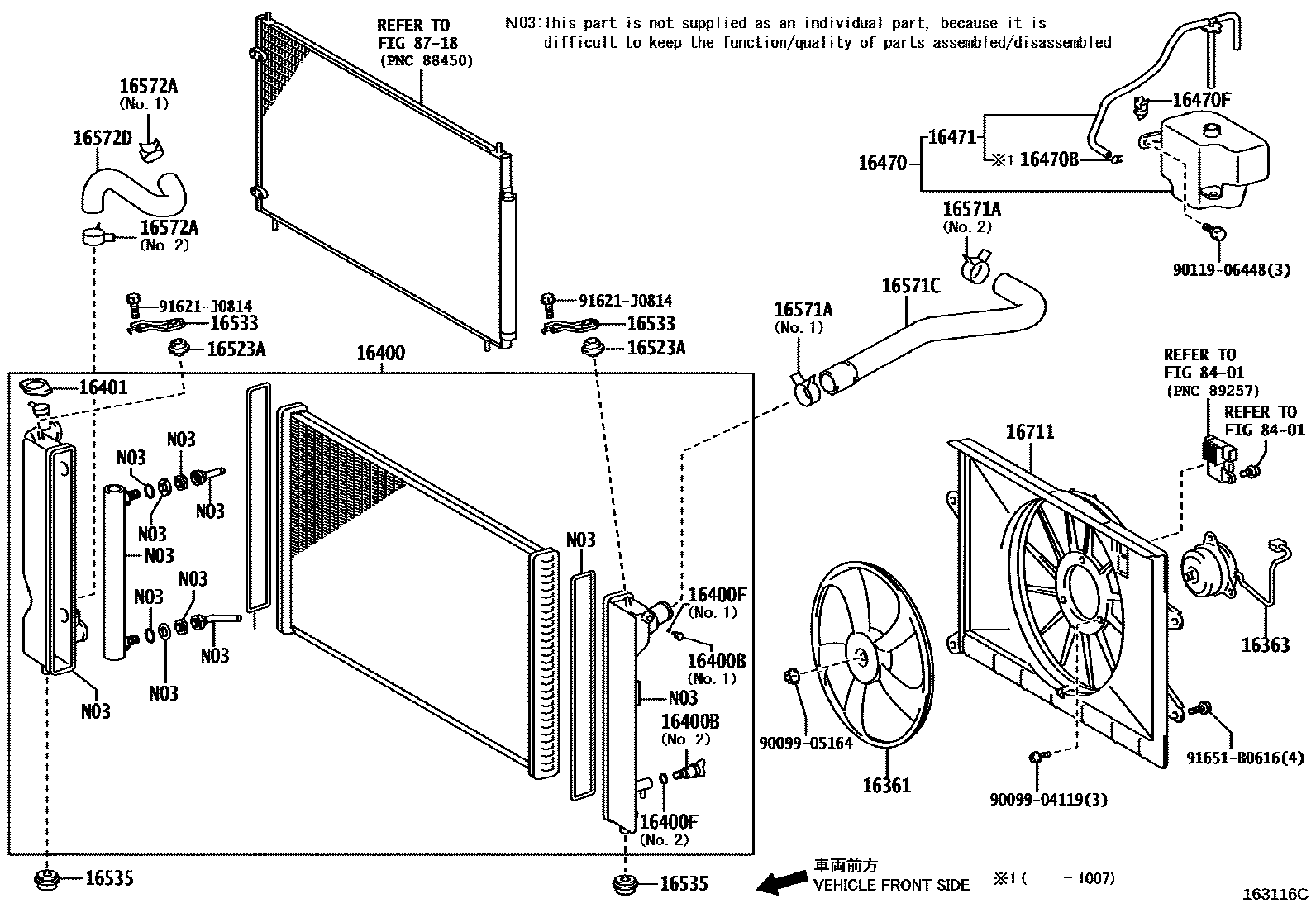

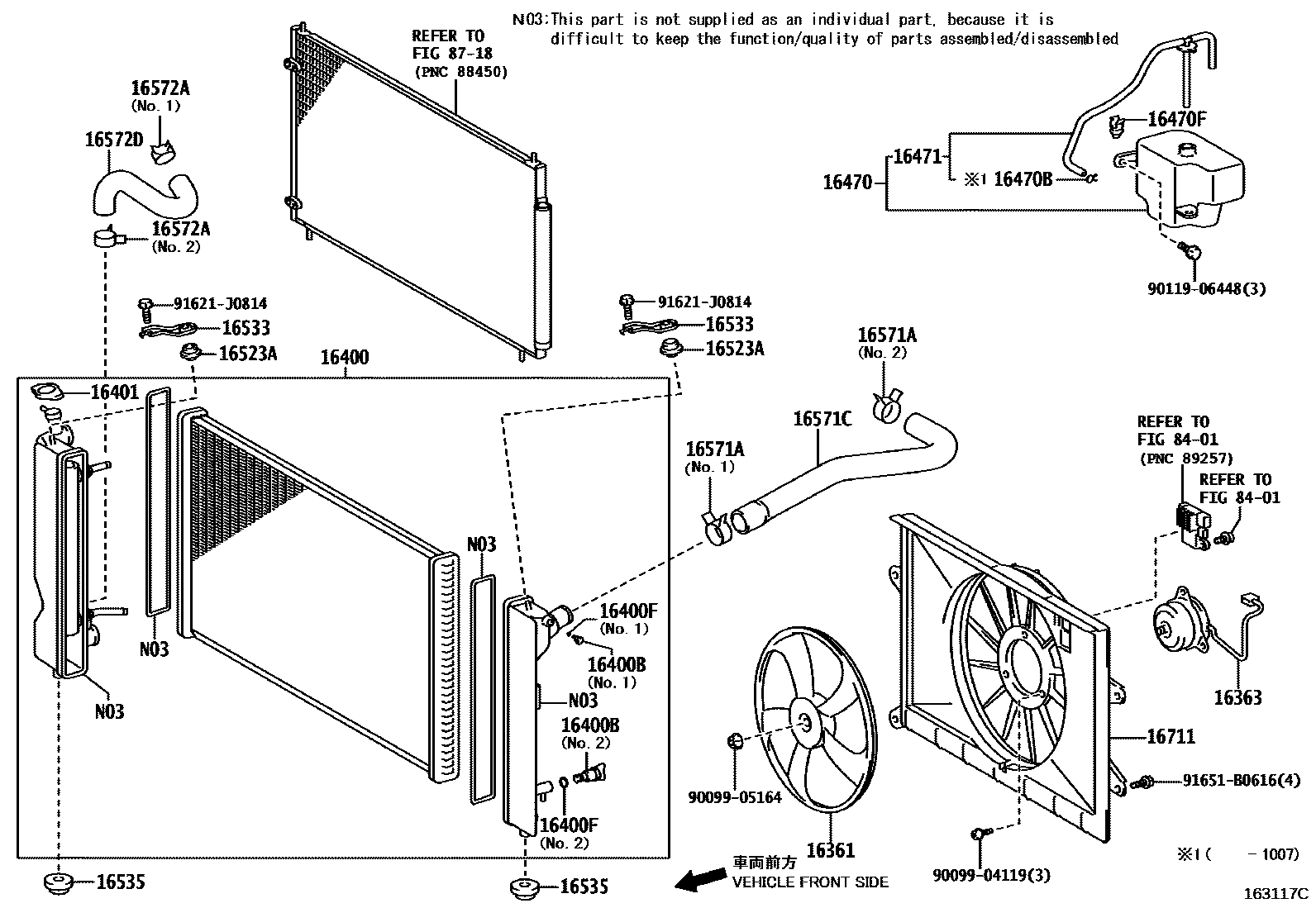

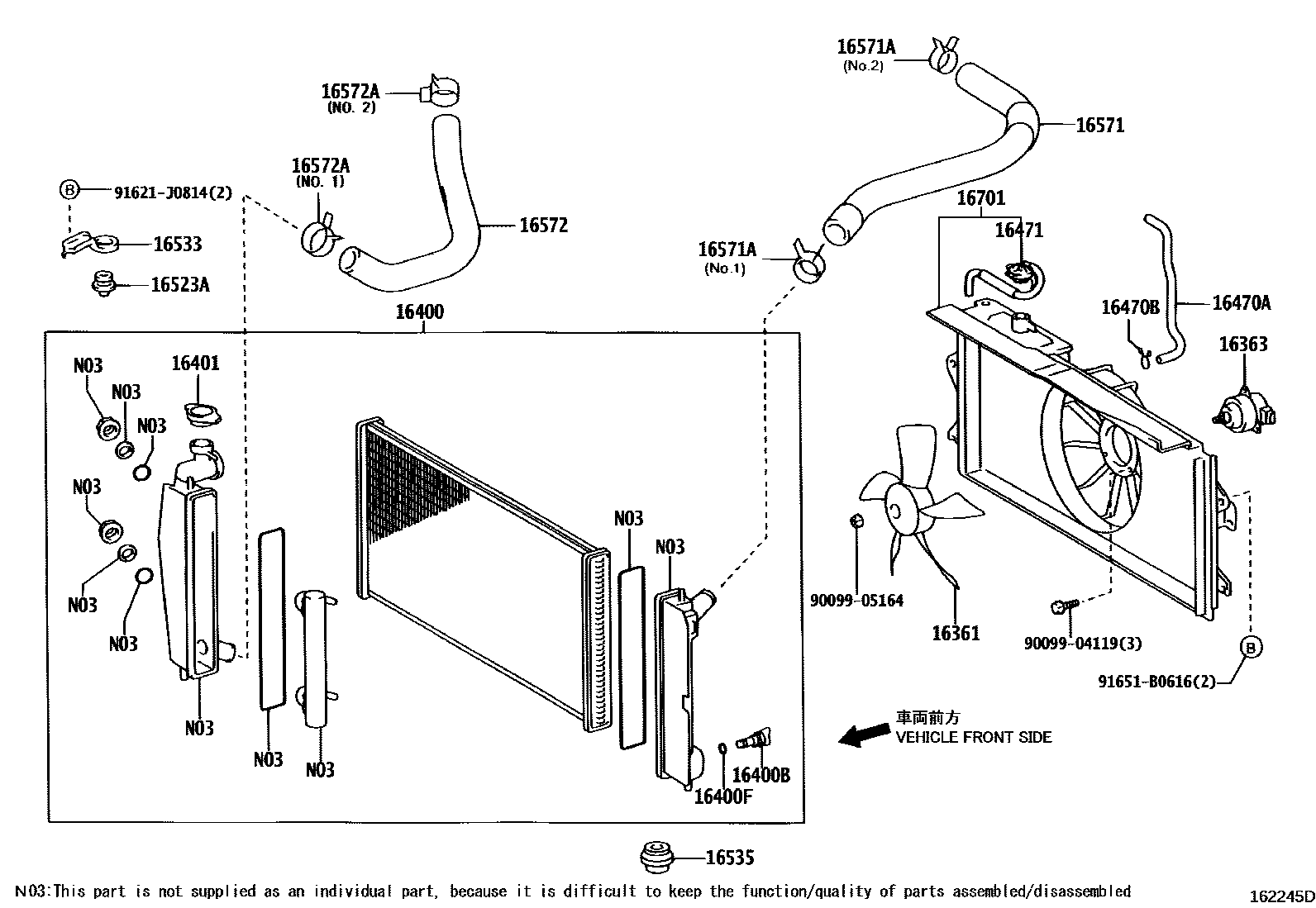

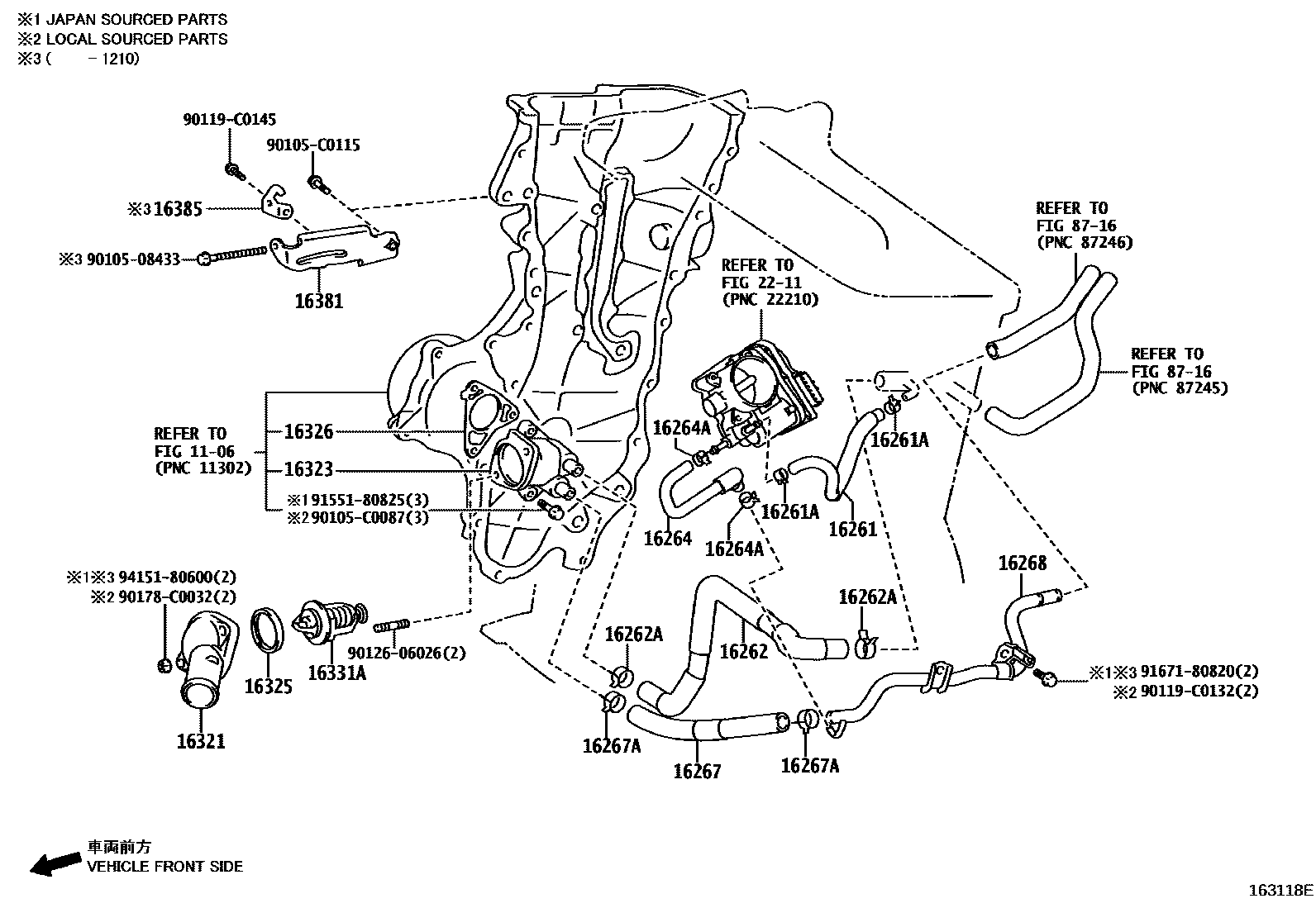

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-0D110 · 16261-0T040 · 16261-0T041 · 16261-22080 · 16261-22142 · 16261-37021 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 96135-51300 · 96137-41501 |
| 16262 | water inlet hose | 16262-0T010 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-C0014 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D110 · 16264-0T030 · 16264-0T031 · 16264-22090 · 16264-22123 · 16264-37021 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96135-51300 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T020 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0014 · 96136-42501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0D040 · 16268-0T070 · 16268-22100 · 16268-22160 · 16268-37030 · 16268-37031 |
| 16268G | Gasket (for water bypass pipe) | 16258-0D030 · 16258-22010 |
| 16321 | water inlet | 16321-0T020 · 16321-22070 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-0T040 · 16323-37020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0T010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331A | thermostat | 90916-03129 · 90916-03144 · 90916-C3001 · 90916-C3003 |
| 16361 | Fan | 16361-0T020 · 16361-21060 |
| 16363 | cooling fan motor | 16363-0T030 · 16363-28200 |
| 16381 | Fan belt adjustment lever | 16381-0T010 · 16381-37010 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-0D380 · 16400-0D381 · 16400-0D391 · 16400-0T030 · 16400-0T040 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 · 16417-28530 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-20290 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-0T010 · 16401-20310 · 16401-20353 · 16401-7A020 |
| 16470 | Radiator reservoir assembly | 16470-0T020 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90466-11001 · 90467-11085 |
| 16470F | Radiator reservoir hose clamp | 90469-12016 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0T010 · 16405-21030 |
| 16523A | Radiator bracket cushion | 16523-21020 |
| 16533 | Radiator upper bracket | 16533-0T010 · 16533-21020 |
| 16535 | Radiator lower support | 16535-0D060 · 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-0D160 · 16571-0D210 · 16571-0D220 · 16571-22160 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-35001 · 90466-37002 · 90467-34004 · 90467-37005 |
| 16571C | Radiator hose No. 1 | 16571-0T020 |
| 16572 | Radiator outlet hose | 16572-0D141 · 16572-0D180 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90467-34004 · 90467-37005 |
| 16572D | Radiator hose No. 2 | 16572-0T020 |
| 16701 | Fan cover sub-assembly | 16711-21080 |
| 16711 | fan cover | 16711-0T020 |
