Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 5 PNC and OE references.

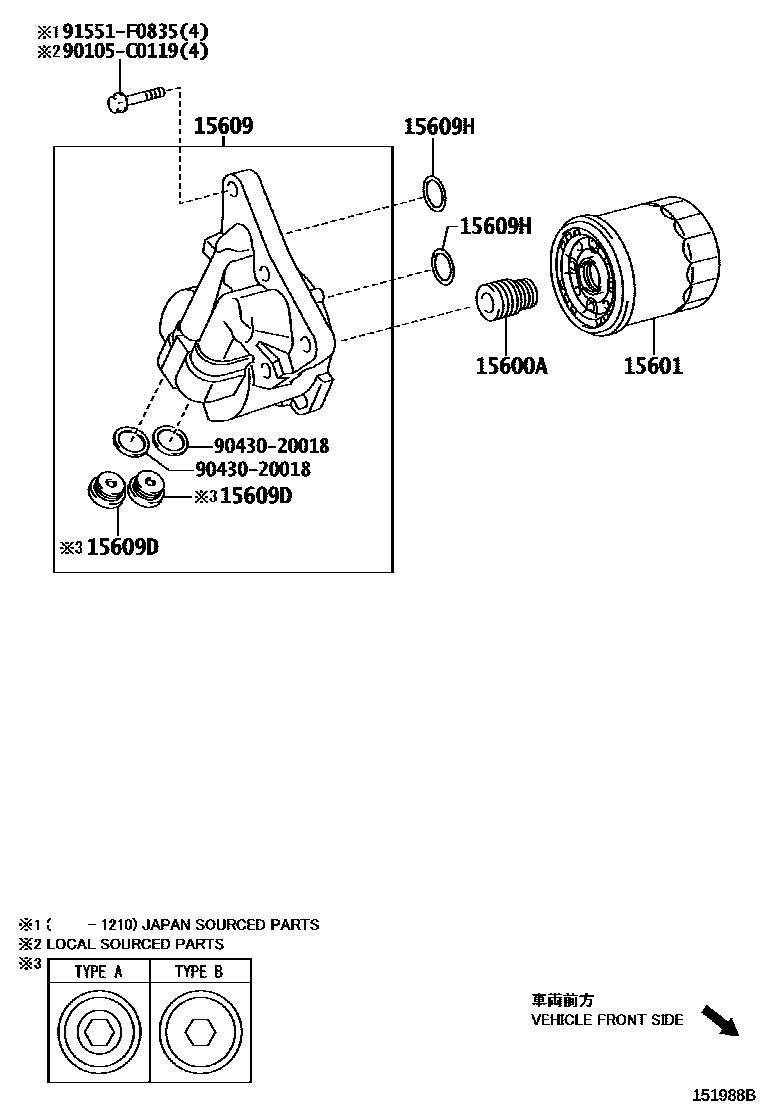

Toyota COROLLA Oil Filter EPC diagram — 151988B
Oil Filter — 151988B (200705 – 999999)

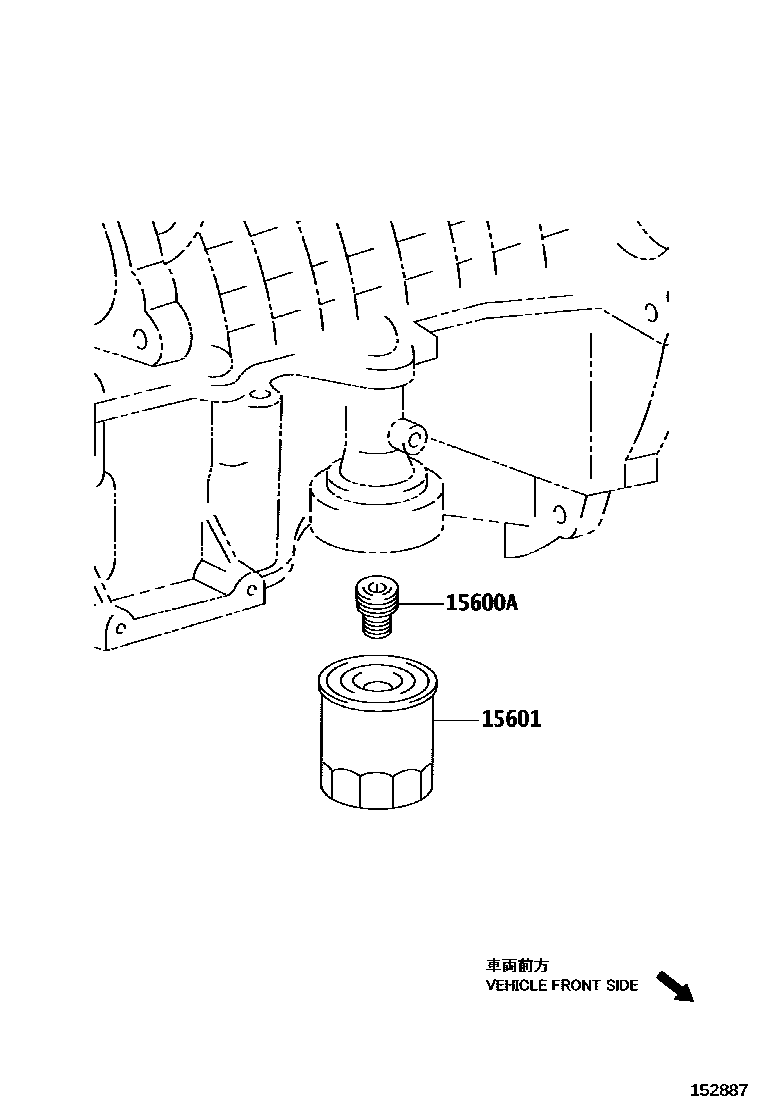

Toyota COROLLA Oil Filter EPC diagram — 152887
Oil Filter — 152887 (200402 – 200705)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04002 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-CA003
15609Oil filter bracket sub-assembly15609-0T010 · 15609-37010
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90341-20012
15609HO-ring (for oil filter bracket)90301-C0033 · 96721-24020 · 96723-24020
