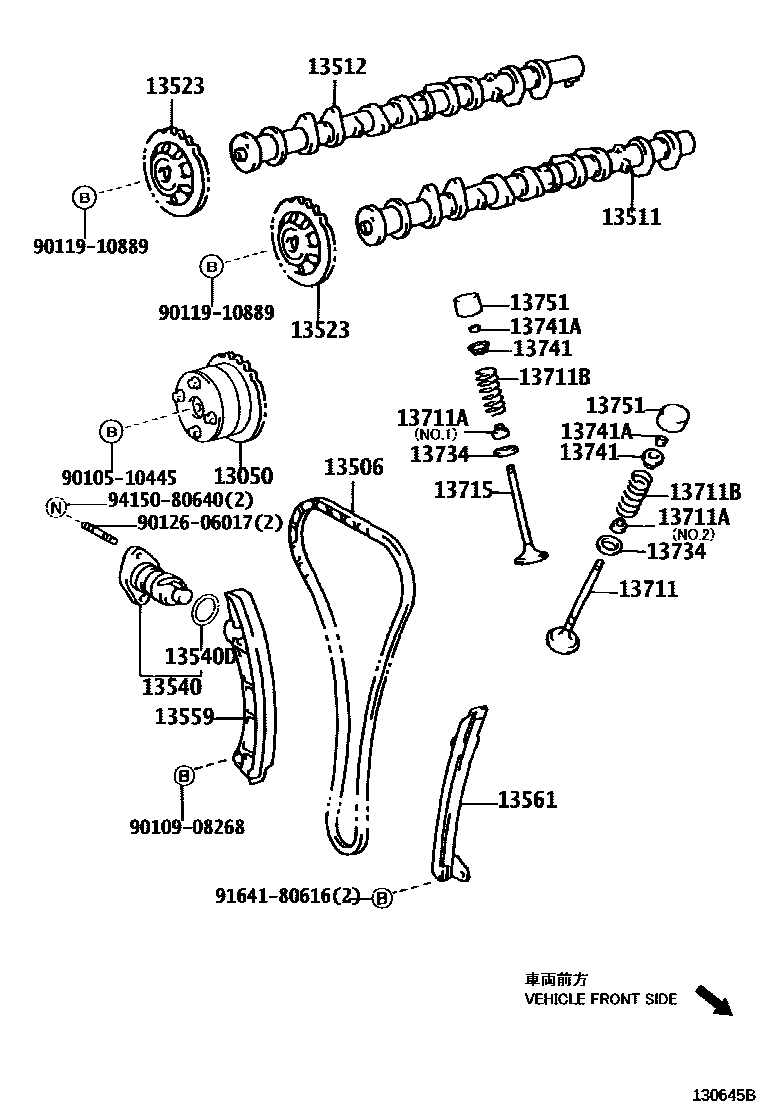

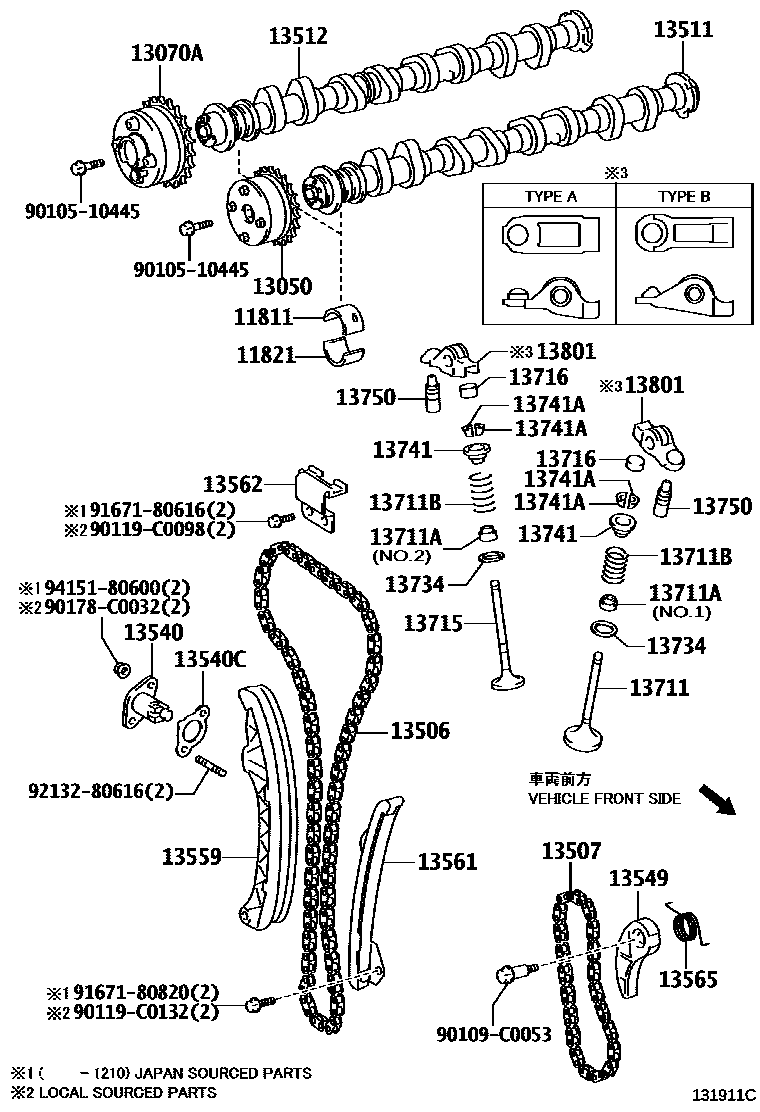

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0T010 · 11811-37010 |
| 11821 | No. 2 camshaft bearing | 11821-0T010 · 11821-37010 |
| 13050 | Camshaft timing gear assembly | 13050-0T021 · 13050-0T022 · 13050-0T060 · 13050-22011 · 13050-22012 · 13050-37012 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0T020 · 13070-37010 |
| 13506 | Chain sub-assembly | 13506-0T010 · 13506-0T090 · 13506-22030 · 13506-37010 |
| 13507 | No. 2 chain sub-assembly | 13507-0H020 · 13507-28010 |
| 13511 | camshaft | 13501-0T021 · 13501-22041 · 13501-22061 · 13501-37011 |
| 13512 | Camshaft No. 2 | 13502-0T020 · 13502-22011 · 13502-37010 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0T011 · 13540-22022 · 13540-37030 |
| 13540C | Pad (for chain tensioner) | 13552-0T010 · 13552-37010 |
| 13540D | O-ring (for chain tensioner) | 90301-22013 |
| 13549 | chain tensioner pressure plate | 13549-0T010 · 13549-37010 |
| 13559 | chain tensioner guide plate | 13559-0T010 · 13559-22011 · 13559-37010 |
| 13561 | No. 1 chain shock absorber | 13561-0T010 · 13561-22020 · 13561-37020 |
| 13562 | No. 2 chain shock absorber | 13562-0T010 · 13562-37010 |
| 13565 | chain damper spring | 13565-0T010 · 13565-37010 |
| 13711 | intake valve | 13711-0D030 · 13711-0T030 · 13711-22030 · 13711-22040 · 13711-37020 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02101 · 90913-02111 · 90913-02112 · 90913-T2001 · 90913-T2002 · 90913-T2003 |
| 13711B | Compression spring (for inner side) | 90501-29048 · 90501-31024 · 90501-C0003 · 90501-C0008 · 90501-C0020 · 90501-T0015 · 90905-01084 |
| 13715 | exhaust valve | 13715-0D030 · 13715-0T030 · 13715-22030 · 13715-22040 · 13715-37030 |
| 13716 | valve stem cover | 13716-0Y010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0D010 · 13734-0P020 · 13734-62020 · 13734-74010 |
| 13741 | Valve spring seat ring | 13741-0Y020 · 13741-0Y050 · 13741-20021 · 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-C3002 |
| 13750 | Valve lash adjuster assembly | 13750-0T020 · 13750-0T021 · 13750-0V030 · 13750-75020 |
| 13751 | valve lifter | 13751-22040 · 13751-22050 · 13751-22060 · 13751-22070 · 13751-22080 · 13751-22090 · 13751-22100 · 13751-22110 · 13751-22120 · 13751-22130 · 13751-22140 · 13751-22150 · 13751-22160 · 13751-22170 · 13751-22180 · 13751-22190 · 13751-22200 · 13751-22210 · 13751-22220 · 13751-22230 · 13751-22240 · 13751-22250 · 13751-22260 · 13751-22270 · 13751-22280 · 13751-22290 · 13751-22300 · 13751-22310 · 13751-22320 · 13751-22330 · 13751-22340 · 13751-22350 · 13751-22360 · 13751-22370 · 13751-22380 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0P020 · 13801-0V020 · 13801-23011 |
