Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 6 PNC and OE references.

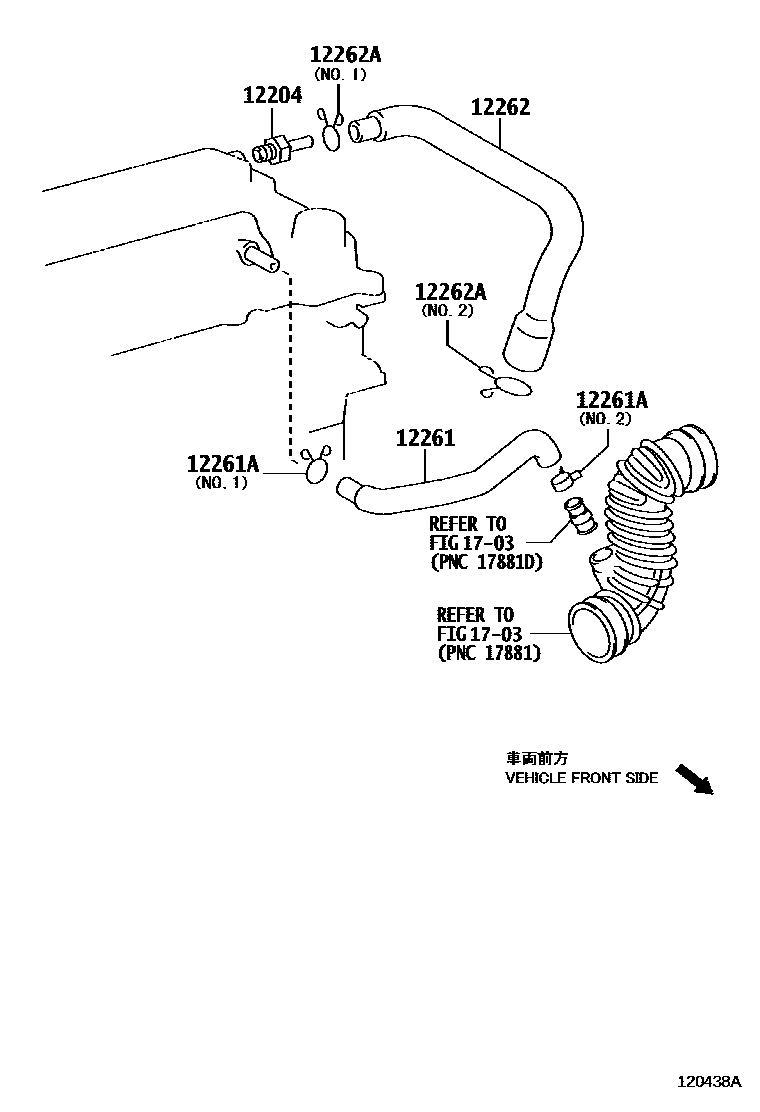

Toyota COROLLA Ventilation Hose EPC diagram — 120438A
Ventilation Hose — 120438A (200506 – 200606)

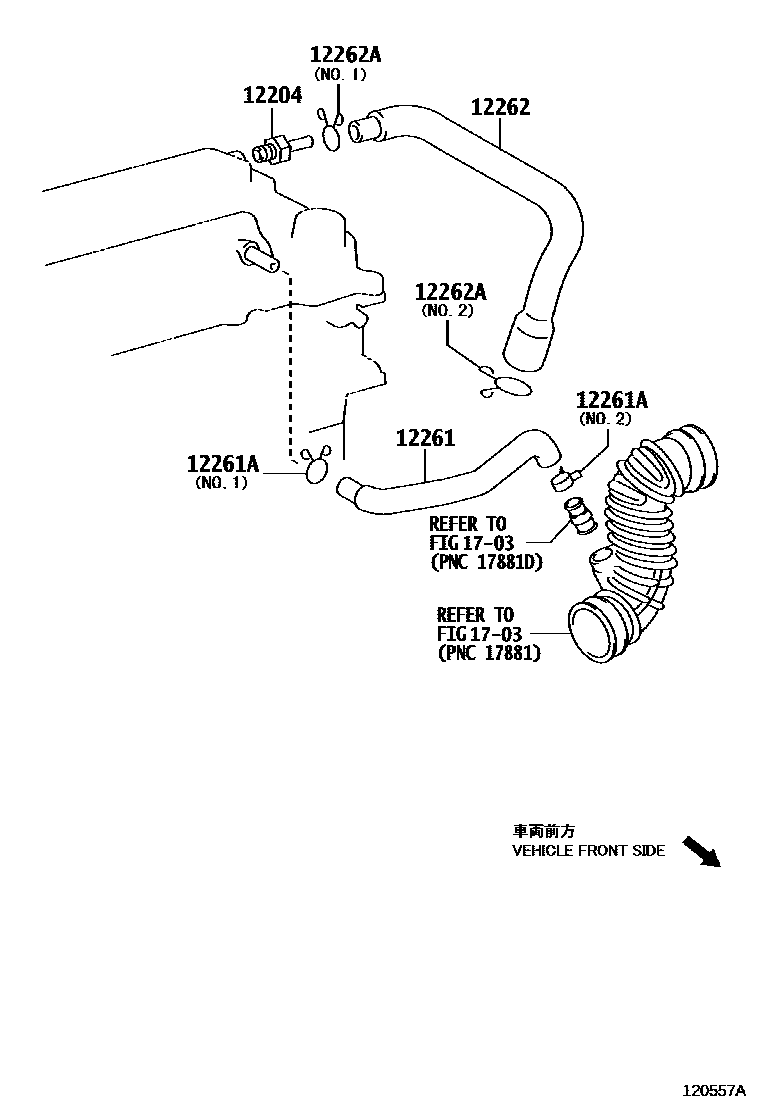

Toyota COROLLA Ventilation Hose EPC diagram — 120557A
Ventilation Hose — 120557A (200606 – 200705)

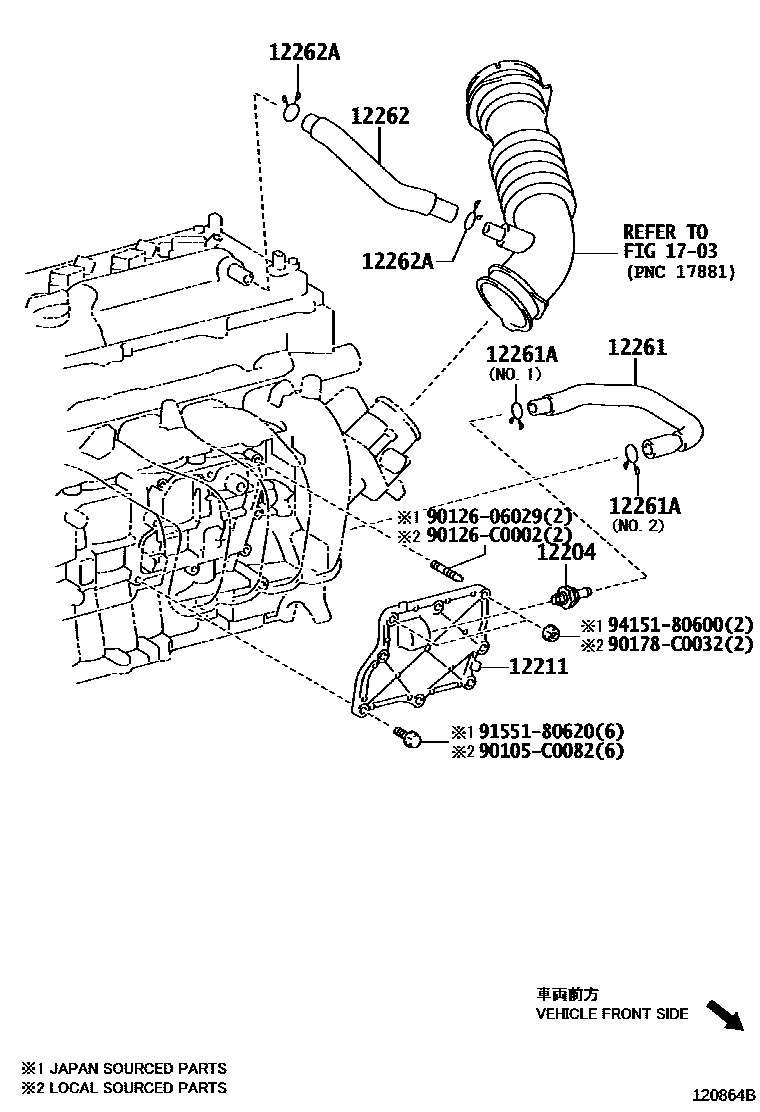

Toyota COROLLA Ventilation Hose EPC diagram — 120864B
Ventilation Hose — 120864B (200705 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 121217
Ventilation Hose — 121217 (200402 – 200606)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050 · 12204-22051 · 12204-37010 · 12204-37040
12211Ventilation box No. 112211-0T030 · 12211-37010
12261Ventilation Hose12261-0D080 · 12261-0T020 · 12261-22050 · 12261-22070 · 12261-37040
12261AClip or clip (for vent hose)90467-15120 · 90467-21152 · 90467-22010 · 90467-23002 · 96134-52600
12262Ventilation hose No. 212262-0D090 · 12262-0T020 · 12262-22040 · 12262-37020
12262AClamp (for vent hose No. 2)90466-18002 · 90467-13103 · 90467-19003 · 90467-21004
