Toyota COROLLA Engine Mounting — Figure 1107

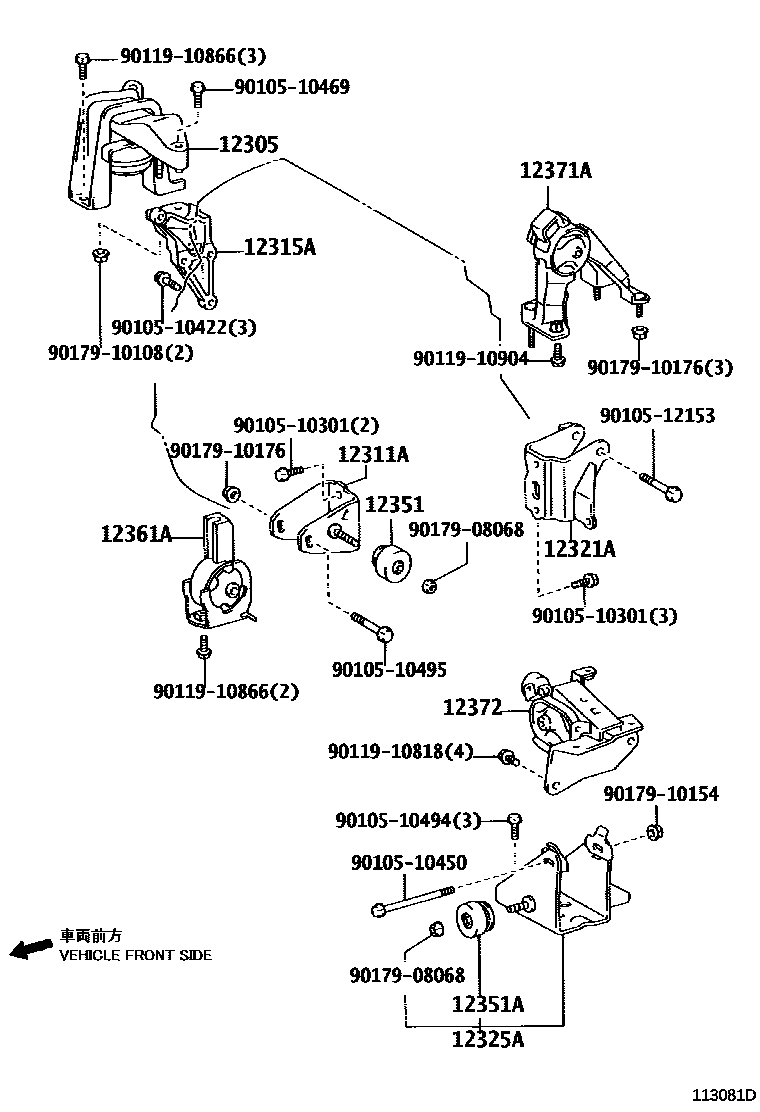

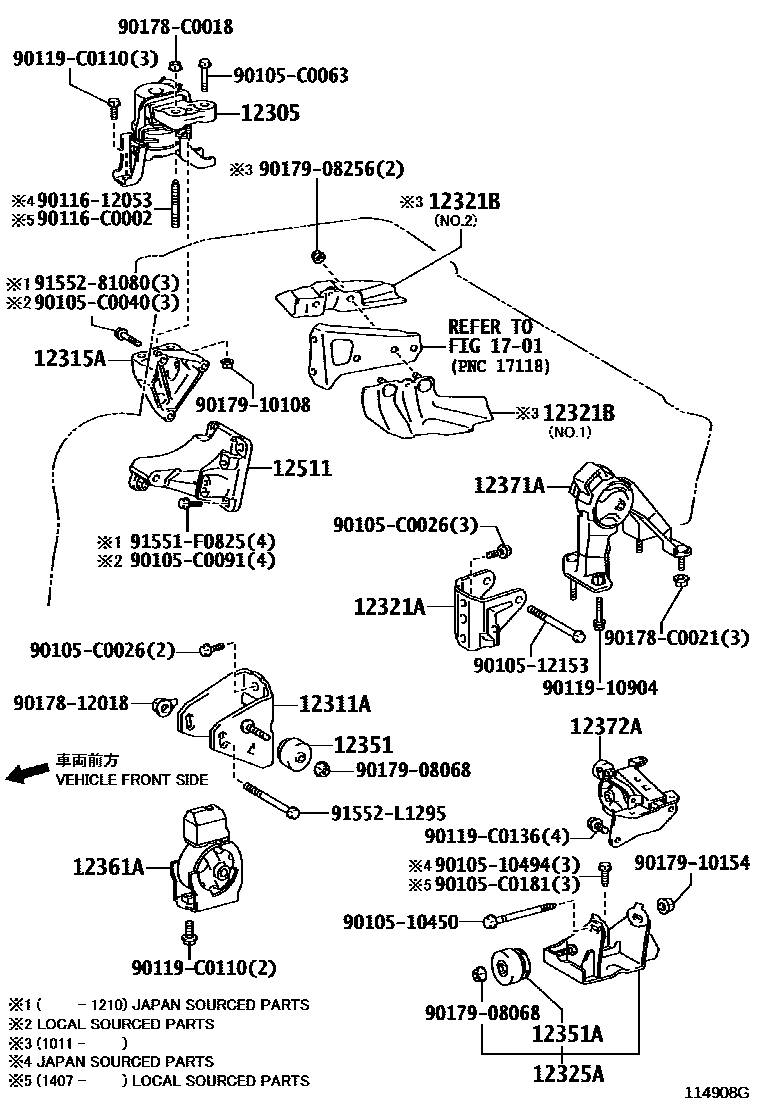

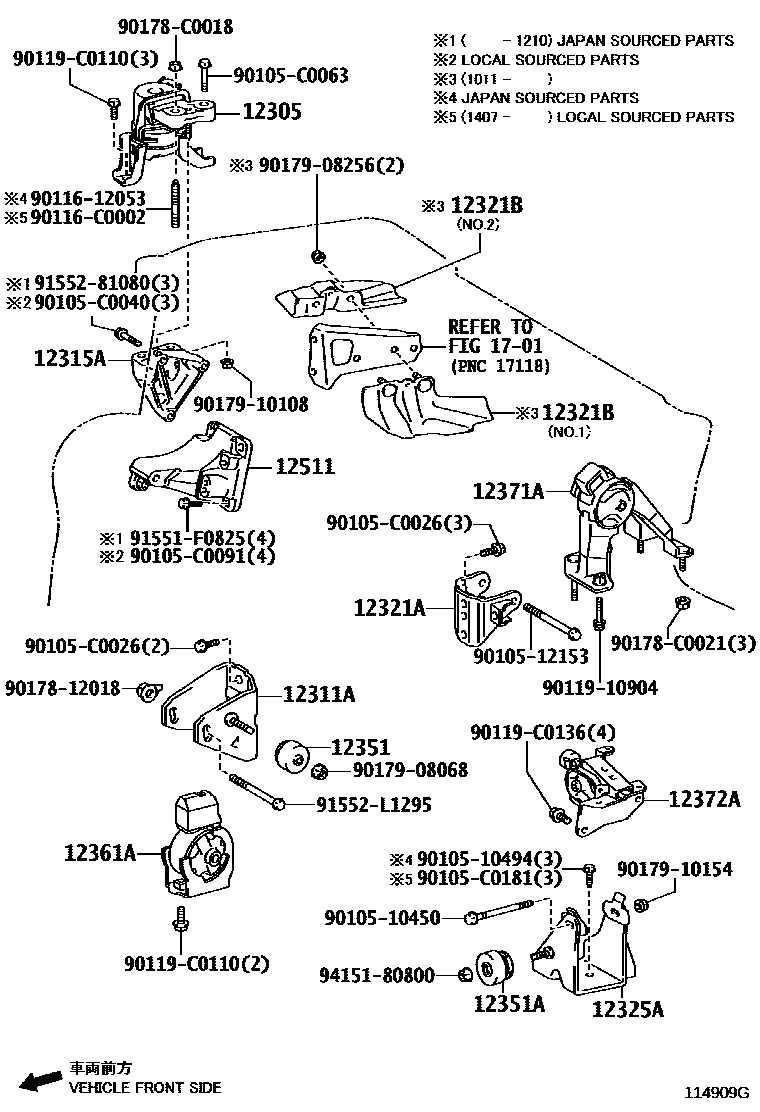

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T020 · 12305-22170 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0T050 · 12311-22200 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0T010 · 12315-22050 · 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0D180 · 12321-0D190 · 12321-0T040 · 12321-0T050 · 12321-22130 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-0T010 · 12304-22100 · 12304-22130 · 12325-22260 |
| 12351 | engine mount shock absorber | 12351-0T080 · 12351-22080 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-11023 · 12351-22070 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0T030 · 12361-0T040 · 12361-22080 · 12361-22090 |
| 12371A | Engine rear mount vibration isolation pad | 12371-22140 · 12371-22170 |
| 12372 | Engine No. 2 rear mount vibration isolation pad | 12372-21070 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21070 |
| 12511 | No. 1 generator bracket | 12511-0T010 · 12511-37010 |
