Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 5 PNC and OE references.

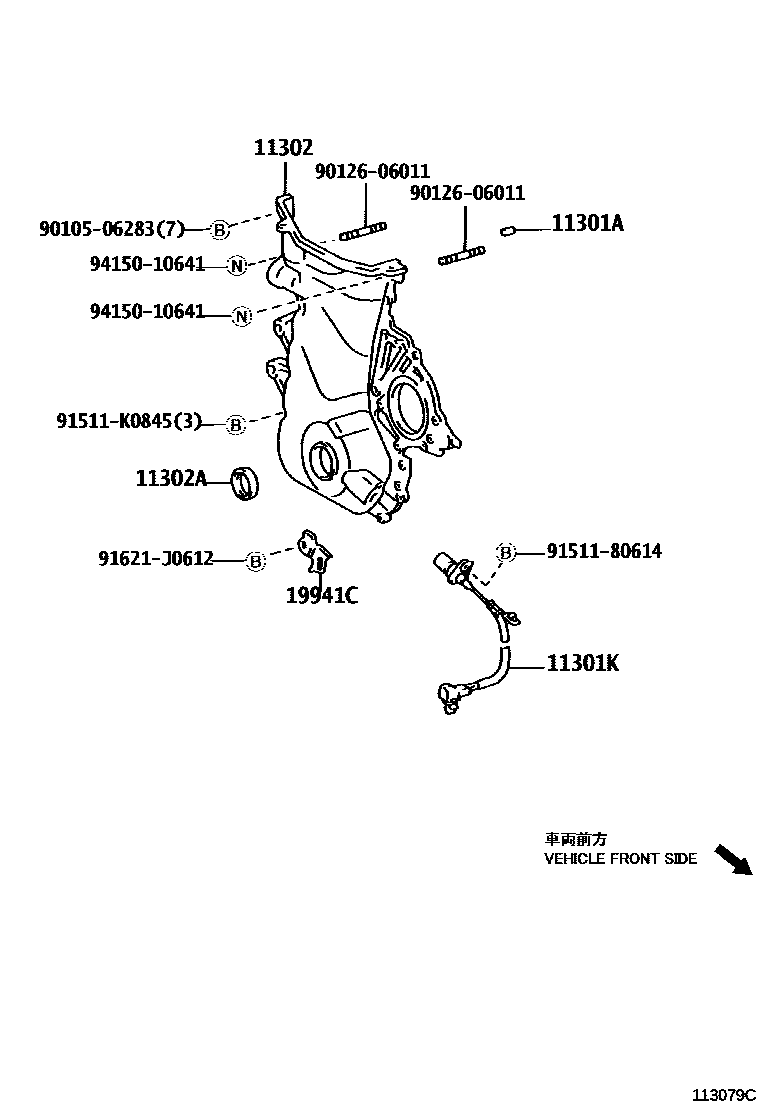

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 113079C
Timing Gear Cover & Rear End Plate — 113079C (200402 – 999999)

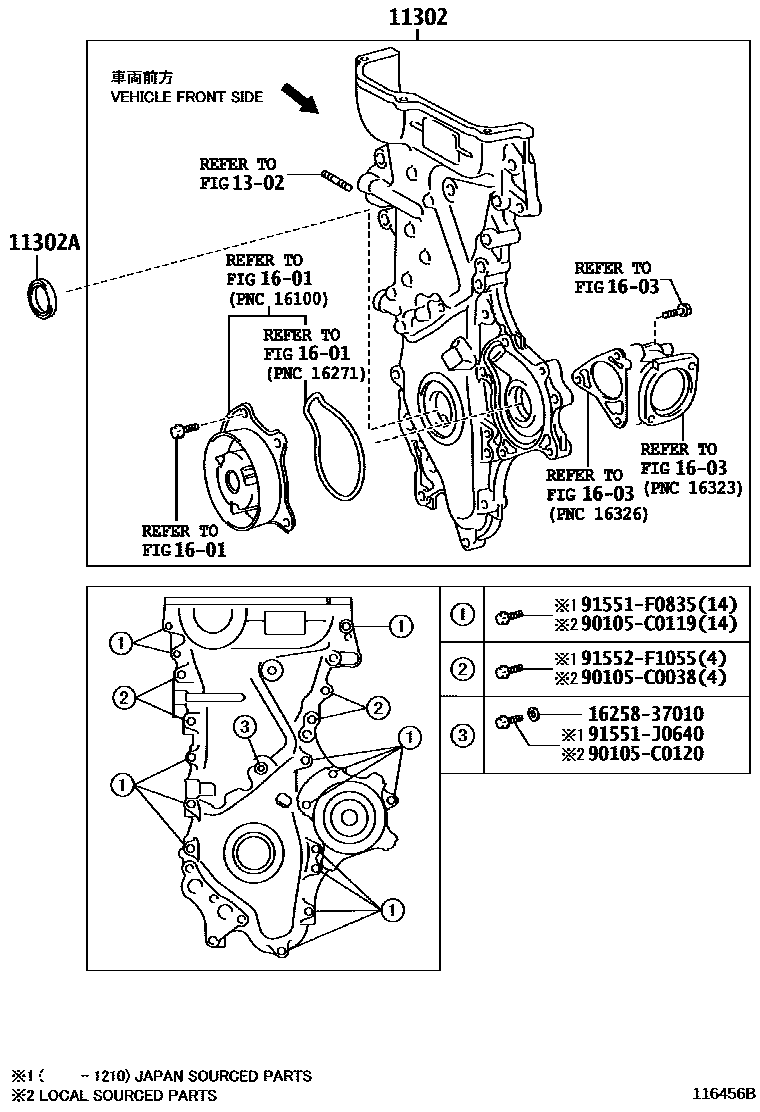

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 116456B
Timing Gear Cover & Rear End Plate — 116456B (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T050 · 11310-0T051 · 11310-37010 · 11321-22021
11302AOil seal (for timing chain or timing belt cover)90311-38059 · 90311-38089 · 90311-T0024
19941CWire clamp (for crankshaft position sensor)19941-22010
