Toyota COROLLA Cylinder Block — Figure 1105

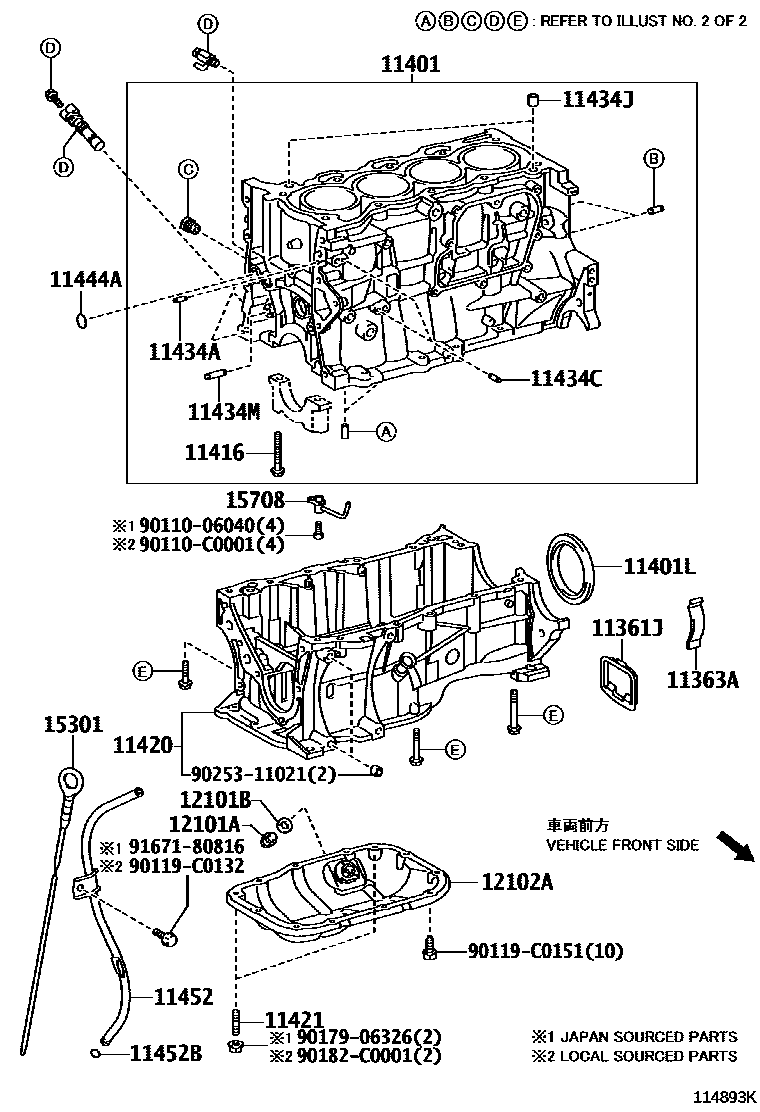

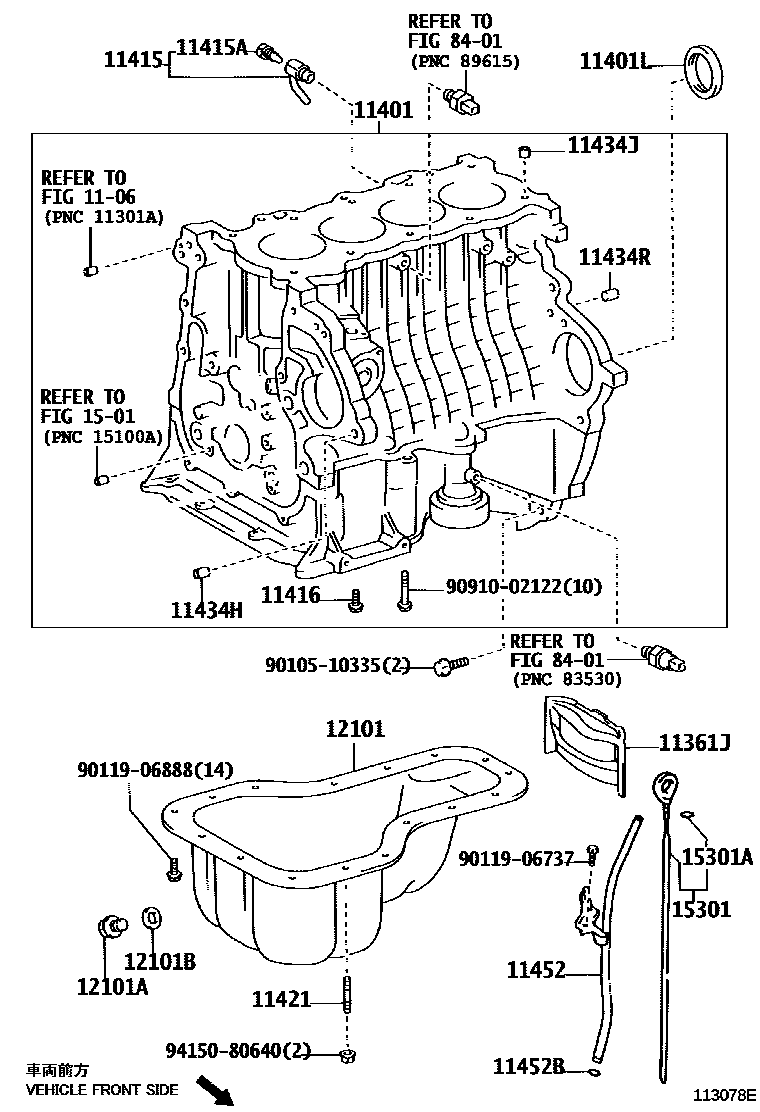

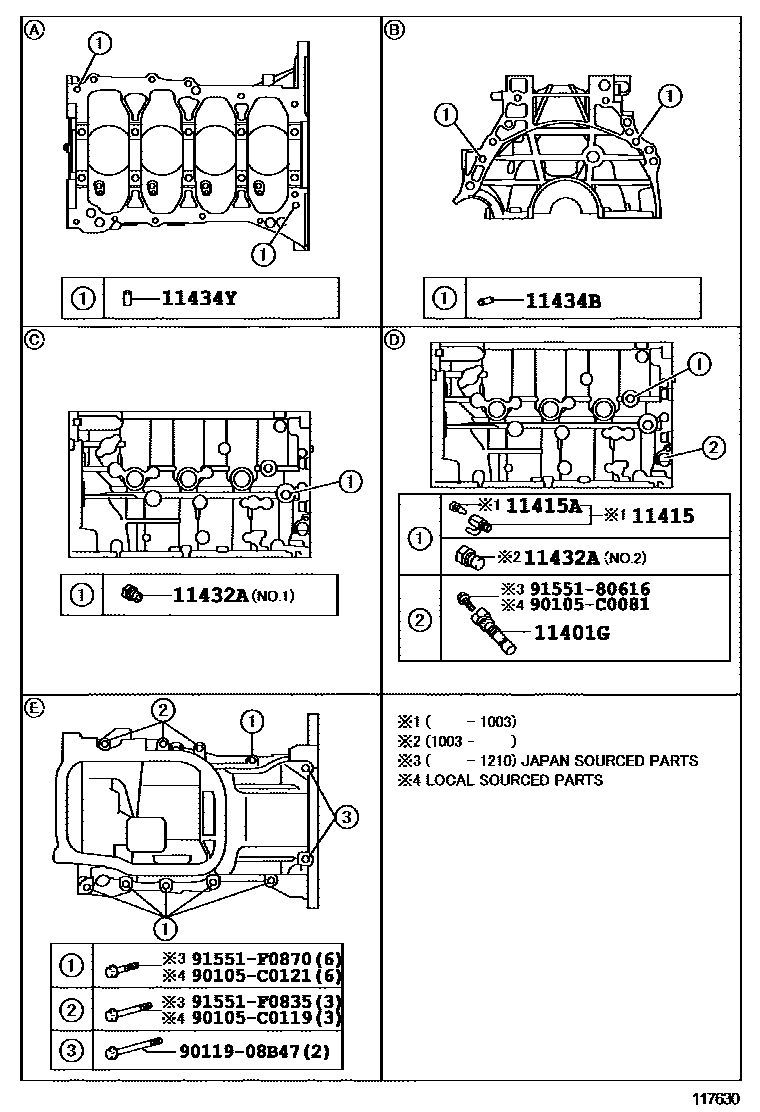

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0T020 · 11361-21011 · 11361-22021 · 11361-22030 |
| 11363A | Flywheel housing side cover | 11363-0T020 · 11363-21010 |
| 11401 | Cylinder block sub-assembly | 11410-09280 · 11410-09330 · 11410-09480 · 11410-09500 · 11410-09501 · 11410-29165 · 11410-39015 · 11410-39045 · 11410-39047 · 11410-39235 |
| 11401G | crankshaft position sensor | 90919-05070 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-76001 · 90311-76002 · 90311-C0007 · 90311-C0029 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02163 · 91511-K0840 |
| 11420 | Reinforce crankcase assembly | 11420-0T020 · 11420-37010 |
| 11421 | Stud bolts (for oil pan) | 90126-06010 · 90126-06015 · 90126-06028 · 90126-C0001 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-C0009 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90250-C0009 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 · 90253-13017 · 90253-C0003 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 · 90250-C0006 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-10113 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 · 90250-08120 · 90250-C0011 |
| 11444A | O-ring | 90301-C0033 · 96723-24020 |
| 11452 | Engine oil level gauge guide | 11452-0T020 · 11452-22030 · 11452-37010 · 11452-37011 |
| 11452B | O-ring (for oil level gauge guide) | 90301-C0007 · 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-22024 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-C0013 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 · 90430-C0005 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0T010 · 12102-37010 |
| 15301 | Engine oil level scoring assembly | 15301-0T030 · 15301-22030 · 15301-22050 · 15301-37010 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-37010 · 15708-37011 · 15708-37012 |
