Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

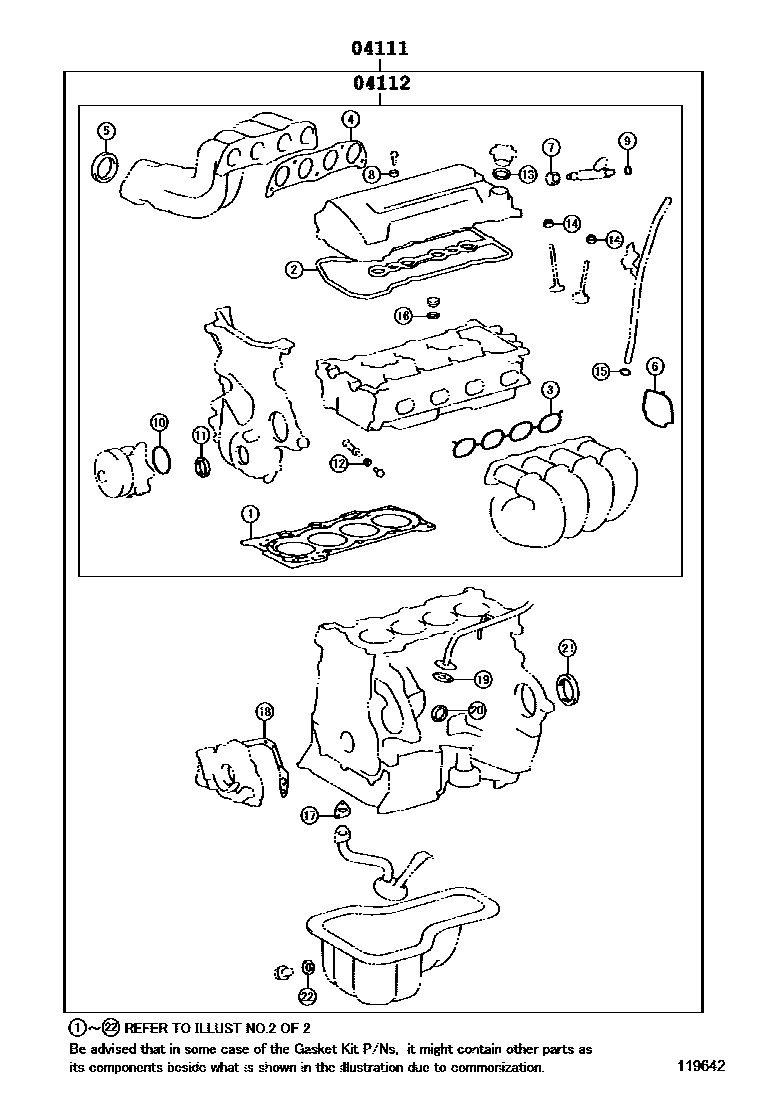

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119642
Engine Overhaul Gasket Kit — 119642 (200402 – 200705)

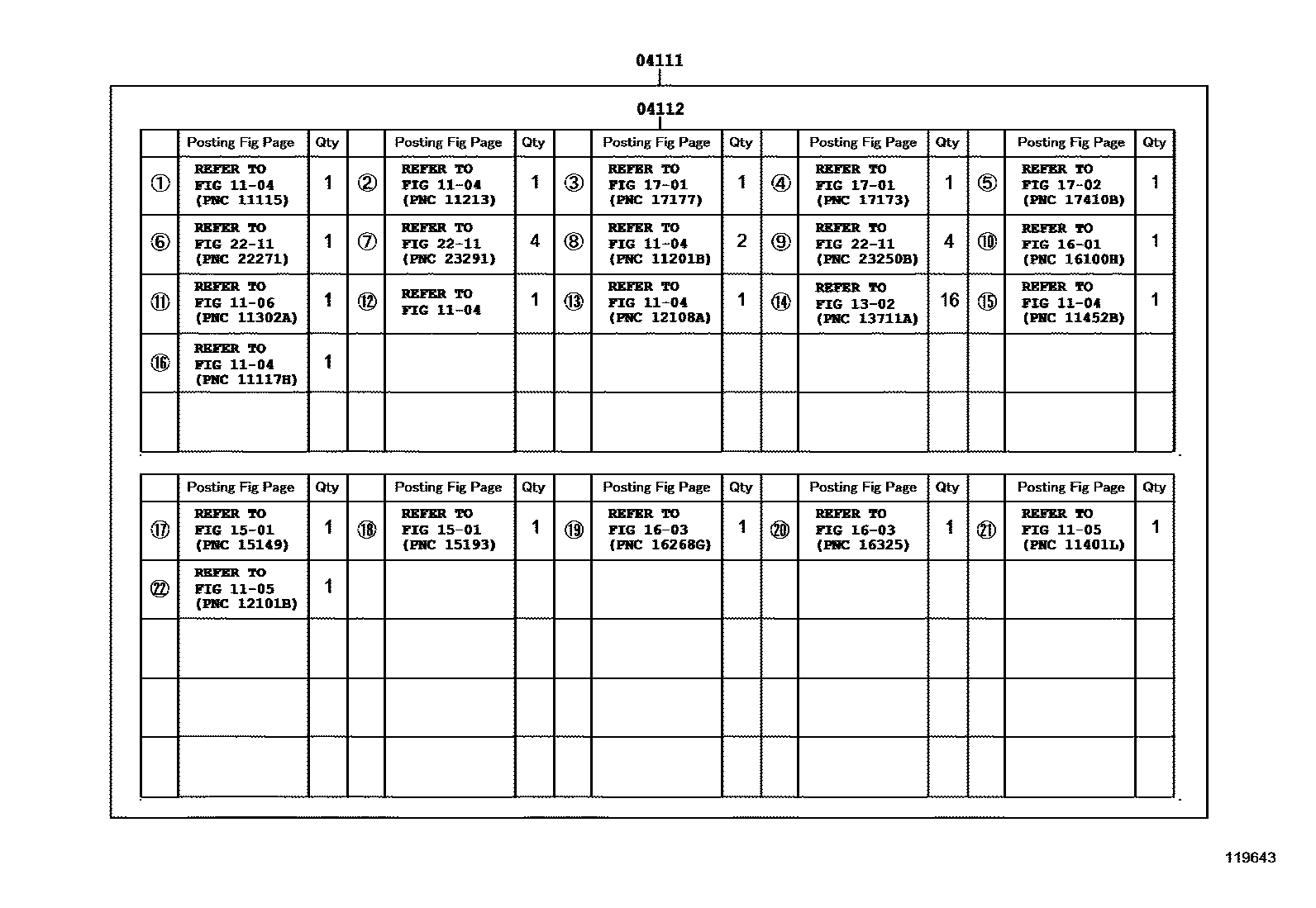

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119643
Engine Overhaul Gasket Kit — 119643 (200402 – 200705)

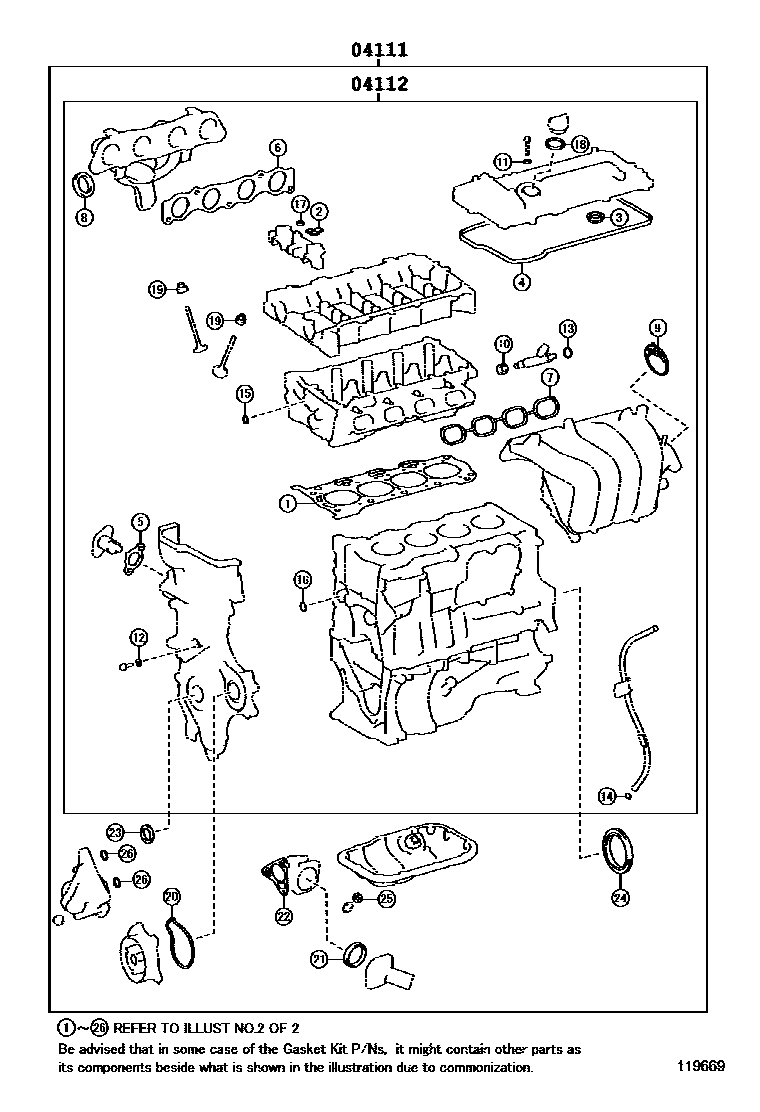

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119669
Engine Overhaul Gasket Kit — 119669 (200705 – 999999)

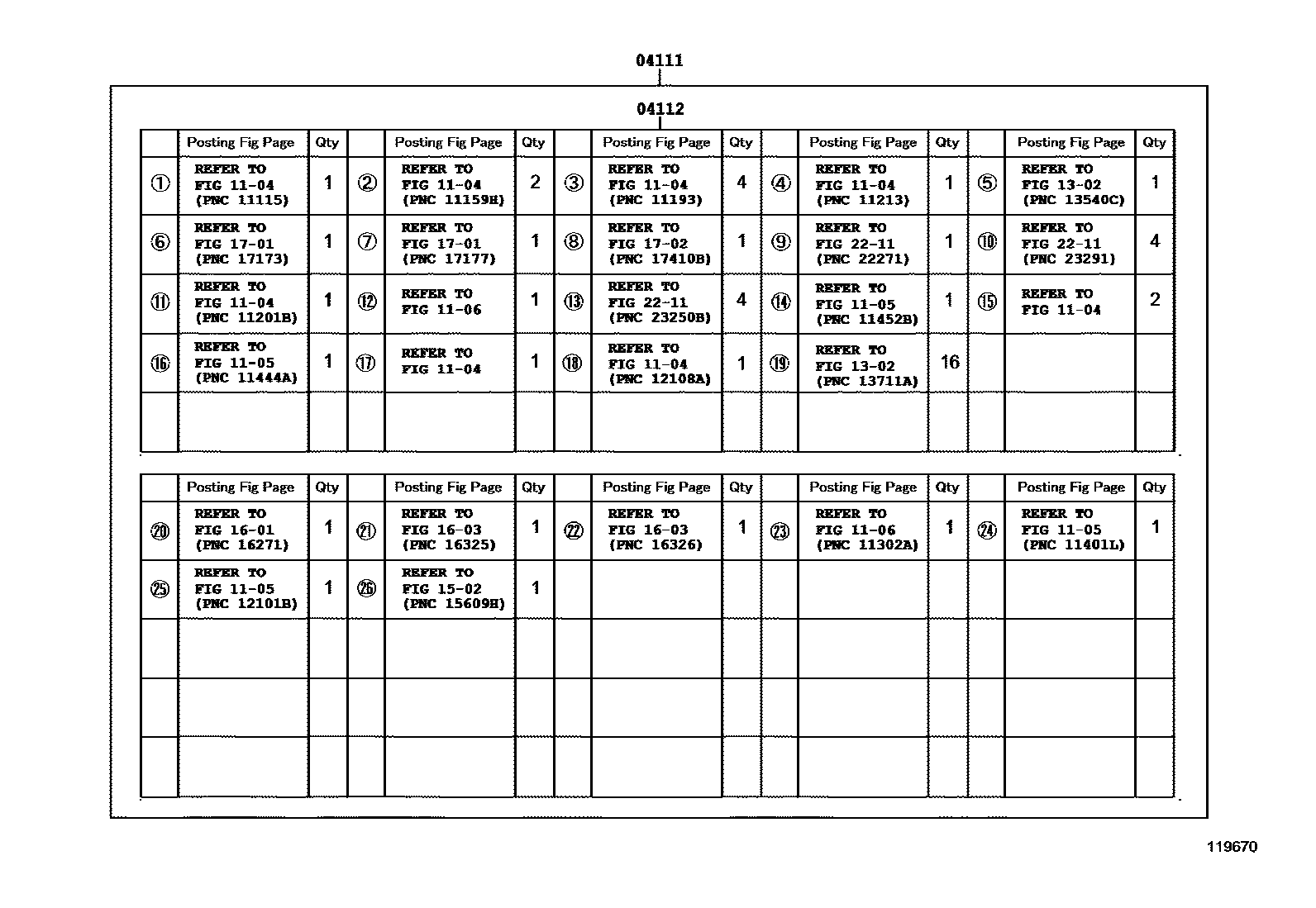

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119670
Engine Overhaul Gasket Kit — 119670 (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D252 · 04111-0D460 · 04111-0T020 · 04111-0T021 · 04111-0T022 · 04111-0T023 · 04111-0T024 · 04111-0T025 · 04111-22850 · 04111-22890
04112Engine valve grinding pad assembly04112-0D430 · 04112-0T020 · 04112-0T021 · 04112-0T022 · 04112-0T023 · 04112-0T024 · 04112-22481 · 04112-22690
