Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

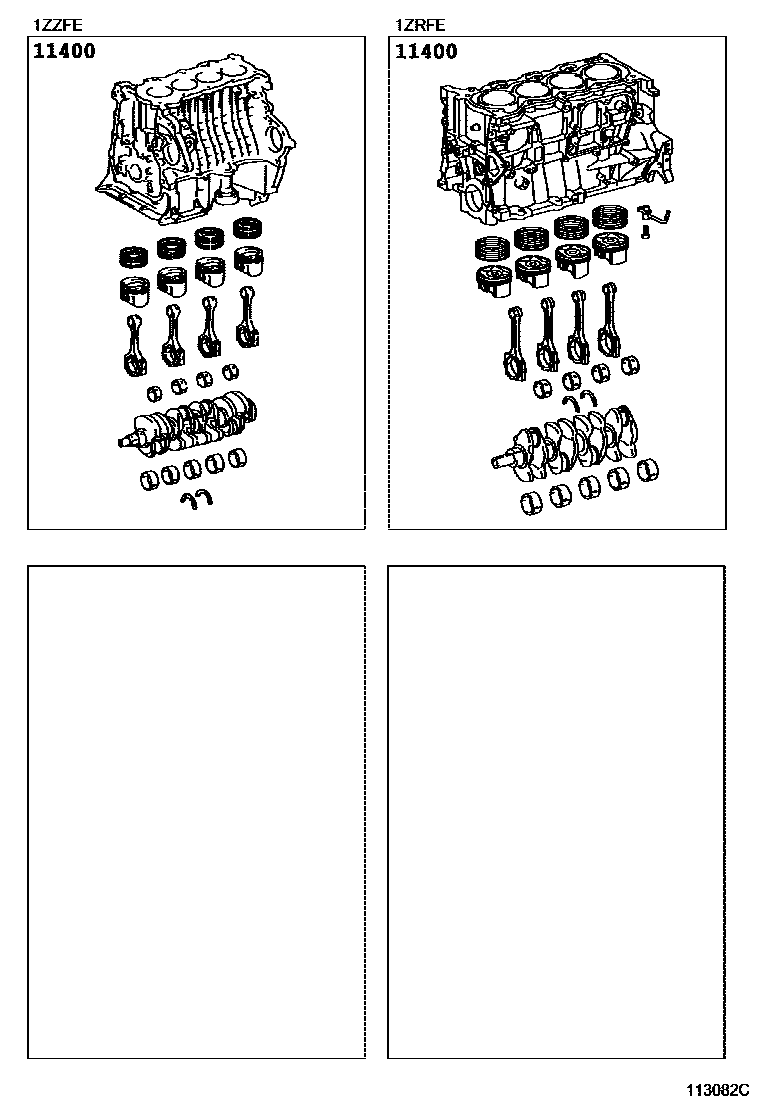

Toyota COROLLA Short Block Assembly EPC diagram — 113082C
Short Block Assembly — 113082C (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D200 · 11400-0D201 · 11400-0D202 · 11400-0T030 · 11400-0T340 · 11400-22530
