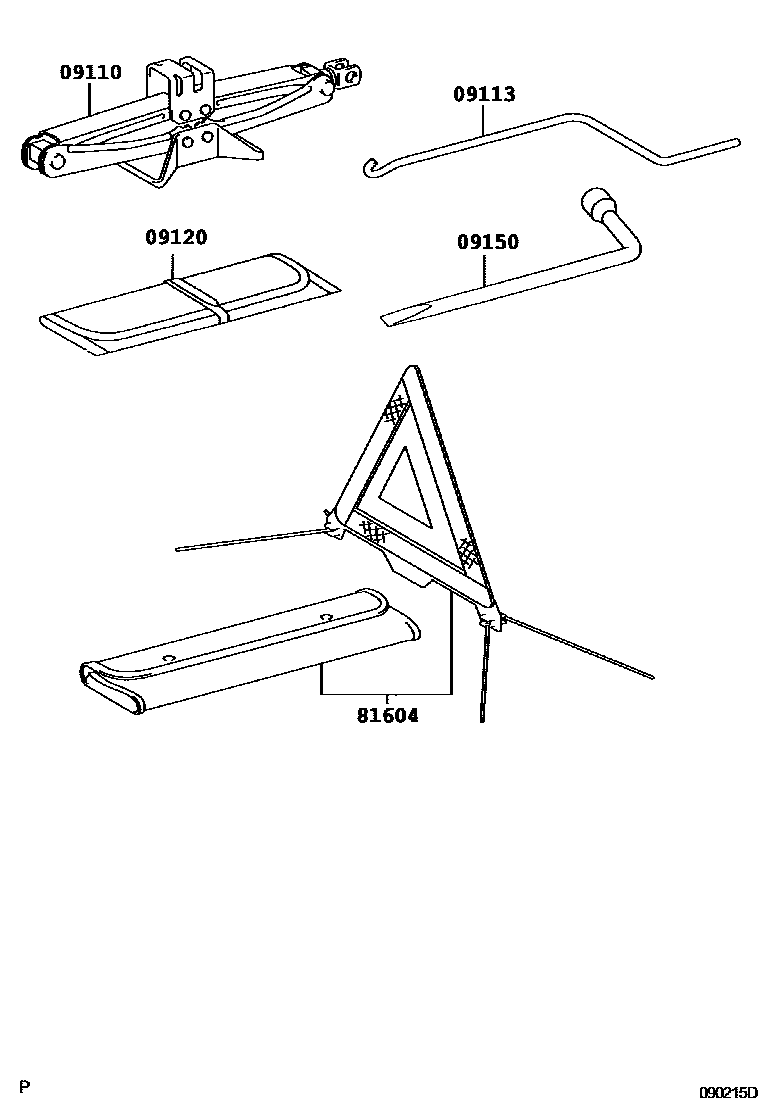

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-02070 · 09111-02071 · 09111-02100 |
| 09113 | Jack Handle | 09113-0D020 · 09113-0D021 |
| 09120 | Tool Bag | 09120-0D010 |
| 09150 | Wheel Nut Wrench Case | 09150-0D010 · 09150-0D020 · 09150-40010 |
| 81604 | Triangular reflector assembly | 81604-02010 · 81604-02011 · 81604-02030 |
