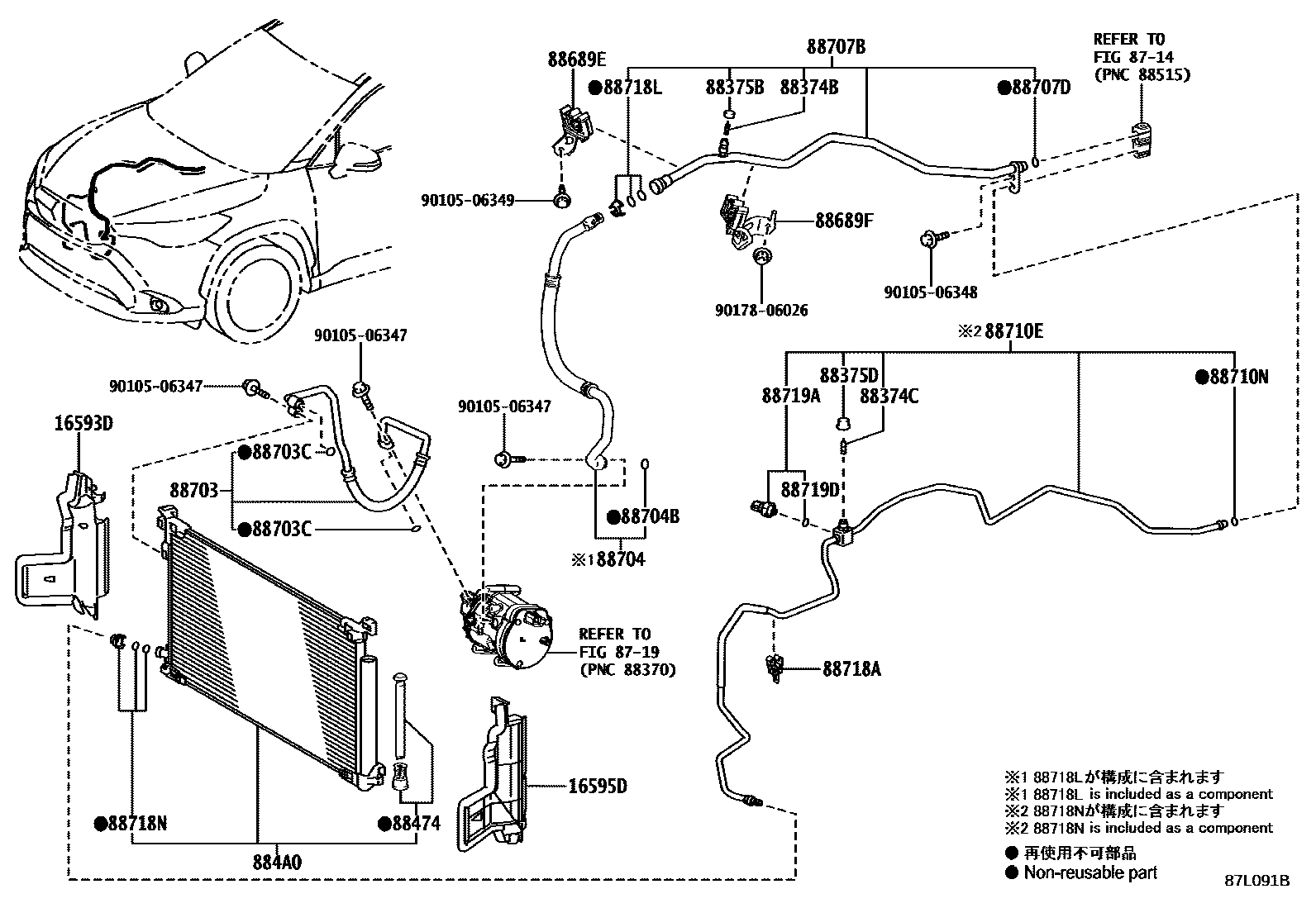

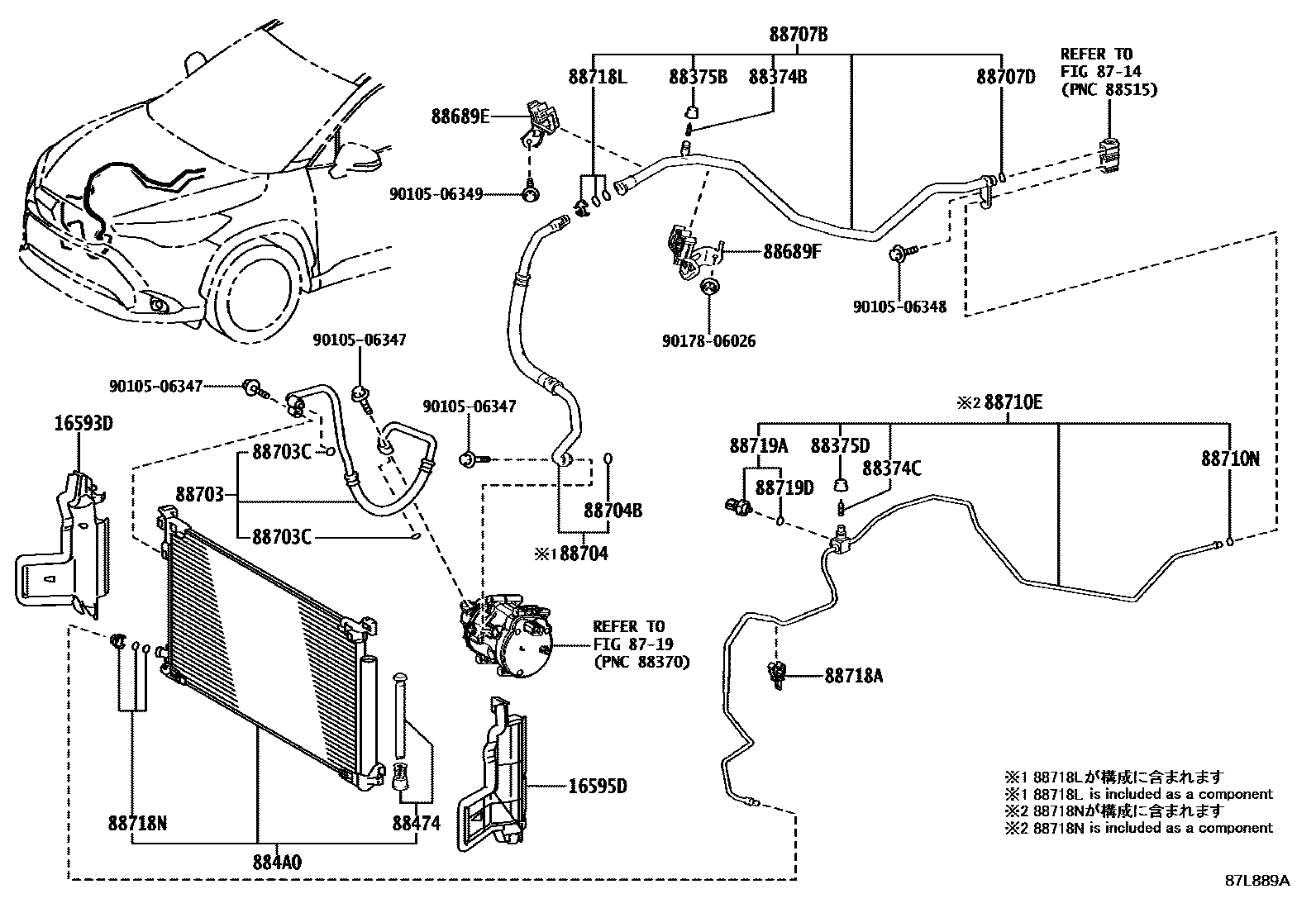

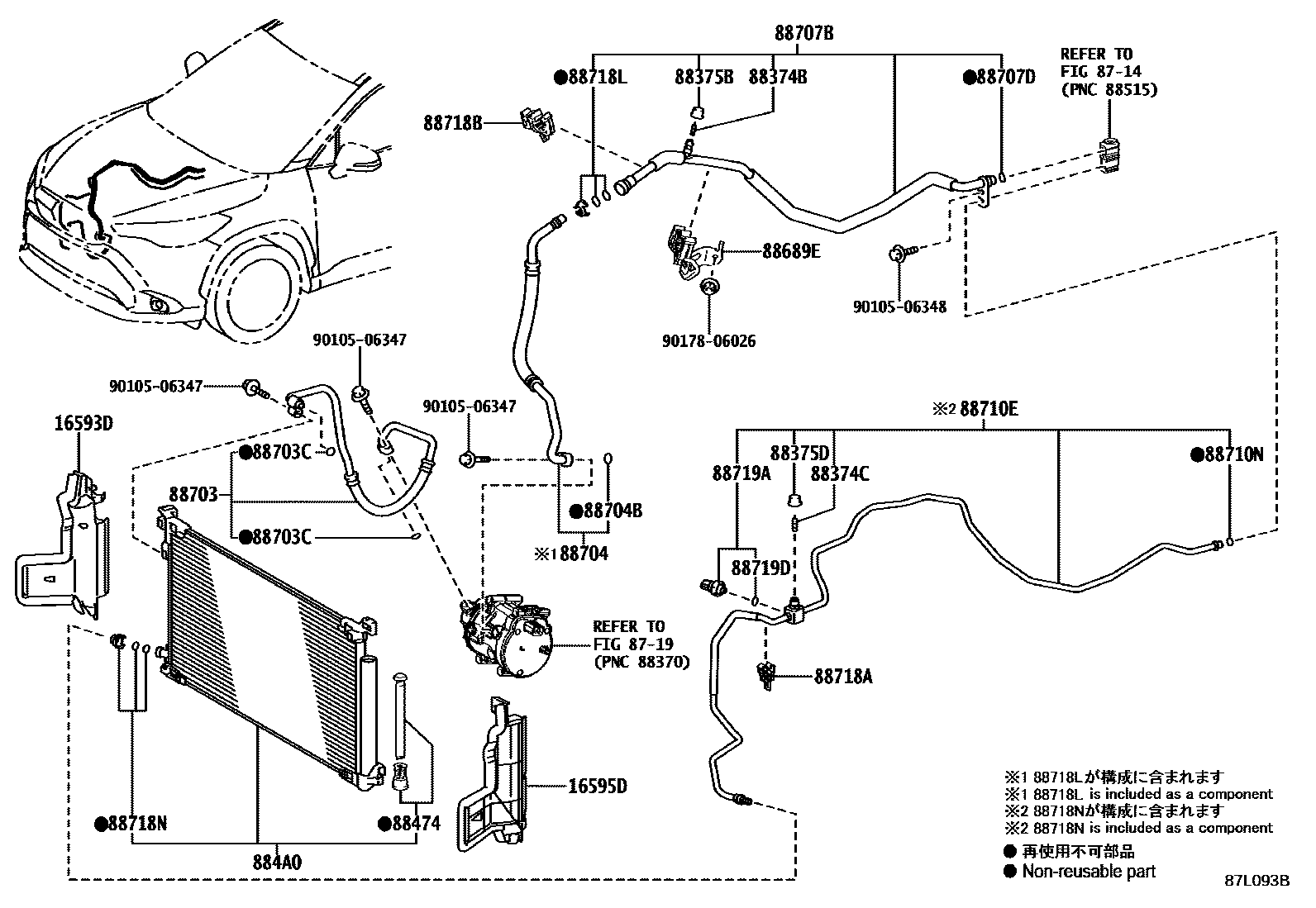

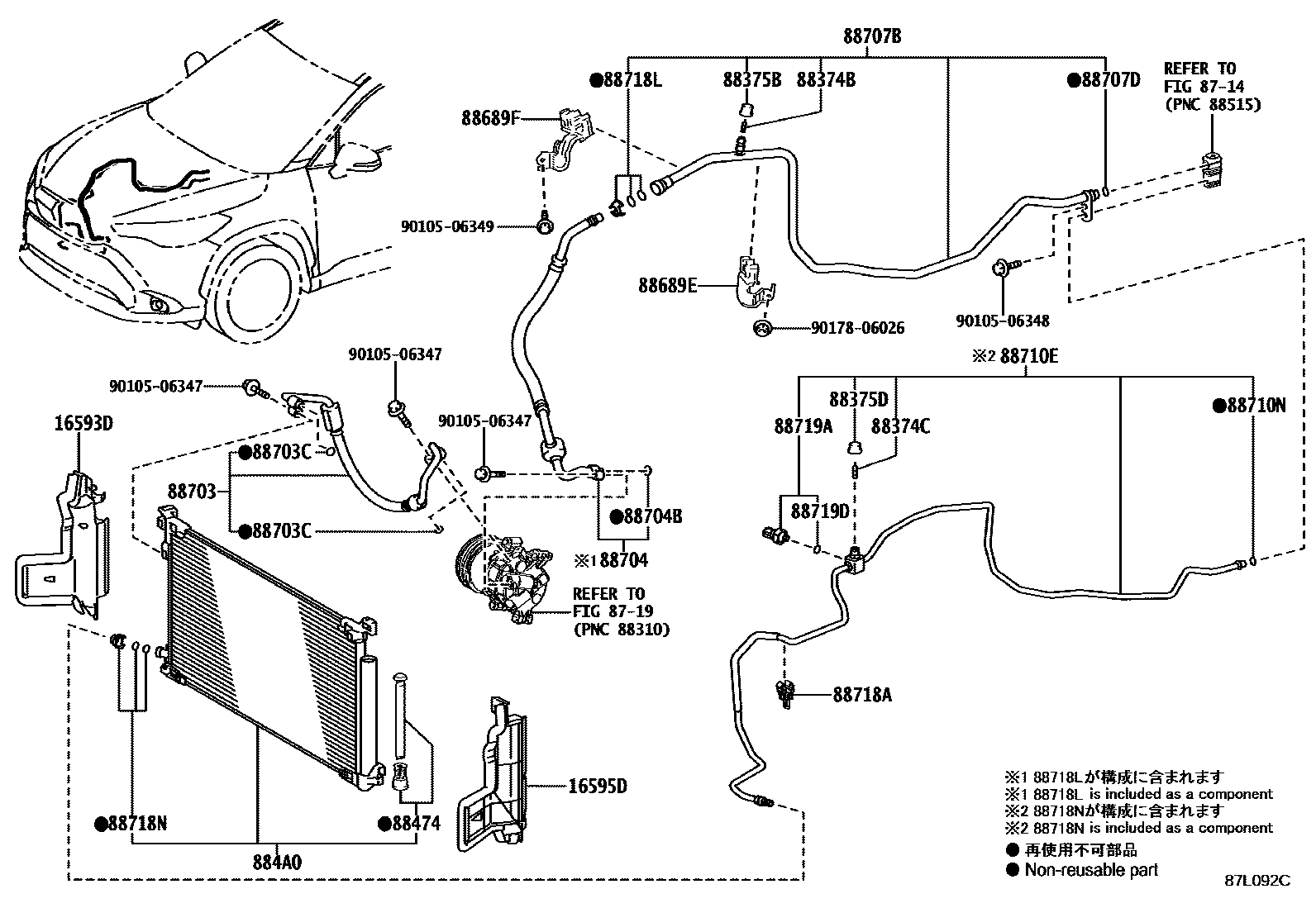

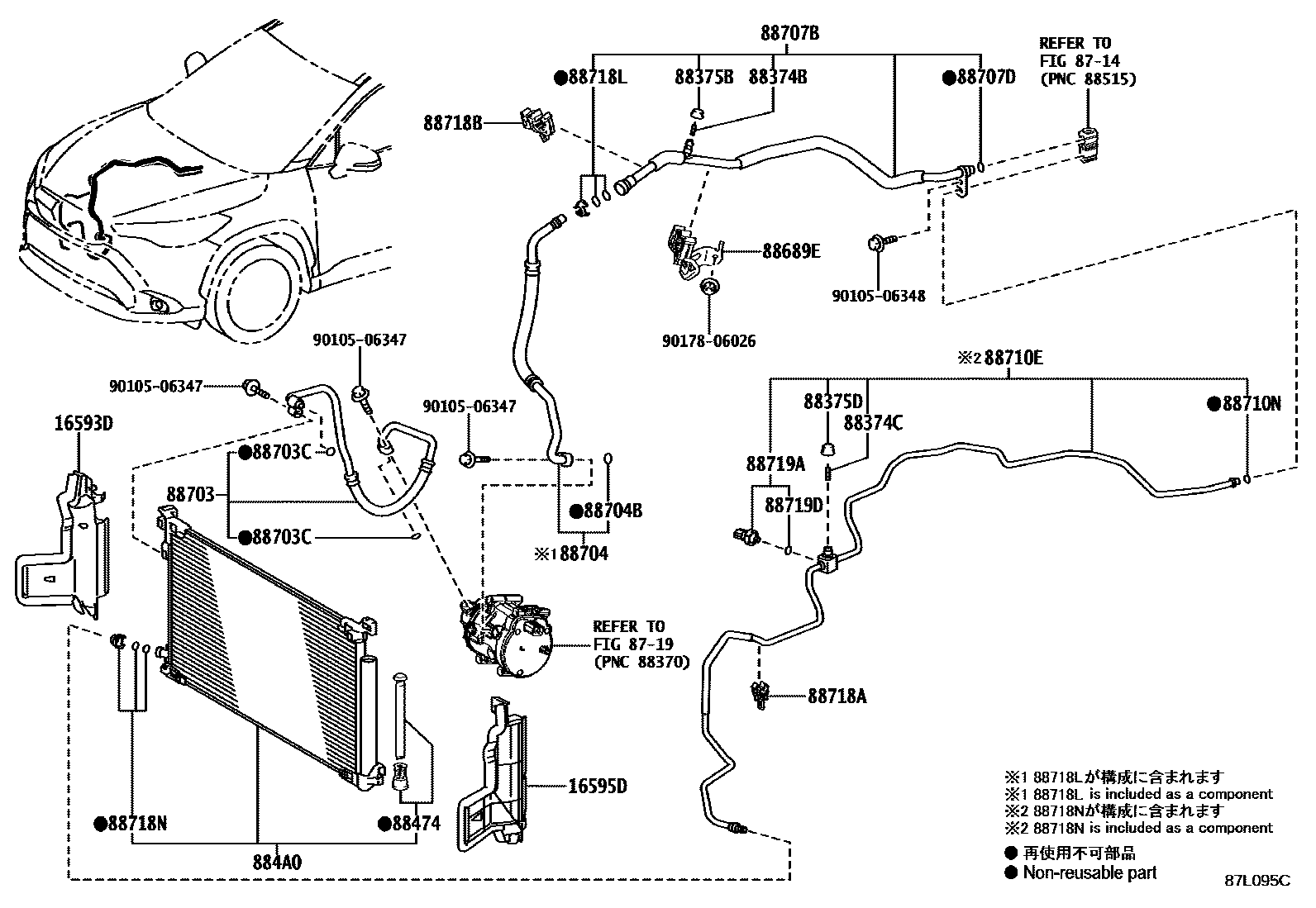

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593D | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-24140 |
| 16595D | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-24140 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88474 | cooler dryer | 88474-12010 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-12100 · 884A0-12110 |
| 88689E | SUPPORT, REFROIDISSEUR, NO.1 | 88688-10560 · 88688-47700 · 88688-47710 |
| 88689F | SUPPORT, REFROIDISSEUR, NO.2 | 88688-12A20 · 88688-47710 |
| 88703 | Discharge hose sub-assembly | 88703-16340 · 88703-16360 · 88703-16370 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-16500 · 88704-16510 · 88704-16520 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14121 |
| 88707B | Suction pipe B sub-assembly | 88707-12410 · 88707-47100 · 88707-47120 · 88707-76010 · 88707-76020 · 88707-76030 · 88707-76040 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-16500 · 88710-16510 · 88710-16550 · 88710-16560 · 88710-16570 · 88710-16600 · 88710-16610 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90099-14119 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-76030 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | JOINT, TORIQUE(POUR CAPTEUR PRESSION CLIM) | 90099-14122 |
