Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 4 PNC and OE references.

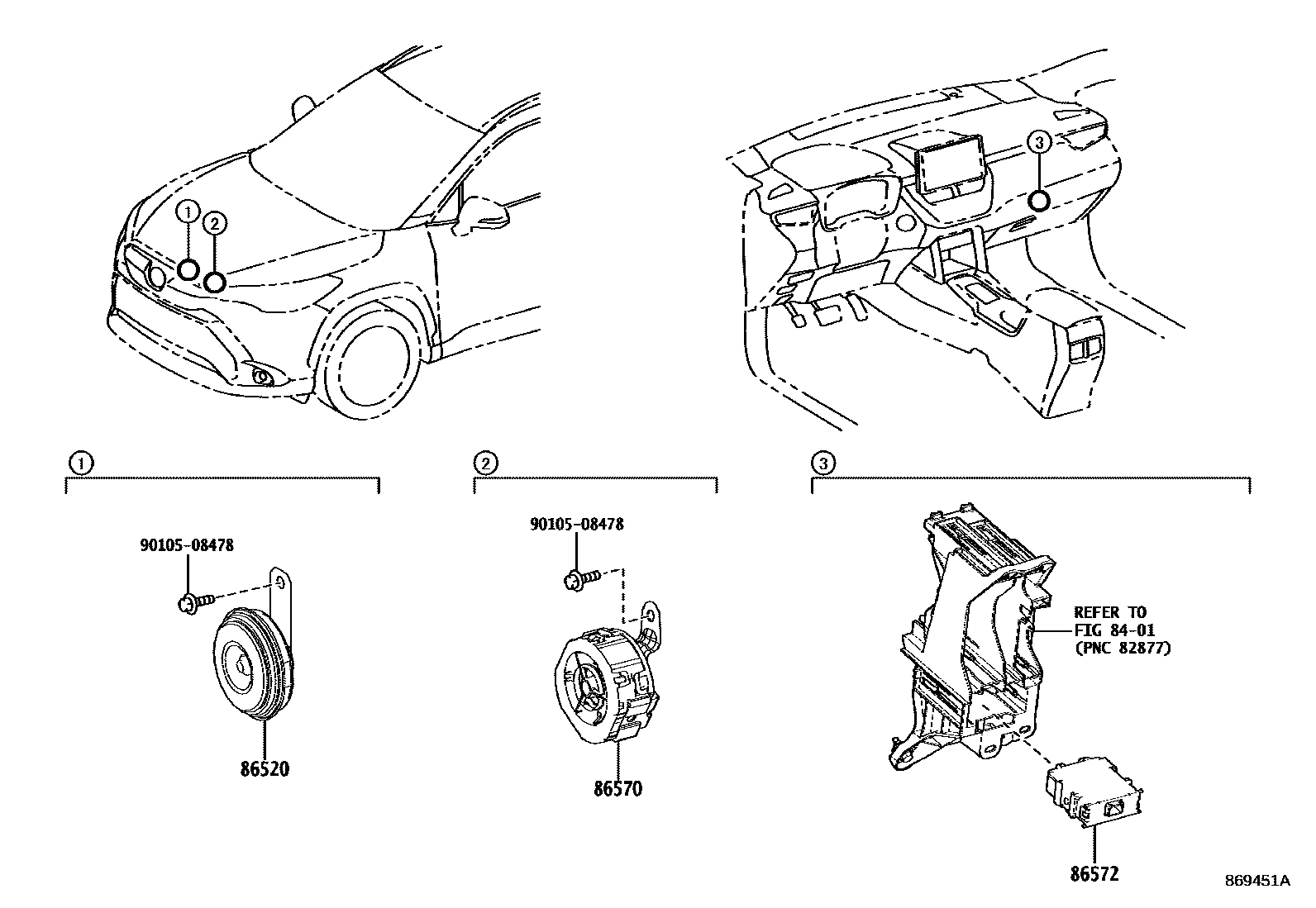

Toyota COROLLA 喇叭 EPC diagram — 869451A
喇叭 — 869451A (202207 – 999999)

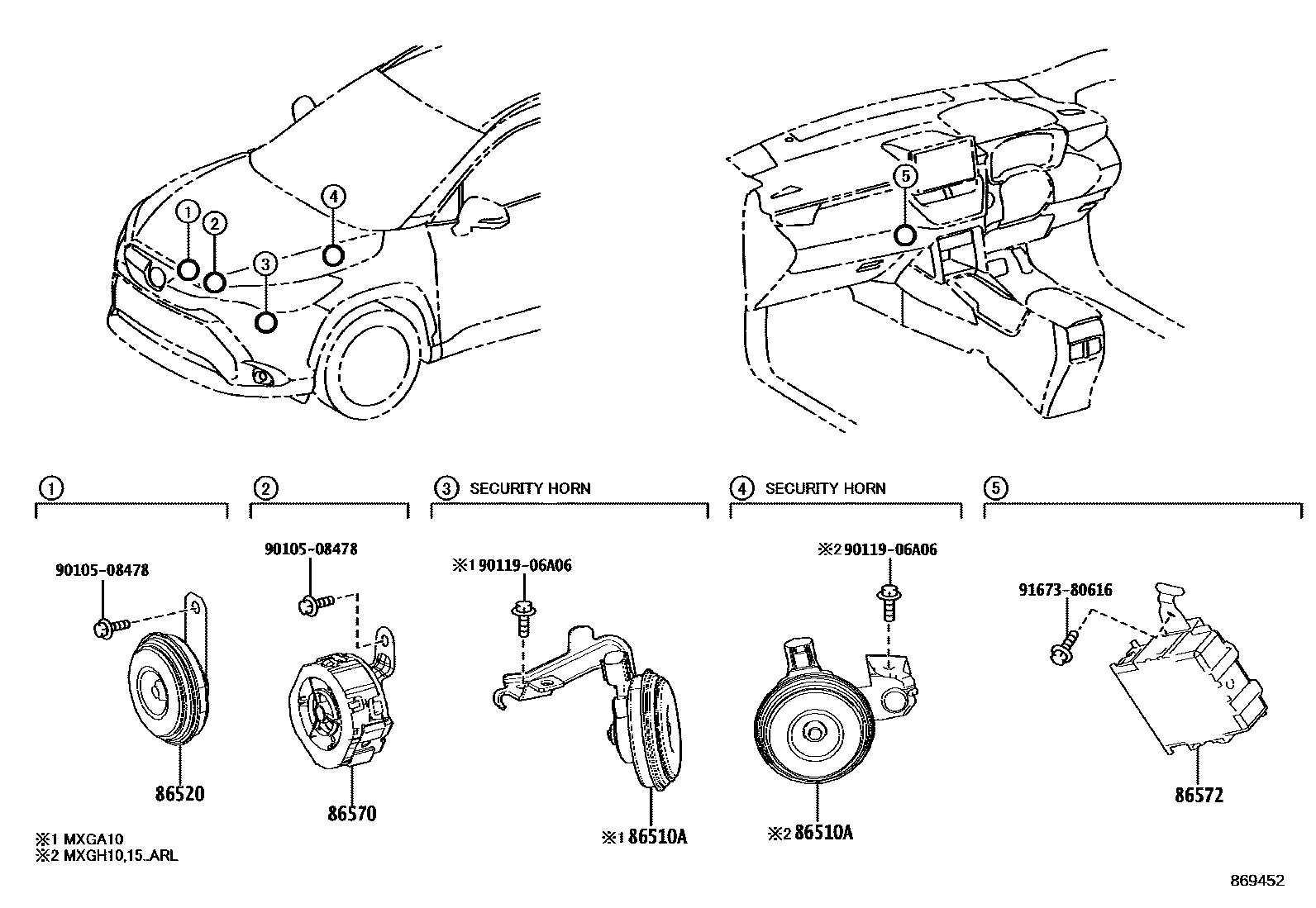

Toyota COROLLA 喇叭 EPC diagram — 869452
喇叭 — 869452 (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510AAlarm horn assembly86560-10020 · 86560-12090
86520Subwoofer assembly86520-68010
86570Vehicle intrusion speaker assembly86570-12030
86572vehicle hacking speaker controller86572-16050 · 86572-16060
