Toyota COROLLA 倒车影像和摄像头 — Figure 8606

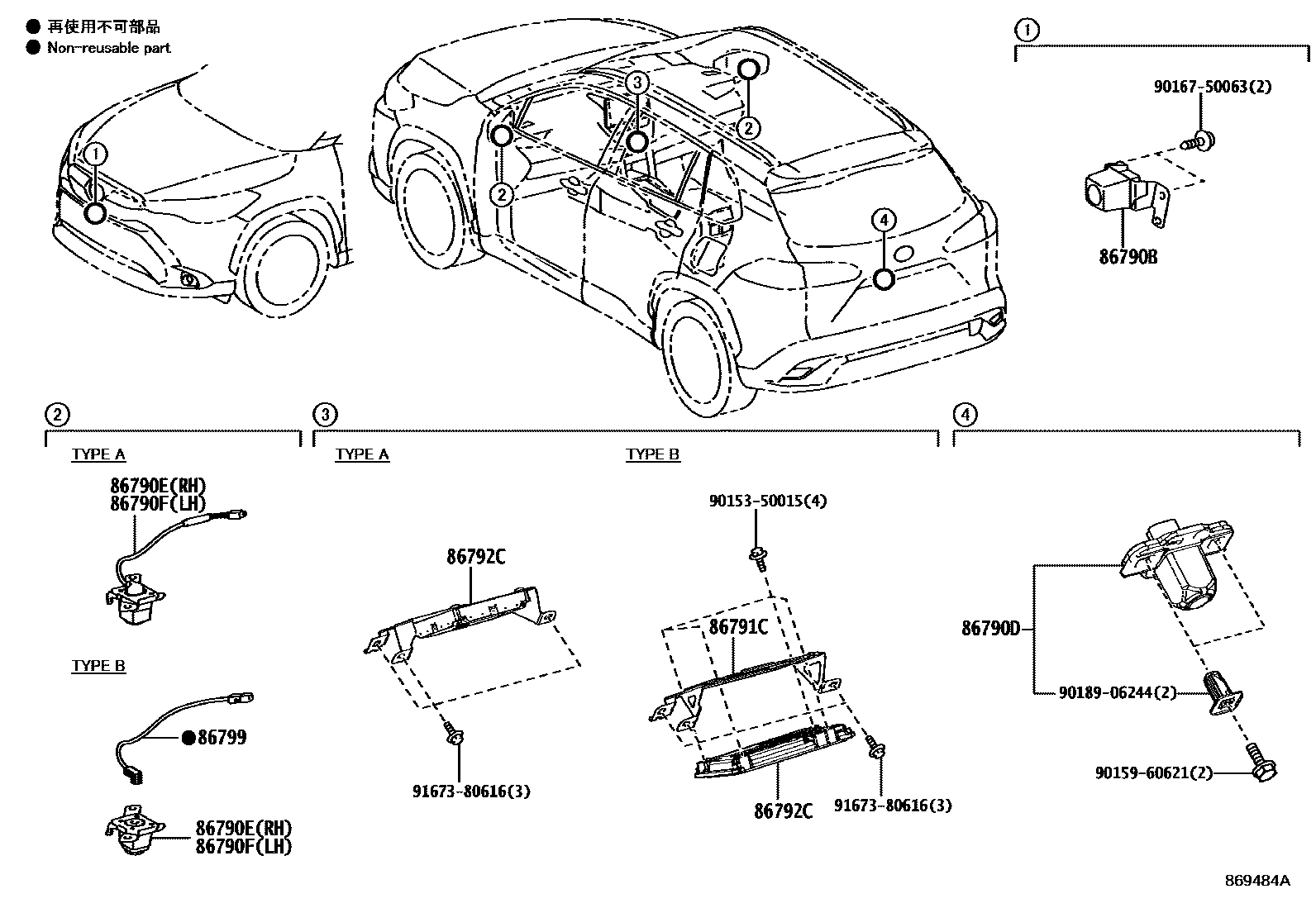

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-16080 · 86790-16090 |
| 86790D | Rear reversing image camera assembly | 86790-16060 · 86790-16070 · 867B0-16030 · 867B0-16031 · 867B0-16040 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-16110 · 86790-28460 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-16100 · 86790-28450 |
| 86791C | SUPPORT, ORDINATEUR ASSISTANCE STATIONNEMENT, NO.1 | 86791-16010 |
| 86792C | Parking assist ECU | 86792-16040 · 86792-16050 · 86792-16052 · 86792-16060 · 86792-16062 |
| 86799 | Reversing image camera wiring harness | 86799-16010 |
