Toyota COROLLA 后刮水器 — Figure 8502

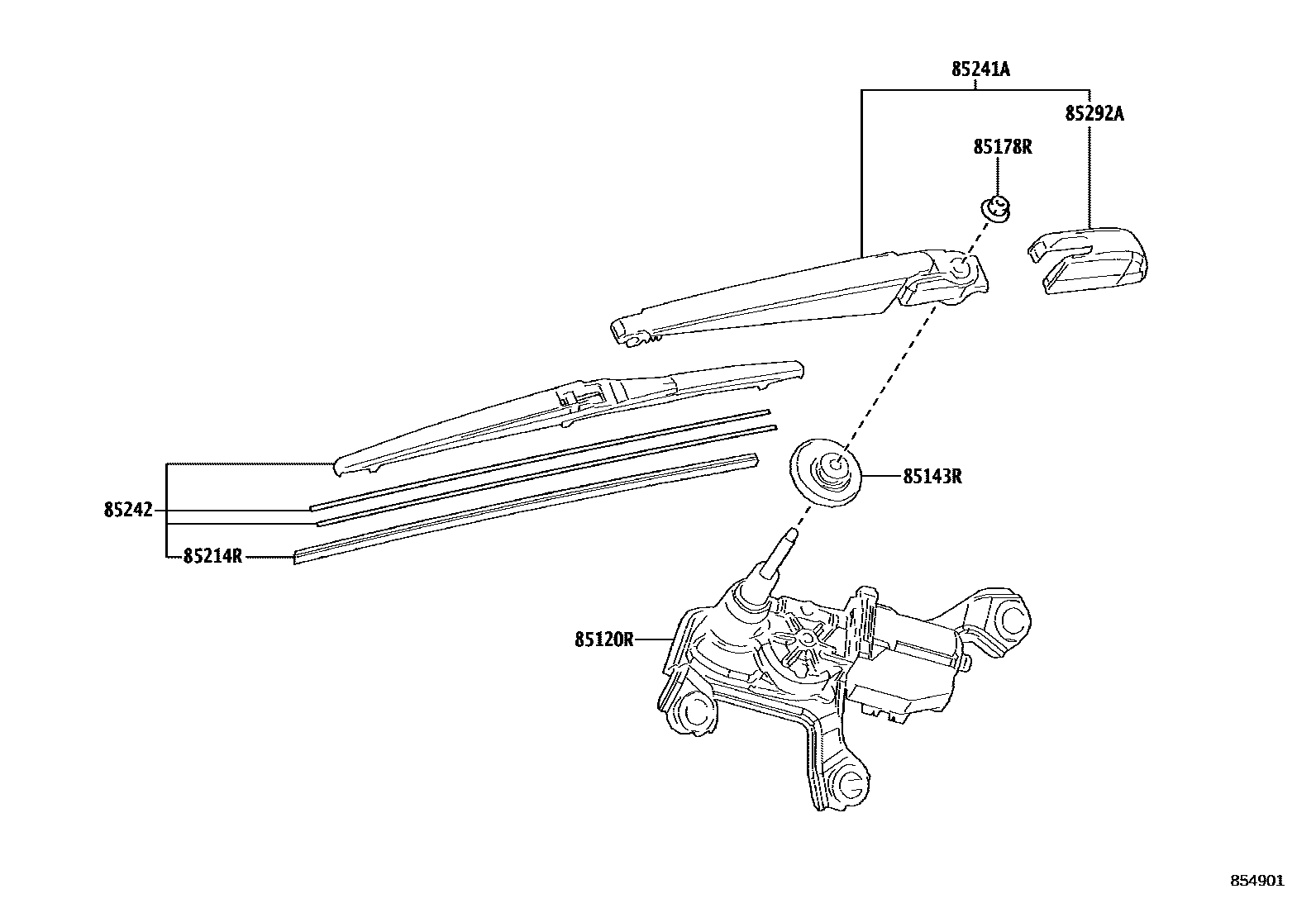

Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120R | Rear wiper motor and bracket assembly | 85130-16440 |
| 85143R | Rear wiper motor seal | 85143-28070 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85214R | Rear wiper rubber strip | 85214-42060 |
| 85241A | rear wiper arm | 85241-16060 |
| 85242 | Rear wiper blade | 85242-K0030 |
| 85292A | Rear wiper arm cap | 85292-42010 |
