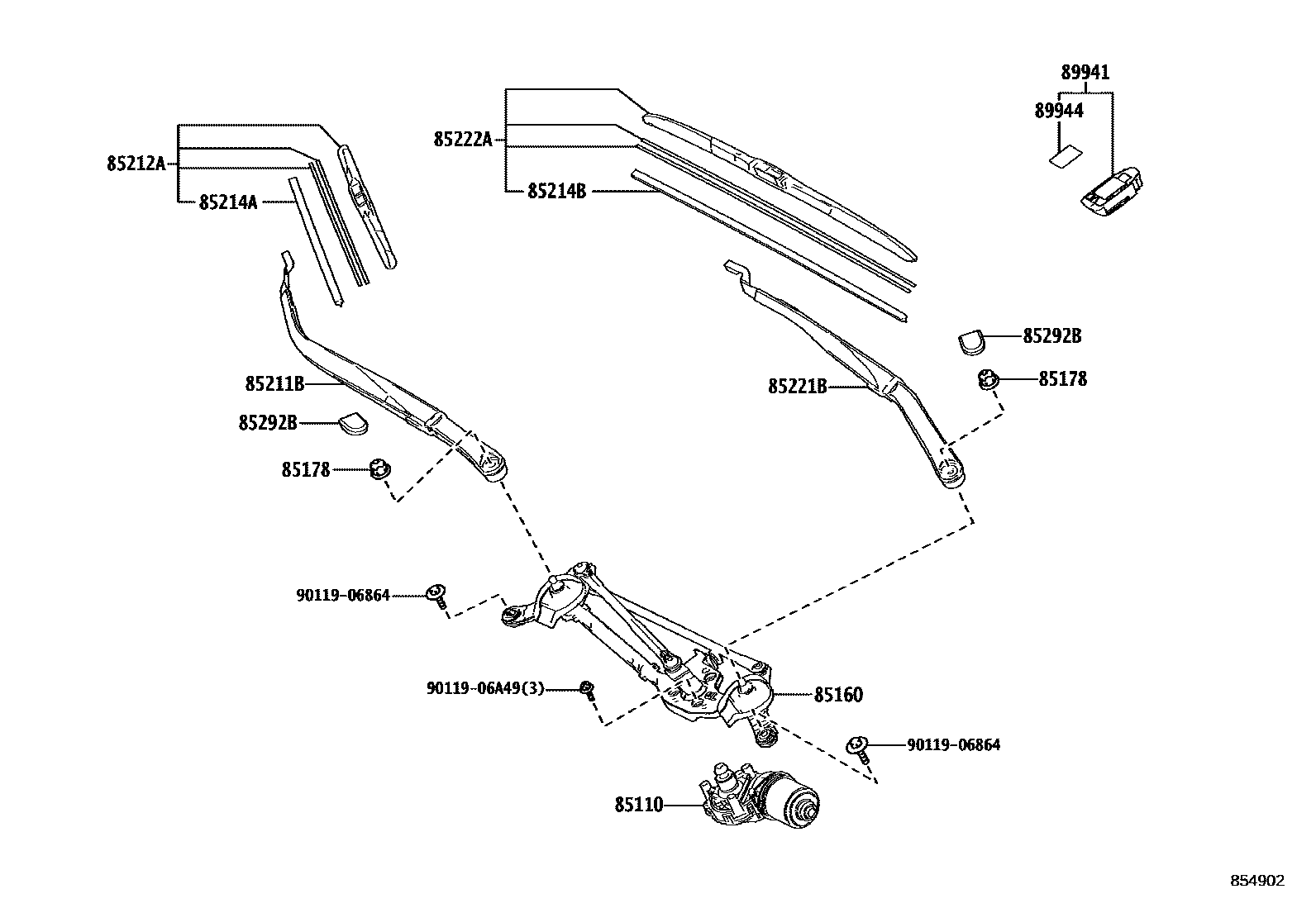

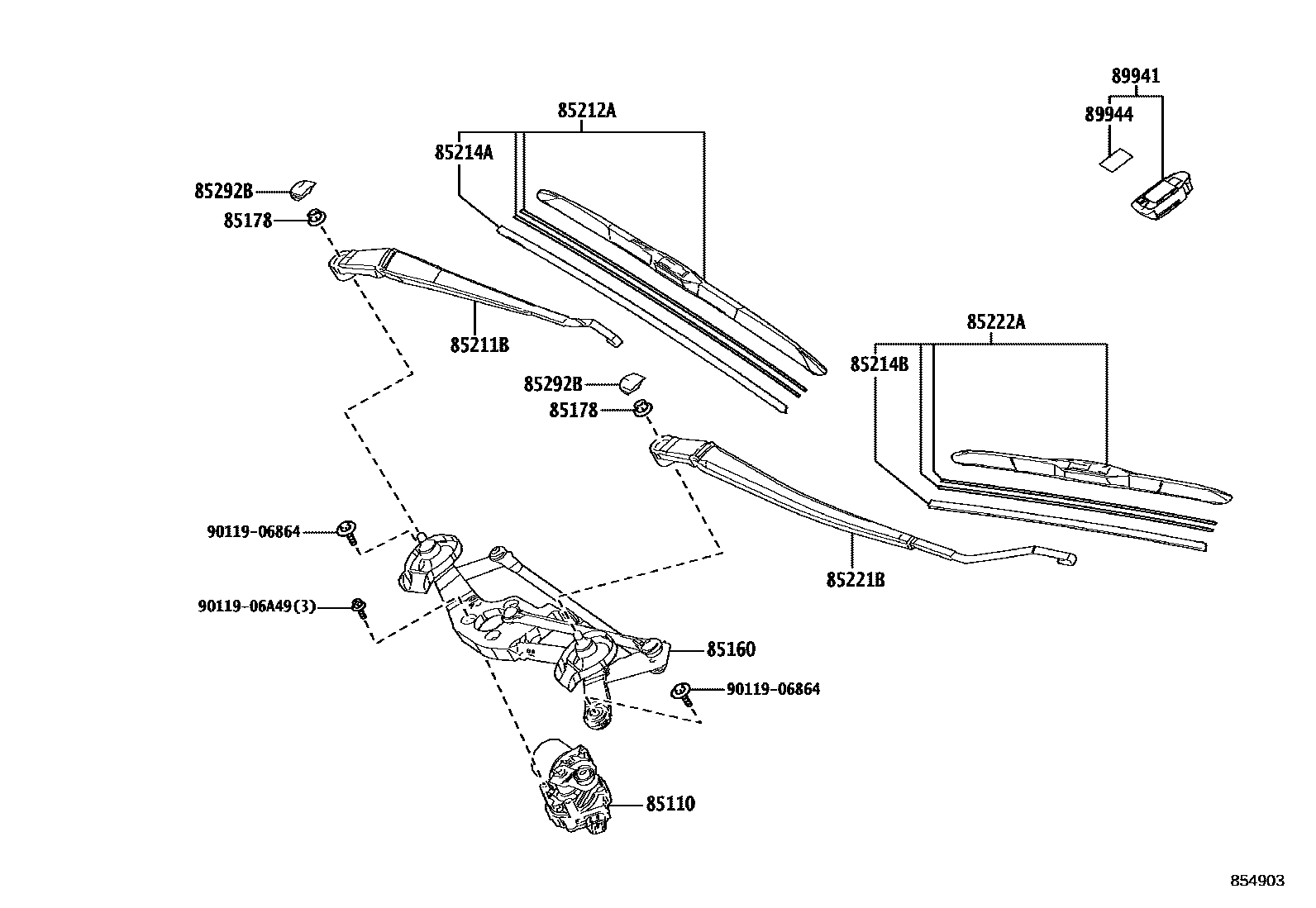

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-16680 · 85110-16710 · 85110-16720 |
| 85160 | Windshield wiper connecting rod assembly | 85150-16550 · 85150-16580 · 85150-16590 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-16160 · 85211-16170 · 85211-16180 |
| 85212A | Right front wiper blade | 85212-30470 · 85212-76020 |
| 85214A | Right wiper rubber strip | 85214-52110 |
| 85214B | Left wiper rubber strip | 85214-28090 |
| 85221B | Left front wiper arm | 85221-16210 · 85221-16220 · 85221-16230 |
| 85222A | Left front wiper blade | 85222-30650 · 85222-76030 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-78020 |
| 89944 | Rain sensor tape | 89944-42020 |
