Toyota COROLLA HV逆变器 — Figure 8431

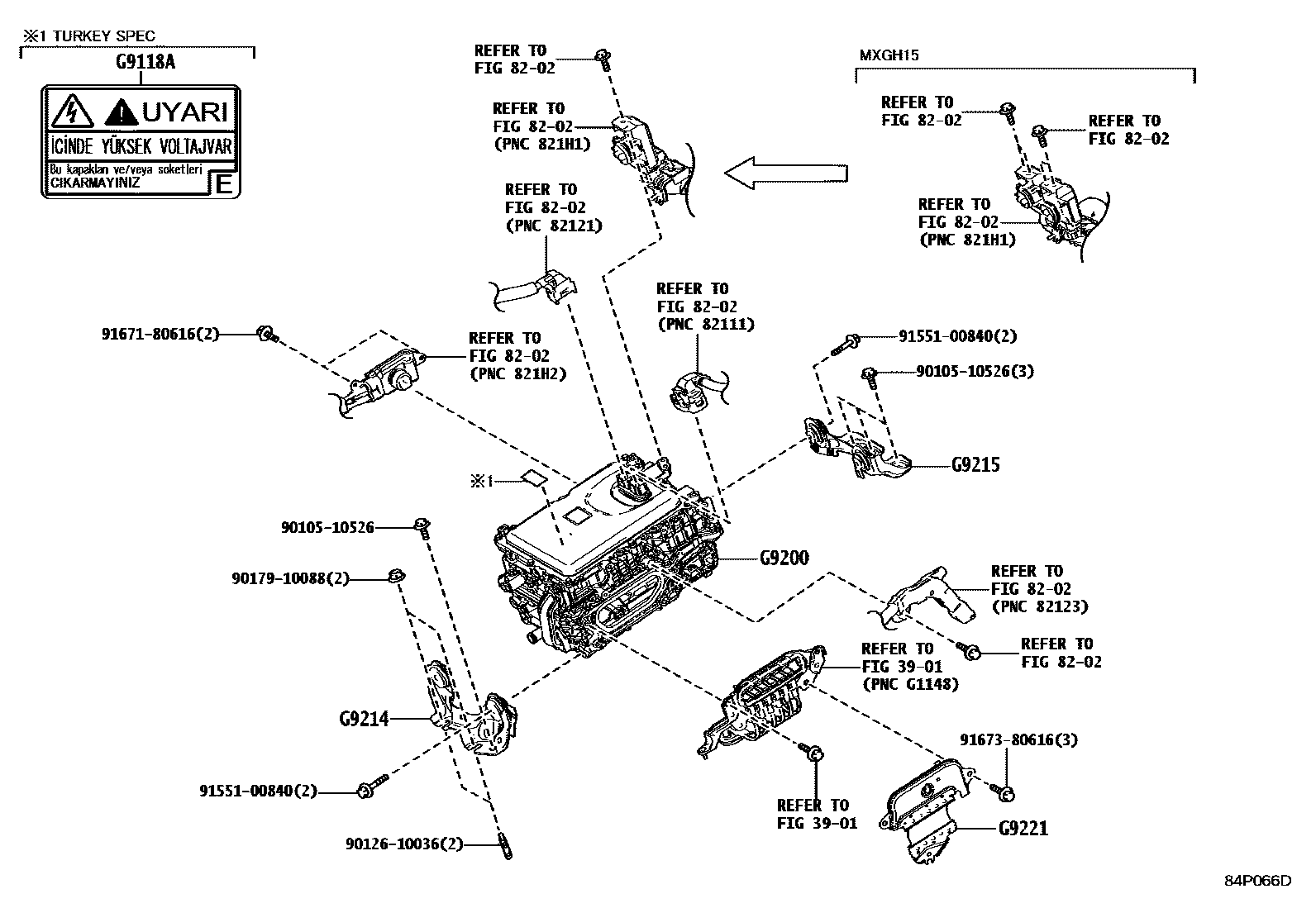

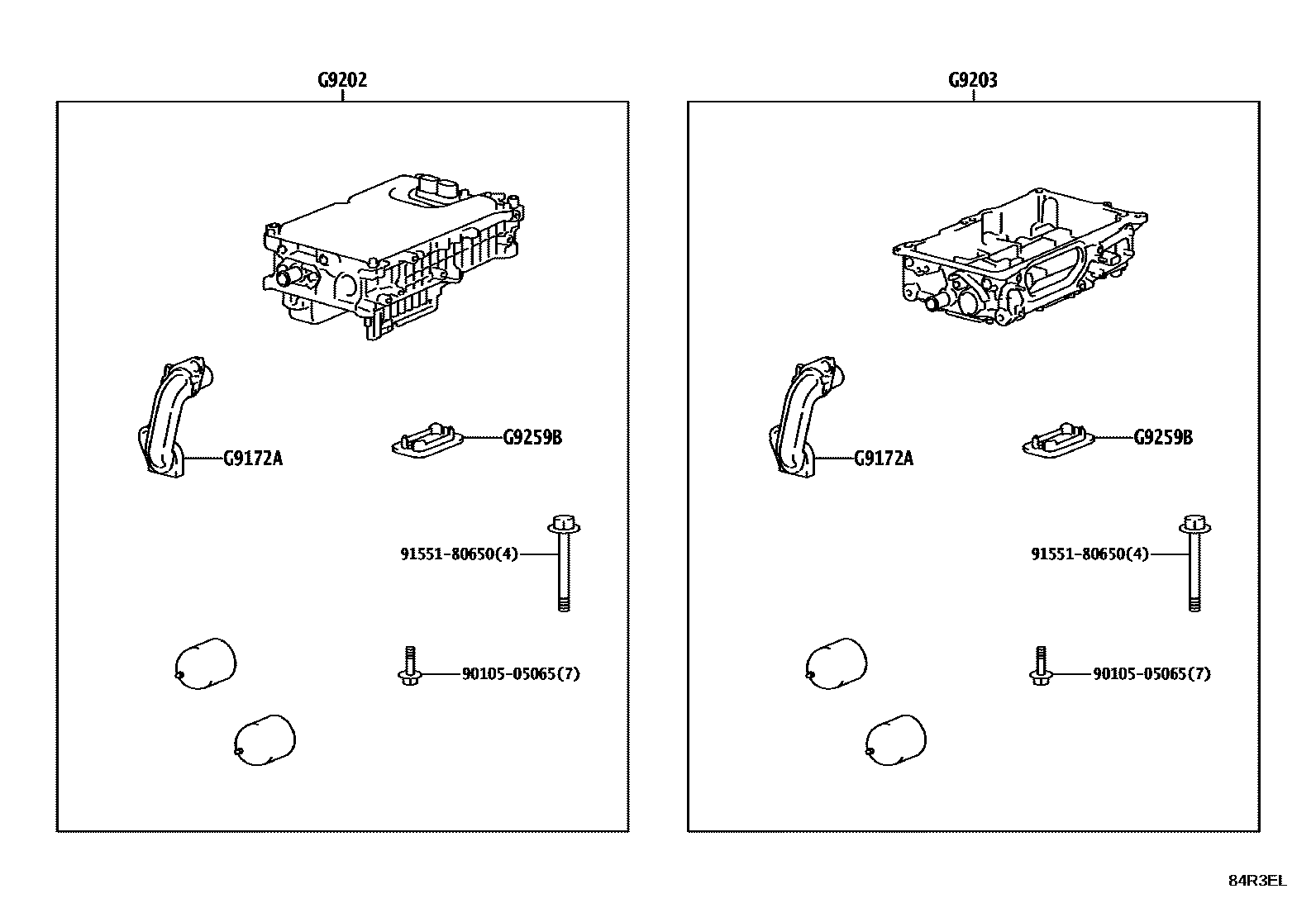

Toyota COROLLA EPC diagram 8431, HV逆变器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9118A | No. 1 Electric Vehicle Device Controller Warning Label | G9118-52010 |
| G9172A | COLLIER, CONDUIT REFROIDISSEMENT INVERSEUR | G9172-28010 |
| G9200 | Inverter assembly with converter | G92A0-16030 · G92A0-47180 · G92A0-47190 · G92A0-47210 · G92A0-47220 · G92A0-47240 · G92A0-47241 |
| G9202 | SOUS-ENS BOITIER, ONDULEUR | G9202-47080 · G9202-47130 · G9202-47140 |
| G9203 | SOUS-ENS BOITIER, CONVERTISSEUR | G9203-47100 · G9203-47110 |
| G9214 | No. 1 inverter bracket | G9214-28090 · G9214-63010 |
| G9215 | No. 2 inverter bracket | G9215-28050 · G9215-47060 · G9215-63010 |
| G9221 | Inverter cover | G9022-28030 |
| G9259B | BOUCHON, VIDANGE INVERSEUR | G9259-28010 |
