Toyota COROLLA 遥控门锁 — Figure 8420

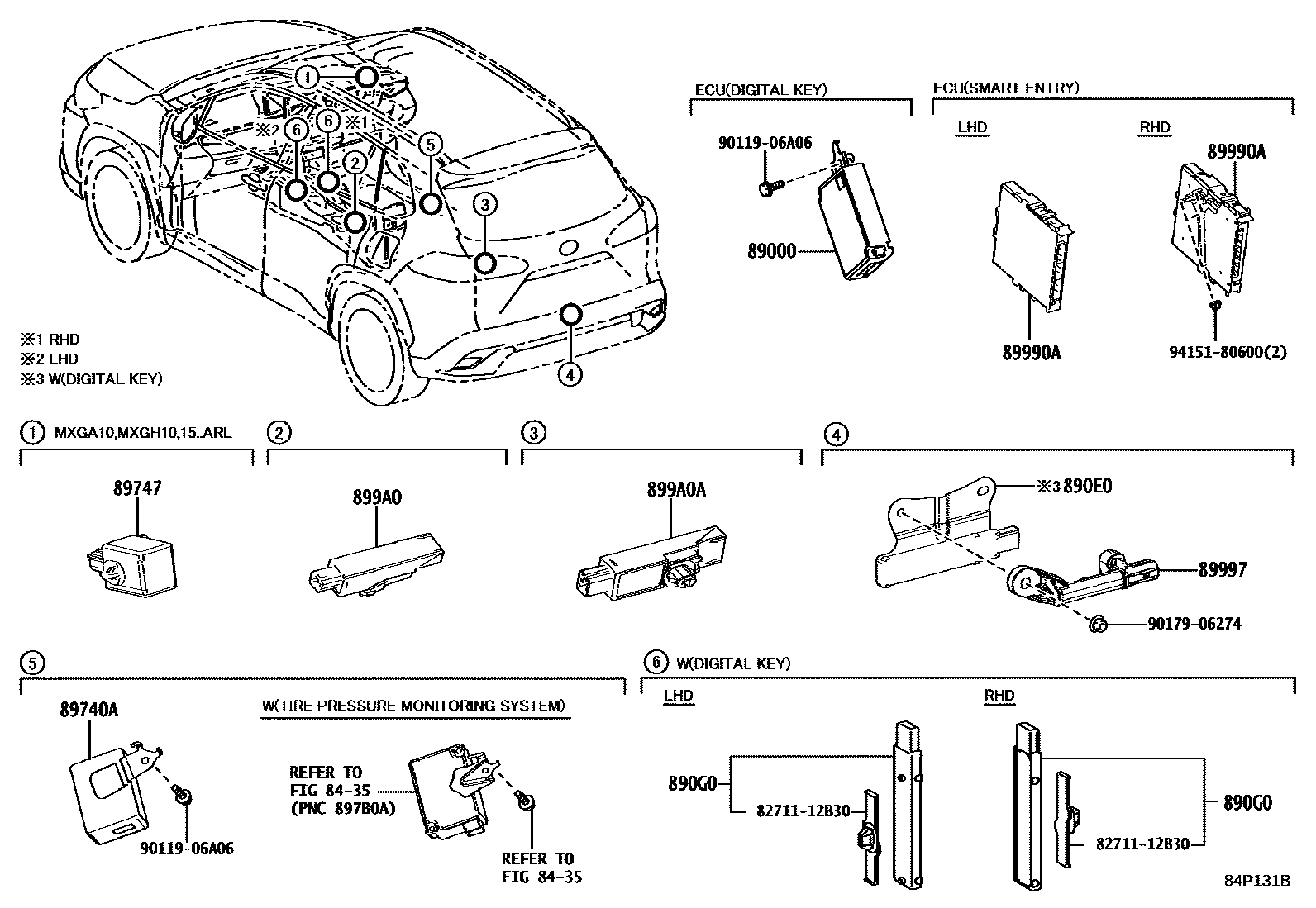

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | ENS. ORDINATEUR, CLE NUMERIQUE | 89000-16010 · 89000-16030 |
| 890E0 | ENS RECEPTEUR, CLE NUMERIQUE BLE | 890E0-16010 |
| 890G0 | ENS. RECEPTEUR, CLE NUMERIQUE INT BLE | 890G0-V1010 |
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-16030 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-16130 · 899H0-16140 · 899H0-16150 · 899H0-16160 · 899H0-16170 · 899H0-16180 · 899H0-16210 · 899H0-16220 · 899H0-16230 · 899H0-16240 · 899H0-16250 · 899H0-16260 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12130 |
