Toyota COROLLA 车内灯 — Figure 8121

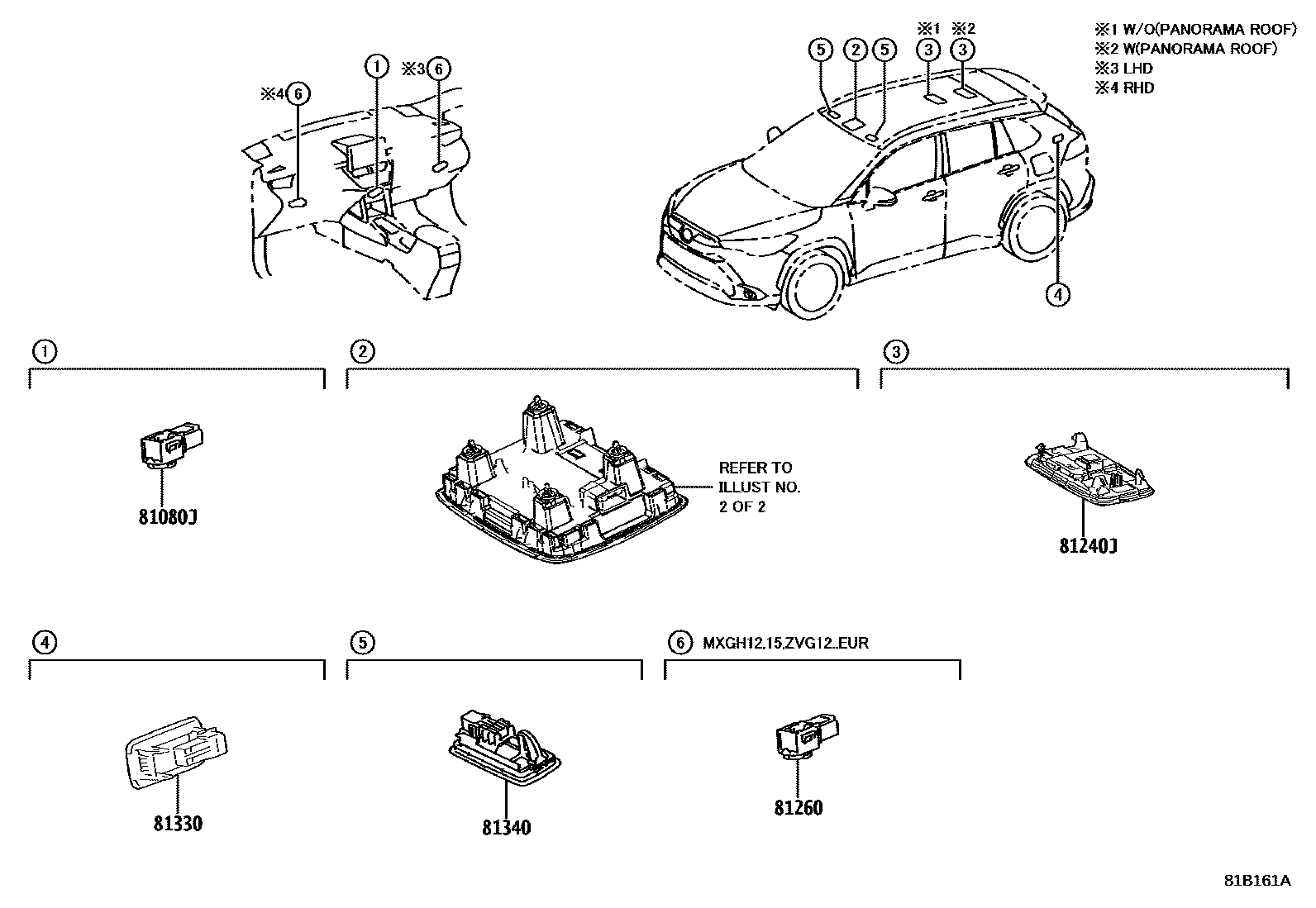

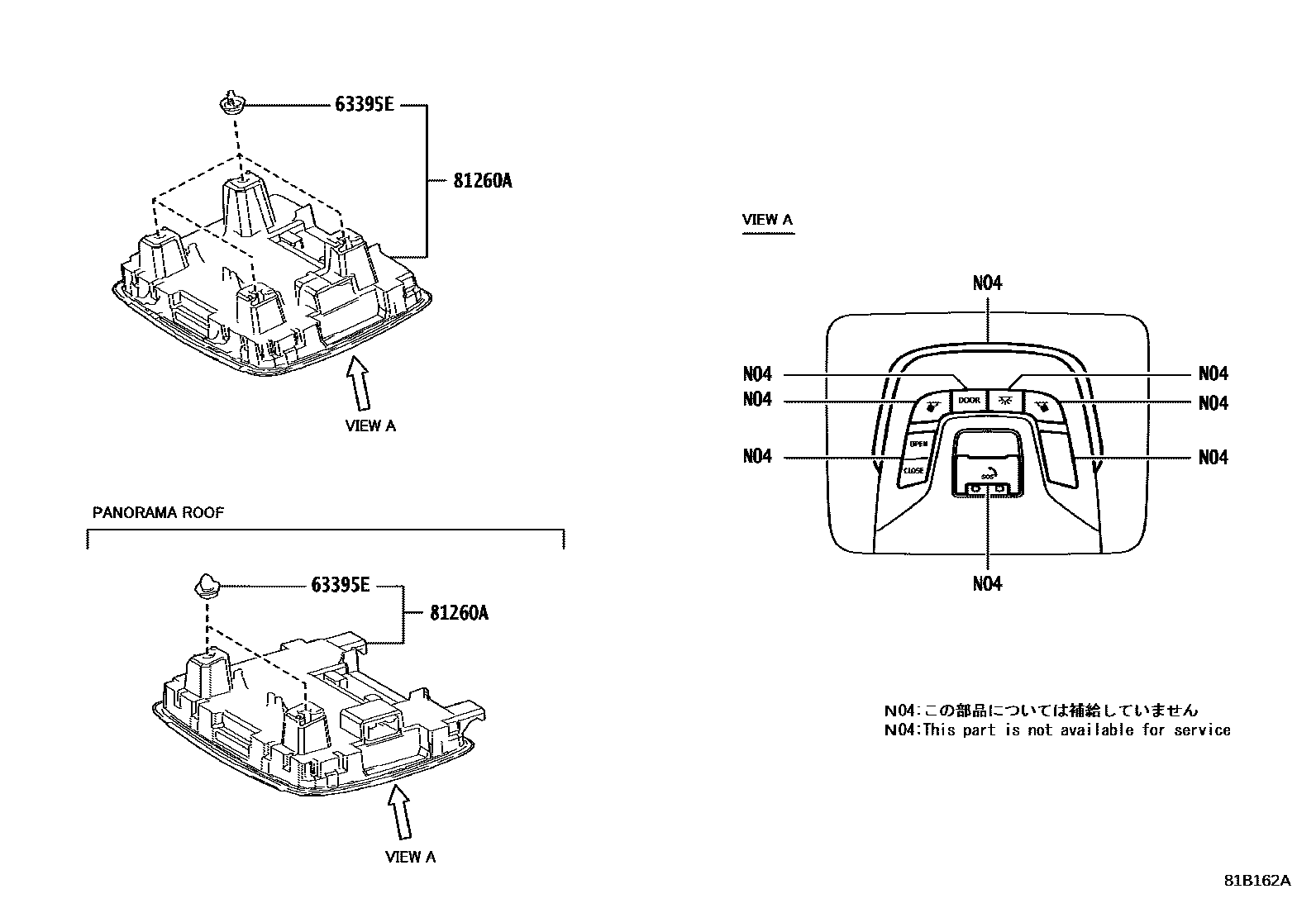

Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09245 · 90467-10167 |
| 81080J | No. 1 interior lighting assembly | 81080-33290 |
| 81260 | Glove box light assembly | 81080-33290 |
| 81330 | No. 1 trunk light assembly | 81330-11010 |
| 81340 | Vanity light assembly | 81340-33170 |
