Toyota COROLLA 后组合灯 — Figure 8111

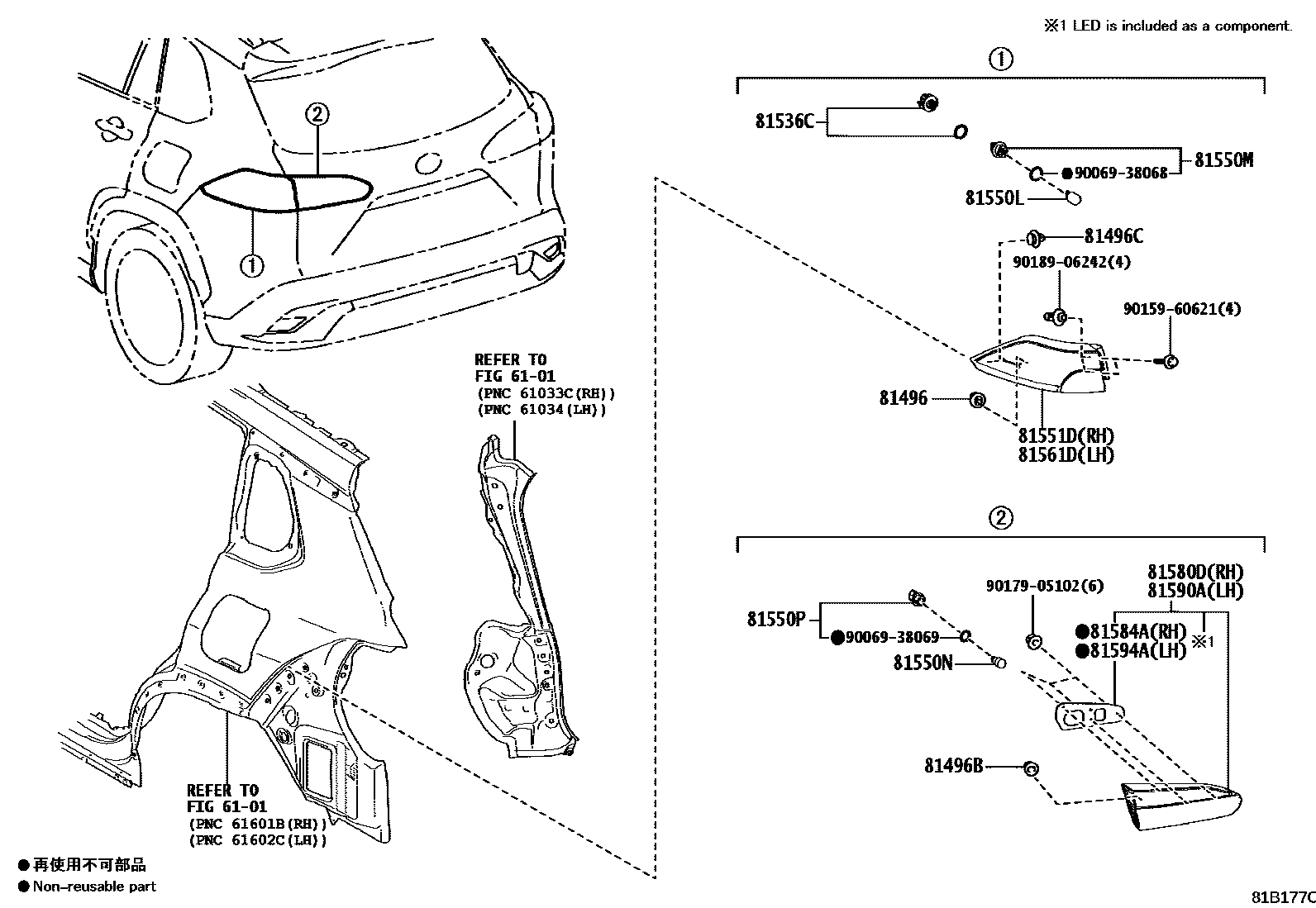

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496B | Rear light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536C | LED, FEU ARR & STOP | 81536-16700 |
| 81550L | Rear turn signal light bulb | 90981-CB006 |
| 81550M | Rear turn signal lamp holder | 90069-81137 |
| 81550N | reversing light bulb | 90981-CB007 |
| 81550P | Reversing light lamp holder | 90069-81138 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-16690 · 81551-16700 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-16690 · 81561-16700 |
| 81580D | Right rear light assembly | 81581-16010 · 81581-16020 · 81581-16030 · 81581-16031 · 81581-16040 · 81581-16041 |
| 81584A | Right rear light gasket | 81584-16010 |
| 81590A | Left rear light assembly | 81591-16010 · 81591-16020 · 81591-16030 · 81591-16031 · 81591-16050 · 81591-16051 |
| 81594A | Left rear light gasket | 81594-16010 |
