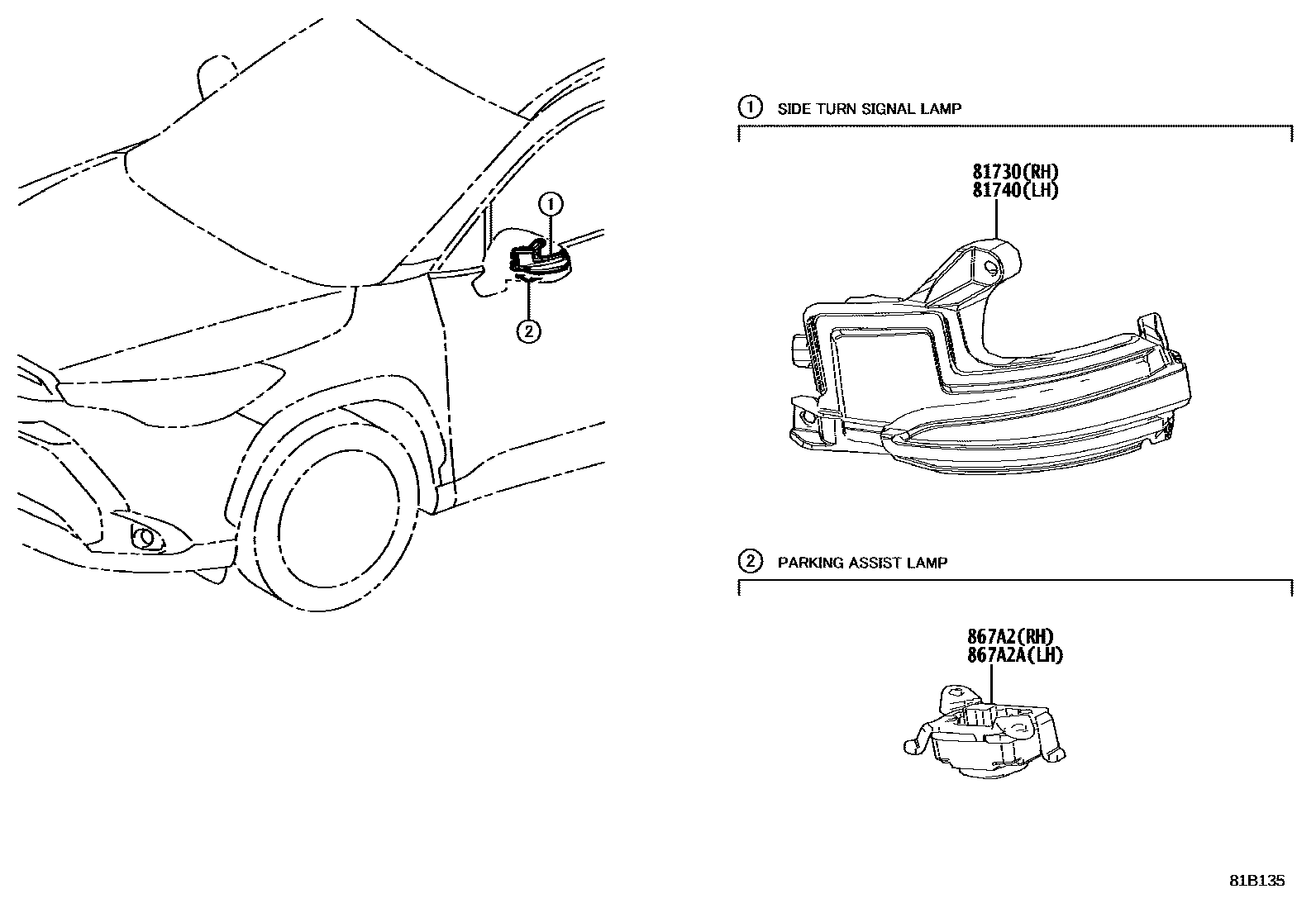

Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-28020 |
| 81740 | Left side turn signal light assembly | 81740-28020 |
| 867A2 | ECLAIRAGE, ASSISTANCE DE STATIONNEMENT, MD | 867A2-28010 · 867A2-42030 |
| 867A2A | ECLAIRAGE, ASSISTANCE DE STATIONNEMENT, MG | 867A2-28020 · 867A2-42040 |
