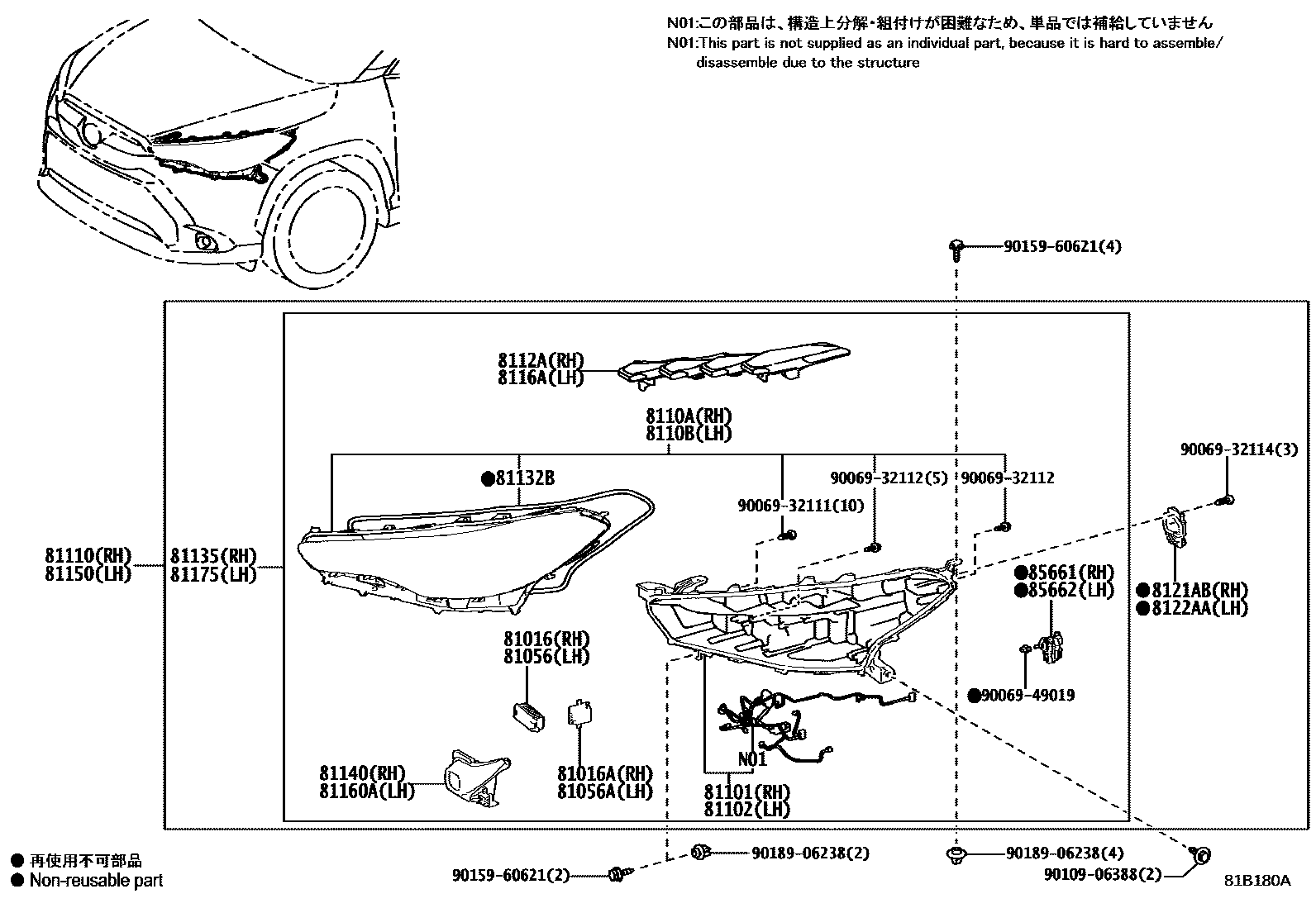

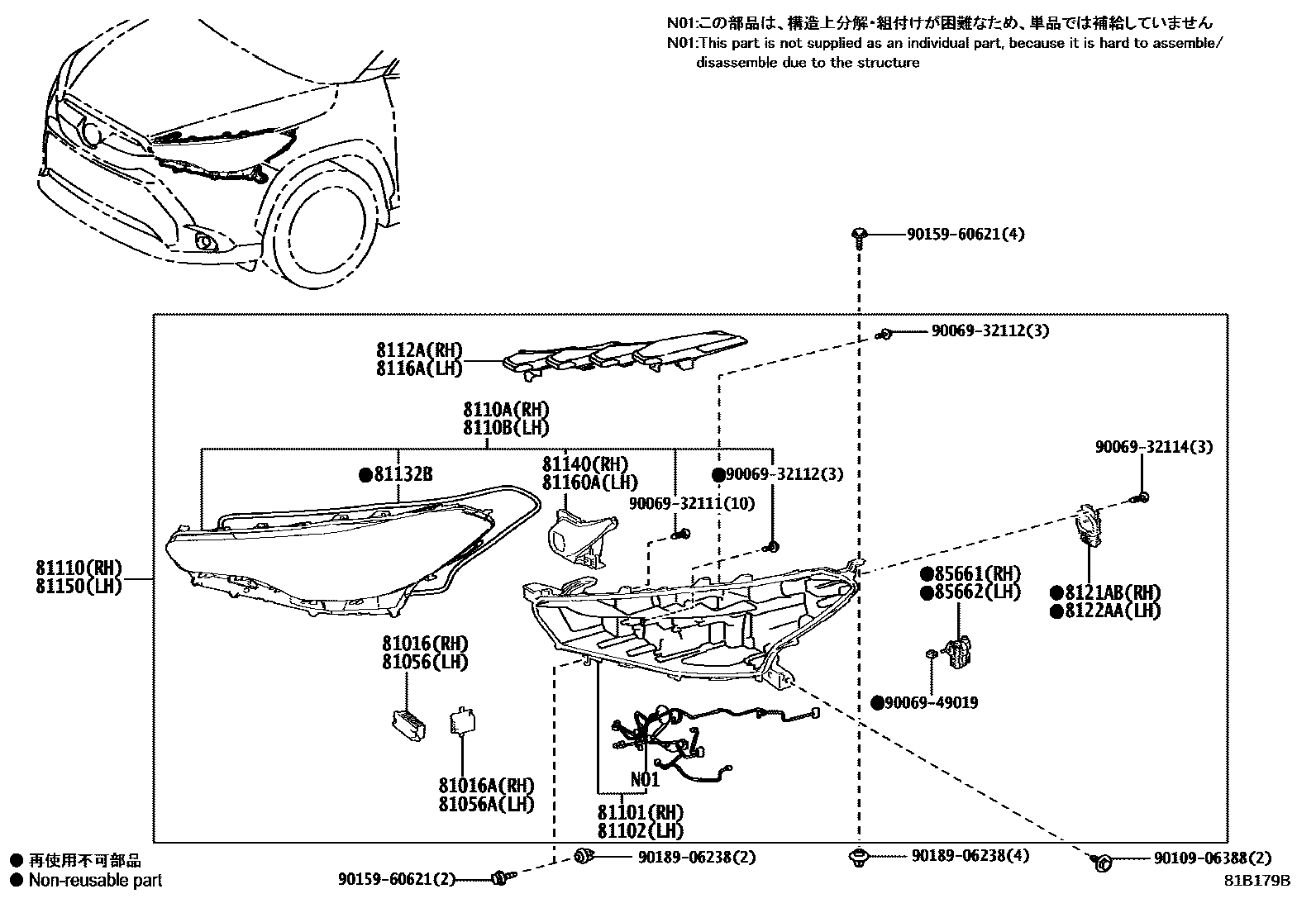

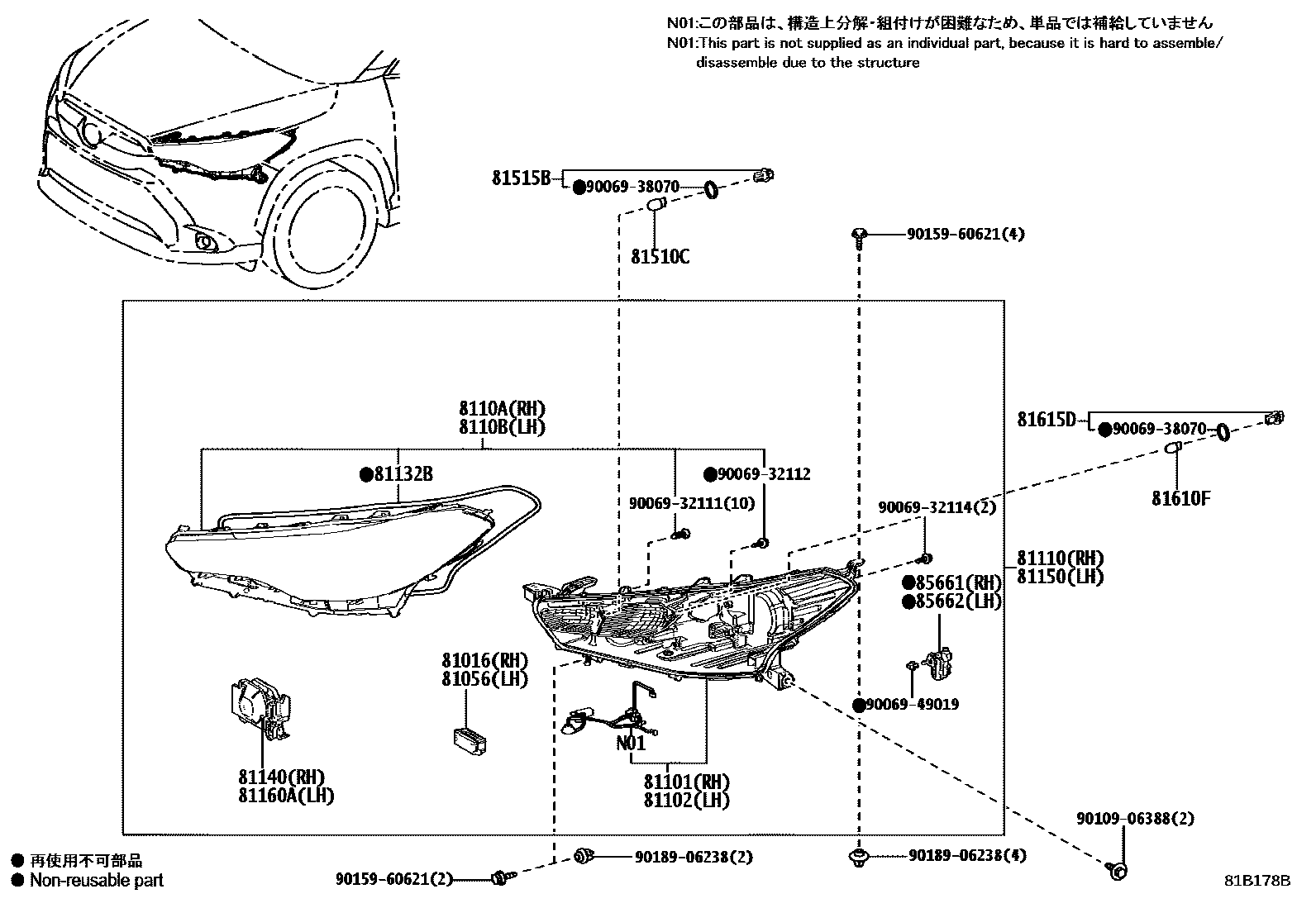

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016 | Right No. 1 headlight ECU sub-assembly | 81107-16800 · 81107-16810 |
| 81016A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, DROIT | 81108-16810 |
| 81056 | Left No. 1 headlight ECU sub-assembly | 81107-16800 · 81107-16810 |
| 81056A | SOUS-ENS.ORDINATEUR, PROJECTEUR AVANT, GAUCHE | 81108-16810 |
| 81101 | SS-ENS. LOGEMENT, PHARE, MD | 8111B-16810 · 8111B-16820 · 8111B-16830 · 8111B-16840 |
| 81102 | SS-ENS. LOGEMENT, PHARE, MG | 8115B-16810 · 8115B-16820 · 8115B-16830 · 8115B-16840 |
| 8110A | SOUS-ENS. OPTIQUE, PHARE, MD | 8110A-16800 · 8110A-16810 |
| 8110B | SOUS-ENS. OPTIQUE, PHARE, MG | 8110B-16800 · 8110B-16810 |
| 81110 | Right headlight assembly | 81110-16810 · 81110-16840 · 81130-16820 · 81130-16830 |
| 8112A | BOITIER, LED FEUX DE GABARIT, NO.1 MD | 8112A-16810 |
| 81132B | Headlight cover gasket | 81132-16800 |
| 81135 | Right headlight assembly | 81130-16810 |
| 81140 | Right headlight LED assembly assembly | 81140-16810 · 81140-16820 · 81140-16830 · 81140-16840 |
| 81150 | Left headlight assembly | 81150-16810 · 81150-16840 · 81170-16820 · 81170-16830 |
| 81160A | Left headlight LED assembly assembly | 81160-16810 · 81160-16820 · 81160-16830 · 81160-16840 |
| 8116A | BOITIER, LED FEUX DE GABARIT, NO.1 MG | 8116A-16810 |
| 81175 | Left headlight assembly | 81170-16810 |
| 8121AB | FEUX, ECLAIRAGE LED, MAIN DROITE | 8112B-16810 |
| 8122AA | PHARE, ECLAIRAGE LED, MG | 8116B-16810 |
| 81510C | Bulb (for front turn signal lamp) | 90981-CB006 |
| 81515B | Front turn signal lamp holder | 90069-81139 |
| 81610F | Light bulb (for width indicator light) | 90981-CB005 |
| 81615D | Width light lamp holder | 90069-81140 |
| 85661 | Right headlight beam height adjustment motor | 85661-16020 |
| 85662 | Left headlight beam height adjustment motor | 85661-16020 |
