Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

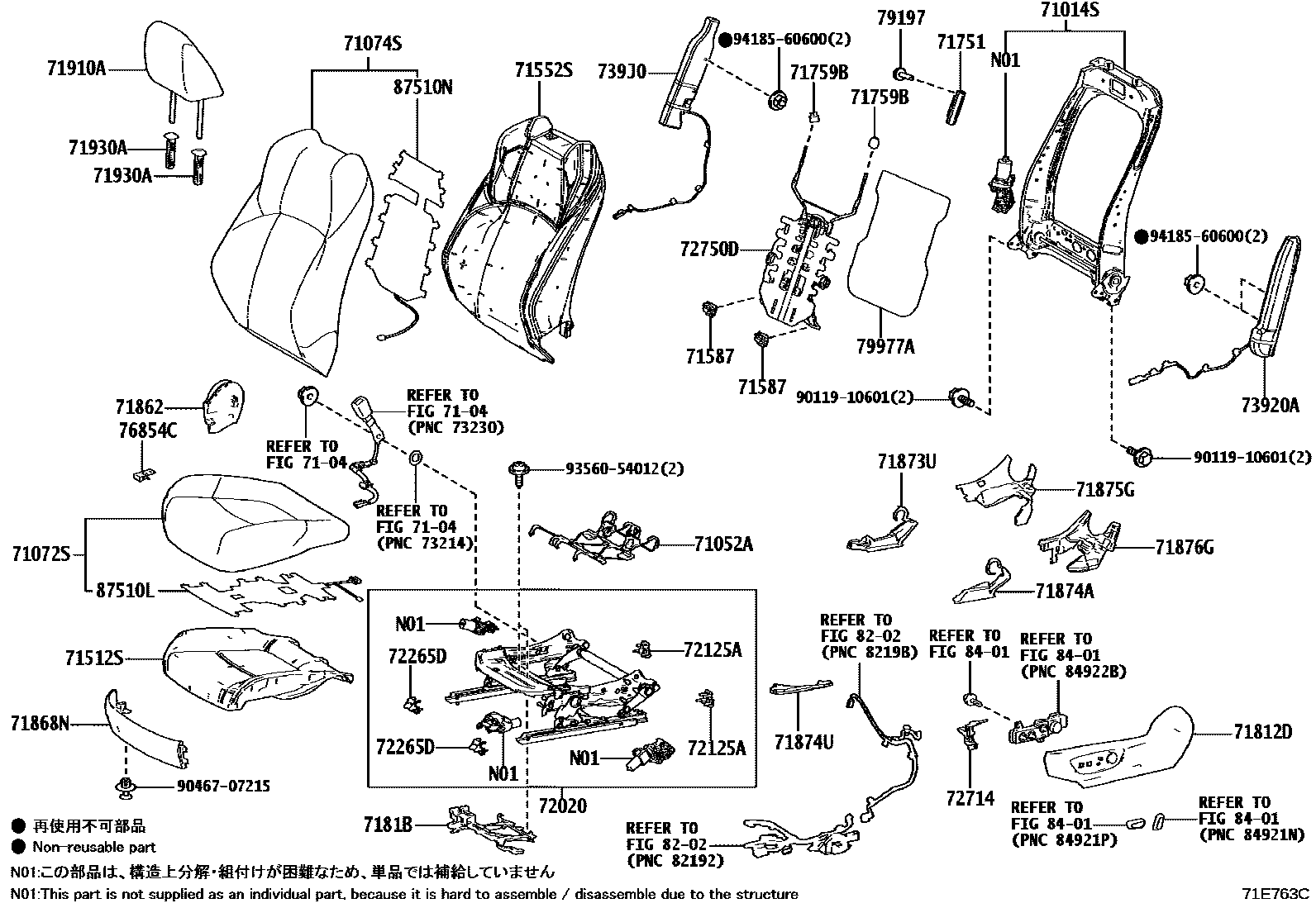

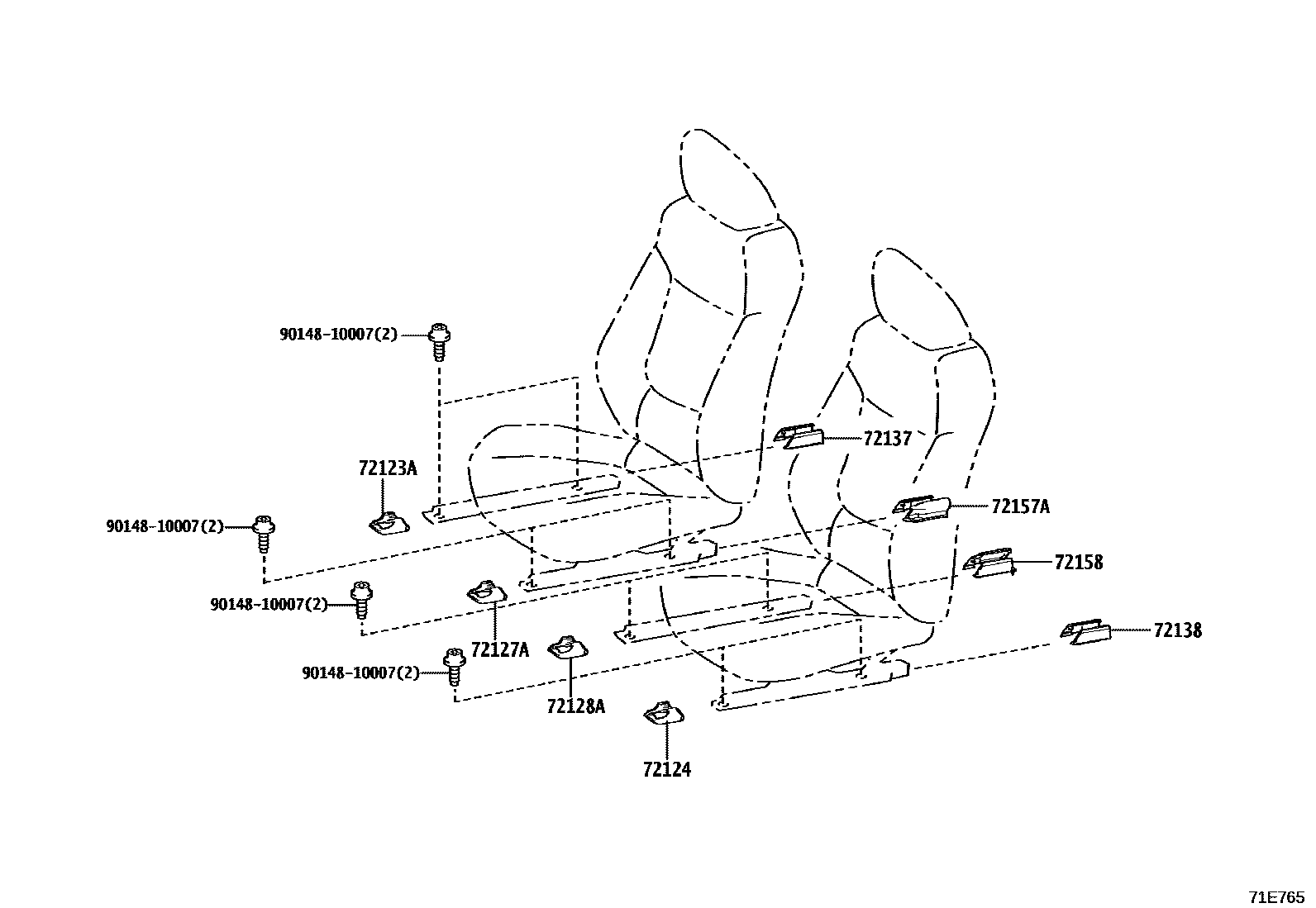

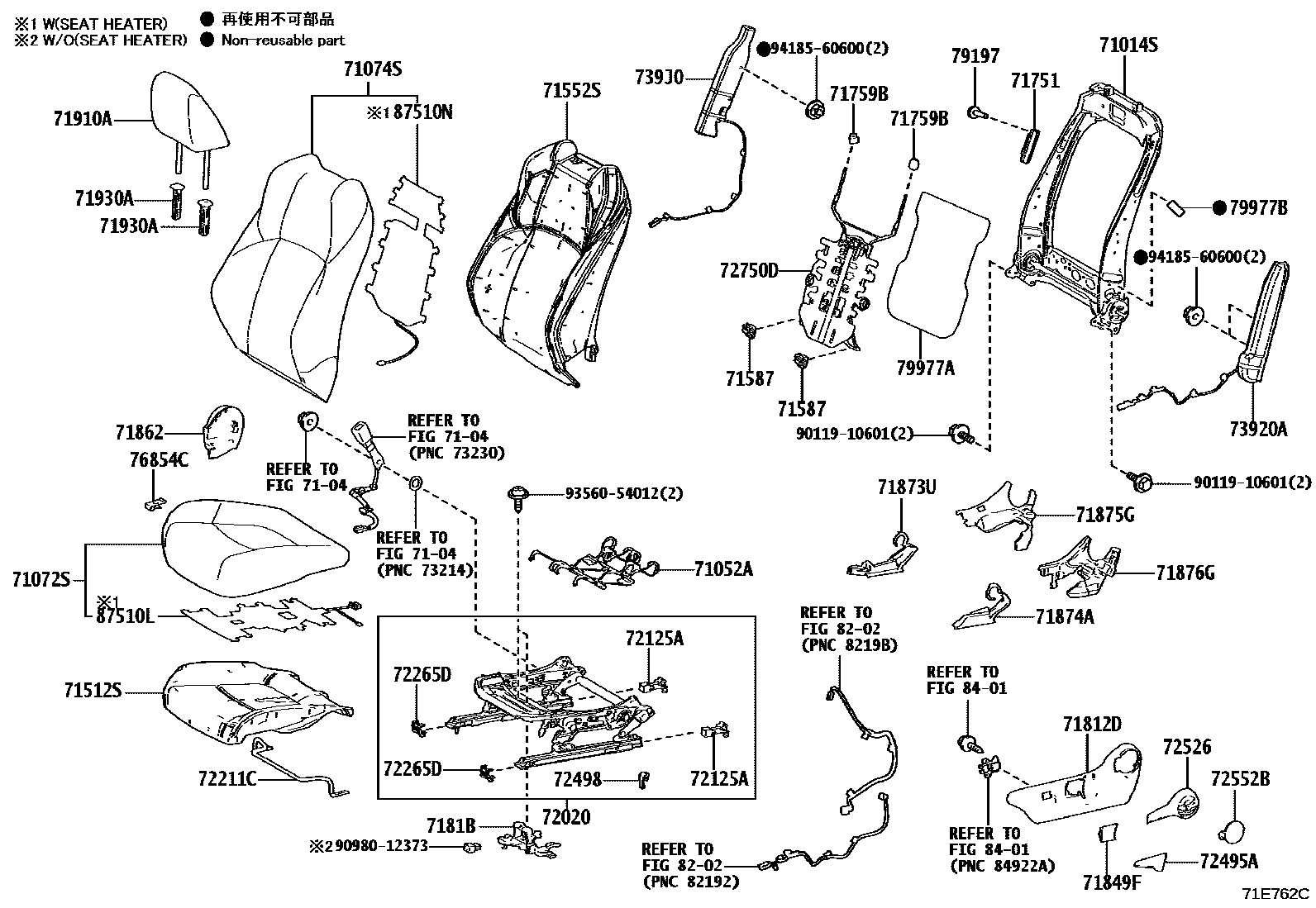

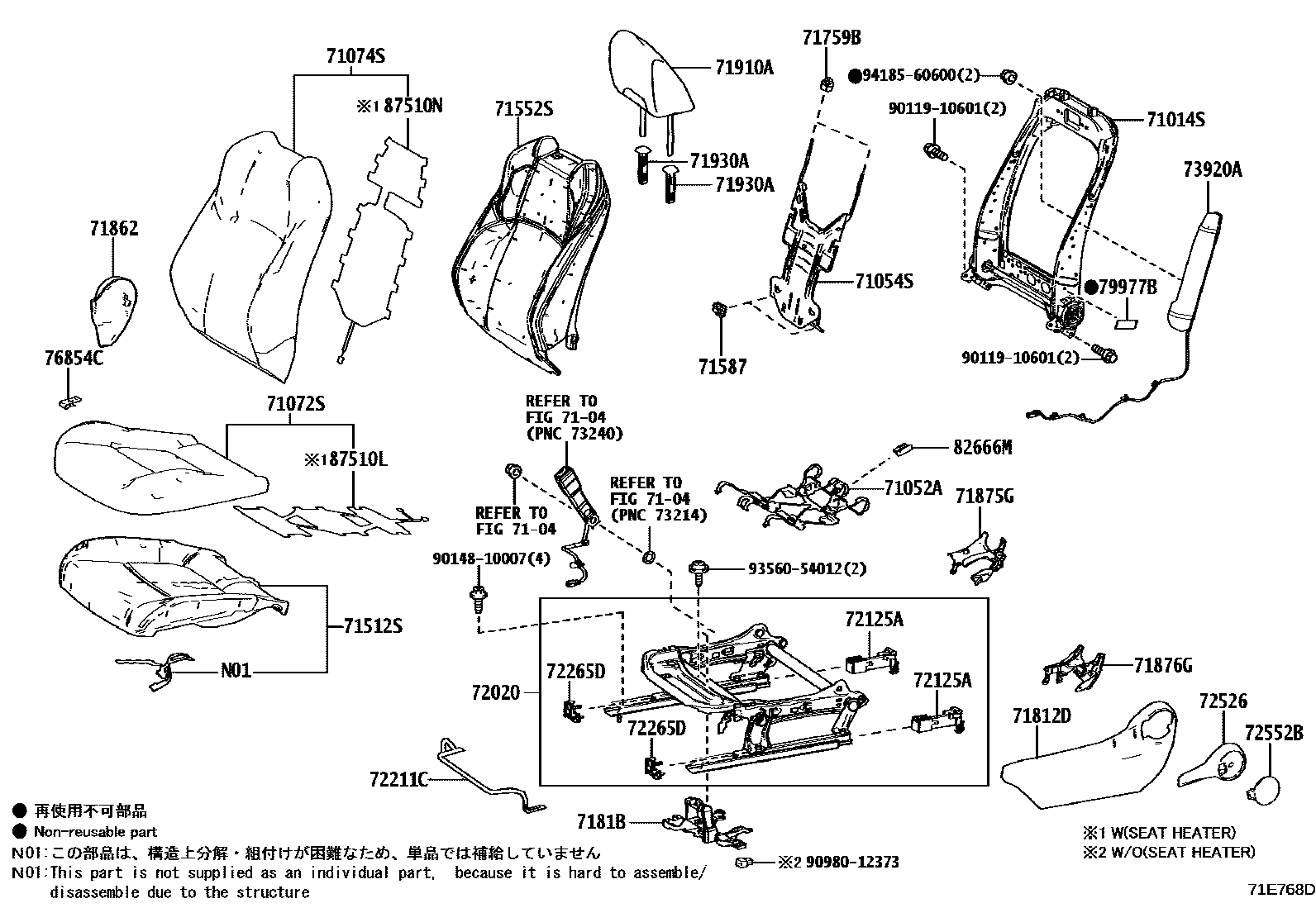

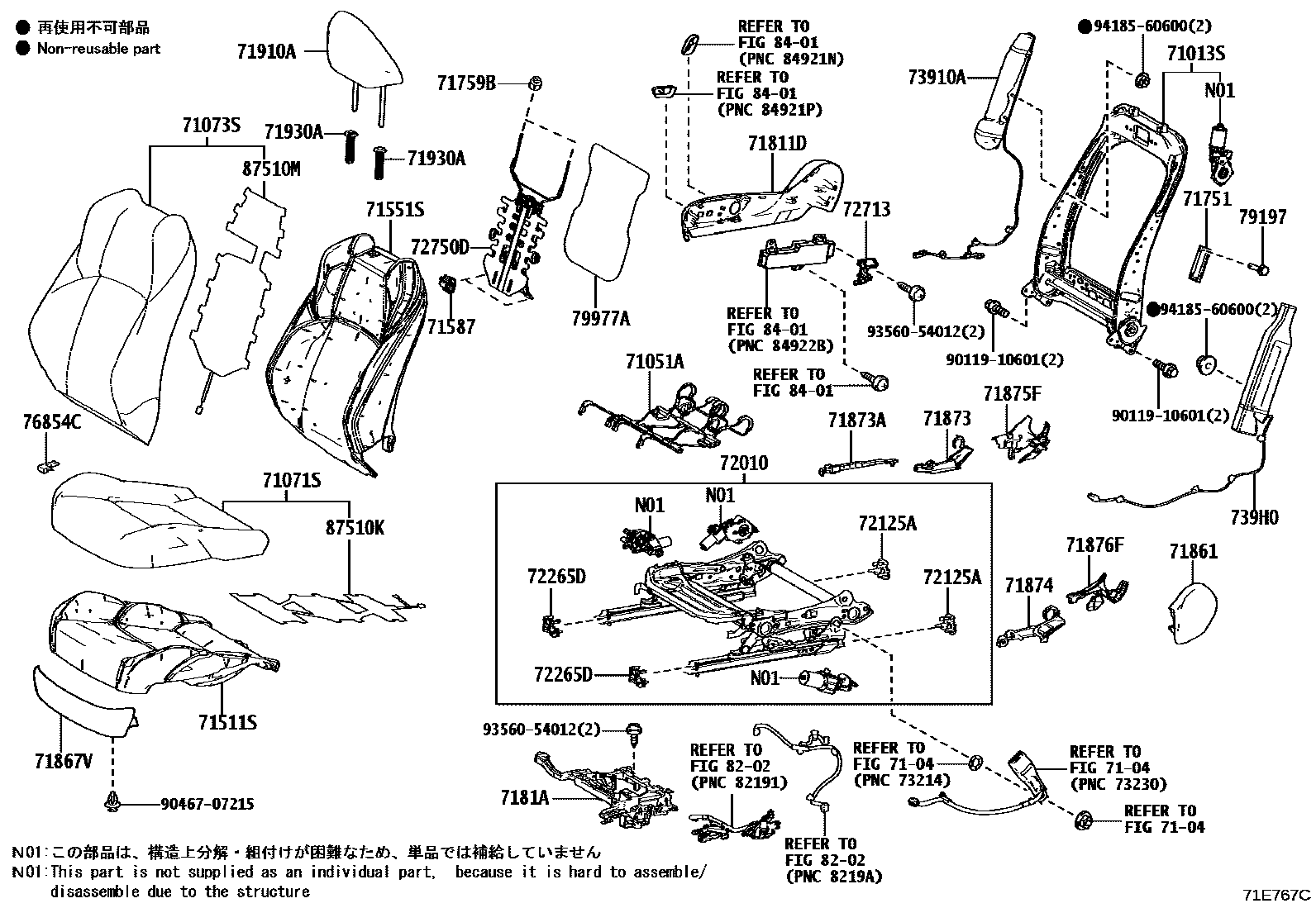

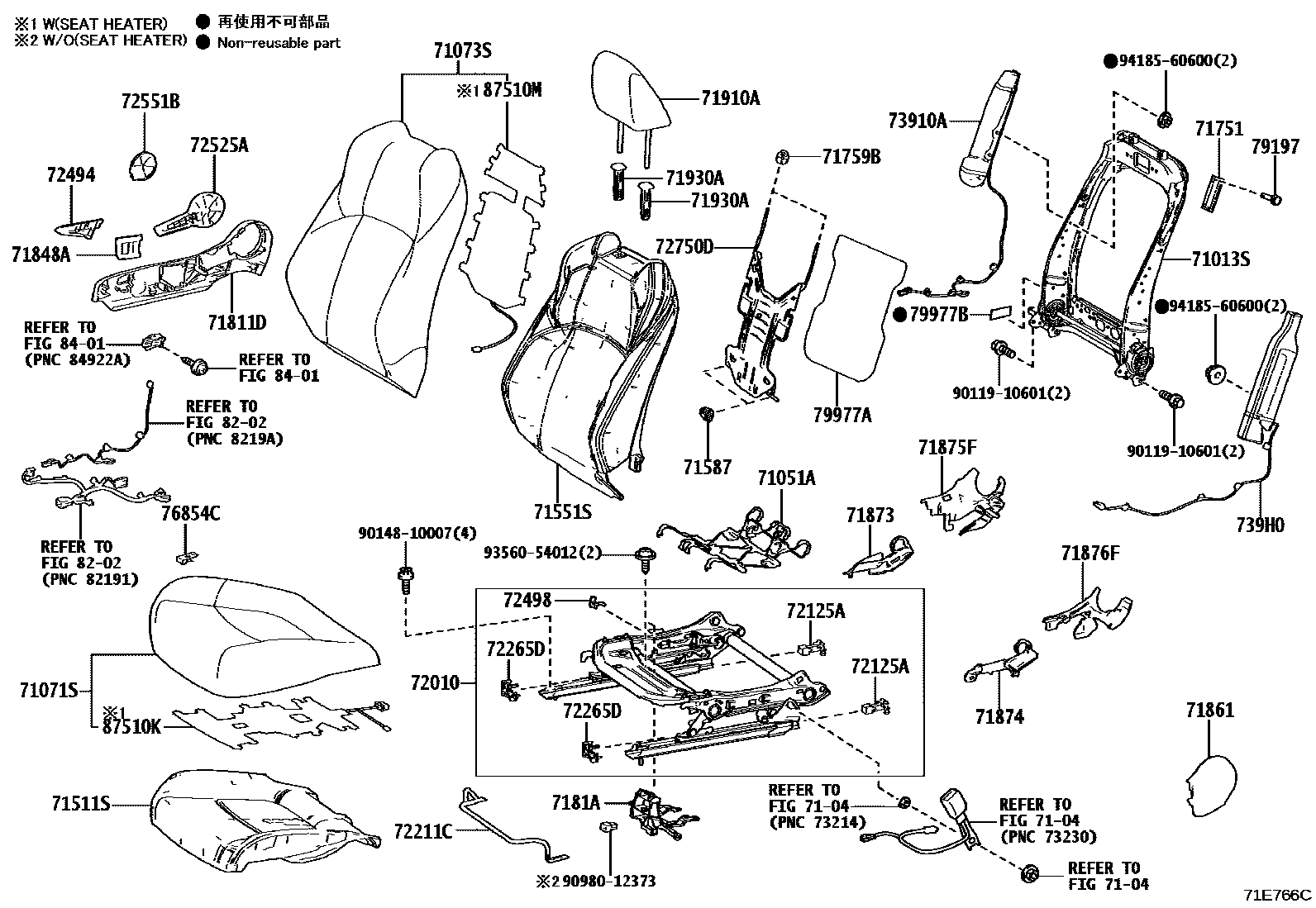

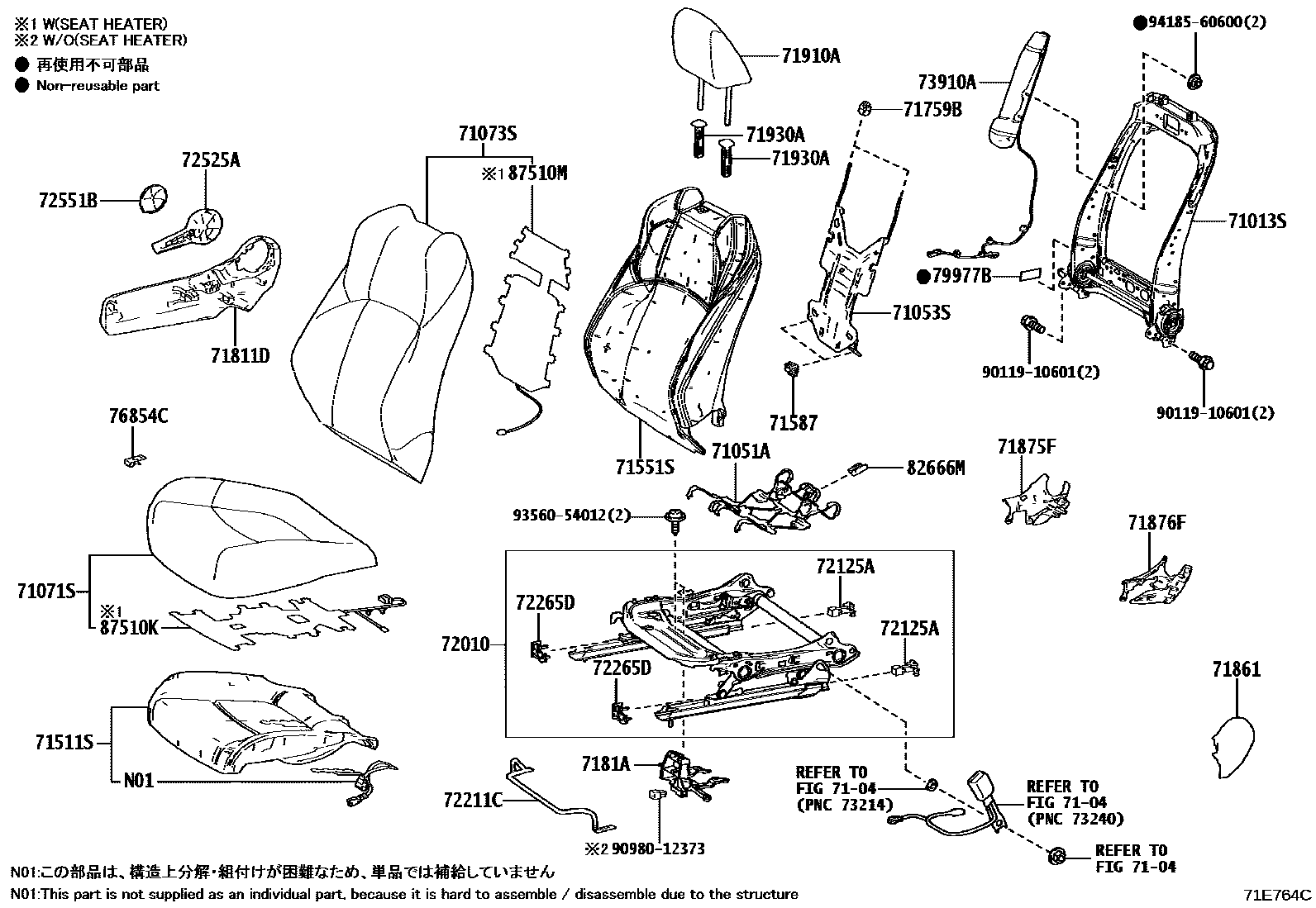

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-16140 · 71013-42210 · 71013-42250 |
| 71014S | Front left seat back frame sub-assembly | 71014-16060 · 71014-42190 · 71014-42230 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-16020 · 71511-16280 · 71511-16290 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-16010 · 71512-16040 · 71512-16060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12E20 · 71551-16280 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12710 · 71552-16070 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71751 | CROCHET, HOUSSE DE SIEGE | 71751-47050 |
| 71759B | Front seat back hook | 71759-50040 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-33010 · 7181A-47010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-33010 · 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873A | Front seat cushion lower guard | 71873-47090 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71874-47080 |
| 71874 | Front left seat cushion lower guard | 71873-47080 |
| 71874A | Front left seat cushion lower guard | 71874-47070 |
| 71874U | PROTECTION, COUSSIN SIEGE AVANT, INF MG | 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-16300 · 72010-33640 · 72010-47361 · 72010-47381 |
| 72020 | Front left seat adjuster assembly | 72020-16280 · 72020-33570 · 72020-47361 · 72020-47381 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-10100 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-10100 |
| 72125A | Rear seat upper slide rail cover | 72125-47010 · 72125-47020 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-10100 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-10100 |
| 72137 | Right seat outer slide rail cover | 72137-47060 |
| 72138 | Left seat outer slide rail cover | 72137-47060 |
| 72157A | Right seat inner slide rail bracket cover | 72157-10090 |
| 72158 | Left seat inner slide rail bracket cover | 72158-10040 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265D | COUVERCLE, RAIL SUPERIEUR DE PISTE DE SIEGE | 72265-47010 · 72265-47020 |
| 72498 | Height adjuster bracket cover | 72498-47010 · 72498-47020 |
| 72713 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD | 72713-47010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 |
| 73910A | Front right seat airbag assembly | 73910-16010 |
| 73920A | Front left seat airbag assembly | 73920-16010 |
| 739H0 | ENS. AIRBAG, CTRL SIEGE AV, MD | 739H0-16010 · 739H0-16011 · 739H0-16020 |
| 739J0 | ENS. AIRBAG, CTRL SIEGE AV, MG | 739J0-16010 · 739J0-16011 · 739J0-16020 |
| 76854C | ARRETOIR, CACHE COUSSIN SIEGE AVANT | 76854-44010 |
| 79197 | CROCHET, HOUSSE DOSSIER SIEGE | 79197-47010 |
| 79977A | Seat back felt pad | 79977-76010 |
| 79977B | Seat back frame felt pad | 79977-12090 |
| 82666M | Connector holder | 82666-47630 |
| 87510K | Front right seat cushion heater assembly | 87510-12330 · 87510-12390 |
| 87510L | Front left seat cushion heater assembly | 87510-12390 · 87510-12420 |
| 87510M | Front right seat back heater assembly | 87530-12090 |
| 87510N | Front left seat back heater assembly | 87530-12090 |
