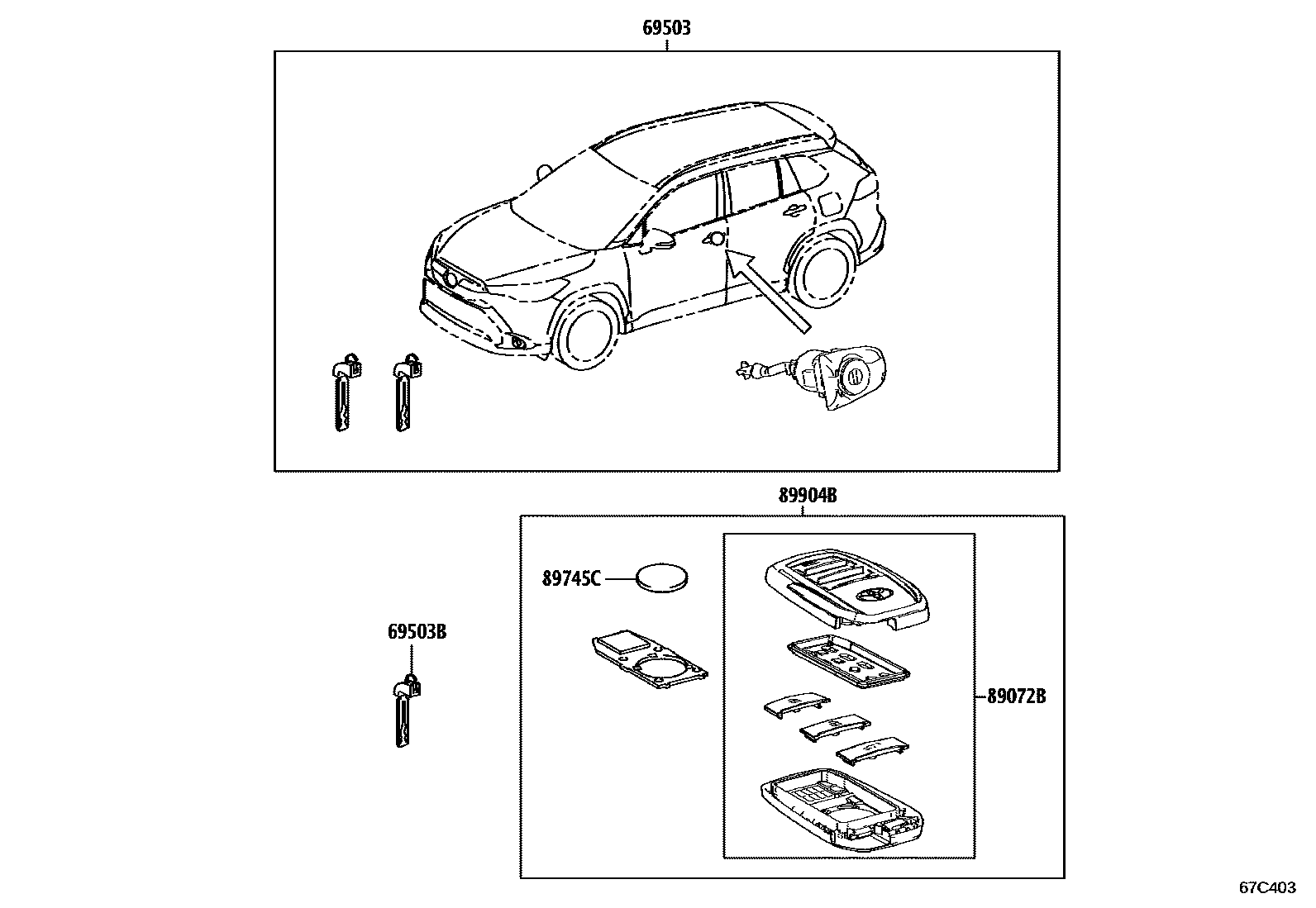

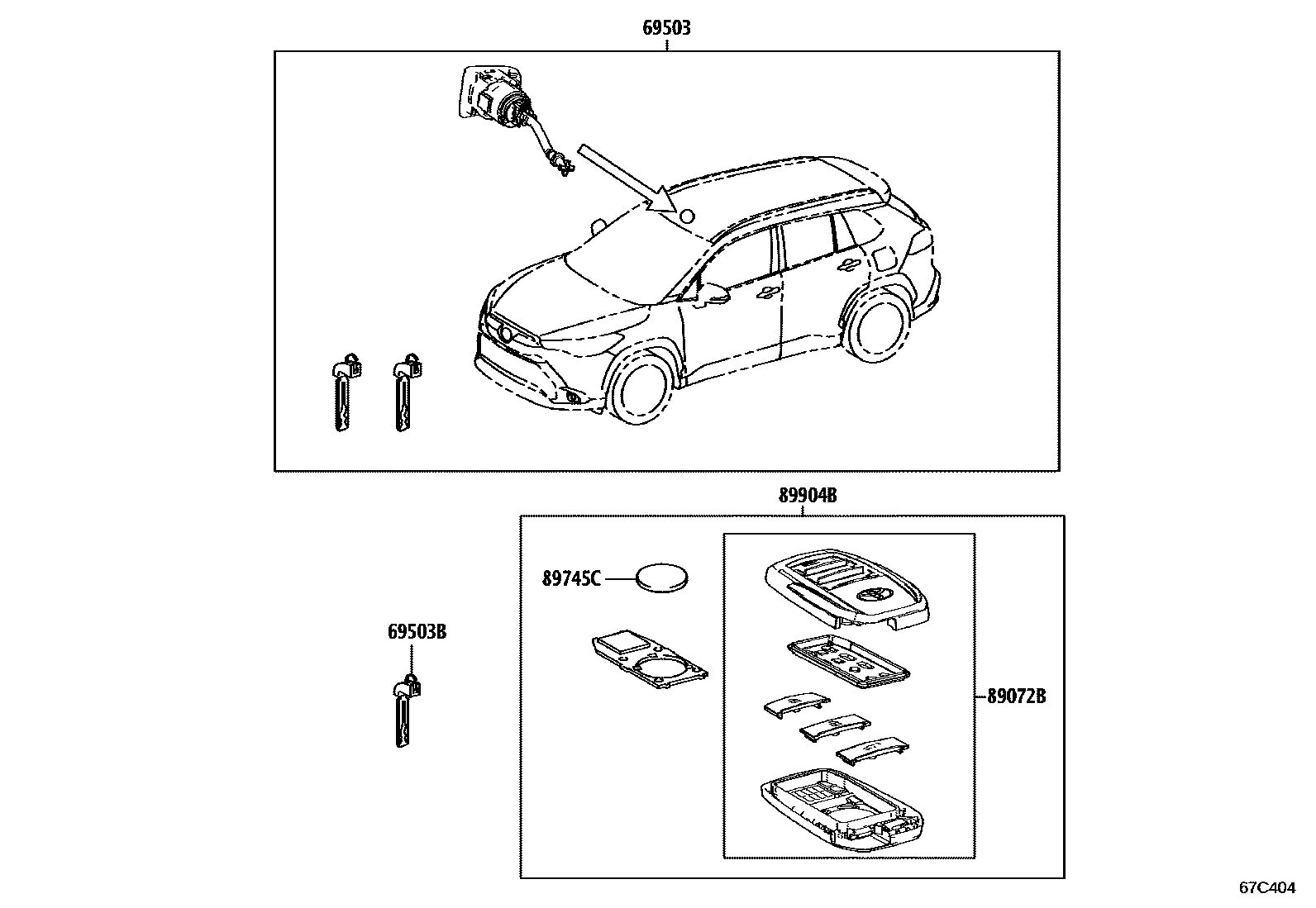

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-16A10 · 69005-16A20 |
| 69503B | internal tooth key | 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-16180 · 89072-16200 · 89072-16210 · 89072-16220 |
| 89745C | Transmitter battery | 89745-K0010 · 89745-K0020 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-16240 · 8990H-16241 · 8990H-16260 · 8990H-16261 · 8990H-16280 · 8990H-16281 · 8990H-16290 · 8990H-16291 |
