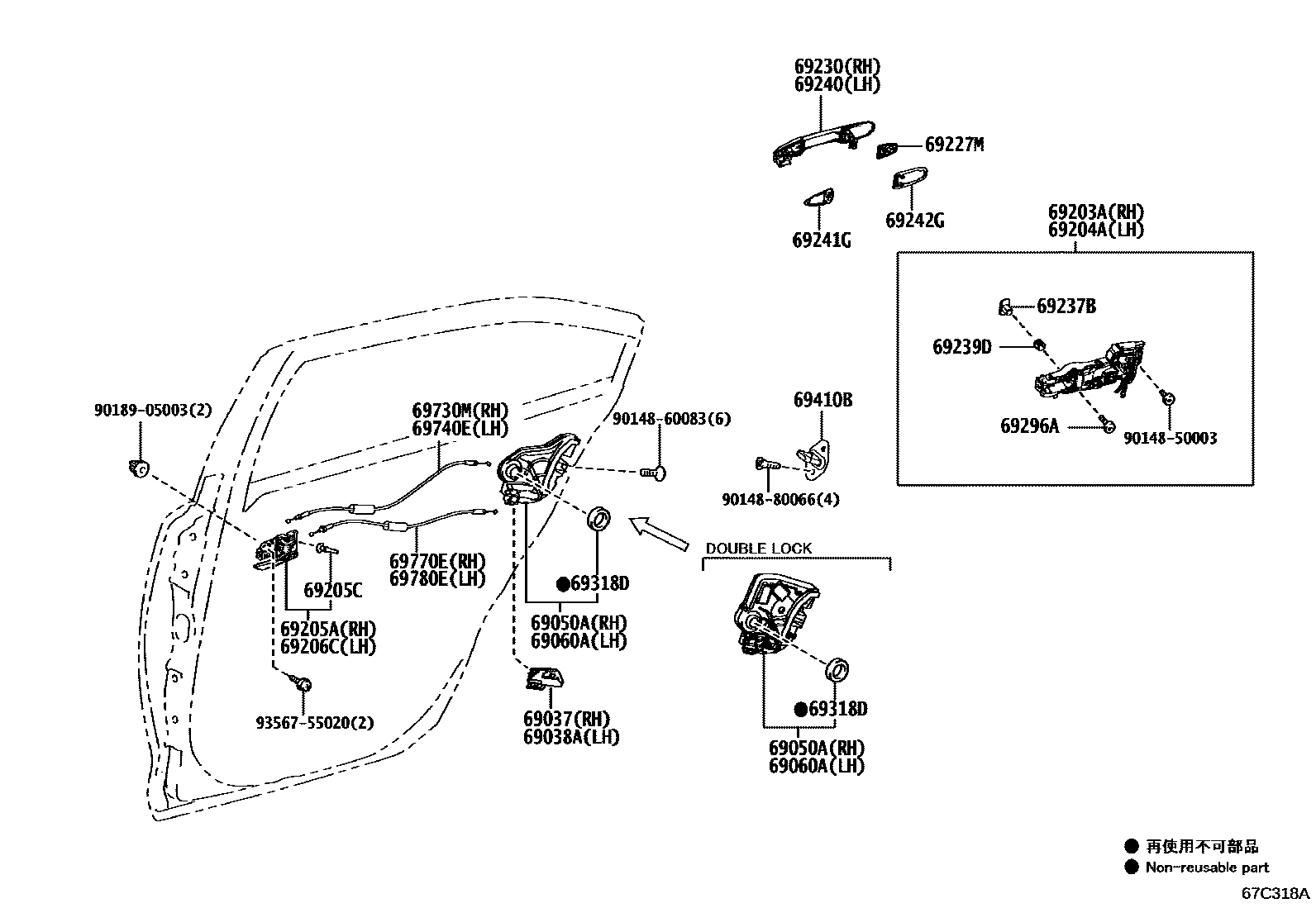

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD | 69037-30010 |
| 69038A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG | 69038-30010 |
| 69050A | Right rear door lock assembly with motor | 69050-16140 · 69050-48060 |
| 69060A | Left rear door lock assembly with motor | 69060-16140 · 69060-48060 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-16020 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-16020 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227M | Rear door outer handle cover | 69227-47020 |
| 69237B | ECROU, POIGNEE PORTE ARRIERE | 69237-62010 |
| 69239D | BAGUE, POIGNEE PORTE ARRIERE | 69239-47010 |
| 69241G | Rear door front exterior handle pad | 69241-47020 |
| 69242G | Rear door rear outer handle pad | 69242-47030 |
| 69296A | Car door inner handle screws | 90148-50006 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69730M | CABLE,COMM VERR A DISTANCE PORTE ARR,MD(LEVIER OUVERTURE) | 69730-16010 |
| 69740E | CABLE,COMM VERR A DISTANCE PORTE ARR,MG(LEVIER OUVERTURE) | 69730-16010 |
| 69770E | CABLE, VERR INTERNE PORTE ARR, MD(POUR BOUTON VERR/DEVERR) | 69770-16100 |
| 69780E | CABLE, VERR INTERNE PORTE ARR, MG(POUR BOUTON VERR/DEVERR) | 69770-16100 |
