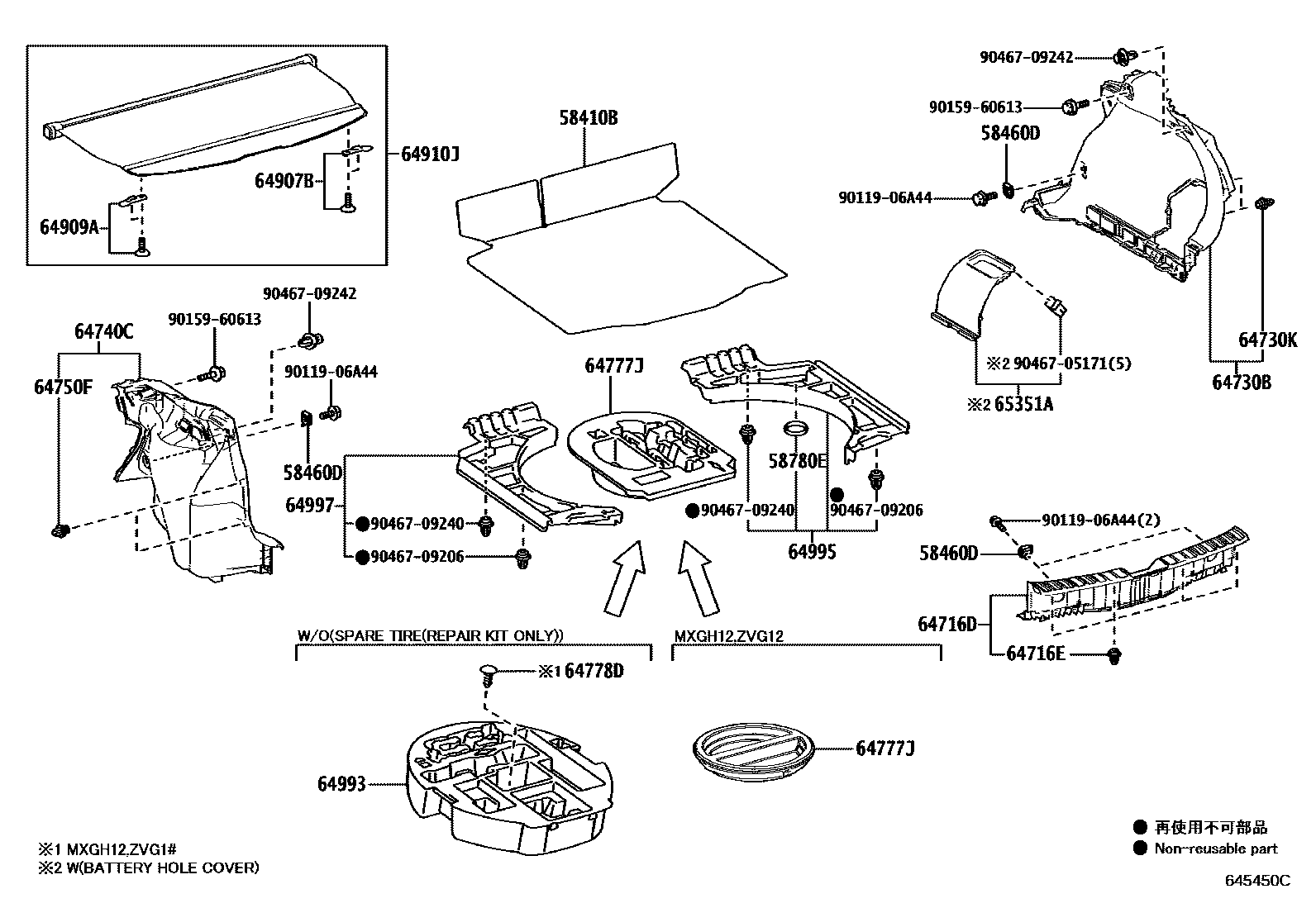

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58780E | Tool box strap assembly | 58781-52010 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64730K | ATTACHE(POUR PANNEAU DE GARNITURE DE COTE DU PLANCHER) | 90467-10161 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-16050 · 64777-16060 |
| 64778D | Spare tire protection device | 64778-52160 |
| 64907B | Trunk trim cover right block sub-assembly | 64907-48010 |
| 64909A | Trunk trim cover left block sub-assembly | 64909-48010 |
| 64993 | Bottom floor box | 64993-16020 · 64993-16040 · 64993-16050 |
