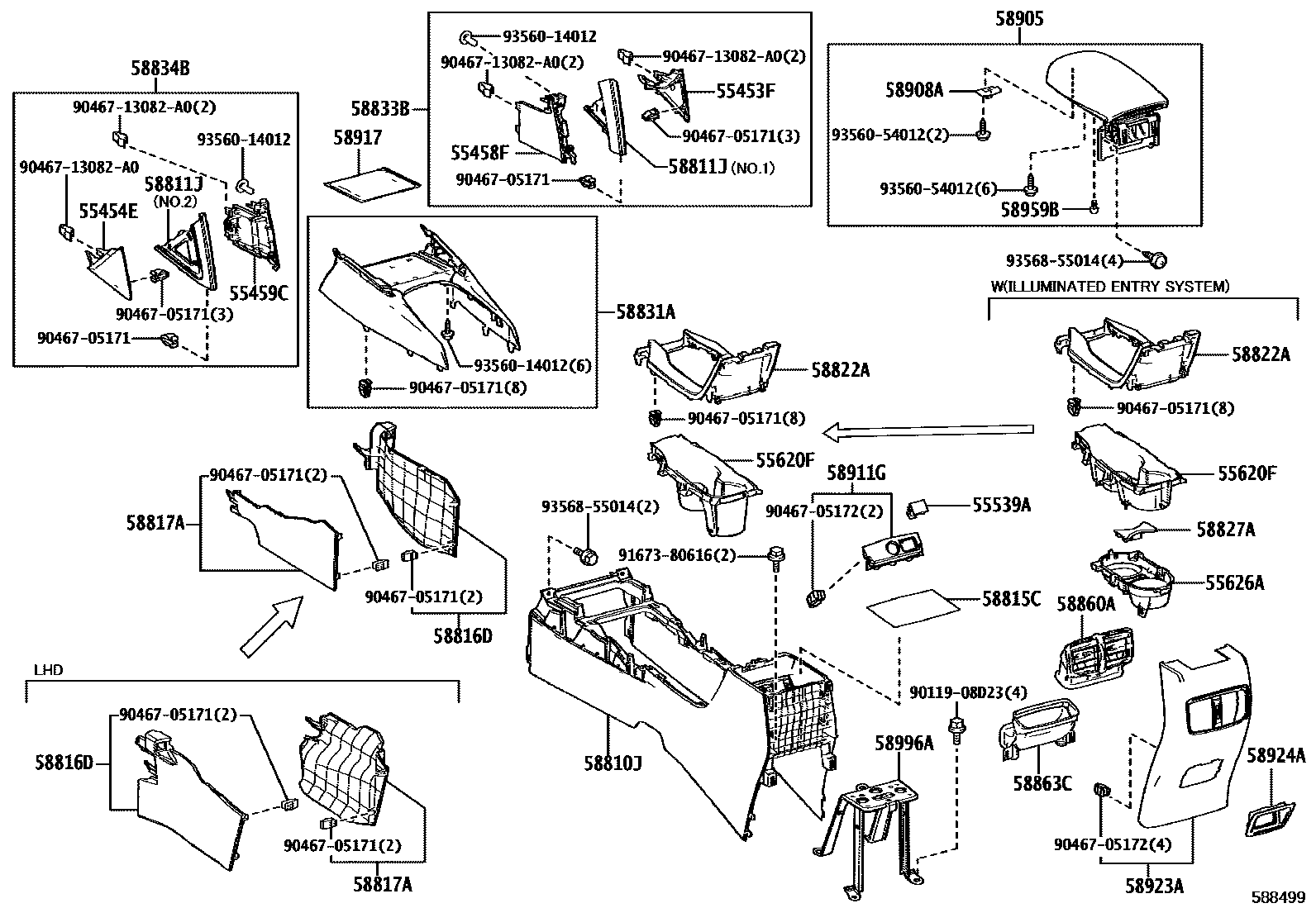

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55453F | REMBOUR., TABLEAU BORD, INFERIEUR DROIT | 55453-16030 |
| 55454E | REMBOUR., TABLEAU BORD, INFERIEUR GAUCHE | 55454-16020 |
| 55458F | CACHE, INSTRUMENTS, INF MD | 55458-16030 |
| 55459C | CACHE, INSTRUMENTS, INF MG | 55459-16080 |
| 55620F | ENS. SUPPORT, GOBELET BOITIER DE CONSOLE | 55620-16010 · 55620-16020 · 55620-16030 · 55620-16040 |
| 55626A | ARRETOIR, TABLEAU DE BORD SOUS CAISSON | 55626-16010 |
| 58815C | Armrest box felt pad | 58815-12240 |
| 58822A | Rear armrest box upper panel | 58822-16010 · 58822-16020 |
| 58827A | Armrest box groove decorative parts | 58827-12030 |
| 58860A | Armrest box air regulator assembly | 58860-16010 |
| 58863C | CONDUITE, BOITE DE CONSOLE, NO.3 | 58863-12040 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58917 | Armrest box bottom pad No. 2 | 58917-16020 · 58917-16021 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-16080 |
