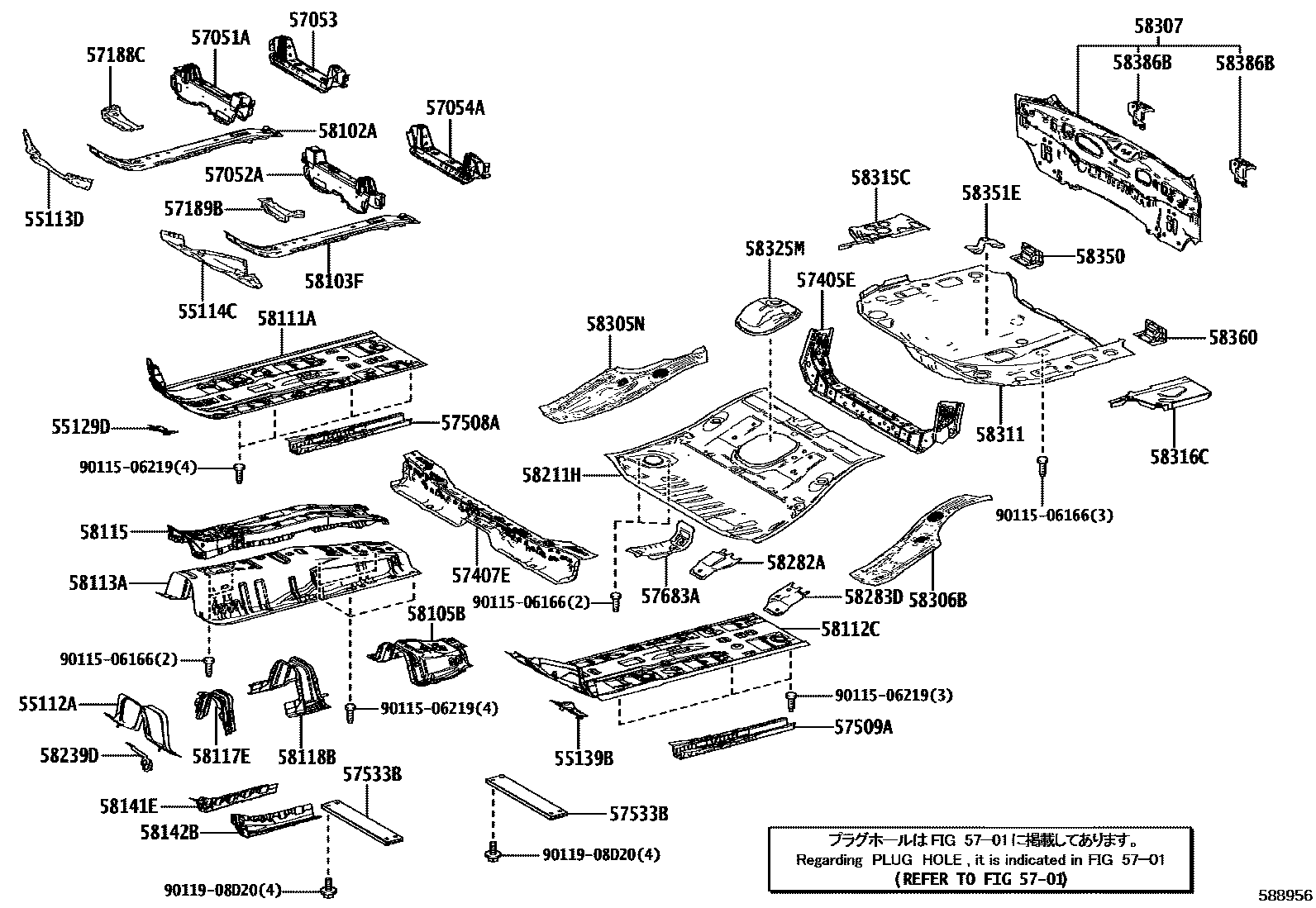

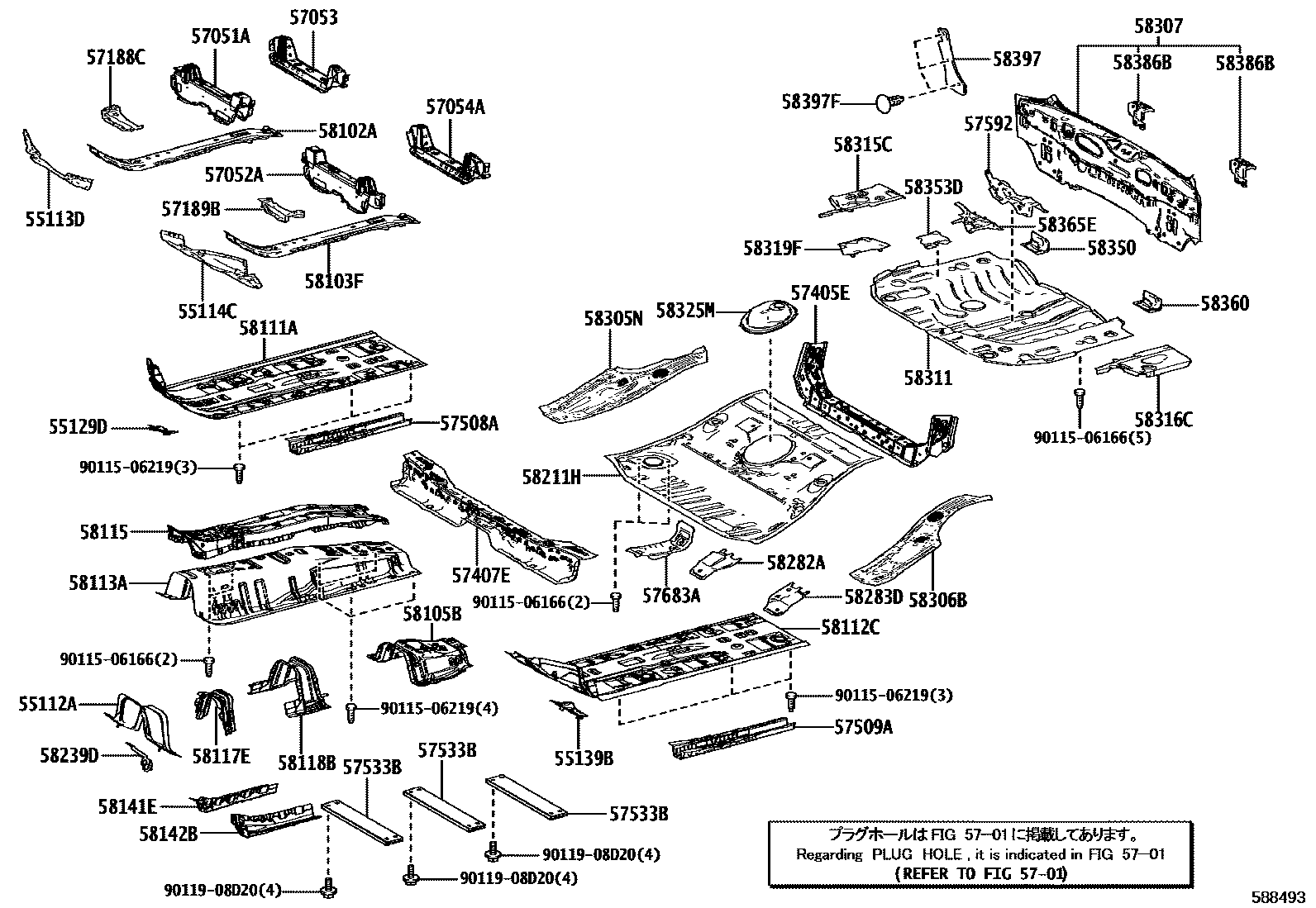

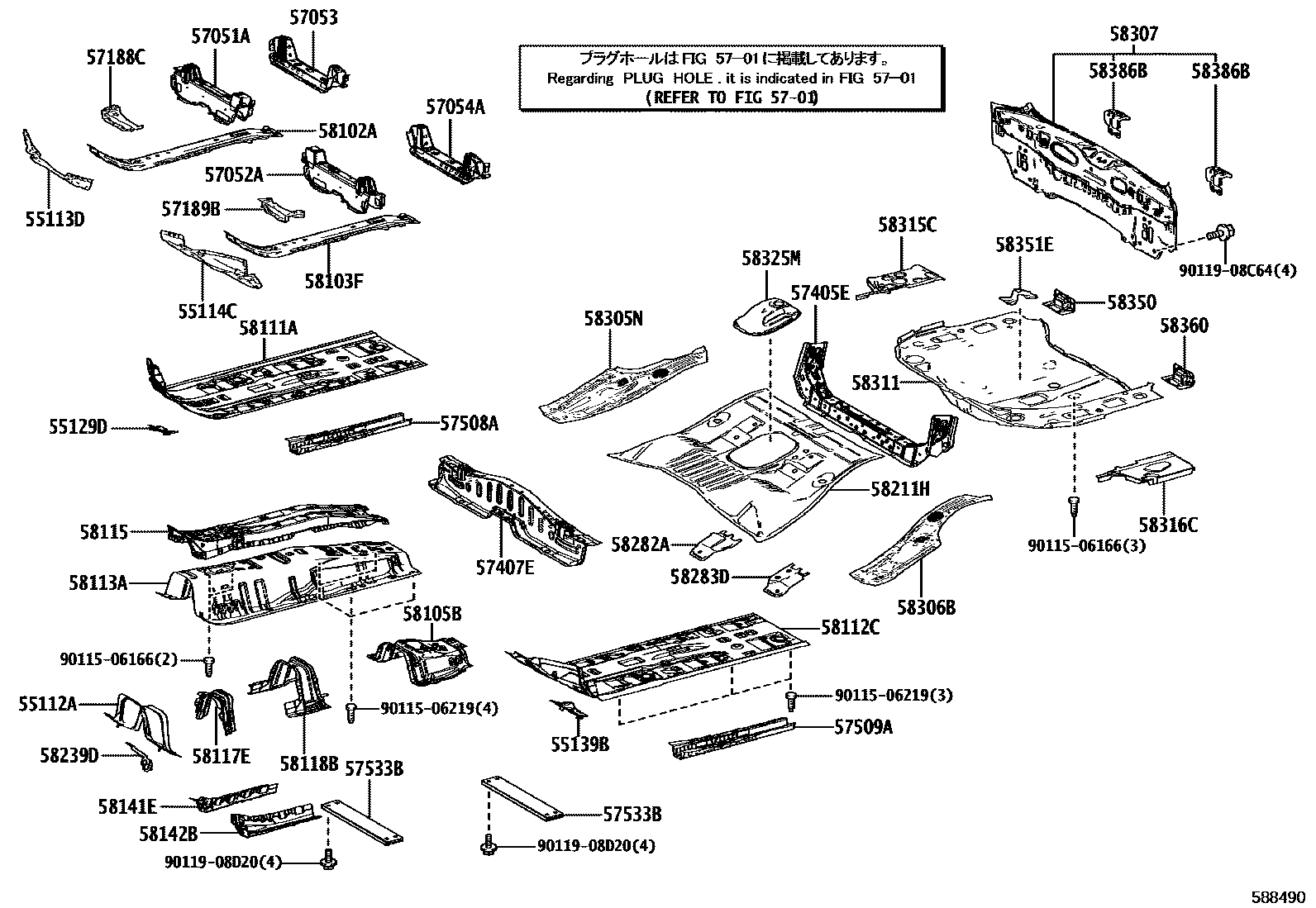

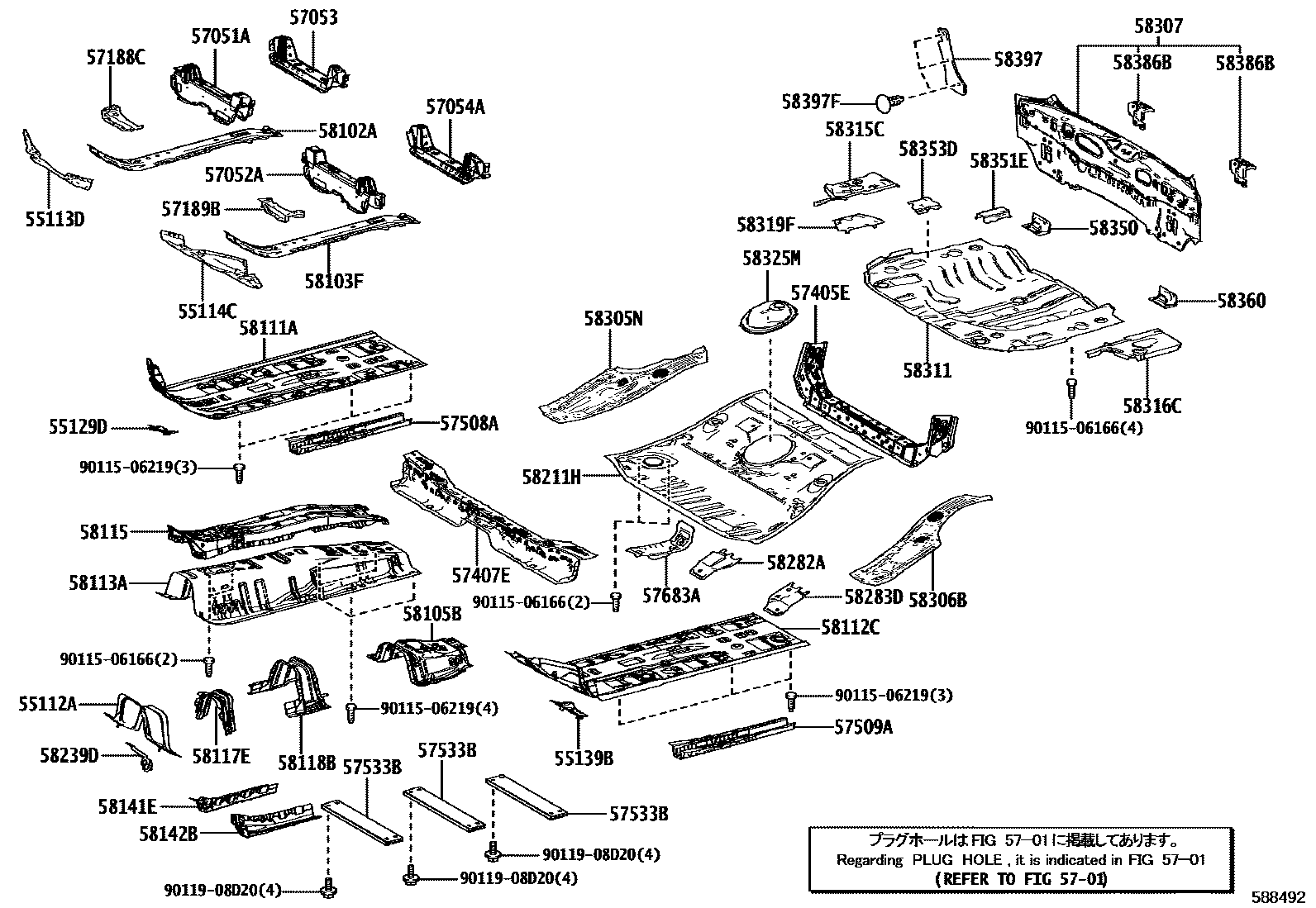

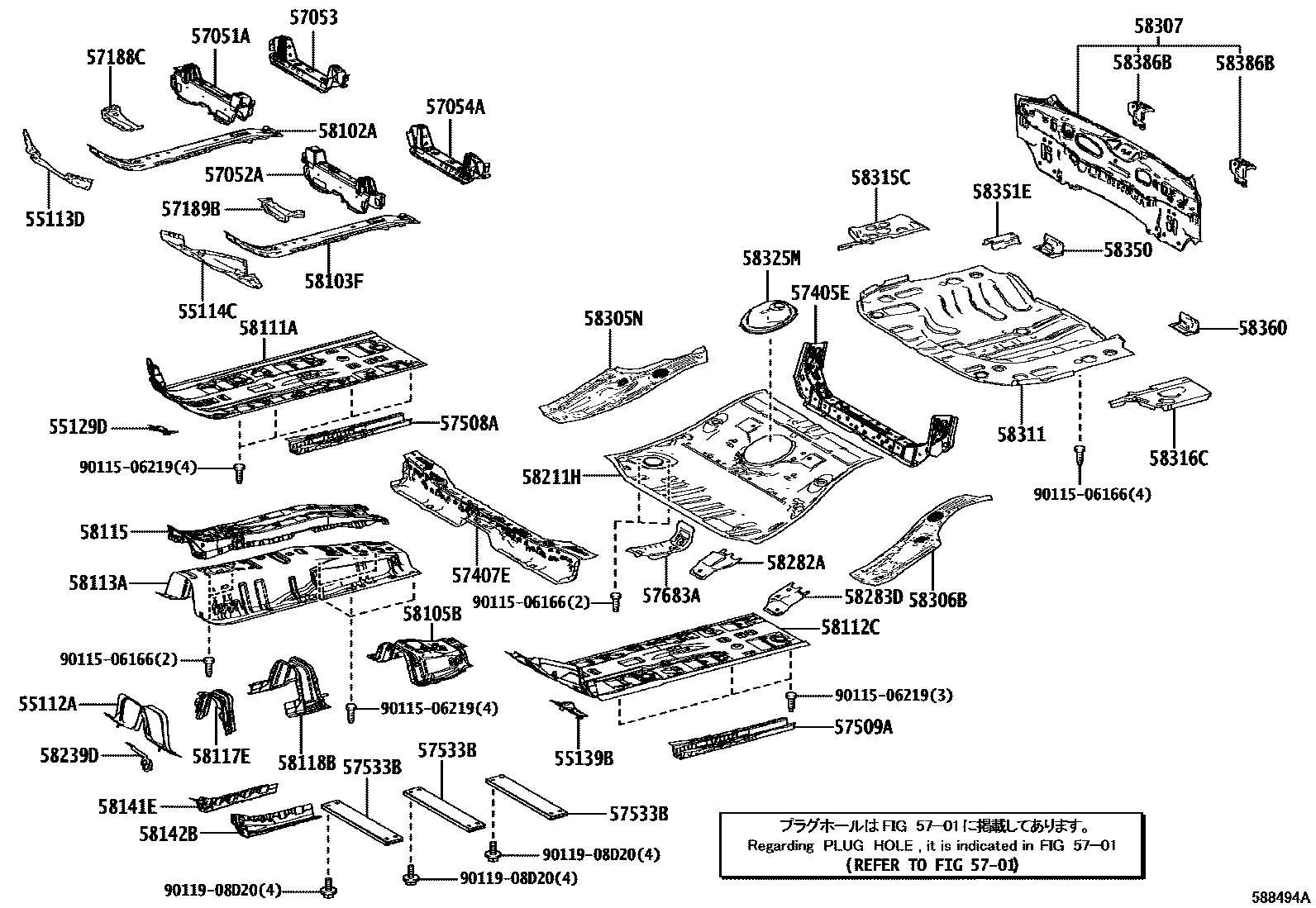

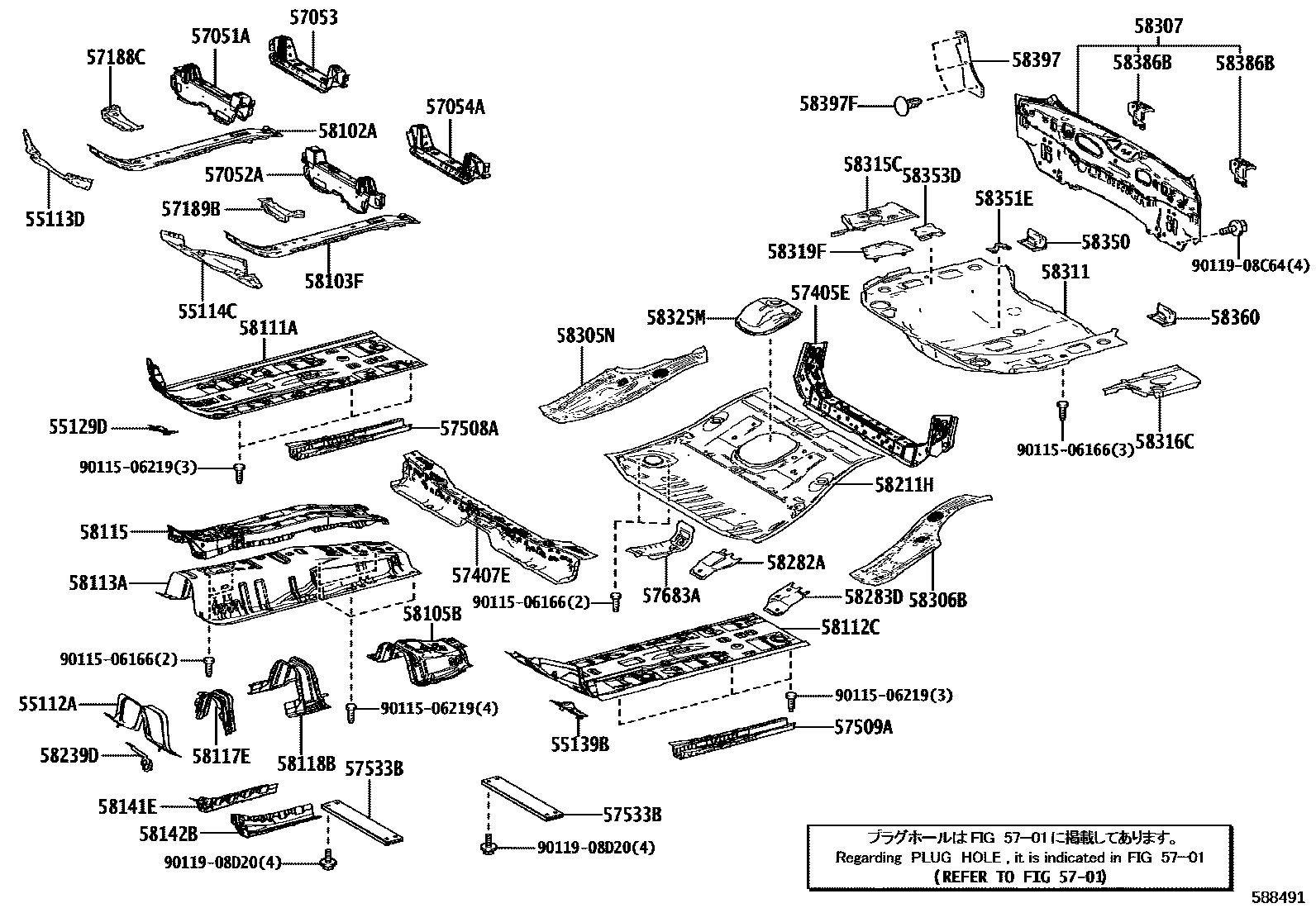

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 6 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55112A | PANNEAU, TABLIER, NO.2 | 55112-47040 |
| 55113D | PANNEAU, TABLEAU BORD, INFERIEUR MD | 55113-47021 |
| 55114C | PANNEAU, TABLEAU BORD, INFERIEUR MG | 55114-47050 |
| 55129D | Right front panel hole cover | 55129-47021 |
| 55139B | Left front panel hole cover | 55139-47021 |
| 57051A | Front floor right cross member sub-assembly | 57051-10010 |
| 57052A | Front floor left cross member sub-assembly | 57052-10010 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-16010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-16010 |
| 57188C | RENFORCEMENT, EXT. MEMBRE LATERAL AVANT, DR | 57188-47030 |
| 57189B | RENFORCEMENT, EXT. MEMBRE LATERAL AVANT, GA | 57189-47020 |
| 57405E | SOUS-ENS. DE TRAVERSE DE PLANCHER CENTRAL NO. 2 | 57405-12060 |
| 57407E | Center floor beam sub-assembly | 57407-10070 · 57407-47021 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-10010 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-10010 |
| 57533B | Front floor center bracket | 57533-47030 |
| 57592 | Voltage converter rear lower mounting bracket | 57592-47010 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-47042 |
| 58102A | Front floor reinforcement sub-assembly | 58102-47020 |
| 58103F | SS-ENS. RENFORT, PLANCHER AVANT, MG | 58102-47020 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-12010 |
| 58111A | Front floor right bottom panel | 58111-10210 |
| 58112C | Front floor left bottom panel | 58112-10050 |
| 58113A | front floor center panel | 58113-10080 |
| 58115 | Front floor reinforcement | 58115-10010 |
| 58117E | Front floor sub-cover | 58117-47040 |
| 58118B | Front floor reinforcement No. 2 | 58118-47030 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-47011 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-47012 |
| 58211H | central floor base | 58211-16110 · 58211-16120 · 58211-47100 |
| 58239D | Cable clip bracket | 58239-12030 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-16070 · 58282-47050 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-16020 · 58283-47040 |
| 58305N | SOUS-ENS D'EXTENSION, PLANCHER ARRIERE A CUSTODE, DR | 58305-12060 · 58305-47051 |
| 58306B | SOUS-ENS D'EXTENSION, PLANCHER ARRIERE A CUSTODE, GA | 58306-12040 · 58306-47051 |
| 58307 | Body lower back panel sub-assembly | 58307-16471 |
| 58311 | rear floor pan | 58311-16181 · 58311-16190 · 58311-47130 |
| 58315C | Rear floor right side panel extension | 58315-16070 · 58315-16080 |
| 58316C | Rear floor left side panel extension | 58316-16090 |
| 58319F | Rear floor side panel bracket | 58319-16010 |
| 58325M | COUVERCLE, OUVERTURE DE SERVICE PLANCHER AR., NO.1 | 58325-16050 · 58325-16060 · 58325-47051 |
| 58350 | Rear floor right reinforcement assembly | 58350-47010 |
| 58351E | Spare tire clip bracket | 58351-12070 · 58351-16010 |
| 58353D | Rear floor pan to exterior panel extension reinforcement | 58353-16010 |
| 58360 | Rear floor left reinforcement assembly | 58350-47010 |
| 58365E | Rear floor center reinforcement | 58365-12070 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-47020 |
| 58397 | Right lower back panel outer cover | 58397-16030 |
