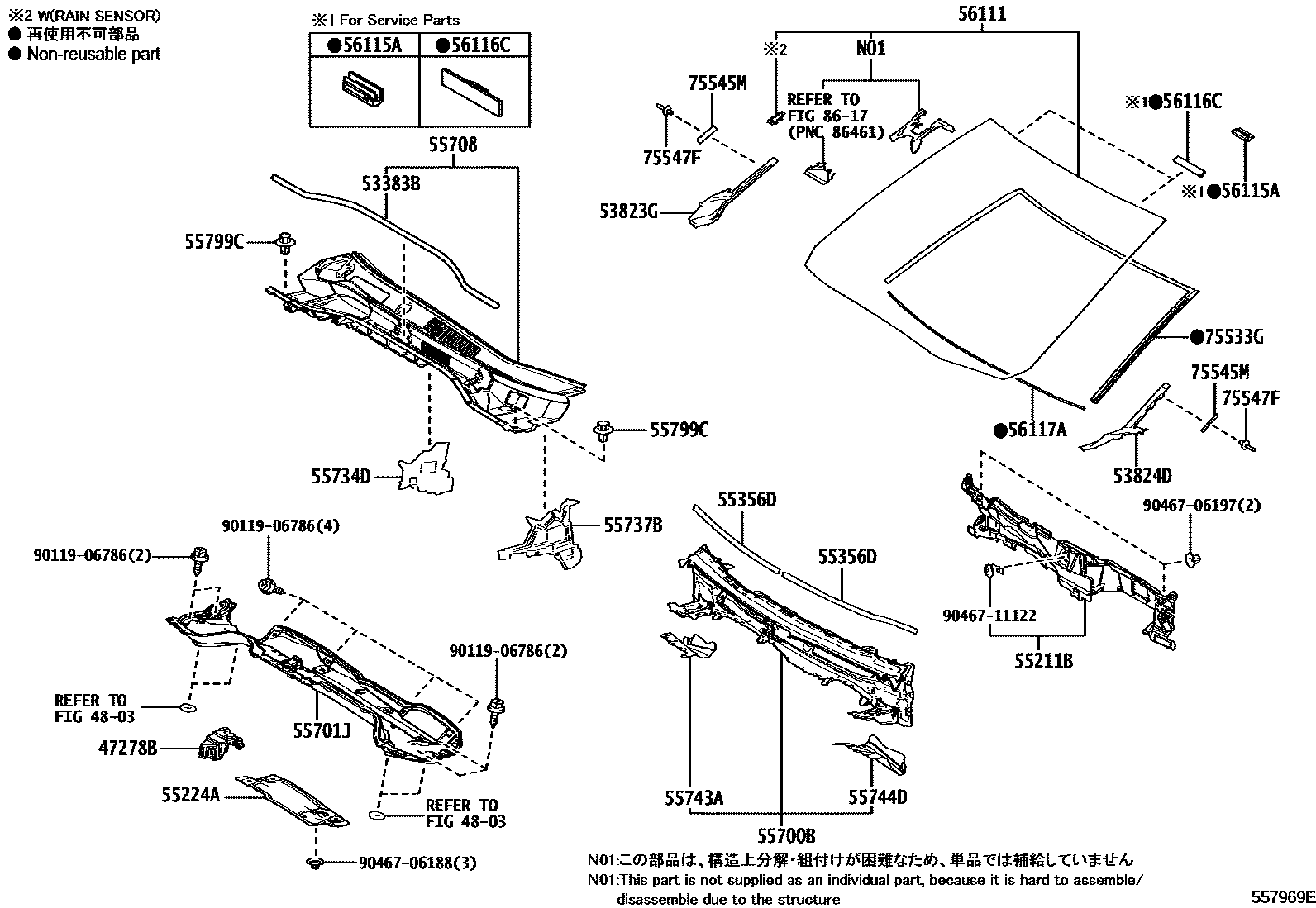

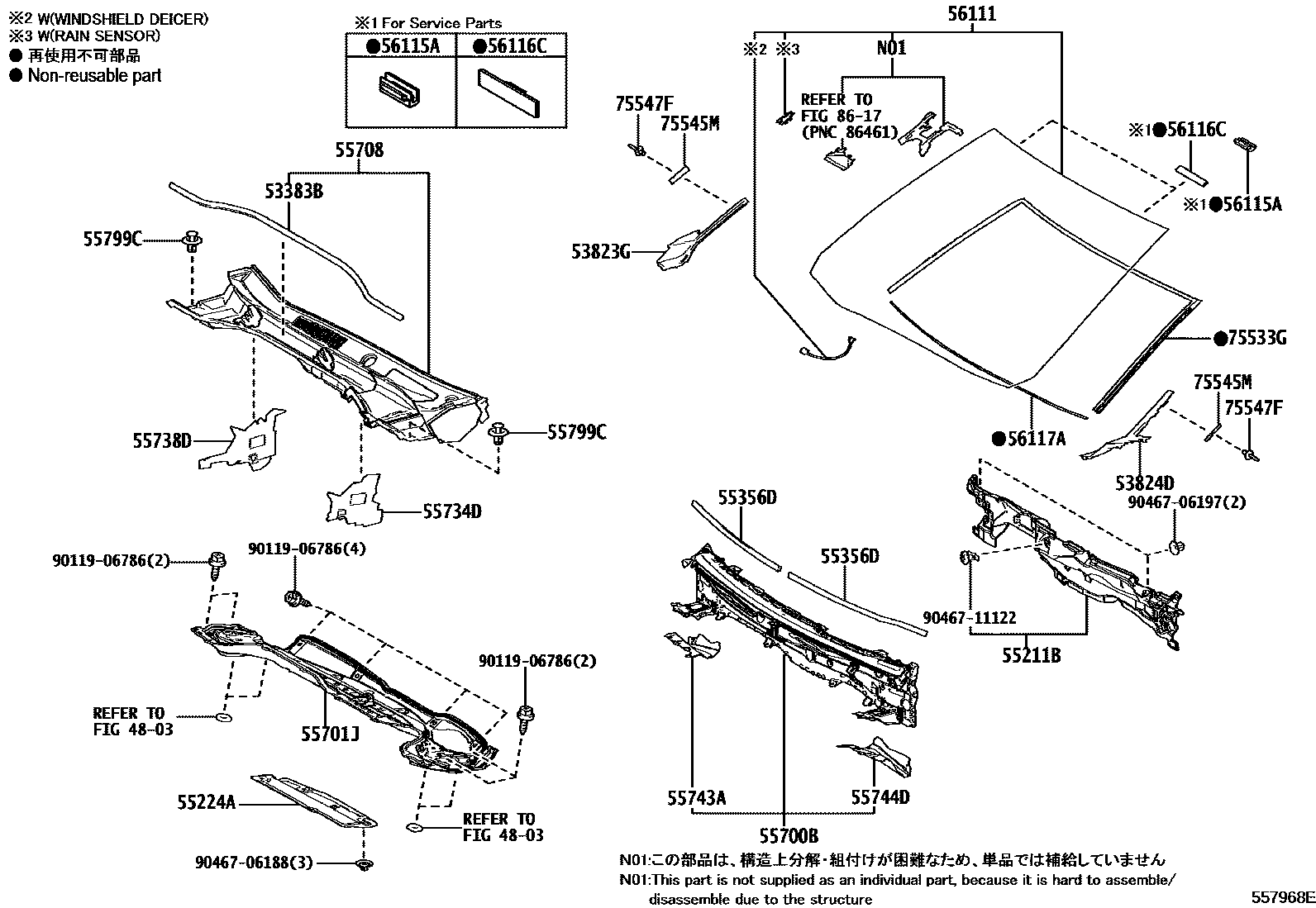

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47278B | COUVER., MAIT.-CYL. FREINS | 47278-10010 |
| 53383B | Engine cover to cowl upper cover seal | 53383-16050 |
| 53823G | No. 2 right front side panel protector | 53823-16010 |
| 53824D | No. 2 left front side panel protector | 53824-16010 |
| 55211B | Front panel silencer | 55211-16200 · 55211-16210 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-16010 · 55224-16020 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-12260 |
| 55700B | ENS. AUVENT | 55700-16380 · 55700-16390 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-16340 · 55701-16350 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-16150 · 55708-16170 |
| 55734D | PLAQUE, PROTECTION EAU | 55734-16040 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-16020 |
| 55738D | No. 2 heater duct splash guard seal | 55737-16030 |
| 55743A | EXTENSION, AUVENT AU COTE D'AUVENT, MD | 55743-16020 |
| 55744D | EXTENSION, AUVENT AU COTE D'AUVENT, MG | 55744-16010 |
| 55799C | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-16904 · 56101-16905 · 56101-16906 · 56101-16907 · 56101-16908 · 56101-16909 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75533-16220 |
| 75545M | ATTACHE, MOULURE EXT PARE-BRISE | 75545-16040 |
| 75547F | ATTACHE, MOULURE EXT PARE-BRISE | 75547-51021 |
