Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

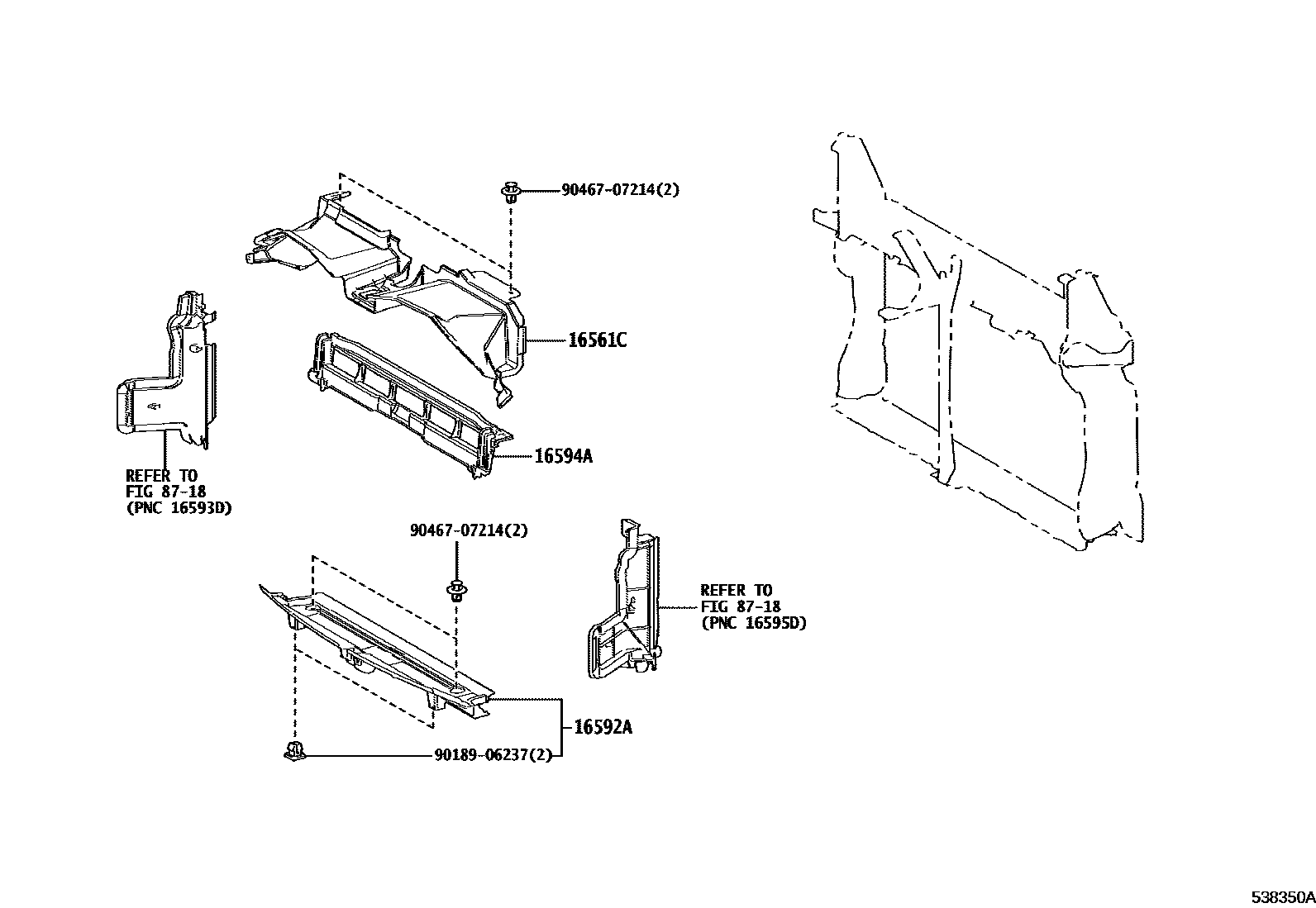

| 16561C | JOINT, RADIATEUR AU SUPPORT, NO.1 | 16561-24040 |
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-24050 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-24040 |
| 53028 | Radiator lower bracket sub-assembly | 53028-12040 |
| 53187A | Radiator right side bracket stay | 53187-16010 |
| 53188B | Radiator left bracket stay | 53188-16010 |
| 53202 | Radiator right side bracket sub-assembly | 53202-16070 |
| 53203 | Radiator left bracket sub-assembly | 53203-16060 |
| 53205 | Radiator upper bracket sub-assembly | 53205-16150 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-16080 |
| 53273F | SUPPORT, FIXATION PIECE DE RETENUE PARE-CHOCS AVANT, MD | 53273-16010 |
| 53274F | SUPPORT, FIXATION PIECE DE RETENUE PARE-CHOCS AVANT, MG | 53274-16010 |
| 53301G | engine cover cushion | 90541-15037 |

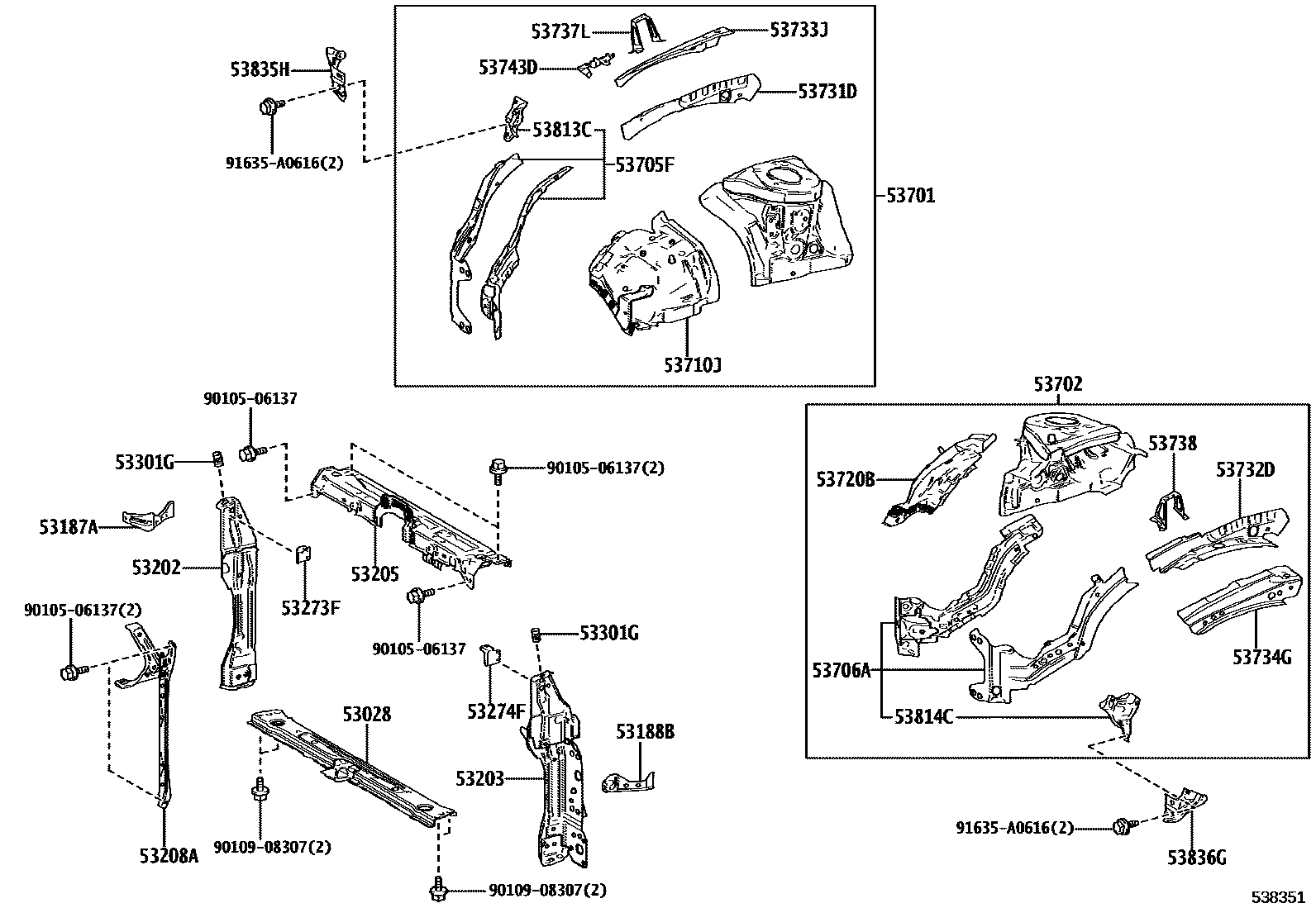

| 53701 | Right front fender fender sub-assembly | 53701-16200 |
| 53702 | Left front fender fender sub-assembly | 53702-16140 |
| 53705F | Right fender fender bracket sub-assembly | 53705-47901 |
| 53706A | Left fender fender bracket sub-assembly | 53706-47901 |
| 53710J | Right front fender fender assembly | 53710-47060 |
| 53720B | Left front fender fender assembly | 53720-47070 |
| 53731D | Right front fender to cowl side upper beam | 53731-47031 |
| 53732D | Left front fender to cowl side upper beam | 53732-47020 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-47020 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-47020 |
| 53737L | Right front fender fender air deflector | 53737-16050 |
| 53738 | Left front fender to front wall side sill | 53738-16020 |
| 53743D | RENFORT, EXTENSION AVANT TABLIER AILE AVANT, MD | 53743-16040 |
| 53813C | Right front fender extension | 53813-47050 |
| 53814C | Left front fender extension | 53814-47030 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-16030 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-16030 |

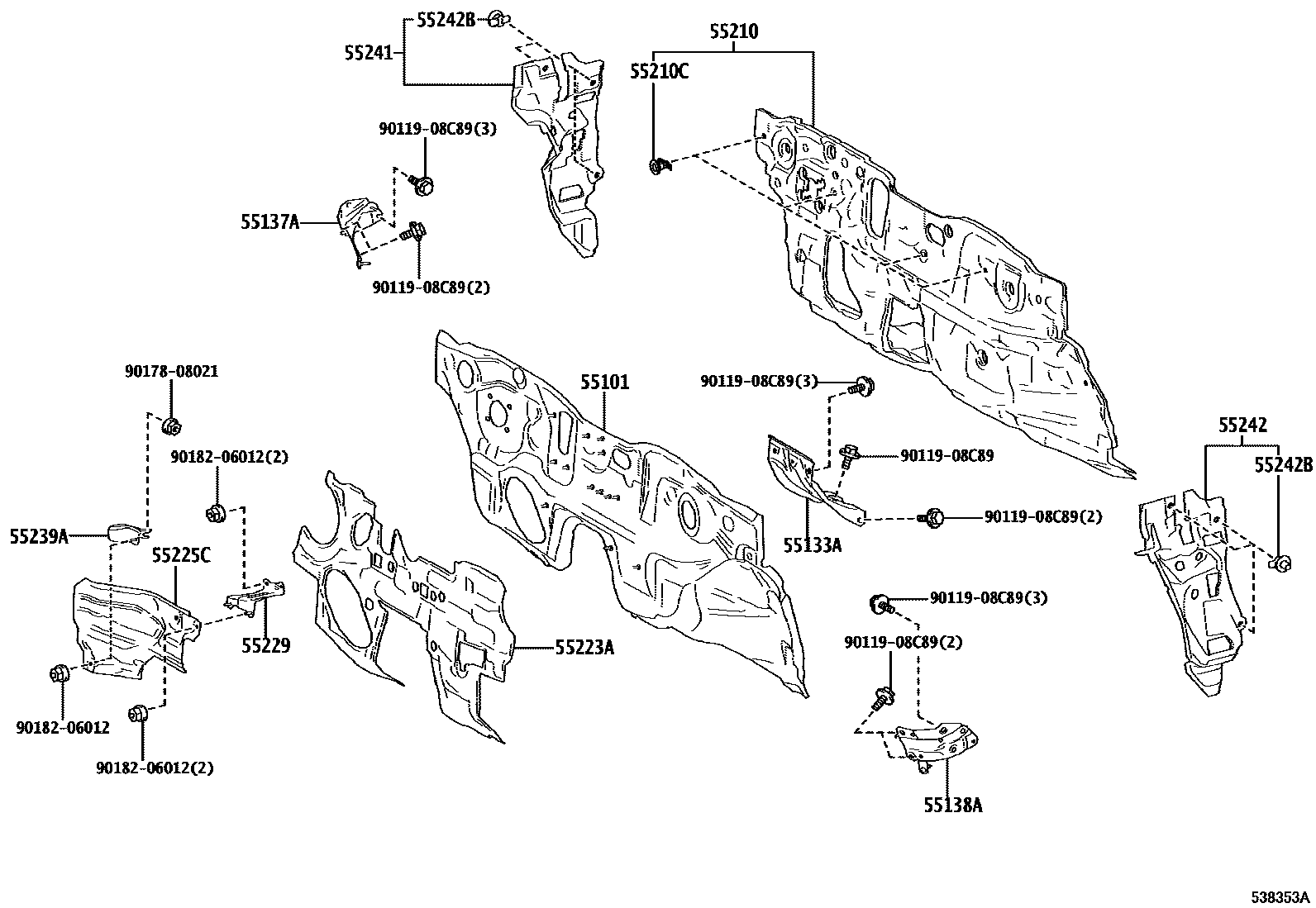

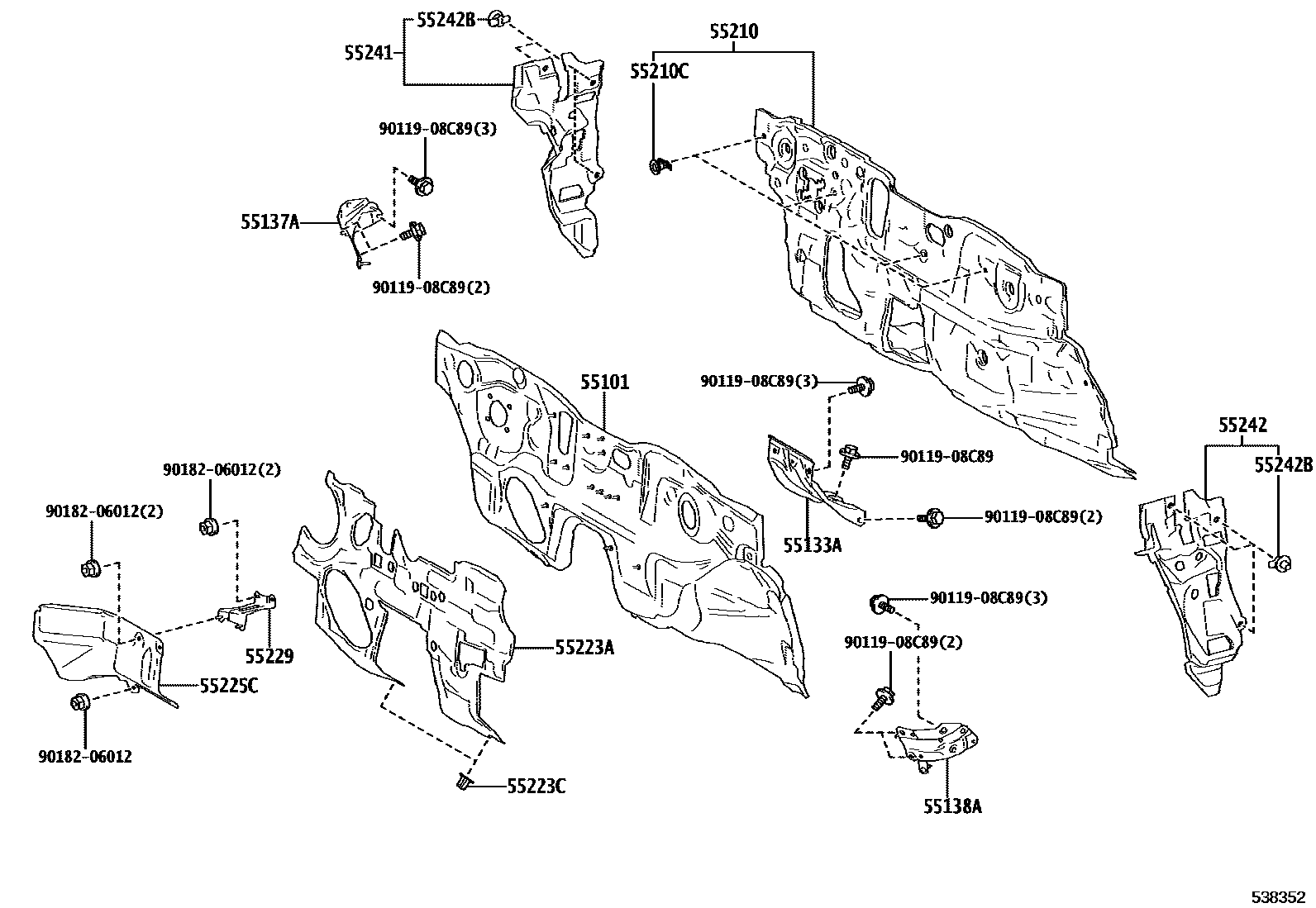

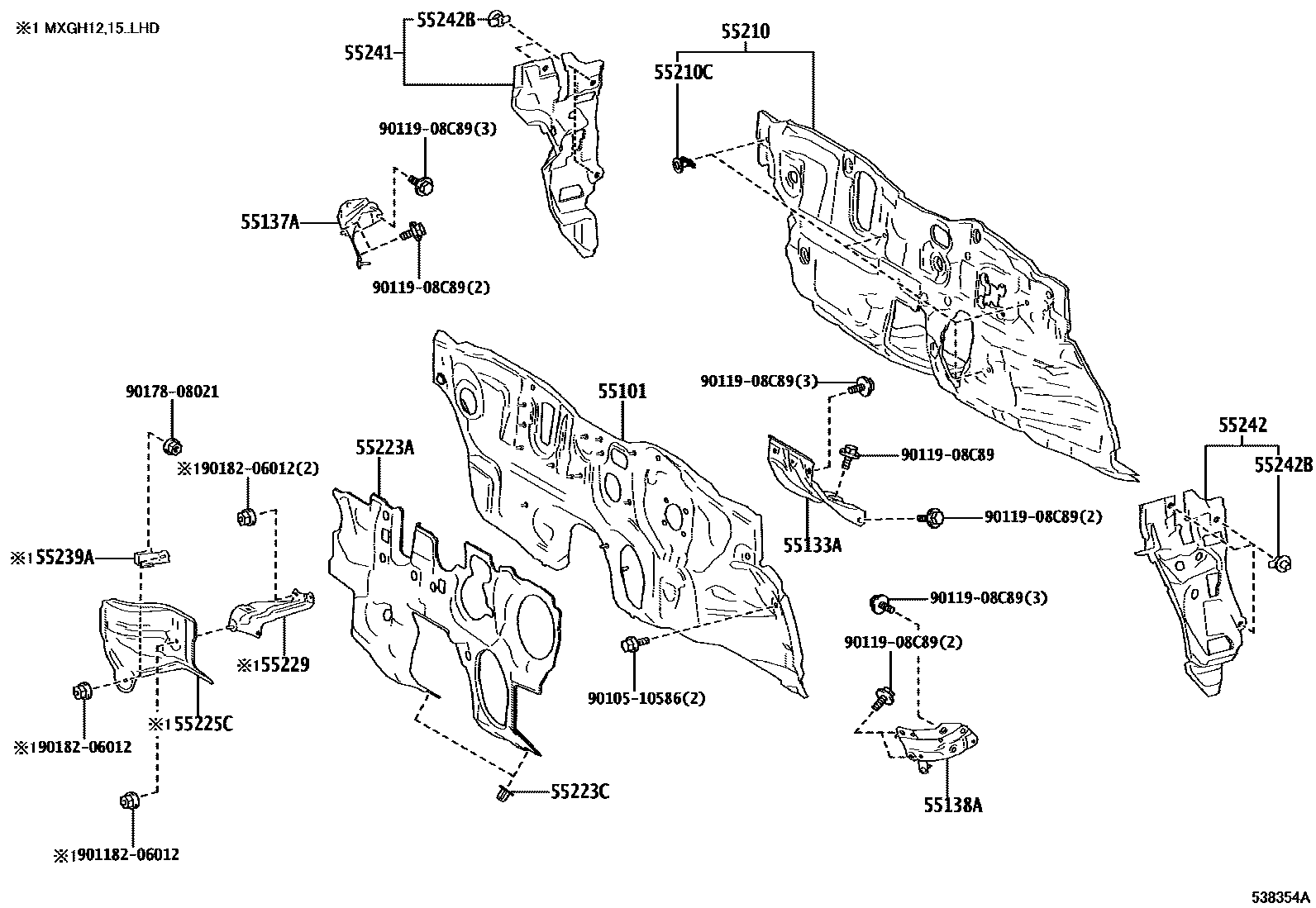

| 55101 | Front apron sub-assembly | 55101-10A01 · 55101-12E00 |
| 55133A | Right reinforcement (front wall to floor) | 55133-47010 |
| 55137A | Right side bracket (front wall to frame) | 55137-47040 |
| 55138A | Left side bracket (front wall to frame) | 55138-47070 |
| 55210 | Front wall insulation pad assembly | 55210-12730 · 55210-16200 · 55210-16210 · 55210-47260 |
| 55210C | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-47090 · 55223-47100 |
| 55223C | clip | 90467-06197 |
| 55225C | ISOLANT, THERMIQUE TABLEAU BORD | 55225-12030 · 55225-16010 · 55225-76011 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-10020 · 55229-76010 |
| 55239A | No. 3 insulation pad for front wall panel | 55228-16010 · 55228-16020 |
| 55241 | Front panel No. 1 right side silencer | 55241-12030 |
| 55242 | Front panel No. 1 left side silencer | 55242-12010 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
